Rittal 7010030 DK Power Unit for power supply and control of

Your rating:
Average rating
product review for Rittal 7010030 DK Power Unit for power supply and control of
( 4 / 5 ) 1 ratings
Rittal 7010030
This image may differ from the desired article.
Rittal 7010030Rittal 7010030Rittal 7010030Rittal 7010030
329,13 EUR 343,21 EUR
( 391,66 EUR incl. VAT )
≈ £275.48  |  ≈ $361.71
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 7010030 DK Power Unit for power supply and control of
Datasheet:file_download Download
Lieske Part No.:894301
Mfg Part No: 7010030
UPC/EAN: 4069196000634
Weight:0.123 kg
Type:DK 7010030

Product information for Rittal 7010030:

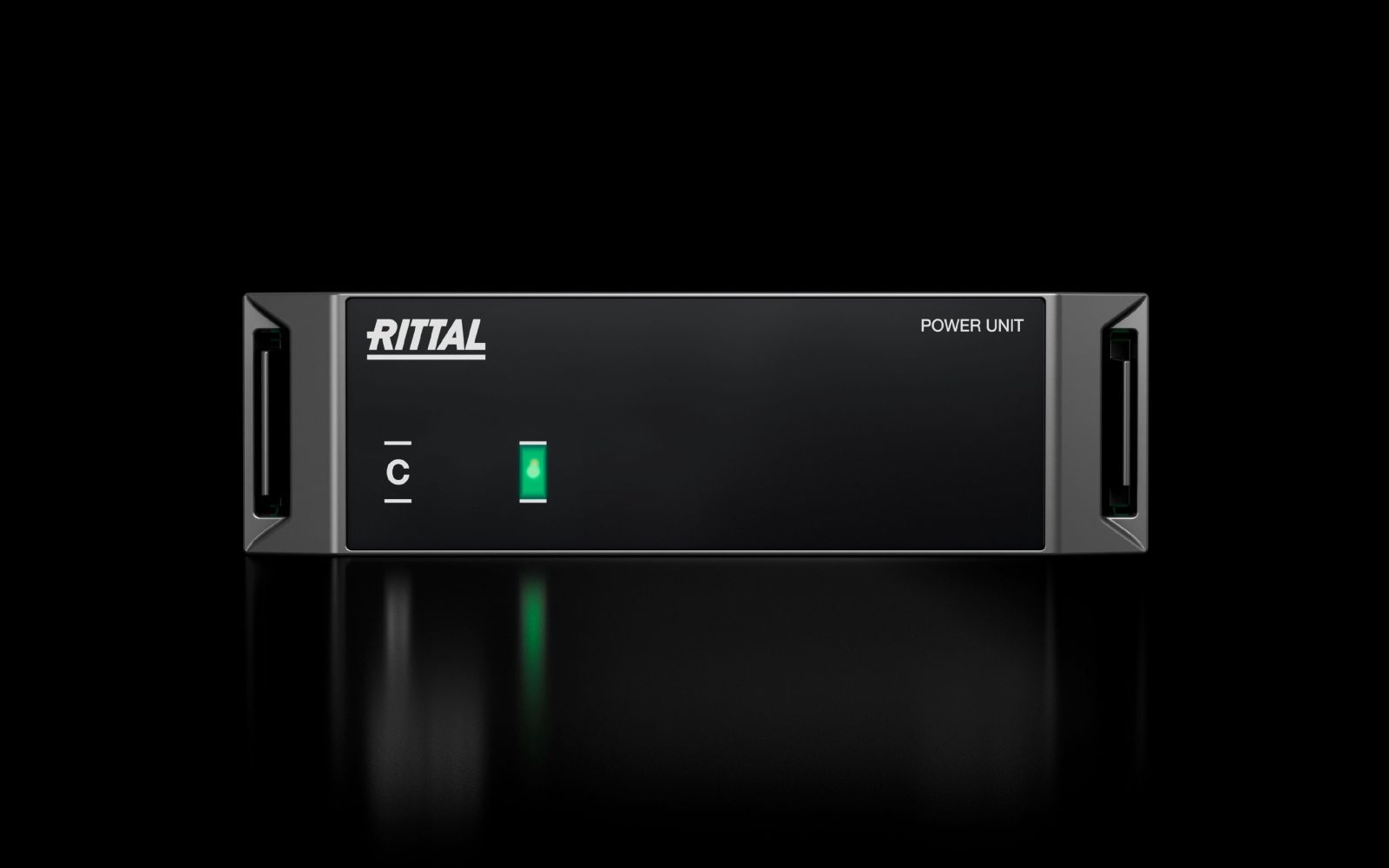

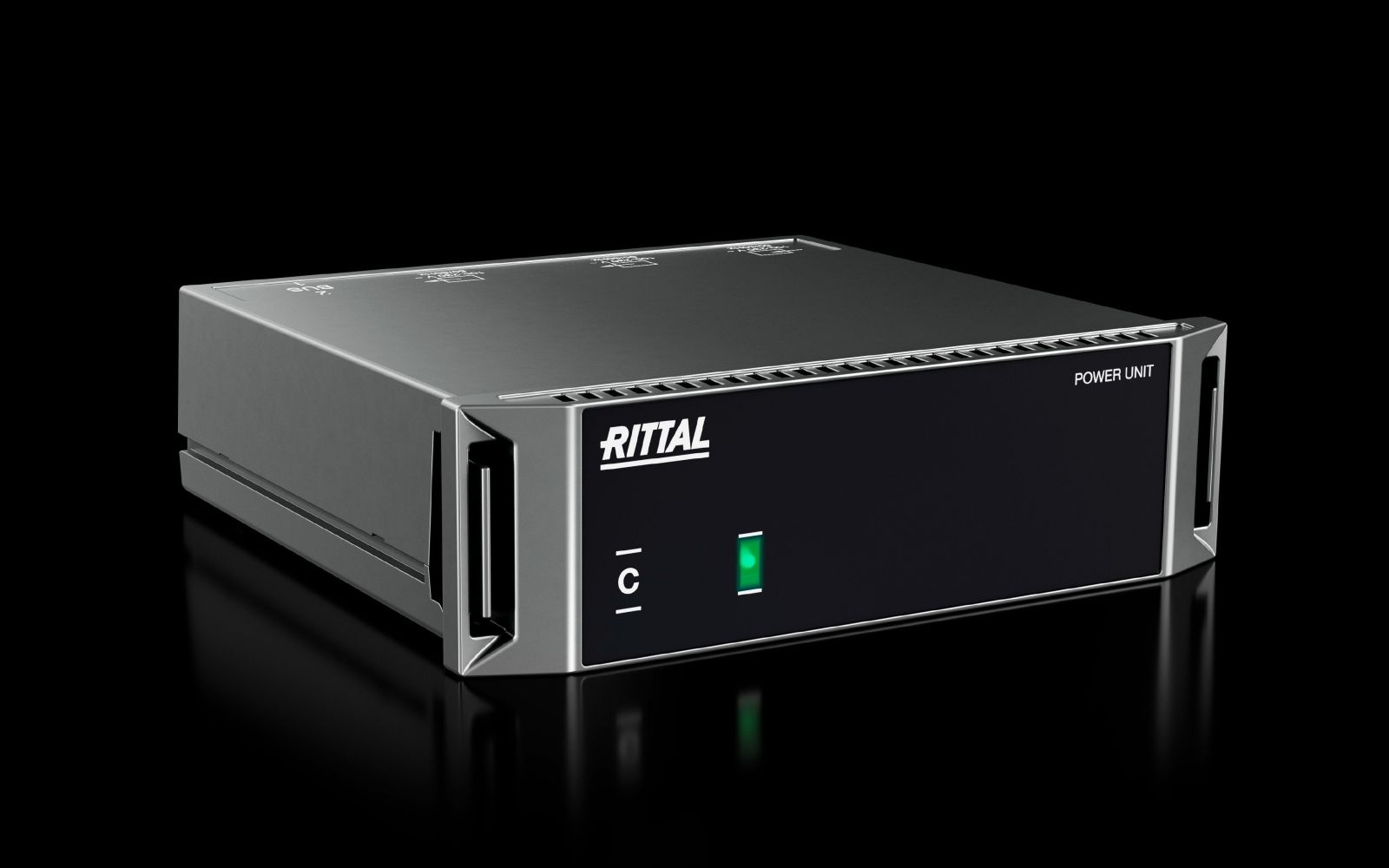

The Rittal DK 7010030 is a Power Unit for power supply and control of consumers in IT enclosure environments, industry, and building technology. The device is used for monitoring and controlling enclosures, rooms, and containers in IT environments, enabling automated management of fans, heaters, and other electrical devices. The unit is compact and offers two electrical outputs with C13 sockets, designed for a voltage of 100 to 230 V and a total current of up to 10 A at 50/60 Hz. The operating temperature ranges from 0 °C to 40 °C, with humidity allowed in the non-condensing range of 5 % to 95 %.

Applications

The Power Unit is specifically designed for use in enclosed enclosure environments where intelligent power distribution and monitoring are required. It is used in IT infrastructures, industrial control systems, and building technology systems to control the power supply for consumers such as fans, heaters, or other electrical devices. The unit enables monitoring of enclosures, rooms, and containers, ensuring efficient maintenance and preventive operation.

Functions and Equipment in Detail

The DK 7010030 switches two outputs via relays, allowing control of power supply to connected devices. Each output is individually monitored, measuring voltage, current, power, and energy. These measured values can be used for automatic switching logic, for example, to activate fans when a certain temperature is reached. Additionally, manual switching is possible via the CMC III, the PDU, or an IoT control interface. The unit is thus integrable into existing monitoring and control systems.

Technology Explained Simply

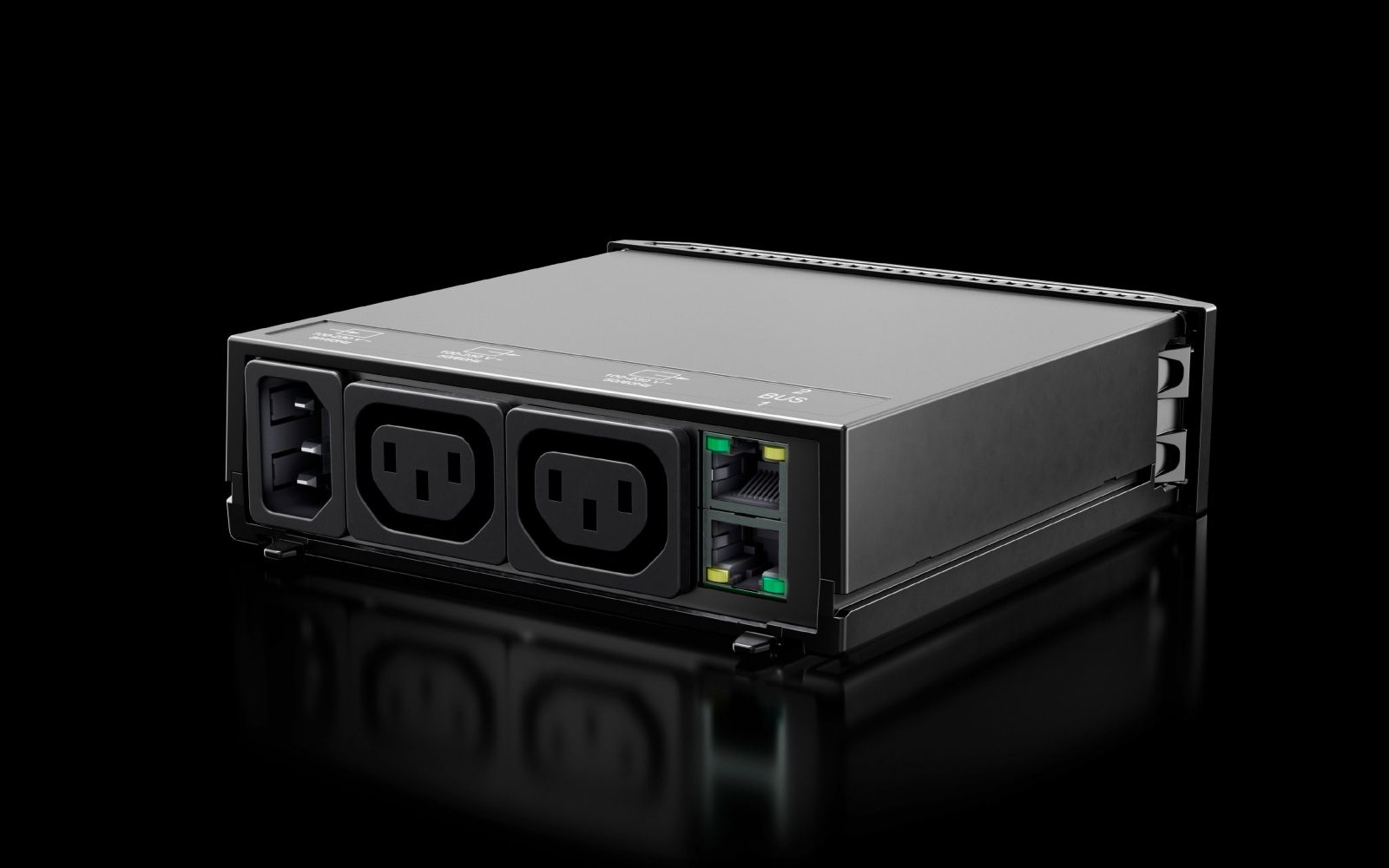

Power supply is achieved via two relays that switch the input to the two outputs. This enables flexible and safety-relevant control of connected devices. The measurement functions allow precise monitoring of electrical parameters, enabling early detection of deviations or malfunctions. The interfaces consist of two RJ45 ports for CAN-Bus, enabling communication with other devices in the network. The enclosure surface is structured, the front is smooth, and the housing is made of plastic in the colour RAL 9005.

Compatibility and Accessories

The Power Unit is designed for use in systems with CAN-Bus interfaces and can be connected to devices such as the CMC III, PDUs, or IoT interfaces. Communication occurs via the two RJ45 CAN-Bus interfaces, ensuring integration into existing control and monitoring systems. The unit is designed for use in IT and industrial environments and meets requirements for reliable power supply and regulation.

Mounting and Installation

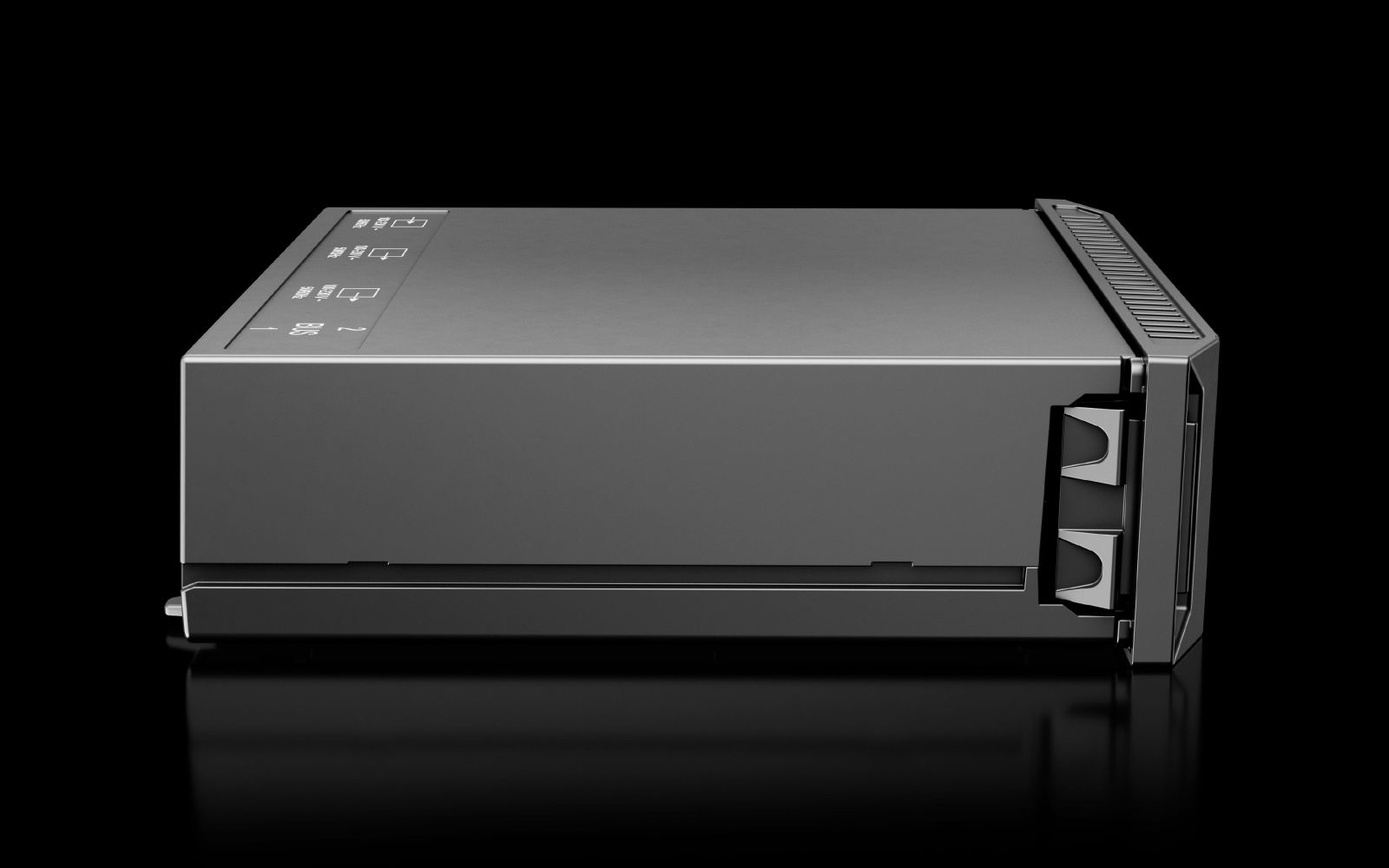

The DK 7010030 is mounted on flat surfaces, with mounting hardware included in the delivery. Dimensions are 138 mm (width) × 40 mm (height) × 132 mm (depth), allowing compact placement in enclosures. Mounting is done on flat surfaces, with the included fasteners ensuring secure anchoring. The unit is designed for indoor use, with operating temperature and humidity required to remain within specified limits.

Advantages in Operation

The Power Unit provides intelligent control of connected consumers, achieving optimized power distribution and utilization. The automatic switching function based on measured values enables reactive and preventive operation. Integration into existing systems via CAN-Bus and the option for manual control via various interfaces increases flexibility and utility of the device. The compact design and robust construction from plastic in RAL 9005 ensure long-lasting and reliable use in industrial and IT environments.

General
ModelPower Unit
ApplicationsMonitoring of cabinets in IT, industry and building technology. Monitoring of cabinets, rooms and containers in IT environment.
Function principleSwitches 2 outputs, measures voltage, current, power, energy, controls and switches fans, heaters, loads
MaterialPlastic
Surface protectionFront: smooth, Housing: textured
ColourRAL 9005
Scope of deliveryPower Unit, including mounting hardware for surface mounting
Interfaces2 x RJ45 CAN-bus
Width138 mm
Height40 mm
Depth132 mm
Operating temperature range0 °C...40 °C
Humidity (non-condensing)5...95 %


Product data sheet
Datasheet for Rittal 7010030, EAN: 4069196000634

Questions & answers

What is the delivery time of Rittal 7010030 DK Power Unit for power supply and control of?

The article Rittal 7010030 DK Power Unit for power supply and control of is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 7010030 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 7010030 DK Power Unit for power supply and control of always at the best possible price. We can give you a discount of 2% on Rittal 7010030 DK Power Unit for power supply and control of if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
