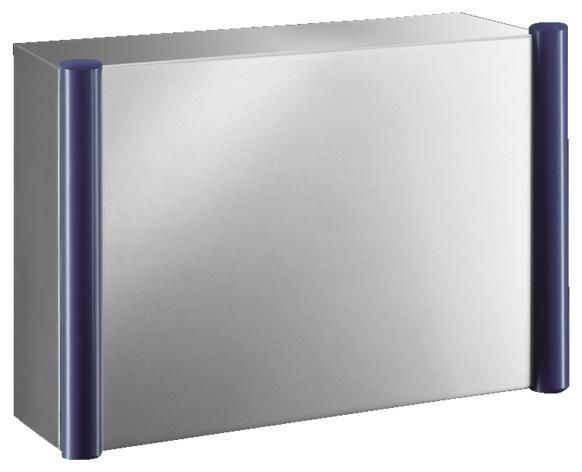

Rittal 6539010 CP Command panel housing with door, WHD: 600x400x150 mm, Stainless steel 1.4301
|
478,40 EUR 498,19 EUR |
|
|
( 569,30 EUR incl. VAT ) ≈ £411.42 | ≈ $545.38 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 653472 |
|---|---|
| Mfg Part No: | 6539010 |
| UPC/EAN: | 4028177220393 |
| Weight: | 12.15 kg |
Further System Accessories from RittalFurther products in category System Accessories
All products of Rittal
Product information for Rittal 6539010:
Material: Enclosure and door: Stainless steel 1.4301 (AISI 304)
Handle strips: Plastic approved for use with foodstuffs, dyed blue
Surface finish: Brushed, grain 240
Colour: Handle strips: similar to RAL 5002
Protection category IP to IEC 60 529: IP 66
Protection category NEMA: NEMA 12
Supply includes: Enclosure of all-round solid construction
Cut-out and reinforcement for support arm system CP 40 stainless steel
Fastener with guide plate
Door with sealing frame and side handle strips
Lock: 3 mm double-bit
Note: The support arm connection and door hinge may be swapped over by rotating the enclosure
Matching mounting plates from compact enclosures AE may be used
3 mm double-bit lock insert may be exchanged for 41 mm lock inserts, plastic handles and T handles, type C
Note on Model No.: Matching mounting panel 5050.436
Packs of: 1 pc(s).
EAN: 4028177220393
Customs tariff number: 94032080
eCl@ss 5.1: 27180505
eCl@ss 7.0: 27180505
ETIM 6.0: EC002504
Dimensions: Width: 600 mm
Height: 400 mm
Depth: 150 mm
Weight/pack: 12.1 kg
Type: CP 6539010
Handle strips: Plastic approved for use with foodstuffs, dyed blue
Surface finish: Brushed, grain 240
Colour: Handle strips: similar to RAL 5002
Protection category IP to IEC 60 529: IP 66
Protection category NEMA: NEMA 12
Supply includes: Enclosure of all-round solid construction
Cut-out and reinforcement for support arm system CP 40 stainless steel
Fastener with guide plate
Door with sealing frame and side handle strips
Lock: 3 mm double-bit
Note: The support arm connection and door hinge may be swapped over by rotating the enclosure
Matching mounting plates from compact enclosures AE may be used
3 mm double-bit lock insert may be exchanged for 41 mm lock inserts, plastic handles and T handles, type C
Note on Model No.: Matching mounting panel 5050.436
Packs of: 1 pc(s).
EAN: 4028177220393
Customs tariff number: 94032080
eCl@ss 5.1: 27180505
eCl@ss 7.0: 27180505
ETIM 6.0: EC002504
Dimensions: Width: 600 mm
Height: 400 mm
Depth: 150 mm
Weight/pack: 12.1 kg
Type: CP 6539010
