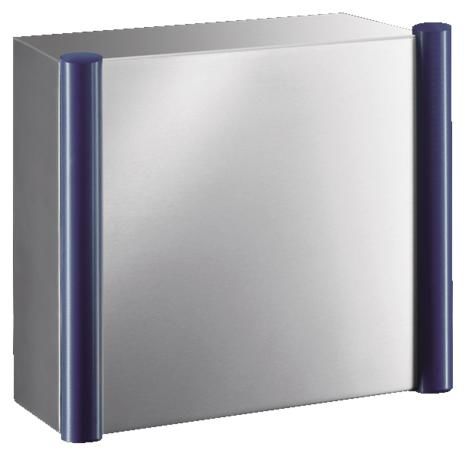

Rittal 6538010 CP Command panel housing with door, WHD: 400x400x150 mm, Stainless steel 1.4301

Your rating:
Average rating
product review for Rittal 6538010 CP Command panel housing with door, WHD: 400x400x150 mm, Stainless steel 1.4301
( 4.5 / 5 ) 67 ratings
Rittal 6538010
This image may differ from the desired article.
428,95 EUR 446,11 EUR
( 510,45 EUR incl. VAT )
≈ £368.90  |  ≈ $489.00
plus delivery charges: 83,00 €
On order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 6538010 CP Command panel housing with door, WHD: 400x400x150 mm, Stainless steel 1.4301
Printing view Bookmark Wholesale Inquiry
Lieske Part No.:908252
Mfg Part No: 6538010
UPC/EAN: 4028177220386
Weight:8.85 kg
Further System Accessories from RittalFurther products in category System Accessories All products of Rittal

Product information for Rittal 6538010:

Material: Enclosure and door: Stainless steel 1.4301 (AISI 304)
Handle strips: Plastic approved for use with foodstuffs, dyed blue
Surface finish: Brushed, grain 240
Colour: Handle strips: similar to RAL 5002
Protection category IP to IEC 60 529: IP 66
Protection category NEMA: NEMA 12
Supply includes: Enclosure of all-round solid construction
Cut-out and reinforcement for support arm system CP 40 stainless steel
Fastener with guide plate
Door with sealing frame and side handle strips
Lock: 3 mm double-bit
Note: The support arm connection and door hinge may be swapped over by rotating the enclosure
Matching mounting plates from compact enclosures AE may be used
3 mm double-bit lock insert may be exchanged for 41 mm lock inserts, plastic handles and T handles, type C
Note on Model No.: Matching mounting panel 5050.453
Packs of: 1 pc(s).
EAN: 4028177220386
Customs tariff number: 94032080
eCl@ss 5.1: 27180505
eCl@ss 7.0: 27180505
ETIM 6.0: EC002504

Dimensions: Width: 400 mm
Height: 400 mm
Depth: 150 mm
Weight/pack: 8.8 kg
Type: CP 6538010
