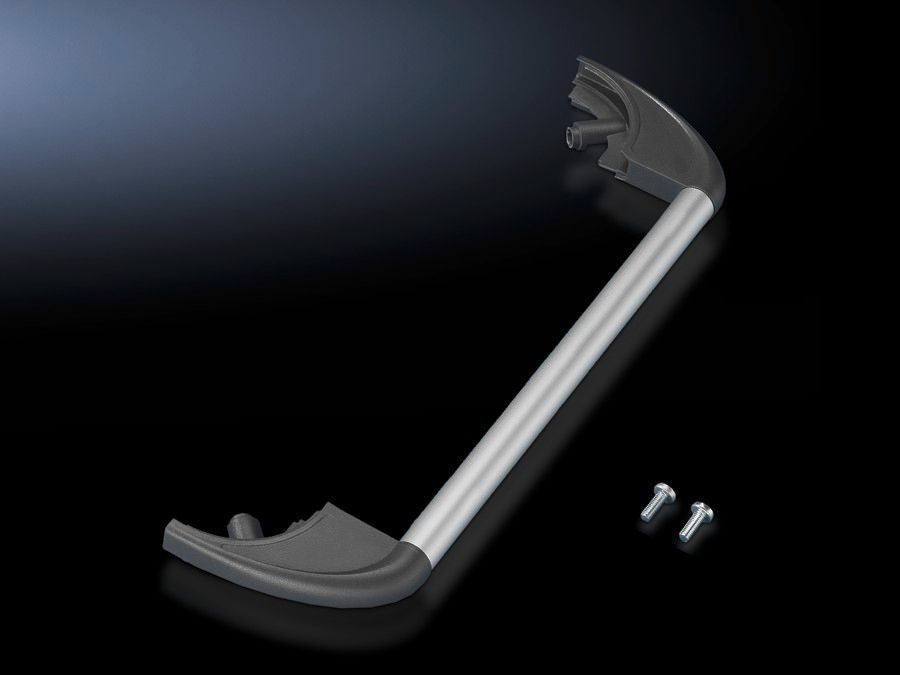

Rittal 6375010 Handle set for Comfort-Panel
|
-24% 40,60 EUR 53,10 EUR |
|
|
( 48,31 EUR incl. VAT ) ≈ £33.98 | ≈ $44.62 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 357958 |
| Mfg Part No: | 6375010 |
| UPC/EAN: | 4028177483200 |
| Weight: | 0.596 kg |
| Type: | CP 6375010 |
Product information for Rittal 6375010:
Material: Handle tube: Aluminium
Handle holder: Die-cast zinc
Covers: Polyamide
Surface finish: Handle tube: Natural anodised
Handle holder: Powder-coated
Colour: Handle holder: RAL 7024
Covers: Similar to RAL 7024
Supply includes: Handle tube, Ø 20 mm
2 handle holders
2 covers
Assembly parts
Note: If necessary, the size may be shortened by cutting the handle tube down to size
For enclosures with 74 mm depth, cannot be mounted on the same side as the support arm connection
Packs of: 1 pc(s).
EAN: 4028177483200
Customs tariff number: 76169990
eCl@ss 5.1: 27189220
eCl@ss 7.0: 27189266
ETIM 6.0: EC002626
Design: For horizontal mounting
To fit front panels: with width: 482.6 mm
Weight/pack: 0.64 kg
| General | |
| Model | For horizontal mounting |
| Material | Handle tube: Aluminium, Handle holder: Zinc die-cast, Covers: Polyamide |
| Surface protection | Handle tube: natural anodized, handle holder: powder-coated |
| Colour | Handle holder: RAL 7024, covers: similar to RAL 7024 |
| Scope of delivery | Handle tube, Ø 20 mm, 2 handle brackets, 2 covers, mounting material |
| Note | If required, the length can be shortened by cutting the handle tube. Installation on housings with mounting depth 74 mm is not possible on the same side as the mounting arm connection. |
| Suitable for front panel width | 482,6 mm |
Questions & answers
What is the delivery time of Rittal 6375010 Handle set for Comfort-Panel?
The article Rittal 6375010 Handle set for Comfort-Panel is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 6375010 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 6375010 Handle set for Comfort-Panel always at the best possible price. We can give you a discount of 2% on Rittal 6375010 Handle set for Comfort-Panel if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
