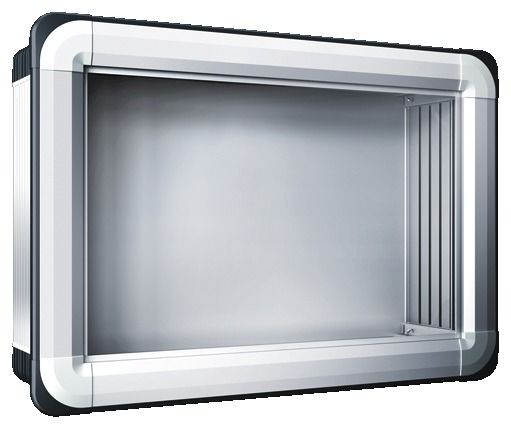

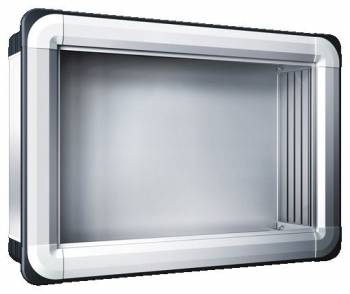

Rittal 6372541 CP Compact Panel, for front panel BH 520x400 mm, installation depth 74 mm
|
-6% 381,11 EUR 407,27 EUR |
|
|
( 453,52 EUR incl. VAT ) ≈ £326.99 | ≈ $441.71 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 360194 |
|---|---|
| Mfg Part No: | 6372541 |
| UPC/EAN: | 4028177663060 |
| Weight: | 0.123 kg |
Further Switchboard-Systems from RittalFurther products in category Switchboard-Systems
All products of Rittal
Product information for Rittal 6372541:
Benefits: Aluminium enclosure, high thermal conductivity for optimum passive heat dissipation.
Low weight coupled with high stability
Compatible with all Rittal stand and support arm systems
Material: Enclosure: Extruded aluminium section
Corner pieces: Die-cast zinc
Corner protectors: Plastic
Colour: Enclosure: Natural anodised.
Corner pieces: RAL 7035
Corner protectors: similar to RAL 7024
Protection category IP to IEC 60 529: IP 65
Protection category NEMA: NEMA 12
Supply includes: Enclosure with hinged rear panel
Seals and assembly parts for front panels.
Note: The support arm connection may be swapped over by rotating the enclosure
3 mm double-bit lock insert may be exchanged for 41 mm lock inserts, plastic handles and T handles, type C
Hinging of the rear panel on the longest enclosure side
Packs of: 1 pc(s).
EAN: 4028177663060
Customs tariff number: 94039010
eCl@ss 5.1: 27180505
eCl@ss 7.0: 27180505
ETIM 6.0: EC002504
Design: Support arm connection, rectangular 120 x 65 mm
For the configuration of subracks: To fit front panel width: 520 mm
Installation depth: 74 mm
To fit front panels: with width: 520 mm
with height: 400 mm
Lock version: Screw lock
Weight/pack: 7.8 kg
Type: CP 6372541
Low weight coupled with high stability
Compatible with all Rittal stand and support arm systems
Material: Enclosure: Extruded aluminium section
Corner pieces: Die-cast zinc
Corner protectors: Plastic
Colour: Enclosure: Natural anodised.
Corner pieces: RAL 7035
Corner protectors: similar to RAL 7024
Protection category IP to IEC 60 529: IP 65
Protection category NEMA: NEMA 12
Supply includes: Enclosure with hinged rear panel
Seals and assembly parts for front panels.
Note: The support arm connection may be swapped over by rotating the enclosure
3 mm double-bit lock insert may be exchanged for 41 mm lock inserts, plastic handles and T handles, type C
Hinging of the rear panel on the longest enclosure side
Packs of: 1 pc(s).
EAN: 4028177663060
Customs tariff number: 94039010
eCl@ss 5.1: 27180505
eCl@ss 7.0: 27180505
ETIM 6.0: EC002504
Design: Support arm connection, rectangular 120 x 65 mm
For the configuration of subracks: To fit front panel width: 520 mm
Installation depth: 74 mm
To fit front panels: with width: 520 mm
with height: 400 mm
Lock version: Screw lock
Weight/pack: 7.8 kg
Type: CP 6372541
Questions & answers
What is the delivery time of Rittal 6372541 CP Compact Panel, for front panel BH 520x400 mm, installation depth 74 mm?
The article Rittal 6372541 CP Compact Panel, for front panel BH 520x400 mm, installation depth 74 mm is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 6372541 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 6372541 CP Compact Panel, for front panel BH 520x400 mm, installation depth 74 mm always at the best possible price. We can give you a discount of 2% on Rittal 6372541 CP Compact Panel, for front panel BH 520x400 mm, installation depth 74 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
