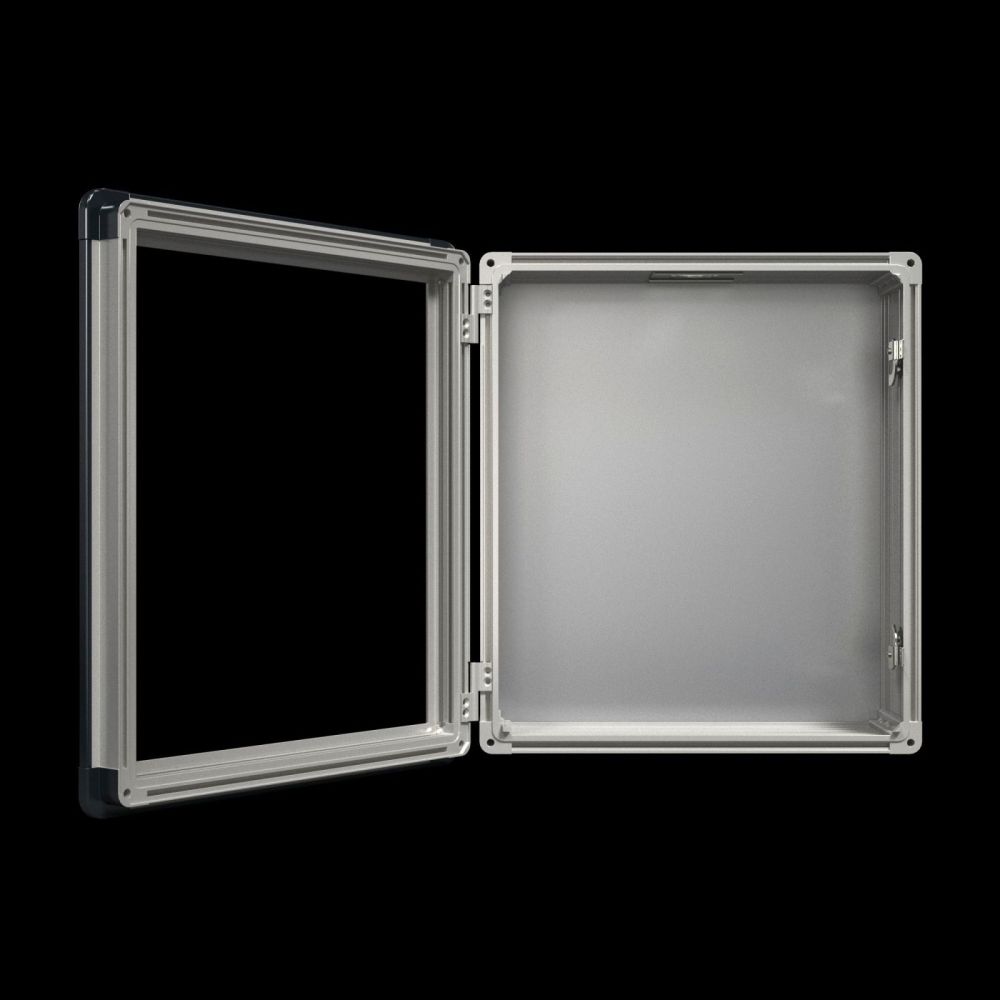

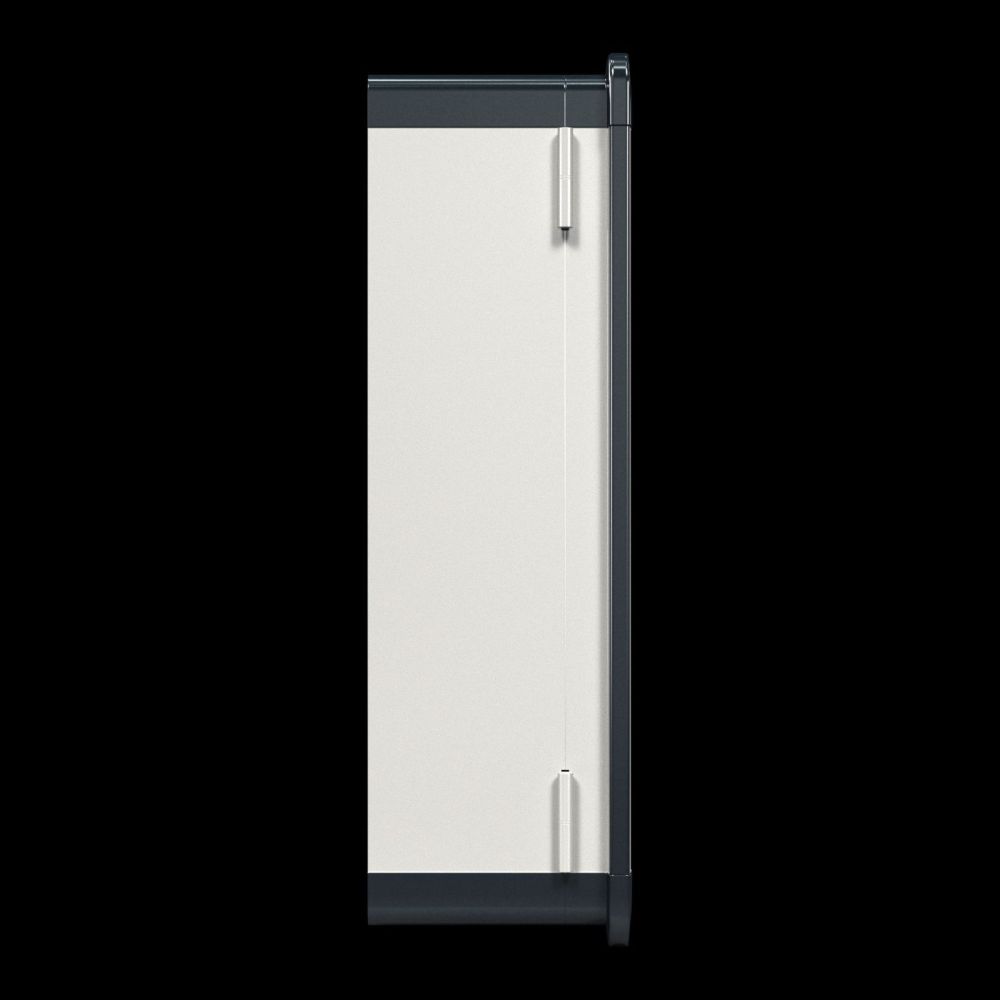

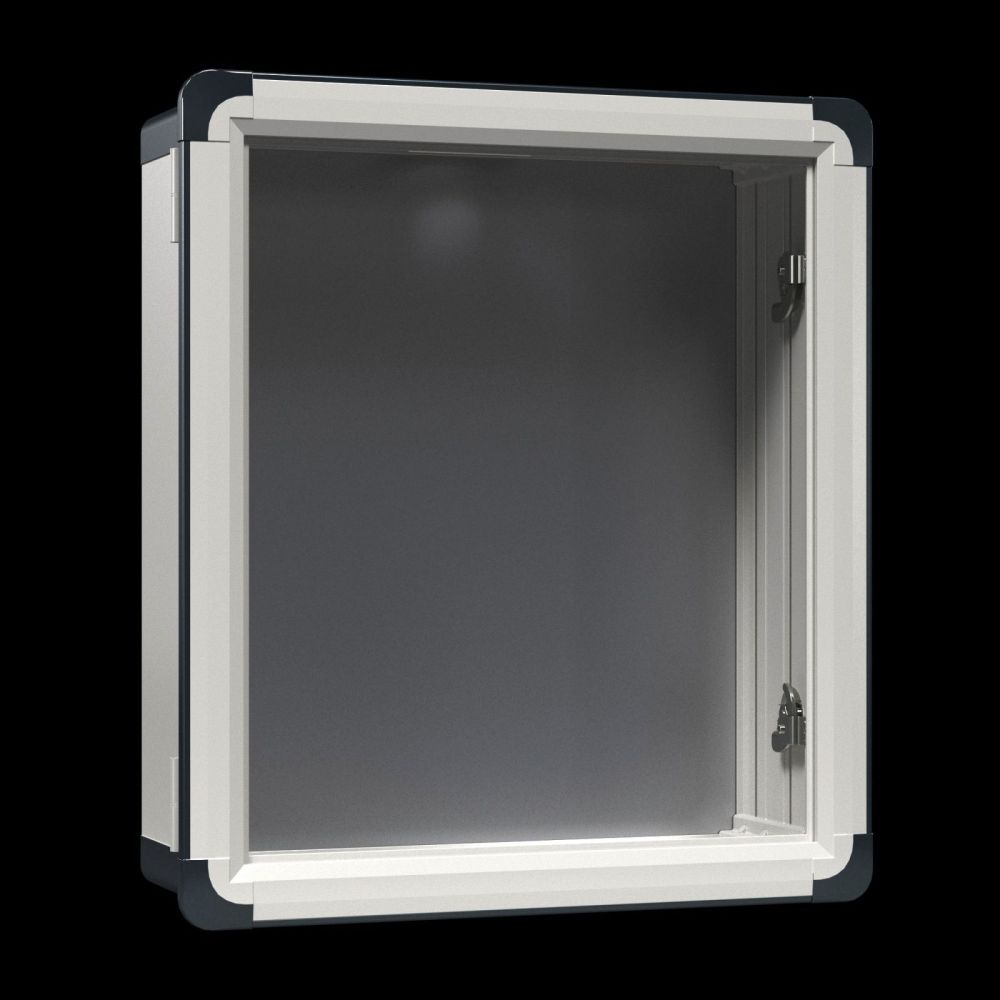

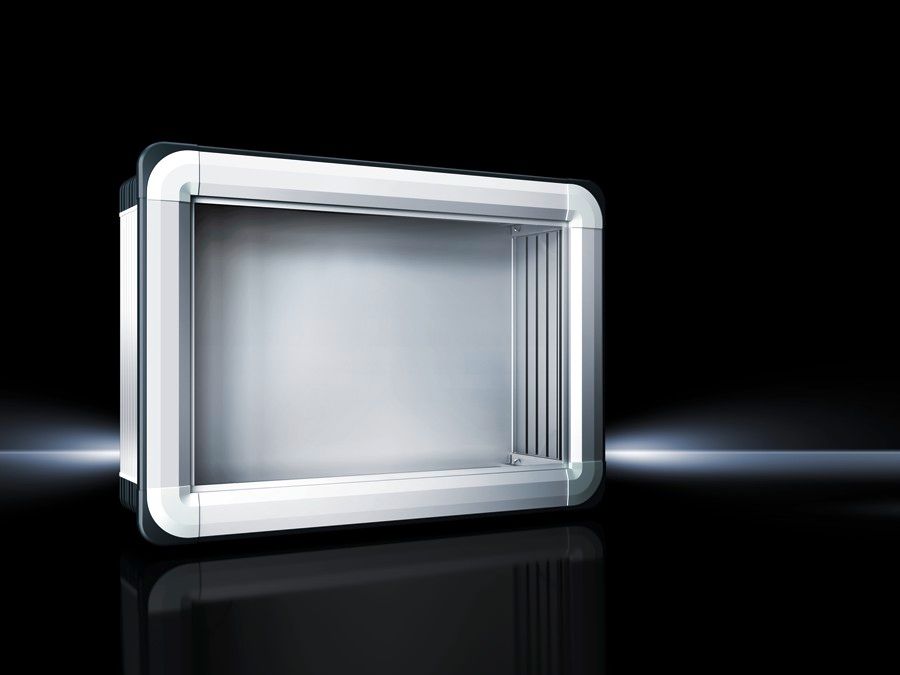

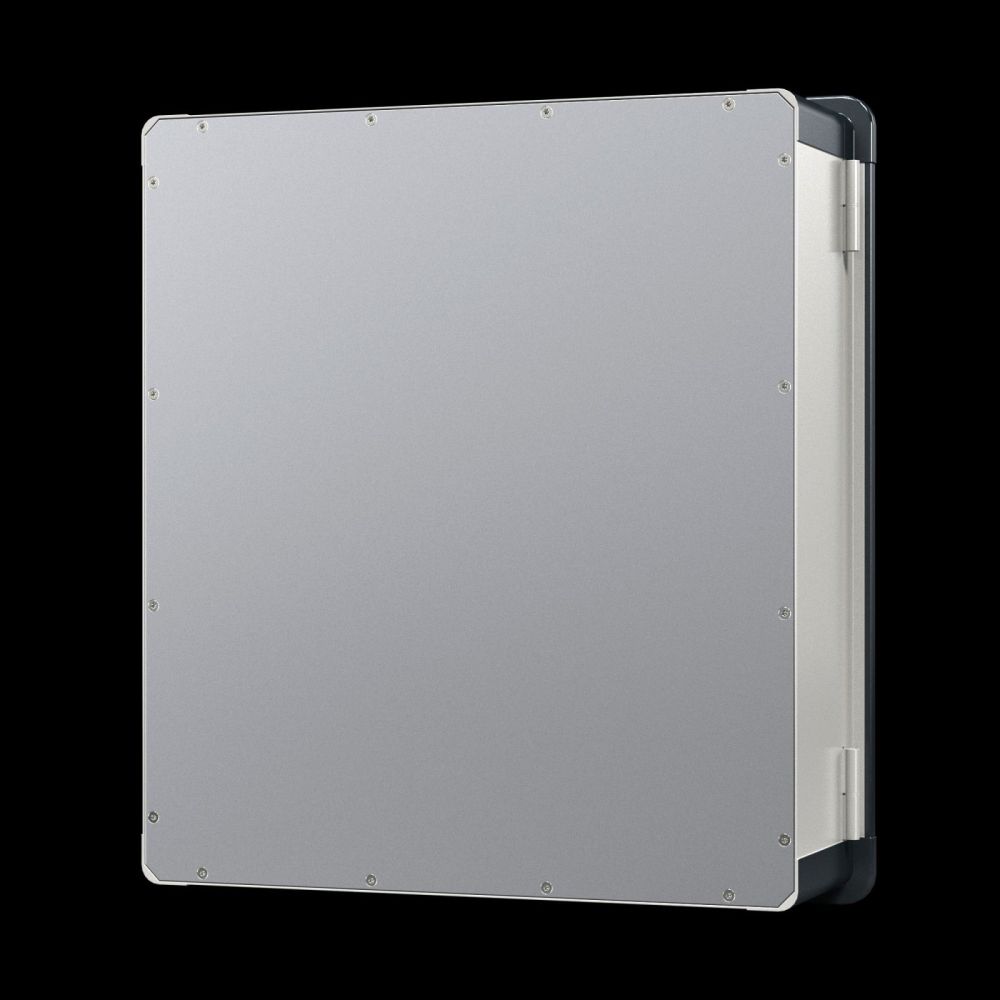

Rittal 6372541 command panel housing Comfort-Panel, front plate 520x400 mm,
|
381,11 EUR |
|
|
( 453,52 EUR incl. VAT ) ≈ £318.99 | ≈ $418.84 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 360194 |
| Mfg Part No: | 6372541 |
| UPC/EAN: | 4028177663060 |
| Weight: | 10.4 kg |
| Type: | CP 6372541 |
Product information for Rittal 6372541:
Low weight coupled with high stability
Compatible with all Rittal stand and support arm systems
Material: Enclosure: Extruded aluminium section
Corner pieces: Die-cast zinc
Corner protectors: Plastic
Colour: Enclosure: Natural anodised.
Corner pieces: RAL 7035
Corner protectors: similar to RAL 7024
Protection category IP to IEC 60 529: IP 65
Protection category NEMA: NEMA 12
Supply includes: Enclosure with hinged rear panel
Seals and assembly parts for front panels.
Note: The support arm connection may be swapped over by rotating the enclosure
3 mm double-bit lock insert may be exchanged for 41 mm lock inserts, plastic handles and T handles, type C
Hinging of the rear panel on the longest enclosure side
Packs of: 1 pc(s).
EAN: 4028177663060
Customs tariff number: 94039010
eCl@ss 5.1: 27180505
eCl@ss 7.0: 27180505
ETIM 6.0: EC002504
Design: Support arm connection, rectangular 120 x 65 mm
For the configuration of subracks: To fit front panel width: 520 mm
Installation depth: 74 mm
To fit front panels: with width: 520 mm
with height: 400 mm
Lock version: Screw lock
Weight/pack: 7.8 kg
| General | |
| Model | bracket connection square 120 x 65 mm |
| Material | Housing: aluminium extruded profile, corner pieces: zinc die-cast, protective corners: plastic |
| Basic colour | natural anodized |
| Colour | Housing: natural anodized, end pieces: RAL 7035, protection corners: similar to RAL 7024 |
| Scope of delivery | Enclosure with cutout for mounting arm connection, 3 mm double-barrel lock insert, interchangeable with 41 mm lock inserts, plastic handles and toggle handles, type C, includes seals and mounting material for front panels, hinged rear panel, hinge on the longest enclosure side |
| Width | 628,5 mm |
| Height | 508,5 mm |
| Depth | 92 mm |
| Built-in depth | 74 mm |
| Degree of protection IP according to IEC 60 529 | IP 65 |
| NEMA degree of protection | NEMA 12 |
| Suitable for front panel width | 520 mm |
| Suitable for front panel height | 400 mm |
| Note | Change of mounting arm connection possible by rotating the enclosure |
| Base material | Aluminium |
| Lock | Closure type: screw-secured |
