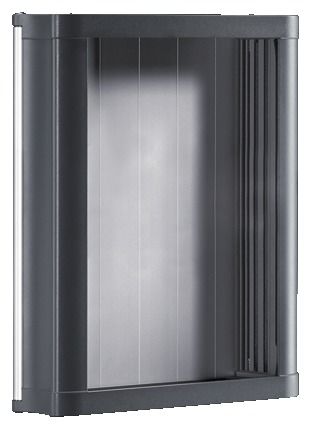

Rittal 6340000 CP Compact Panel, WHD: 241x238x87 mm, aluminum, for front panel WH 178x200 mm
|
213,33 EUR 215,74 EUR |
|
|
( 253,86 EUR incl. VAT ) ≈ £183.46 | ≈ $243.20 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Lieske Part No.: | 356851 |
|---|---|
| Mfg Part No: | 6340000 |
| UPC/EAN: | 4028177382688 |
| Weight: | 3.68 kg |
Product information for Rittal 6340000:
Material: Roof tray, base tray, rear panel: Aluminium
Side parts: Extruded aluminium section
Screw cover: Plastic
Surface finish: Roof tray, base tray, side parts: Powder-coated
Rear panel: natural anodised
Colour: RAL 7024
Protection category IP to IEC 60 529: IP 65
Supply includes: Roof tray
Base tray
Rear panel
Side parts
Screw cover
Seal and screw clamp
Packs of: 1 pc(s).
EAN: 4028177382688
Customs tariff number: 94039010
eCl@ss 5.1: 27180505
eCl@ss 7.0: 27180505
ETIM 6.0: EC002504
Design: with support arm connection 90 x 71 mm for CP 40, steel
For the configuration of subracks: To fit front panel width: 178 mm
Dimensions: Width: 241 mm
Height: 238 mm
Depth: 87 mm
To fit front panels: with width: 178 mm
with height: 200 mm
Weight/pack: 2.8 kg
Type: CP 6340000
