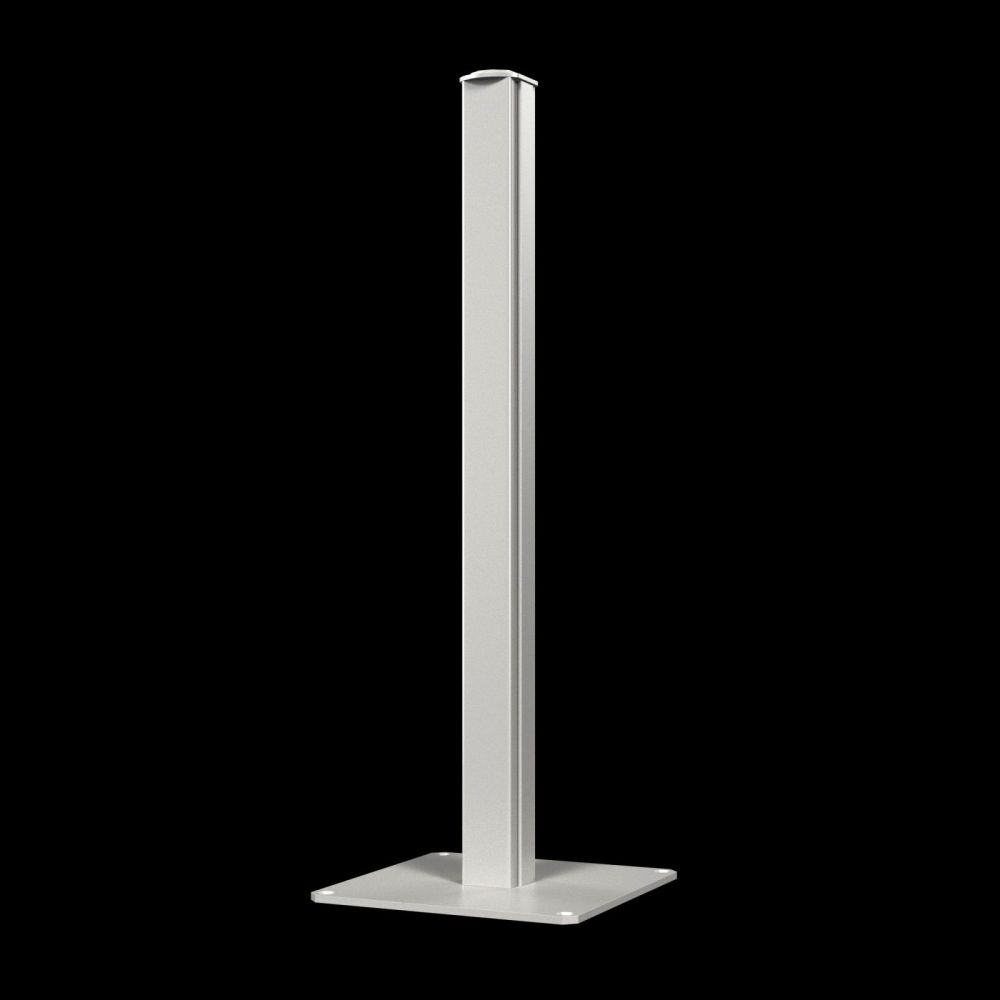

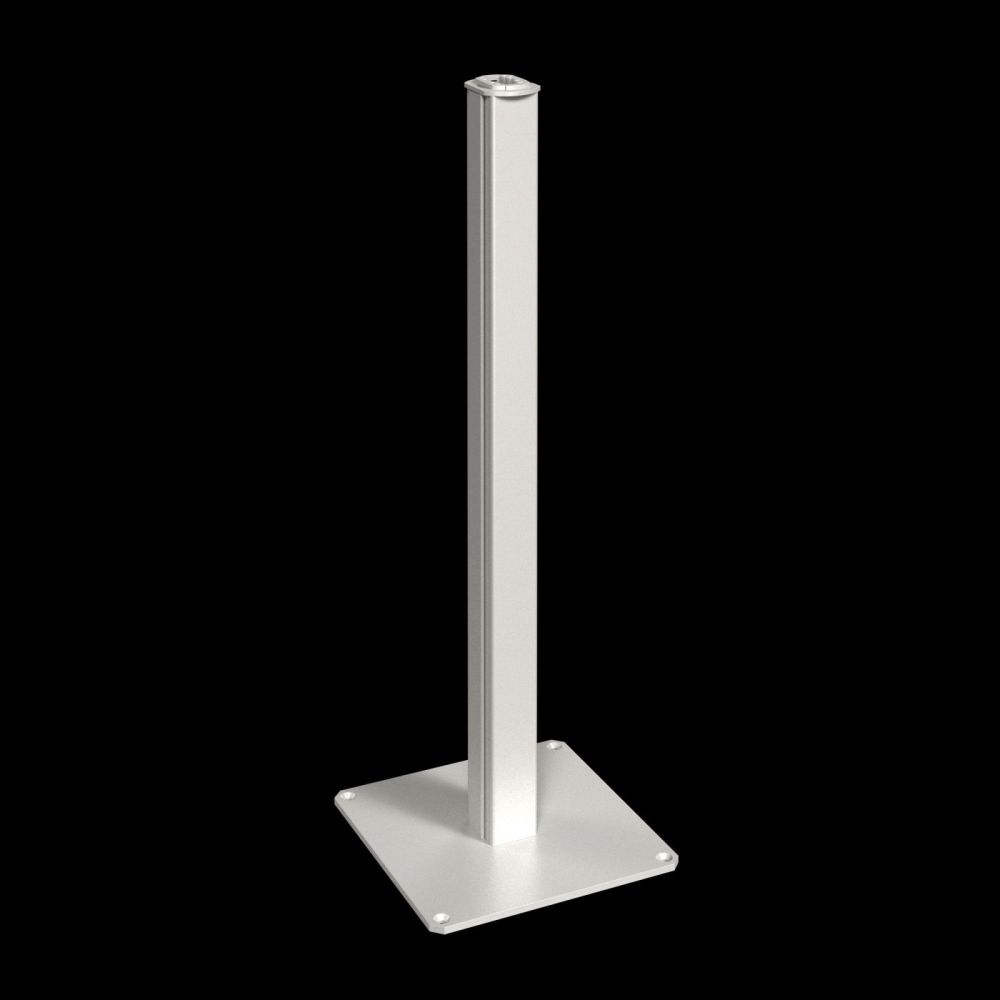

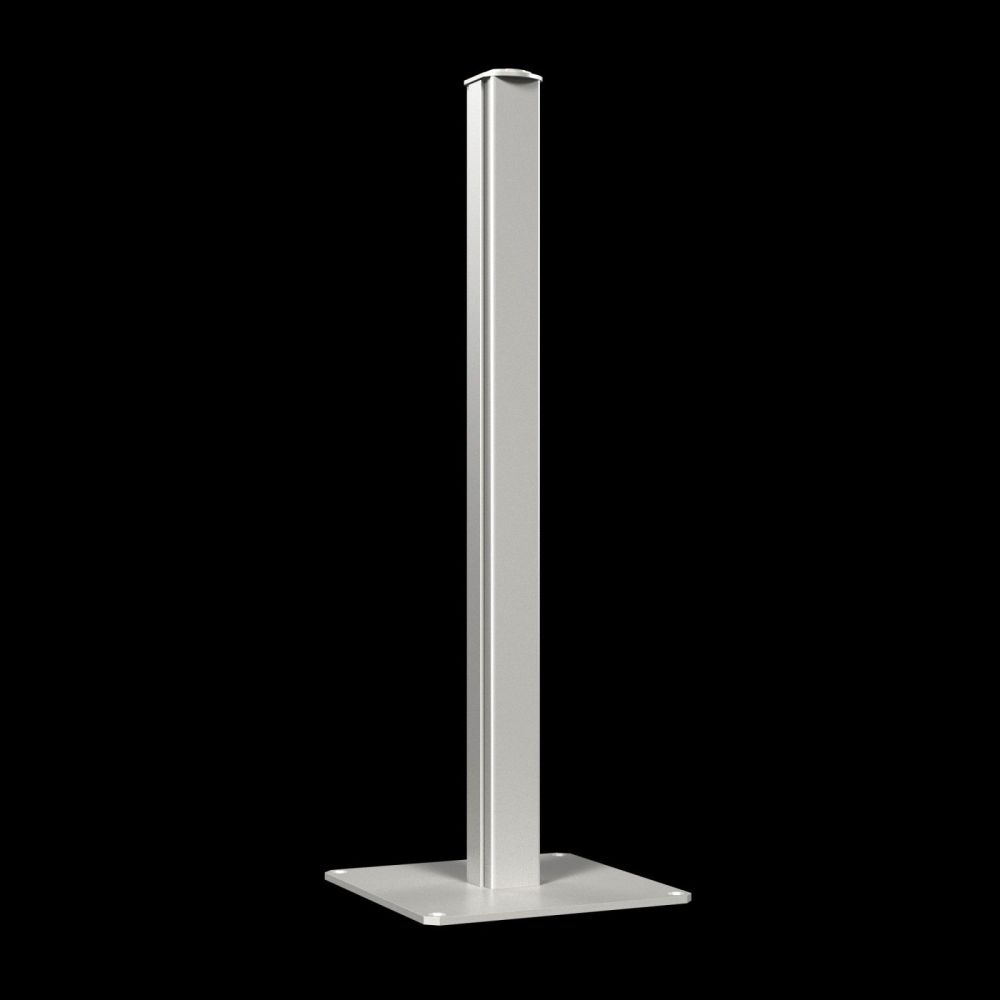

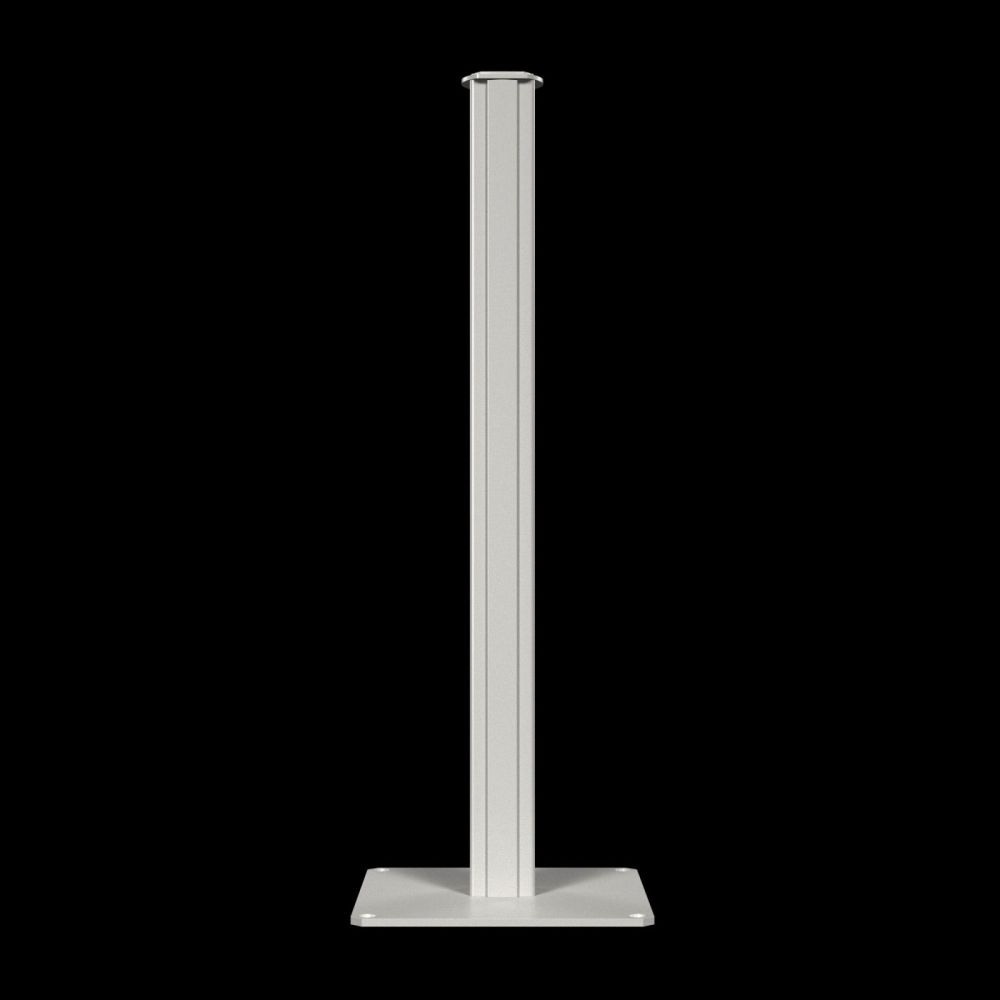

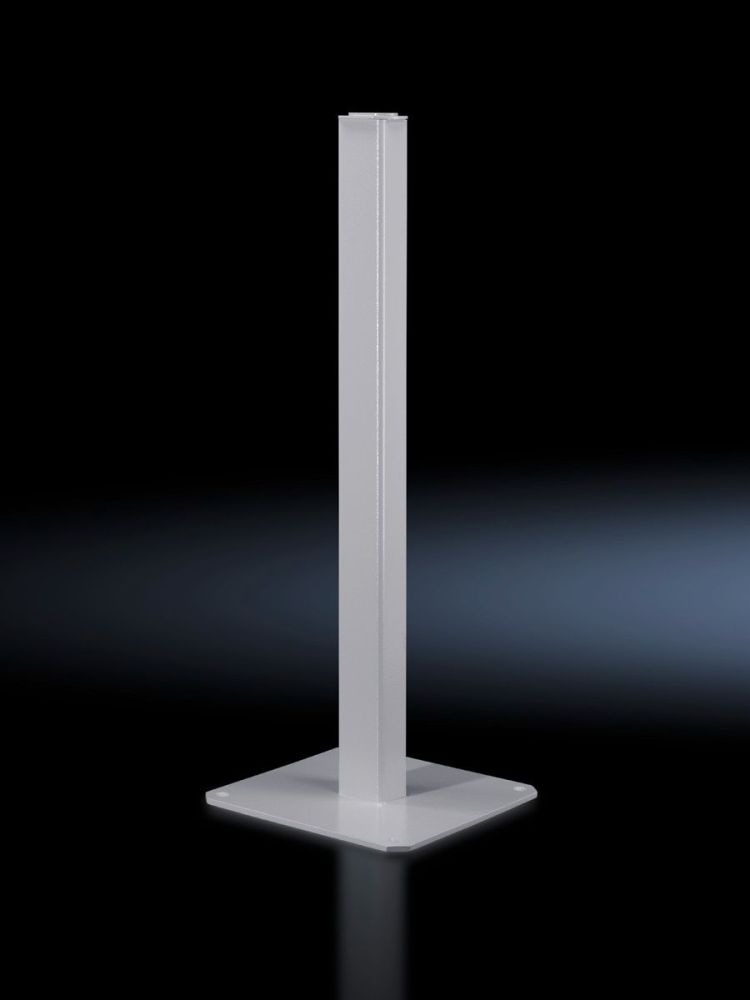

Rittal 6106500 Stand foot open base plate 400x10x400 mm load capacity
|
-10% 257,37 EUR 287,10 EUR |
|
|
( 306,27 EUR incl. VAT ) ≈ £215.42 | ≈ $282.85 plus delivery charges: 235,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 994190 |
| Mfg Part No: | 6106500 |
| UPC/EAN: | 4028177698468 |
| Weight: | 22.691 kg |
| Type: | CP 6106500 |
Product information for Rittal 6106500:
Material: Steel
Surface finish: Spray-finished
Colour: RAL 7035
Packs of: 1 pc(s).
EAN: 4028177698468
Customs tariff number: 73269098
eCl@ss 5.1: 27182601
eCl@ss 7.0: 27182604
ETIM 6.0: EC002534
Dimensions: Height: 1095 mm
Pedestal tube: Width: 86 mm
Depth: 73 mm
Material thickness: 3 mm
Base plate: Width: 400 mm
Height: 10 mm
Depth: 400 mm
Load capacity: static (max.): 40 kg
Weight/pack: 24 kg
| General | |
| Material | Steel |
| Surface protection | Painted |
| Colour | RAL 7035 |
| Base plate width | 400 mm |
| Base plate height | 10 mm |
| Base plate depth | 400 mm |
| Base plate material thickness | 3 mm |
| Standpipe cross-section, depth | 73 mm |
| Standpipe cross-section, width | 86 mm |
| Load capacity (static) | 40 kg |
| Height | 1.095 mm |
| PCF/VE (Cradle-to-Gate) | 91.4 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
Questions & answers
What is the delivery time of Rittal 6106500 Stand foot open base plate 400x10x400 mm load capacity?
The article Rittal 6106500 Stand foot open base plate 400x10x400 mm load capacity is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 6106500 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 6106500 Stand foot open base plate 400x10x400 mm load capacity always at the best possible price. We can give you a discount of 2% on Rittal 6106500 Stand foot open base plate 400x10x400 mm load capacity if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
