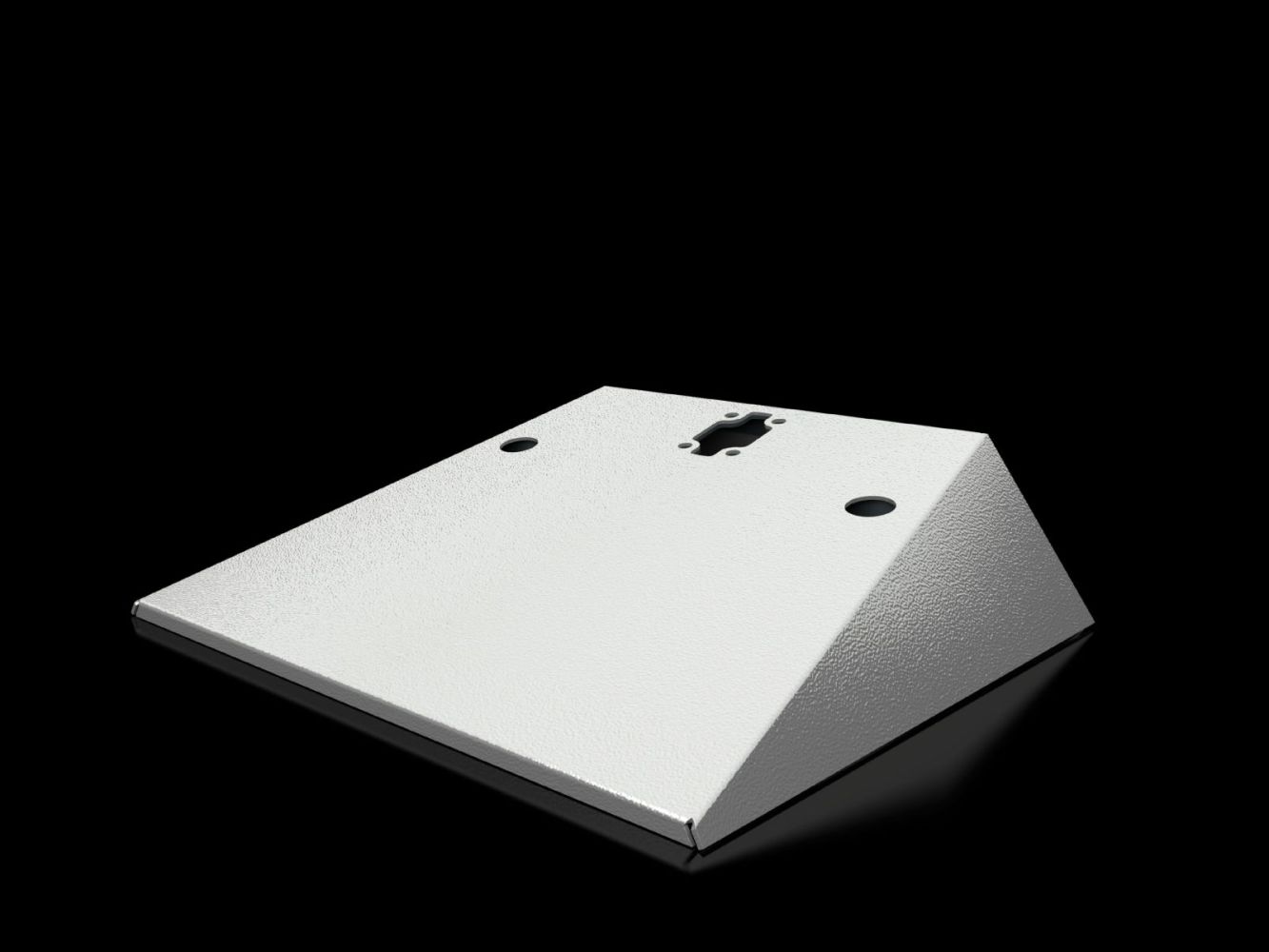

Rittal 6106100 stand foot base plate, modular, CP 60 small, 400x108

Your rating:
Average rating
product review for Rittal 6106100 stand foot base plate, modular, CP 60 small, 400x108
( 4.3 / 5 ) 43 ratings
Rittal 6106100
This image may differ from the desired article.
Rittal 6106100Rittal 6106100
-10% 98,67 EUR 110,08 EUR
( 117,42 EUR incl. VAT )
≈ £82.59  |  ≈ $108.44
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 6106100 stand foot base plate, modular, CP 60 small, 400x108
Datasheet:file_download Download
Lieske Part No.:994189
Mfg Part No: 6106100
UPC/EAN: 4028177698413
Weight:6 kg
Type:CP 6106100

Product information for Rittal 6106100:

The Rittal CP 6106100 is a stand foot base plate for modular enclosure systems of the CP 60 series. It serves as a stable foundation for mounting enclosures or other devices in industrial applications. The base plate is stationary and made of steel, ensuring high mechanical strength and durability. The surface is painted in the colour RAL 7035, a grey standard tone commonly used in industrial environments. The dimensions are 400 mm width, 108 mm height, and 400 mm depth, identifying it as a small variant for the CP 60 system type. The static load capacity is 18 kg, sufficient for mounting light to medium-weight devices. The stand foot base plate is supplied together with a traverse, which serves for fastening and stabilisation.

Applications

The base plate is primarily used in industrial environments where enclosures or other electrical devices must be mounted on a stable base. It is particularly suitable for installations requiring secure floor fixation to minimise vibrations, movements, or mechanical stress. The modular design allows flexible integration into existing enclosure systems of the CP 60 series. The stationary design makes it suitable for fixed installations in production halls, workshops, or technical rooms.

Functions and Equipment in Detail

The stand foot base plate provides a flat, even mounting surface with the specified dimensions. The traverse, included in the delivery, serves as additional support and enables secure fastening of the enclosure. The static load capacity of 18 kg ensures that the plate does not deflect or fail under normal operating conditions. The steel material selection guarantees high resistance to mechanical stress and corrosive influences, especially in industrial environments. The RAL 7035 colour is a standard paint finish, ensuring good compatibility with other components of the CP system.

Technology Explained Simply

The base plate is a mechanical component that does not perform any electrical or electronic functions. Its main purpose is mechanical stabilisation and fastening. The dimensions of 400x108x400 mm are matched to the standard sizes of CP 60 control systems, allowing direct mounting without additional modifications. The traverse supplied can be used to reinforce fastening or to mount additional components. The static load capacity of 18 kg is sufficient for most standard applications where no dynamic or oscillating loads occur.

Compatibility and Accessories

The stand foot base plate is specifically designed for the CP 60 system and is compatible with other accessories from this series. Suitable accessories include, for example, a housing reinforcement, rigid, for bracket connection CP 6, an adapter for bracket combination CP 60/40, and a support profile CP 60, closed, length 1000 mm. These components can be used to expand mounting and fastening options, especially when additional brackets or reinforcements are required. Combining these parts enables flexible and adaptable system design.

Mounting and Installation

Installation is carried out by fastening the base plate to the floor, with the traverse used for additional stabilisation. The base plate is placed directly under the enclosure housing and connected to it, with the traverse serving as an additional connection level.

Advantages in Operation

The stand foot base plate provides a secure and stable mounting base that minimises vibrations and movements. The modular design enables easy integration into existing systems of the CP 60 series. The use of steel and the RAL 7035 paint finish ensure high mechanical strength and good visual compatibility with other components. The static load capacity of 18 kg is sufficient for most industrial applications, making the base plate a reliable solution for fixed installations.

General
ModelStationary
MaterialSteel
ColourRAL 7035
Scope of deliverystand foot base plate/bracket
Load capacity (static)18 kg
Width400 mm
Height108 mm
Depth400 mm


Product data sheet
Datasheet for Rittal 6106100, EAN: 4028177698413

Questions & answers

What is the delivery time of Rittal 6106100 stand foot base plate, modular, CP 60 small, 400x108?

The article Rittal 6106100 stand foot base plate, modular, CP 60 small, 400x108 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 6106100 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 6106100 stand foot base plate, modular, CP 60 small, 400x108 always at the best possible price. We can give you a discount of 2% on Rittal 6106100 stand foot base plate, modular, CP 60 small, 400x108 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
