Rittal 5502330 DK floor plate one-piece ventilated for TS, TS IT

Your rating:
Average rating
product review for Rittal 5502330 DK floor plate one-piece ventilated for TS, TS IT
( 4.6 / 5 ) 10 ratings
Rittal 5502330
This image may differ from the desired article.
Rittal 5502330Rittal 5502330Rittal 5502330Rittal 5502330
-18% 121,05 EUR 147,55 EUR
( 144,05 EUR incl. VAT )
≈ £101.32  |  ≈ $133.03
plus delivery charges: 100,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 5502330 DK floor plate one-piece ventilated for TS, TS IT
Datasheet:file_download Download
Lieske Part No.:1128227
Mfg Part No: 5502330
UPC/EAN: 4028177707818
Weight:6.18 kg
Type:DK 5502330

Product information for Rittal 5502330:

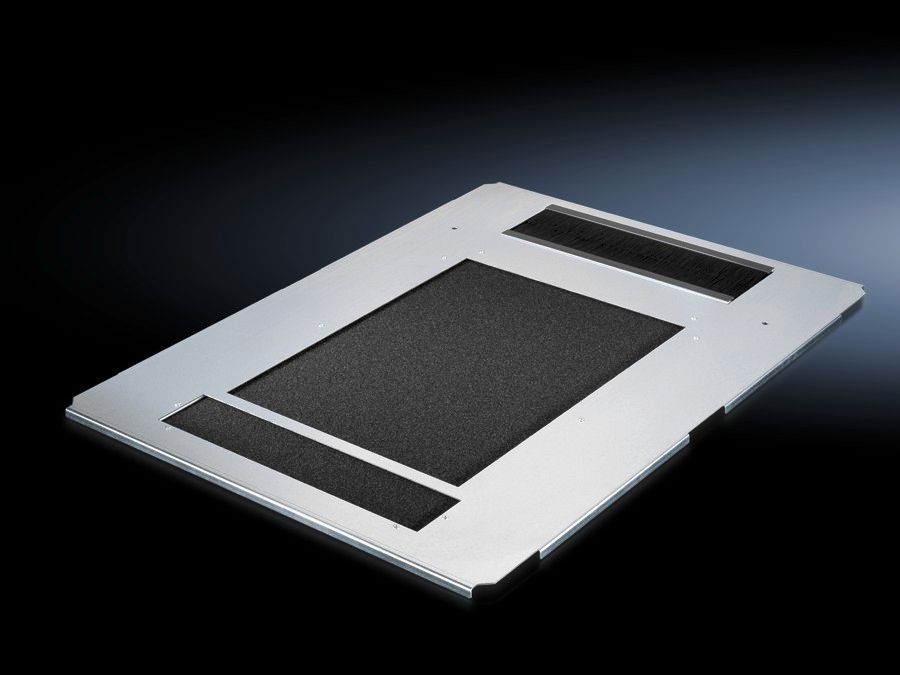

The Rittal DK 5502330 is a single-piece, ventilated floor plate, specifically developed for covering the open floor opening in enclosures of types TS IT and TX CableNet with a width and depth of 800 mm each. It provides secure and functional closure of the floor opening while ensuring optimal air circulation, particularly in systems with rack climate control. The product is made of sheet steel with a galvanized surface, offering high corrosion resistance and durability in industrial environments.

Applications
This floor plate is intended for use in IT and electrical installations, particularly in enclosures requiring controlled air intake. The full-surface perforation allows cold air to enter from the floor or plinth area, which is essential for cooling devices within the enclosure. It is specifically designed for enclosures with a width and depth of 800 mm, thus matching the enclosure types TS IT and TX CableNet.

Functions and Equipment in Detail

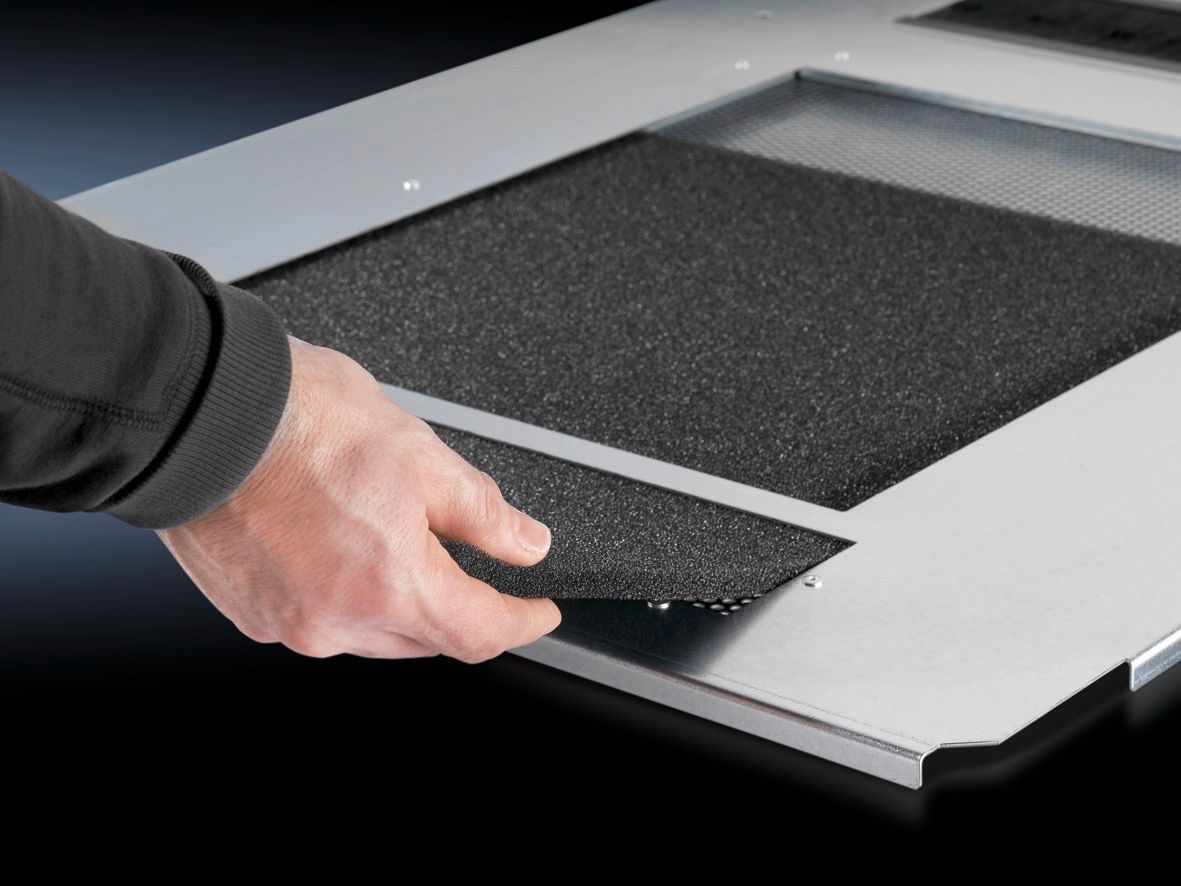

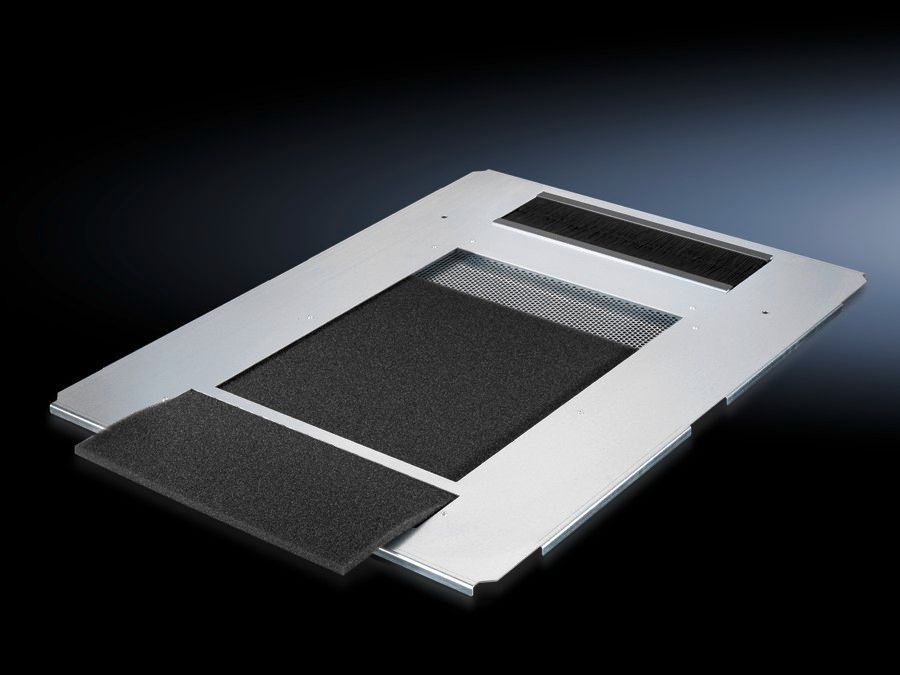

The floor plate features a rear brush strip made of plastic, complying with the UL 94-HB standard. This strip enables convenient and dust-tight cable entry from below across the entire enclosure width. Integrated guide rails facilitate the installation and replacement of a foam filter mat, which is included in the delivery scope. The filter mat serves to cover and clean the air intake openings.

Technology Explained Simply
The full-surface perforation of the floor plate ensures continuous inflow of cold air into the enclosure, which is crucial for cooling electronic components. The plastic brush strip prevents dust and dirt from entering while allowing flexible and secure cable entry. The integrated guide rails enable easy replacement of the filter mat without removing the entire floor plate.

Compatibility and Accessories
The floor plate is specifically designed for enclosures of types TS IT and TX CableNet with dimensions of 800 mm width and 800 mm depth. It is equipped with a foam filter mat for air cleaning and guidance. Additional accessories such as a replacement filter mat are available to enable replacement in case of contamination.

Installation and Mounting
The floor plate is mounted using included fastening materials, ensuring secure and stable anchoring in the enclosure. Installation takes place at the lower opening of the enclosure, with the brush strip and guide rails pre-mounted. The filter mat is inserted into the guide rails, ensuring easy installation and maintenance.

Operational Advantages
Thanks to full-surface ventilation and integrated cable entry, optimal cooling of devices installed in the enclosure is ensured. The brush strip provides a dust-tight seal, while the filter mat improves air quality within the enclosure. Easy installation and maintenance via integrated guide rails reduce maintenance effort and increase operational reliability.

Equipotential Bonding and Earthing
The floor plate provides equipotential bonding via the fastening elements as well as earthing points, which are important for electrical safety and preventing voltage differences in the installation. These functions are already integrated into the design and require no additional measures during installation.

Material and Surface
The floor plate is made of sheet steel with a galvanized surface, ensuring high mechanical strength and corrosion resistance. The brush strip is made of plastic and complies with the UL 94-HB standard, indicating a high flame retardancy class. The filter mat is made of foam, which is easy to clean and replace.

Delivery Scope
The delivery includes the single-piece, ventilated floor plate, the foam filter mat, and the fastening materials. The brush strip is already integrated into the floor plate, so no additional mounting components are required.

General
MaterialSheet steel, brush bar: plastic, UL 94-HB, filter mat: foam
Surface protectionZinc-plated
Scope of deliveryBase plate, one-piece, ventilated, with cable entry at rear, filter mat, incl. mounting material
Suitable forHousing type: TS IT, TX CableNet, width: 800 mm, depth: 800 mm


Product data sheet
Datasheet for Rittal 5502330, EAN: 4028177707818

Questions & answers

What is the delivery time of Rittal 5502330 DK floor plate one-piece ventilated for TS, TS IT?

The article Rittal 5502330 DK floor plate one-piece ventilated for TS, TS IT is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5502330 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5502330 DK floor plate one-piece ventilated for TS, TS IT always at the best possible price. We can give you a discount of 2% on Rittal 5502330 DK floor plate one-piece ventilated for TS, TS IT if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Rittal 5502330 DK floor plate one-piece ventilated for TS, TS IT

Rittal 5502380 Filter mat for floor plate, single-piece, ventilated Rittal LogoRittal 5502380 Filter mat for floor plate, single-piece, ventilated Rittal DK 5502380 is a filter mat for base plate, designed as a single-piece, ventilated component. It is used for air purification in enclosures and similar technical housings where controlled ...

Lieske Part No.: 2068347
Mfg Part No: 5502380
Type: DK 5502380
-11% 41,40 EUR 46,74 EUR
Rittal 5502380 plus VAT
≈ £34.65  |  ≈ $45.50
Made to order · Delivery time approx. 5 workdaysinfo_outline
