Rittal 5501900 DK 48,3 cm ( 19 inch ) small housing 4 U partitioned

Your rating:
Average rating
product review for Rittal 5501900 DK 48,3 cm ( 19 inch ) small housing 4 U partitioned
( 4.5 / 5 ) 50 ratings

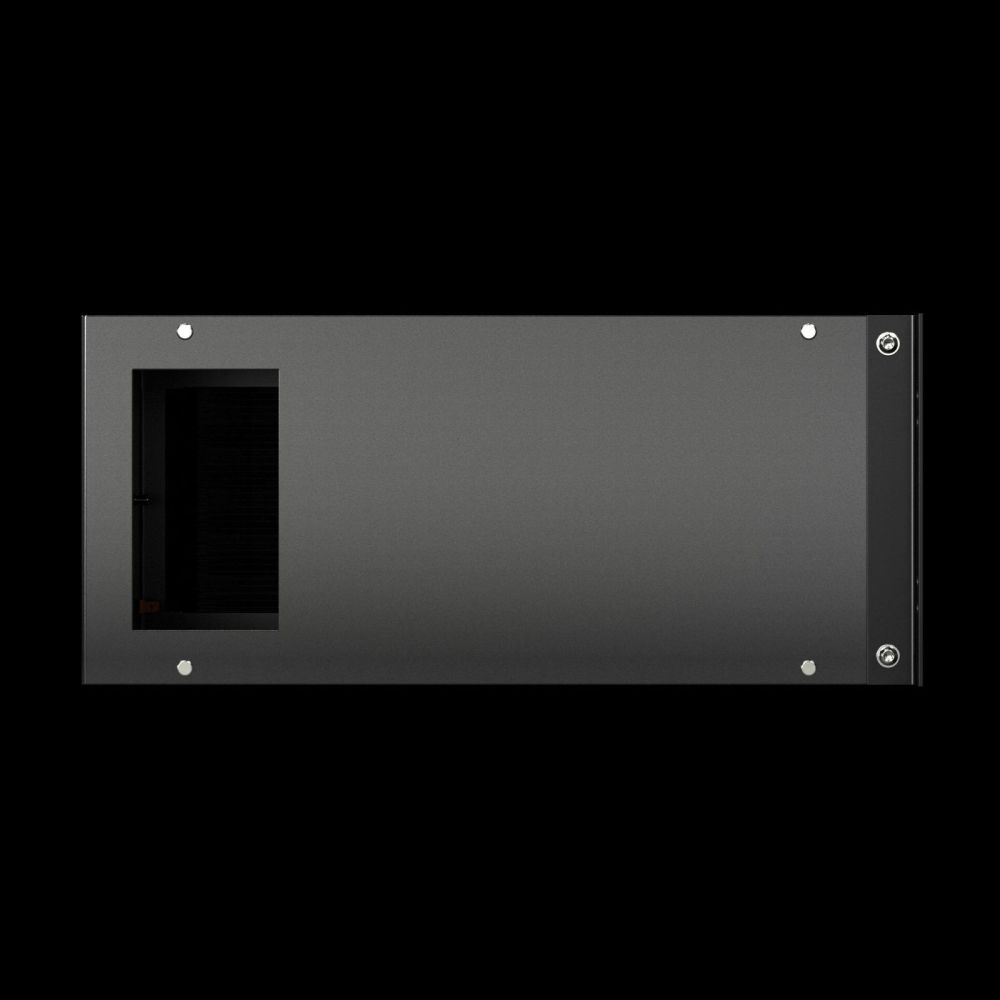

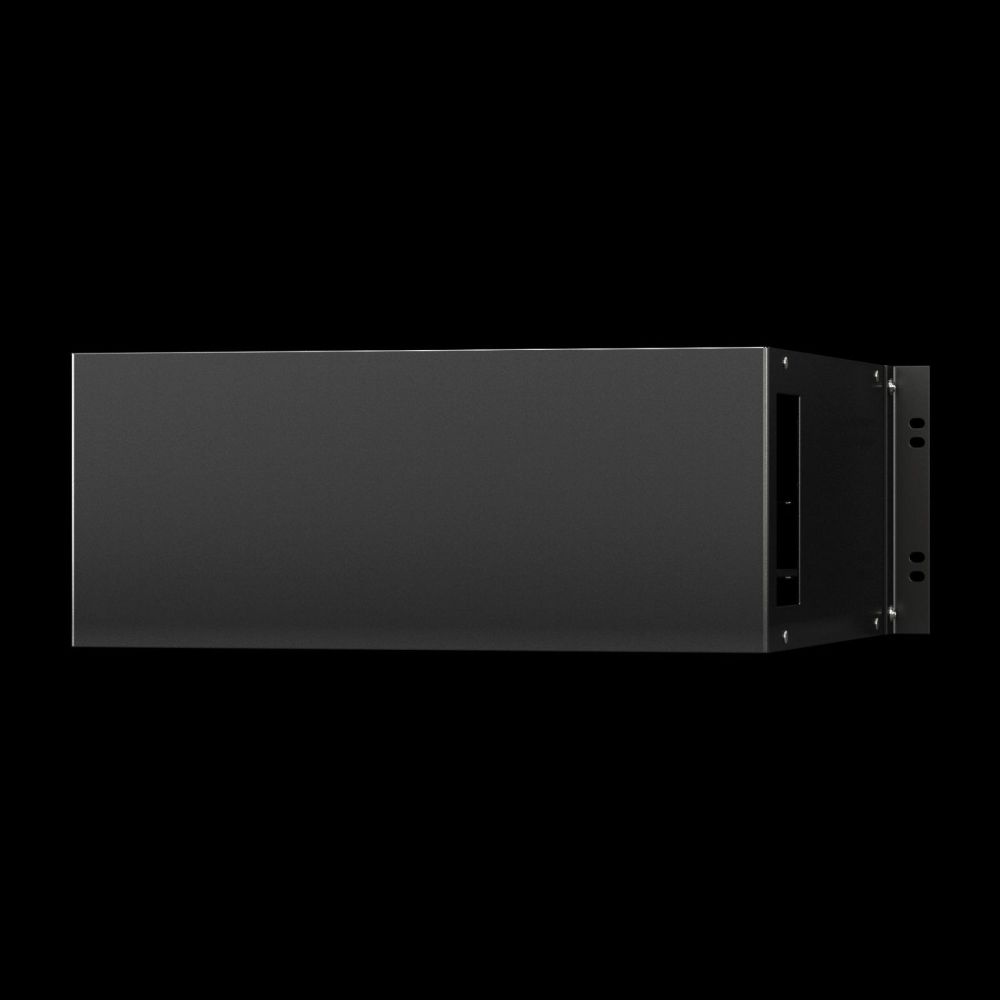

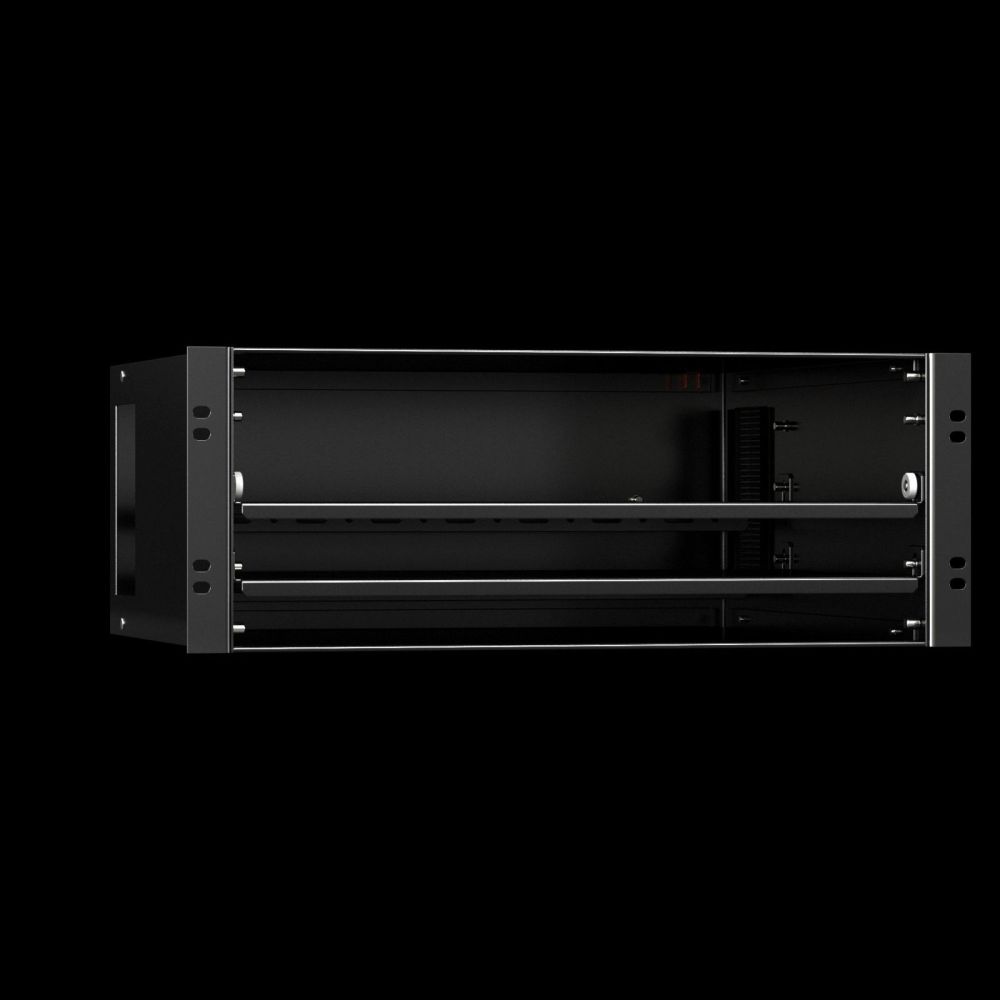

Rittal 5501900
This image may differ from the desired article.
Rittal 5501900Rittal 5501900Rittal 5501900Rittal 5501900Rittal 5501900Rittal 5501900Rittal 5501900Rittal 5501900
176,53 EUR
( 210,07 EUR incl. VAT )
≈ £147.76  |  ≈ $194.01
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 5501900 DK 48,3 cm ( 19 inch ) small housing 4 U partitioned
Datasheet:file_download Download
Lieske Part No.:190646
Mfg Part No: 5501900
UPC/EAN: 4028177806337
Weight:9.85 kg
Type:DK 5501900

Product information for Rittal 5501900:

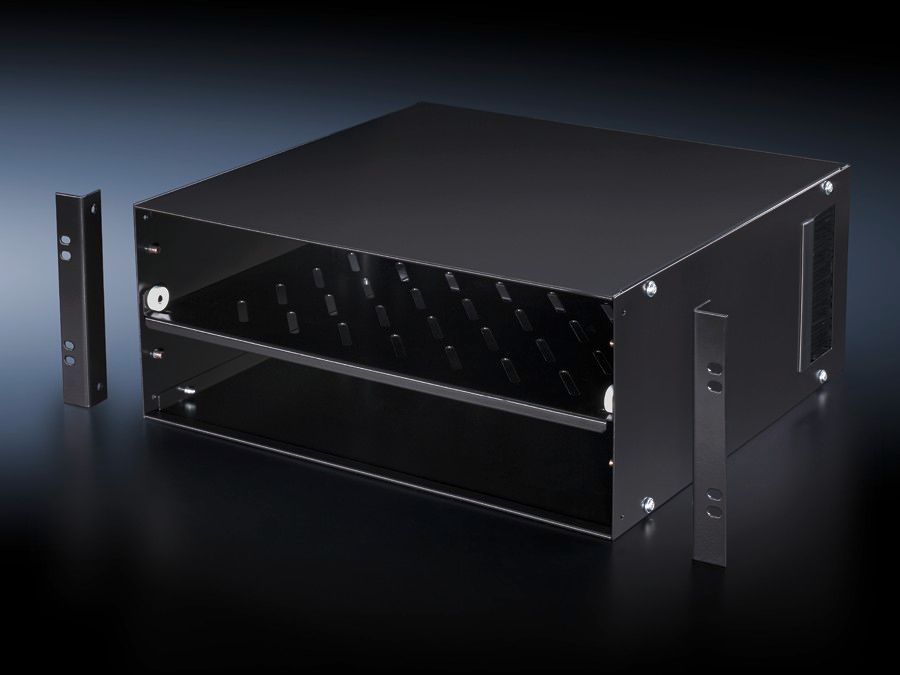

The Rittal DK 5501900 is a 48,3 cm ( 19 inch )-small device box, specifically developed for integration into partitioned 48,3 cm ( 19 inch ) installation levels. It is designed to house small devices and additional accessories within a server or network enclosure. The box is made of sheet steel and features a painted surface in the color RAL 9005, ensuring a robust and uniform coating. An integrated component is the brush strip made of plastic (UL 94-HB), which enables a secure and dust-tight separation between installation levels. The box is equipped with an adjustable insert shelf, allowing for additional subdivision of the interior space to organize various components efficiently.

Applications

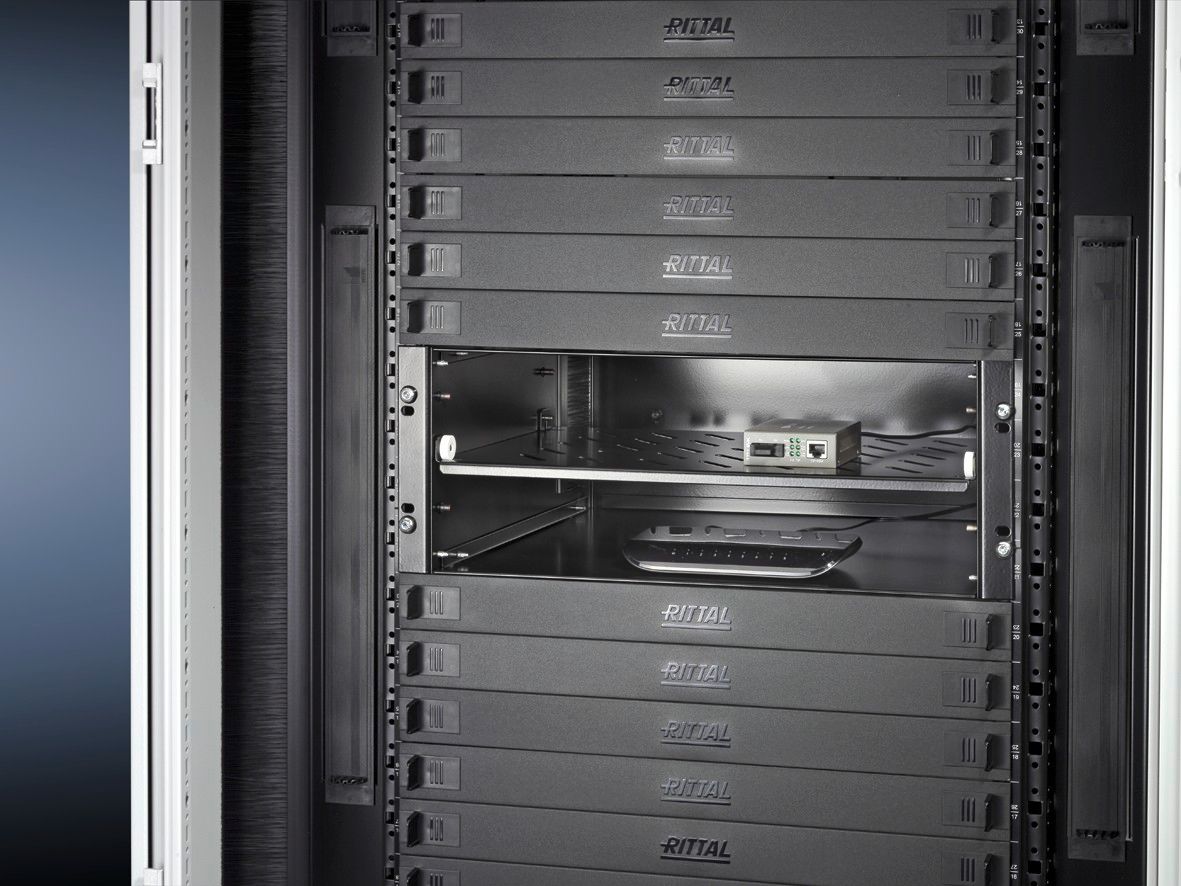

The small device box is designed for use in professional IT and electrical installations, particularly in server rooms, data centers, or industrial control systems. It is mounted in 48,3 cm ( 19 inch ) racks featuring a mounting plane width of 482.6 mm (48,3 cm ( 19 inch )). The partitioned design ensures clear separation between individual installation levels, simplifying cable routing and maintenance. The box is suitable for housing network switches, modules, power supplies, or other small electronic components that need to be installed in an organized and structured manner.

Functions and Equipment in Detail

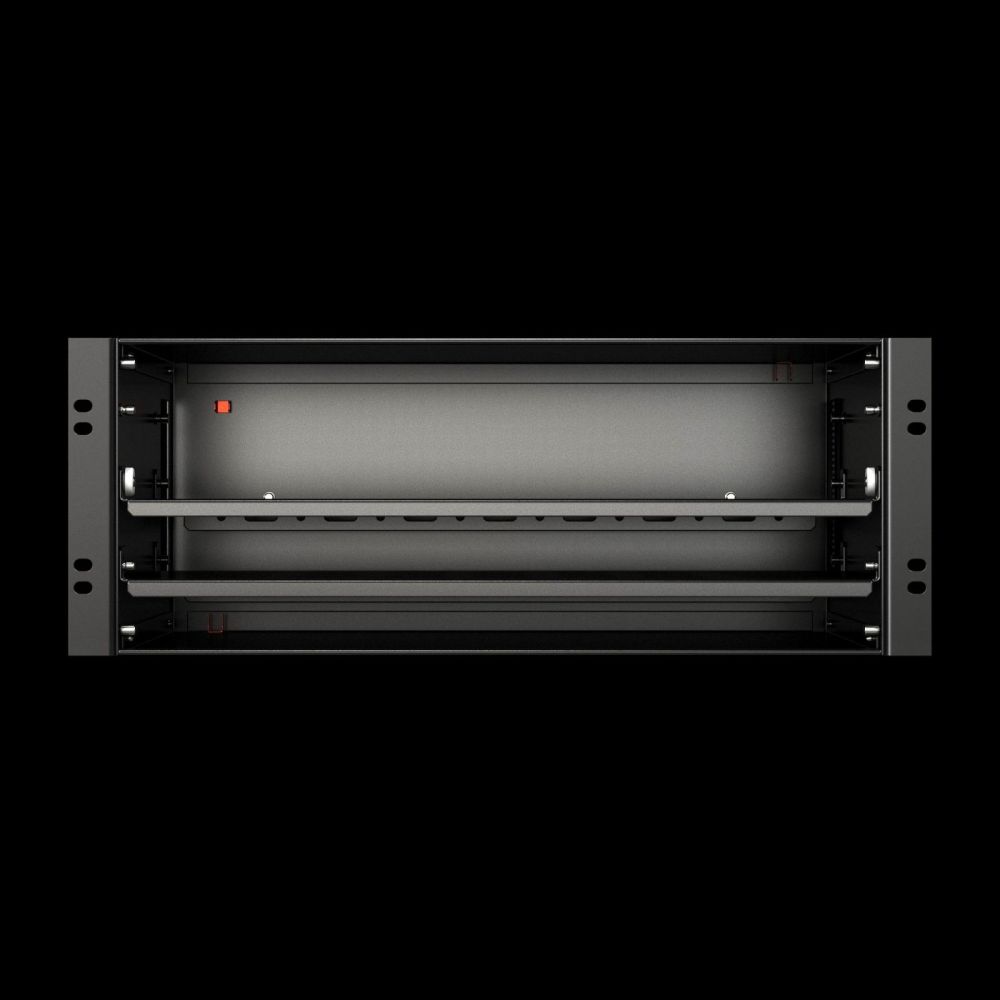

The box features a mounting surface of 405 mm width and 300 mm depth, designed for placing devices. The load capacity is 200 N static, allowing secure mounting of devices with low to medium weight. The insert shelf is adjustable and can be positioned at various heights as needed, enabling flexible use of the interior space. The entire box has a width of 427 mm, a height of 170 mm, and a depth of 400 mm, with external dimensions allowing installation in standard 48,3 cm ( 19 inch ) racks.

Technology Explained Simply

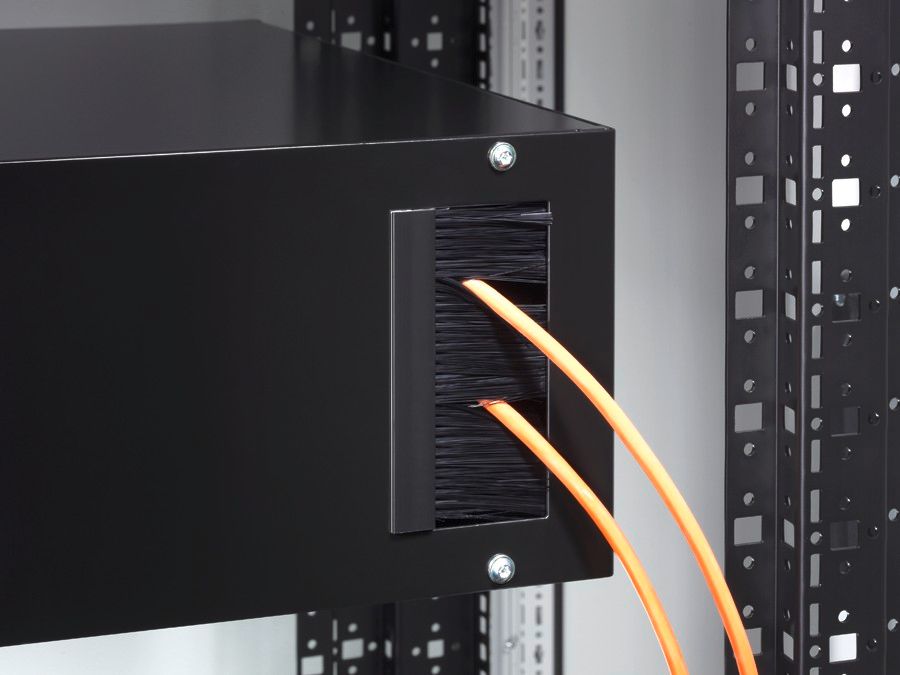

The use of sheet steel as material ensures high mechanical stability and protection against external influences. The painted surface provides corrosion resistance and uniform visual appearance. The brush strip made of plastic (UL 94-HB) is flame-retardant and ensures safe electrical separation between installation levels. The adjustable partitioning allows individual adaptation to device dimensions, improving airflow and accessibility.

Compatibility and Accessories

The small device box is designed for a 48,3 cm ( 19 inch ) mounting plane with a width of 482.6 mm. Compatible accessories available in our range include 48,3 cm ( 19 inch ) fasteners 1 U with electrical connection (24 pieces), which can be used for secure mounting of the box in the rack. These fasteners enable stable installation and secure electrical connection if required.

Mounting and Installation

Installation is carried out in a 48,3 cm ( 19 inch ) rack, where the box is secured to the mounting profiles using designated fastening elements (e.g., 48,3 cm ( 19 inch ) fasteners). The brush strip ensures a tight separation, positioning the box securely within the installation level. The insert shelf can be adjusted as needed to optimize interior space usage.

Operational Advantages

The DK 5501900 provides structured and clear storage of small devices within a 48,3 cm ( 19 inch ) rack. The partitioned design and brush strip improve cable routing and prevent interference between installation levels. The adjustable partitioning enables flexible use, and the high load capacity ensures secure mounting of devices. The robust construction from sheet steel and the painted surface guarantee long service life and ease of maintenance.

General
MaterialSheet steel, brush bar: plastic, UL 94-HB
Surface protectionPainted
ColourRAL 9005
Scope of deliverySmall appliance box with brush strip, 1 insert base
Load capacity200 N surface load, static
Contact surfaceWidth: 405 mm, Depth: 300 mm
Width427 mm
Height170 mm
Depth400 mm


Product data sheet
Datasheet for Rittal 5501900, EAN: 4028177806337

Questions & answers

What is the delivery time of Rittal 5501900 DK 48,3 cm ( 19 inch ) small housing 4 U partitioned?

The article Rittal 5501900 DK 48,3 cm ( 19 inch ) small housing 4 U partitioned is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5501900 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5501900 DK 48,3 cm ( 19 inch ) small housing 4 U partitioned always at the best possible price. We can give you a discount of 2% on Rittal 5501900 DK 48,3 cm ( 19 inch ) small housing 4 U partitioned if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
