Rittal 5501725 DK Component shelf, WHD: 419x1 Ux700 mm, 100 kg, distance between levels: 600-900 mm, Pull-out, RAL 9005
|
174,77 EUR 176,53 EUR |
|
|
( 207,98 EUR incl. VAT ) ≈ £150.30 | ≈ $199.24 plus delivery charges: 148,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Lieske Part No.: | 448729 |
|---|---|
| Mfg Part No: | 5501725 |
| UPC/EAN: | 4028177679160 |
| Weight: | 10.72 kg |
Further System Accessories from RittalFurther products in category System Accessories
All products of Rittal

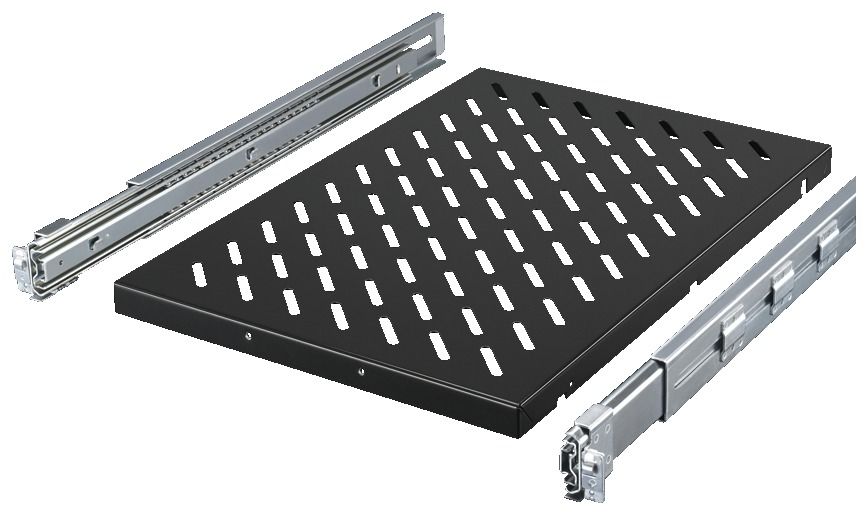

Product information for Rittal 5501725:
For mounting between two 482.6 mm (19”) mounting levels, on 482.6 mm (19”) mounting angles or 482.6 mm (19”) mounting frames.
Benefits: Tool-free, time-saving one-man assembly from the enclosure front
Self-locking
Fully extendible
Applications: Depth-variable to adapt to individual distances between levels
Material: Sheet steel
Surface finish: Base: Spray-finished
Telescopic slides/installation kit: Zinc-plated
Colour: RAL 9005
Supply includes: Component shelf, slotted
Telescopic slide with mounting kit
Assembly parts
Packs of: 1 pc(s).
EAN: 4028177679160
Customs tariff number: 73269098
eCl@ss 5.1: 27189218
eCl@ss 7.0: 27189261
ETIM 6.0: EC002620
To fit: Enclosure type: TS IT
Enclosure type: TE
Dimensions: Width: 419 mm
Depth: 700 mm
Distance between levels: min.: 600 mm
max.: 900 mm
Units: 1.5 U
Load capacity: 100 kg
Weight/pack: 10.6 kg
Type: DK 5501725
Benefits: Tool-free, time-saving one-man assembly from the enclosure front
Self-locking
Fully extendible
Applications: Depth-variable to adapt to individual distances between levels
Material: Sheet steel
Surface finish: Base: Spray-finished
Telescopic slides/installation kit: Zinc-plated
Colour: RAL 9005
Supply includes: Component shelf, slotted
Telescopic slide with mounting kit
Assembly parts
Packs of: 1 pc(s).
EAN: 4028177679160
Customs tariff number: 73269098
eCl@ss 5.1: 27189218
eCl@ss 7.0: 27189261
ETIM 6.0: EC002620
To fit: Enclosure type: TS IT
Enclosure type: TE
Dimensions: Width: 419 mm
Depth: 700 mm
Distance between levels: min.: 600 mm
max.: 900 mm
Units: 1.5 U
Load capacity: 100 kg
Weight/pack: 10.6 kg
Type: DK 5501725
