Rittal 5302322 Cable tray for VX IT, 265 x 2200 mm, RAL 9005

Your rating:
Average rating
product review for Rittal 5302322 Cable tray for VX IT, 265 x 2200 mm, RAL 9005
( 4.3 / 5 ) 4 ratings
Rittal 5302322
This image may differ from the desired article.
Rittal 5302322Rittal 5302322Rittal 5302322Rittal 5302322Rittal 5302322
-10% 161,35 EUR 179,98 EUR
( 192,01 EUR incl. VAT )
≈ £135.05  |  ≈ $177.32
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 5302322 Cable tray for VX IT, 265 x 2200 mm, RAL 9005
Datasheet:file_download Download
Lieske Part No.:1775564
Mfg Part No: 5302322
UPC/EAN: 4028177952737
Weight:7.12 kg
Type:VX 5302322

Product information for Rittal 5302322:

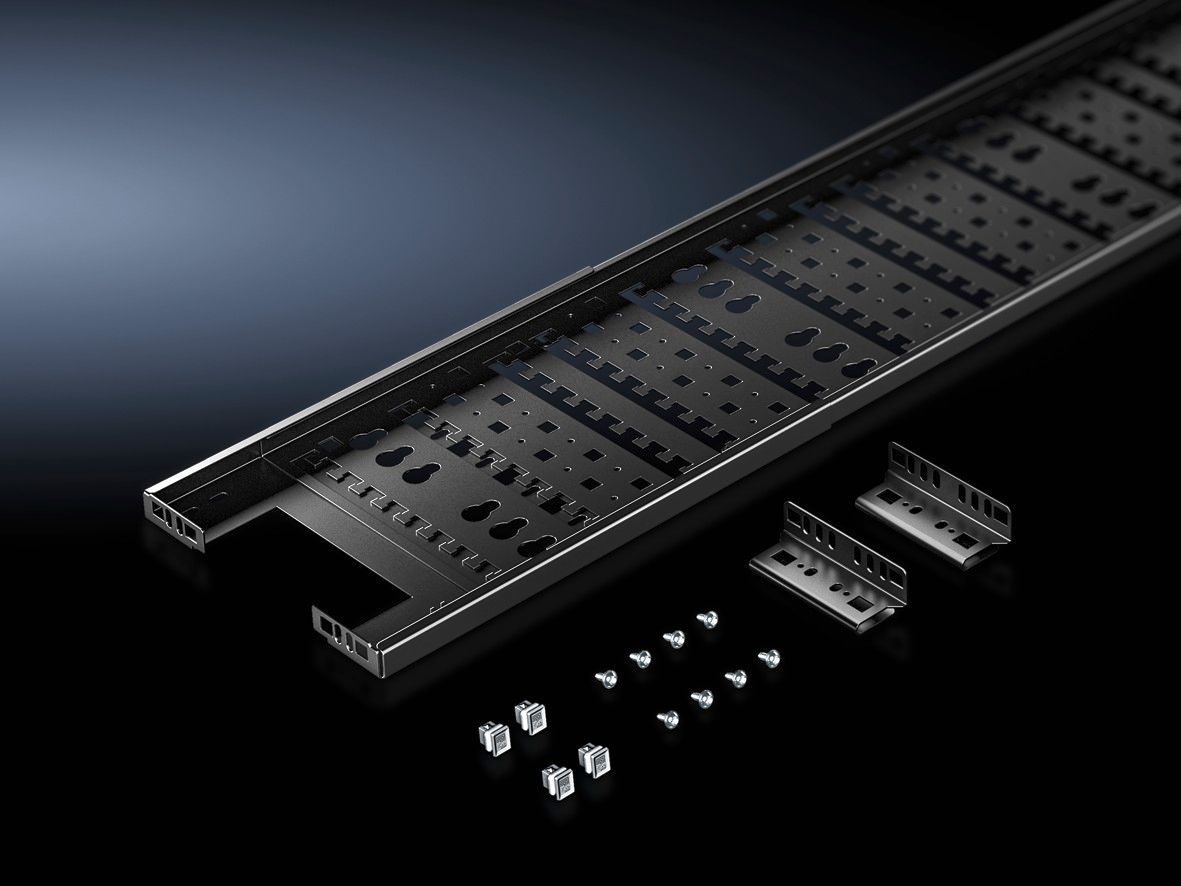

The cable tray VX 5302322 from Rittal is a system accessory for enclosures of type VX and VX IT, specifically designed for vertical cable routing and strain relief in network and server applications. The product is made of sheet steel and is painted in RAL 9005, providing a robust and uniform surface suitable for industrial environments. The width is 265 mm, and the tray is designed for enclosures with a height of at least 2,000 mm, with support also available for a height of 2,200 mm. Installation is tool-free via quick fastening to the frame structure of the enclosure, enabling simple and rapid setup. For enclosures with a width of 800 mm, additional screwing to the depth rails of the 48,3 cm ( 19 inch ) extension is possible to ensure stable fixation.

Applications

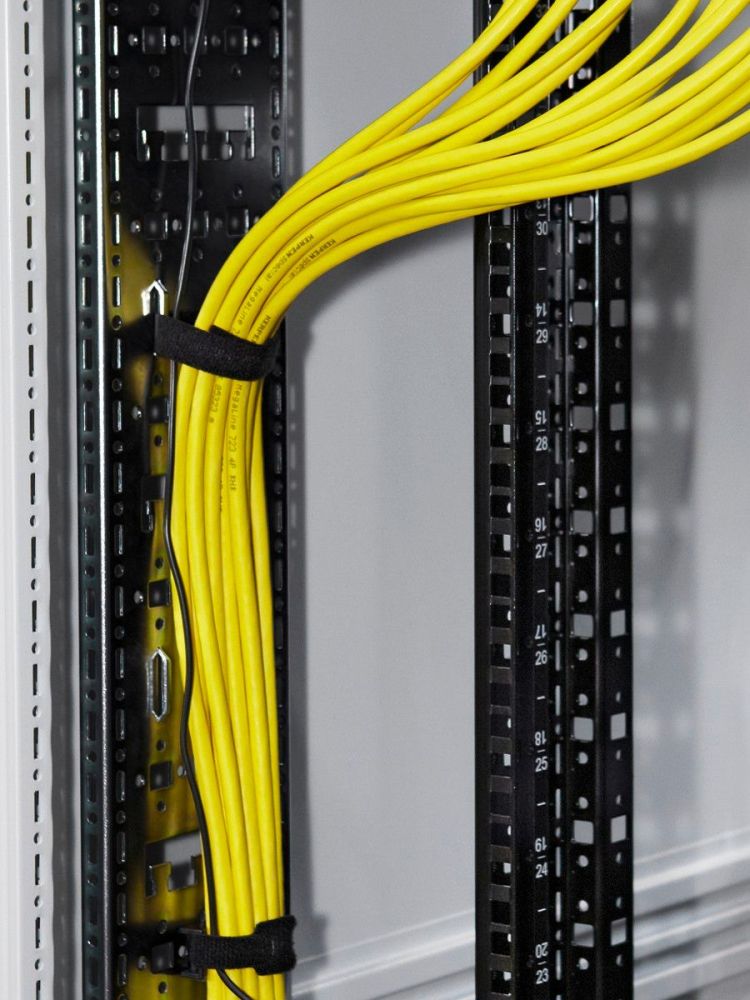

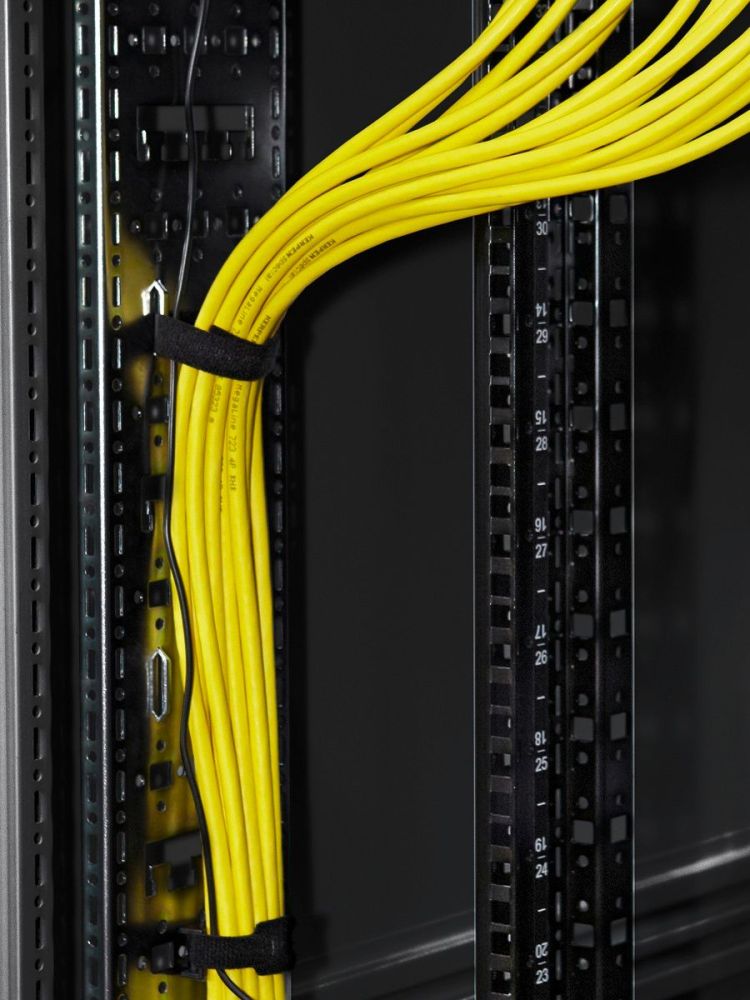

The cable tray primarily serves structured cable routing and strain relief in IT infrastructures. It is particularly suitable for applications requiring clear separation of data and power cables, as well as reduction of strain on cables. The integrated multifunctional perforation allows mounting of various cable management components, increasing flexibility in cable routing design. The tray is intended for use with VX and VX IT enclosure types commonly used in server and network installations.

Functions and Equipment in Detail

A central feature of the cable tray is the integrated mounting perforation in a 7 HE grid, designed with a keyhole slot. This enables secure mounting of Power Distribution Units (PDUs) and other devices arranged in this standard grid. The tool-free installation via quick fastening reduces mounting effort and allows rapid adaptation to different enclosure configurations.

Technology Explained Simply

The cable tray is made of sheet steel, offering high mechanical stability and resistance to mechanical stress and corrosion. The RAL 9005 paint finish provides a uniform, abrasion-resistant surface, proven effective in industrial environments. The width of 265 mm offers sufficient space for routing multiple cable bundles, while the integrated perforations allow flexible mounting of additional components. Mounting across the full enclosure depth ensures even load distribution and prevents tray displacement under load.

Compatibility and Accessories

The cable tray is specifically designed for VX and VX IT enclosure types, widely used in IT infrastructure. Compatible accessories include, for example, the Velcro strap holder DK 5502155 in RAL 9005, used for cable fixation, as well as cable ladders in 4 HE and 1 HE, providing additional mounting options for cable bundles. These elements can be used in addition to the cable tray to ensure structured and clear cable routing.

Mounting and Installation

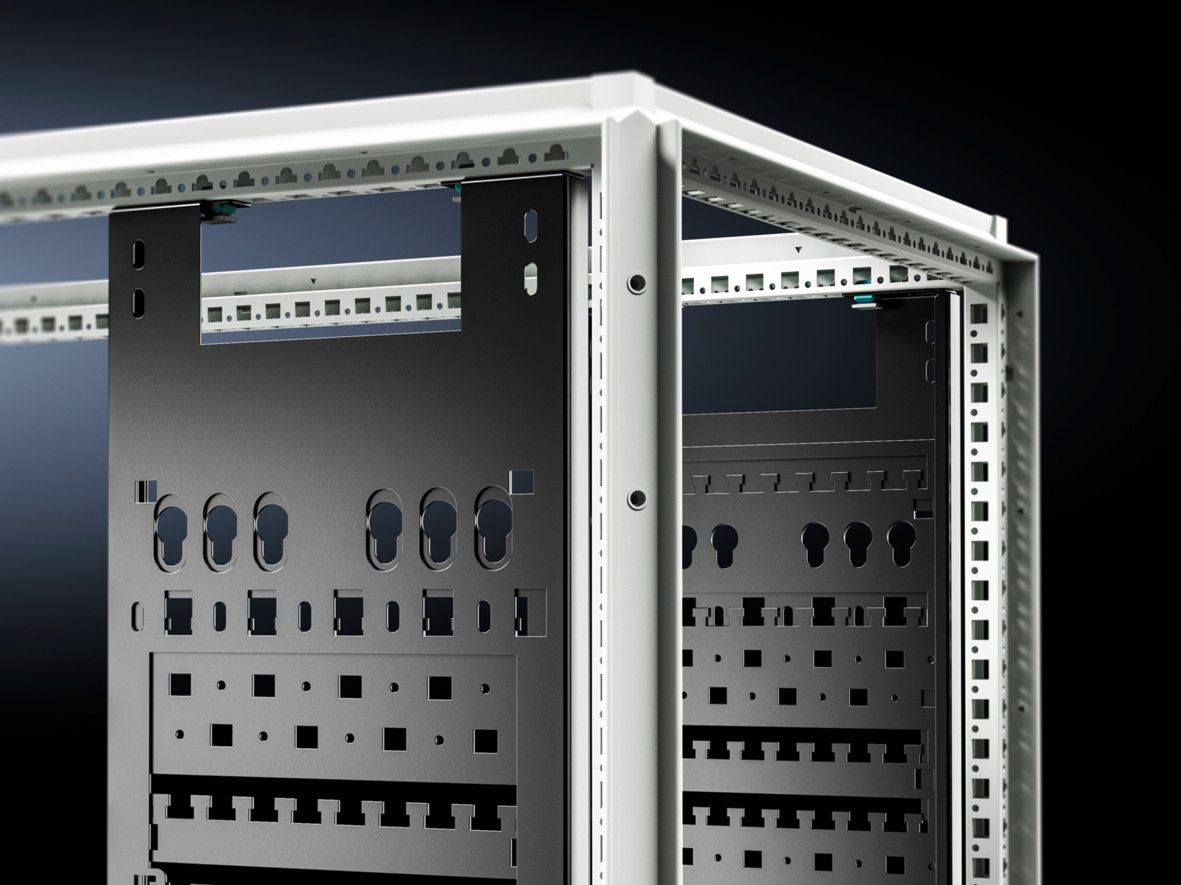

Installation is performed on the frame structure of the enclosure between the top and bottom frames, with the tray mounted continuously around the perimeter. The tool-free quick fastening enables simple and rapid installation without additional tools. For enclosures with a width of 800 mm, additional screwing to the depth rails of the 48,3 cm ( 19 inch ) extension is possible to enhance stability. Mounting across the full enclosure depth ensures even load distribution and secure fixation.

Operational Advantages

The cable tray provides structured and clear cable routing, simplifying maintenance and inspection of IT systems. The integrated mounting options for PDUs and cable management components reduce installation effort and increase flexibility in adapting to different requirements. The tool-free installation and robust construction from sheet steel ensure long service life and reliable performance in industrial environments. The RAL 9005 color matches existing enclosure installations visually, ensuring a uniform appearance.

General
ApplicationsFor vertical cable routing and strain relief in network and server applications
Materialsteel sheet
Surface protectionPainted
ColourRAL 9005
Scope of deliveryIncluding mounting hardware
Mounting optionsIn VX IT frame structure between top and bottom frame, continuous; in 800 mm wide VX IT racks, alternatively screwing between upper and lower depth brace is possible
Mounting noteMounting is carried out across the entire cabinet depth on the frame structure using quick fastening. When mounting in 800 mm wide cabinets, additional fastening to the depth rails of the 19" extension is possible.
Width265 mm
Suitable forCabinet type: VX, VX IT, height: ≥ 2000 mm
PCF/VE (Cradle-to-Gate)27.8 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5302322, EAN: 4028177952737
