Rittal 5302203 LWL cable routing panel, 1 U, RAL 9005 content_copy

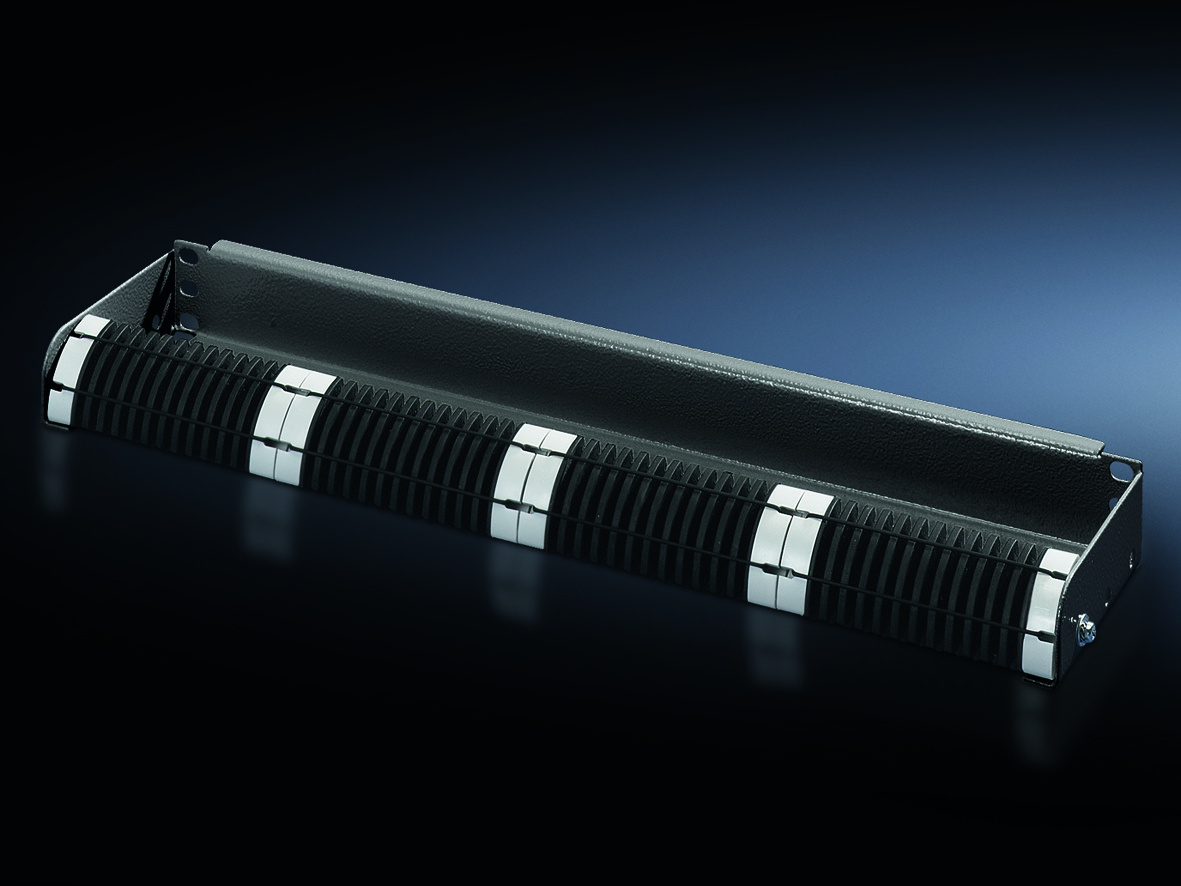

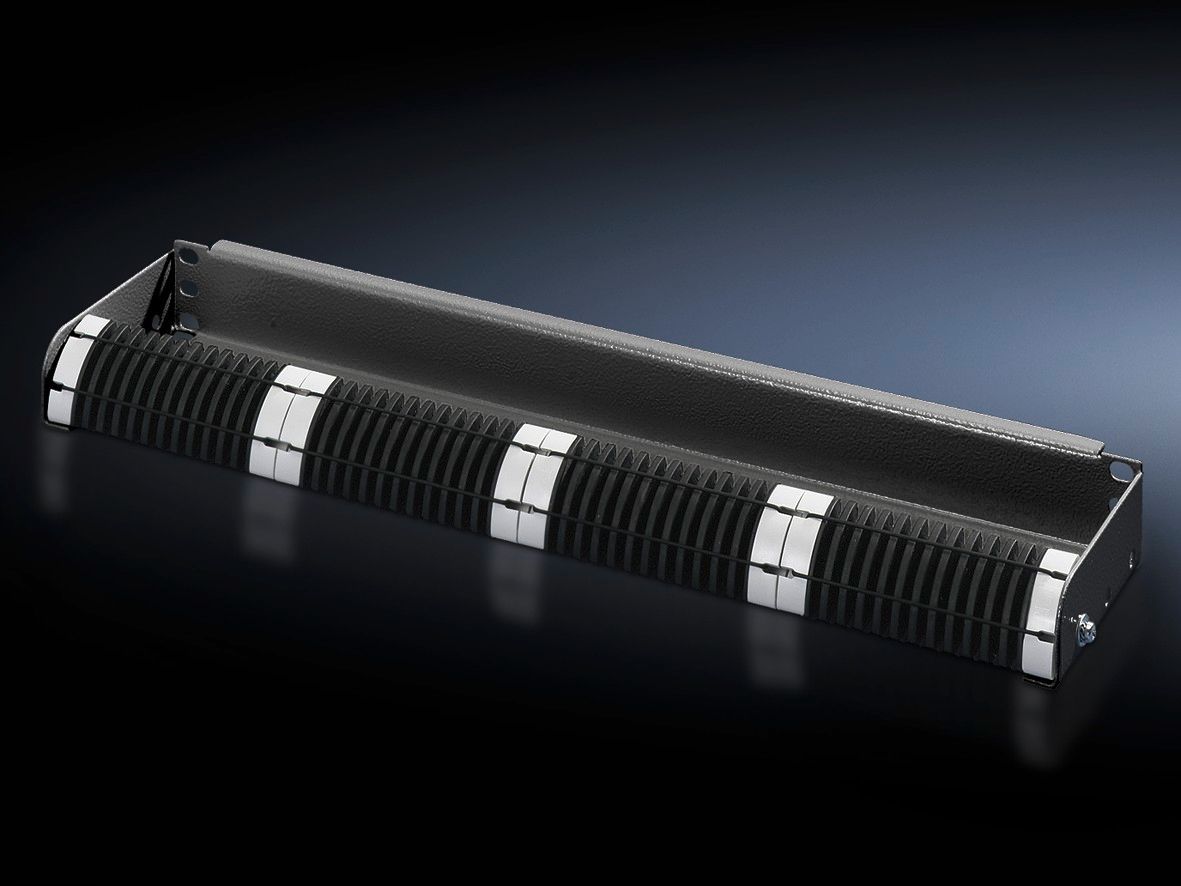

The Rittal LWL cable management panel, type DK 5302203, is a 1 U module designed for use in 48,3 cm ( 19 inch ) racks, specifically developed for front-side routing and distribution of fiber optic and copper cables. The panel enables structured and orderly cable installation in server or network rooms, with integrated cable guides ensuring optimal routing of individual fibers. The panel is finished in RAL 9005, a dark gray color that blends well in standardized rack environments. The panel is made of sheet steel, while the four integrated cable guides on the front are made of 2 K plastic, providing robust yet flexible cable guidance.

Applications

The Rittal LWL cable management panel is intended for use in data centers, server rooms, and other IT infrastructures where clear and structured routing of fiber optic and copper cables is required. It is used for organizing individual fibers, particularly when connecting network devices, switches, routers, or other rack systems. Integration into 48,3 cm ( 19 inch ) racks enables standardized mounting and placement within existing infrastructures.

Functions and Equipment in Detail

The panel features four integrated LWL cable guides arranged on the front side. These guides allow routing of up to 48 individual fibers, taking into account the minimum bending radius requirements for fiber optic cables. The guides are designed to ensure orderly cable routing and prevent tangling or unnecessary strain. The panel width is 482.6 mm, matching the standard width for 48,3 cm ( 19 inch ) racks. The height is exactly 1 U (unit height), enabling installation in standard rack systems.

Technology Explained Simply

The integrated cable guides made of 2 K plastic offer flexible yet stable cable guidance. The material is suitable for use in IT infrastructures, as it withstands mechanical stress and cable movement without breaking or deforming. The sheet steel front of the panel provides a robust structure that securely holds the integrated guides. The design takes into account the physical requirements of fiber optic cables, particularly the need to maintain minimum bending radii to preserve signal quality and prevent breaks.

Compatibility and Accessories

The panel is designed for use with fiber optic and copper cables. It can be combined with compatible accessories such as LWL cable guides (L 120 mm, up to 4.5 mm diameter), enabling extended cable routing. These accessories can be used additionally to increase capacity or flexibility in cable management. Compatibility with standard 48,3 cm ( 19 inch ) racks and adherence to U dimensions ensure universal use in existing systems.

t
Installation and Mounting

Mounting is performed in a 48,3 cm ( 19 inch ) rack, where the panel is inserted into the designated mounting holes and secured using standard rack screws. The front side of the panel is designed for direct integration into the rack, allowing cables to be routed and distributed from the front. Installation requires no special tools or additional mounting components, as the panel is standardly designed for use in rack systems.

Operational Advantages

Using the Rittal LWL cable management panel improves cable routing clarity and accessibility in IT infrastructures. Structured fiber routing reduces the risk of incorrect connections, cable damage, or signal loss. Adhering to minimum bending radii protects fiber optic cables from mechanical stress and ensures reliable signal transmission. The robust construction from sheet steel and 2 K plastic ensures long service life and resistance to mechanical stress during operation.

General
Material	Panel: steel sheet, brackets: 2 K-plastic
Width	482,6 mm
Height units	1 HE
PCF/VE (Cradle-to-Gate)	3.5 kg CO2 eq (Cat B)
Note on PCF class	Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared

---
