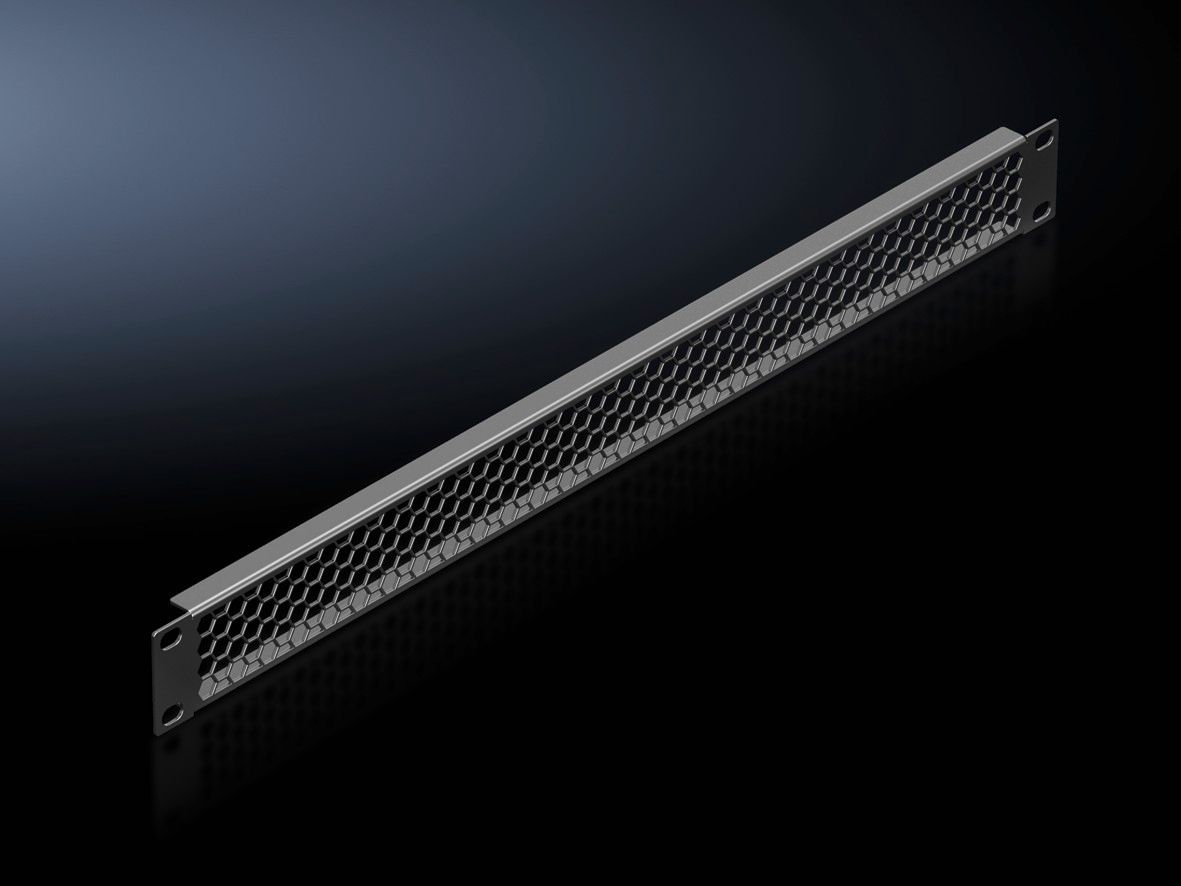

Rittal 5302201 Ventilation grille 482.6 mm (48,3 cm ( 19 inch )), 1 U, RAL 9005

Your rating:
Average rating
product review for Rittal 5302201 Ventilation grille 482.6 mm (48,3 cm ( 19 inch )), 1 U, RAL 9005
( 4.5 / 5 ) 2 ratings
Rittal 5302201
This image may differ from the desired article.
Rittal 5302201Rittal 5302201Rittal 5302201
17,25 EUR
( 20,53 EUR incl. VAT )
≈ £14.44  |  ≈ $18.96
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 5302201 Ventilation grille 482.6 mm (48,3 cm ( 19 inch )), 1 U, RAL 9005
Datasheet:file_download Download
Lieske Part No.:1910624
Mfg Part No: 5302201
UPC/EAN: 4028177952898
Weight:0.237 kg
Type:IT 5302201

Product information for Rittal 5302201:

The ventilation grille IT 5302201 from Rittal is a specific component for the climate control of enclosures in industrial applications. It is designed to guide cold air from the raised floor area through the front side into the 48,3 cm ( 19 inch )-plane of the enclosure, ensuring optimal cooling of sensitive or heat-sensitive components. The product is made of sheet steel and features a lacquered surface in the color RAL 9005, ensuring a robust and uniform surface finish. The installation width is 482.6 mm, matching the standard width for 48,3 cm ( 19 inch ) devices, and the height corresponds exactly to 1 height unit (HE), enabling integration into existing enclosure configurations.

Applications

The ventilation grille is primarily designed for use in industrial enclosures where targeted and efficient air supply is required. It is used to support the cooling of electronic assemblies, power supply modules, or other heat sources inside the enclosure. Air is directed through the front side, allowing cold air to be delivered directly to the area of components requiring cooling. This is particularly advantageous in environments with high thermal loads or in systems where controlled air circulation is necessary to ensure operational reliability.

Functions and Equipment in Detail

The grille features a perforated sheet metal section with a free area of approximately 85%. This high open area enables efficient airflow and ensures that cold air encounters minimal resistance. The construction from sheet steel provides sufficient mechanical stability to withstand loads during enclosure operation. The lacquered surface in RAL 9005 ensures uniform coloration and offers a certain level of corrosion protection suitable for industrial environments.

Technology Explained Simply

The ventilation grille operates without additional drives or electrical components. It utilizes natural airflow generated by the raised floor or external fans, directing it specifically into the enclosure. The 48,3 cm ( 19 inch ) width and 1 HE height precisely match standard dimensions of enclosure components, allowing seamless integration into existing mounting configurations. The 85% free area in the perforated section ensures unobstructed airflow, enhancing cooling performance.

Compatibility and Accessories

The ventilation grille is designed for use in 48,3 cm ( 19 inch ) enclosures and conforms to standard dimensions. Suitable accessories include 48,3 cm ( 19 inch ) fasteners 1 HE with contact (24 pieces) and internal hexagon screws M5 L16 mm (50 pieces). The use of these accessories is optional and serves to secure the grille within the enclosure.

Installation and Mounting

Installation is carried out in the designated mounting openings of a 48,3 cm ( 19 inch ) enclosure. The grille is inserted into the front side of the enclosure, with airflow directed from front to back.

Operational Advantages

The ventilation grille enables targeted and efficient air supply, improving cooling performance within the enclosure. The high open area of 85% minimizes flow resistance, optimizing airflow. The use of sheet steel and a lacquered surface ensures high mechanical strength and sufficient resistance to environmental conditions in industrial applications. Standard dimensions (48,3 cm ( 19 inch ), 1 HE) facilitate integration into existing systems without requiring additional modifications.

General
Applicationstargeted guidance of cold air from underfloor to front to rear for climate control of separate components
Materialsteel sheet
Surface protectionPainted
ColourRAL 9005
Installation dimensionsInstallation width for components: 482.6 mm, installation width for components: 19"
Height units1 HE


Product data sheet
Datasheet for Rittal 5302201, EAN: 4028177952898
