Rittal 5302016 air baffle plate profile rail standard for 600x2000 mm

Your rating:
Average rating
product review for Rittal 5302016 air baffle plate profile rail standard for 600x2000 mm
( 4 / 5 ) 1 ratings
Rittal 5302016
This image may differ from the desired article.
Rittal 5302016Rittal 5302016Rittal 5302016
154,27 EUR
( 183,58 EUR incl. VAT )
≈ £129.12  |  ≈ $169.54
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 5302016 air baffle plate profile rail standard for 600x2000 mm
Datasheet:file_download Download
Lieske Part No.:1864910
Mfg Part No: 5302016
UPC/EAN: 4028177955318
Weight:2.66 kg
Type:DK 5302016

Product information for Rittal 5302016:

The air baffle plate DK 5302016 from Rittal is a modular partition element for IT rack systems, specifically designed for separating cold and hot zones within a cabinet when used with row containment or in conjunction with an LCP system. It enhances the energy efficiency of climate control by organizing airflow within the cabinet and preventing warm exhaust air from entering the supply air zone. The product is designed for cabinets with a width of 600 mm and a height of 2,000 mm and is mounted on 48,3 cm ( 19 inch ) profile rails.

Applications

The air baffle plate is used in IT infrastructures where targeted airflow management is required to optimize cooling performance. It is particularly suitable for installations with row containment, where airflow between server rows must be controlled, as well as for systems with LCP (Local Cooling Panel), which enable localized cooling of individual devices. Separating air zones reduces energy losses and improves cooling efficiency.

Functions and Equipment in Detail

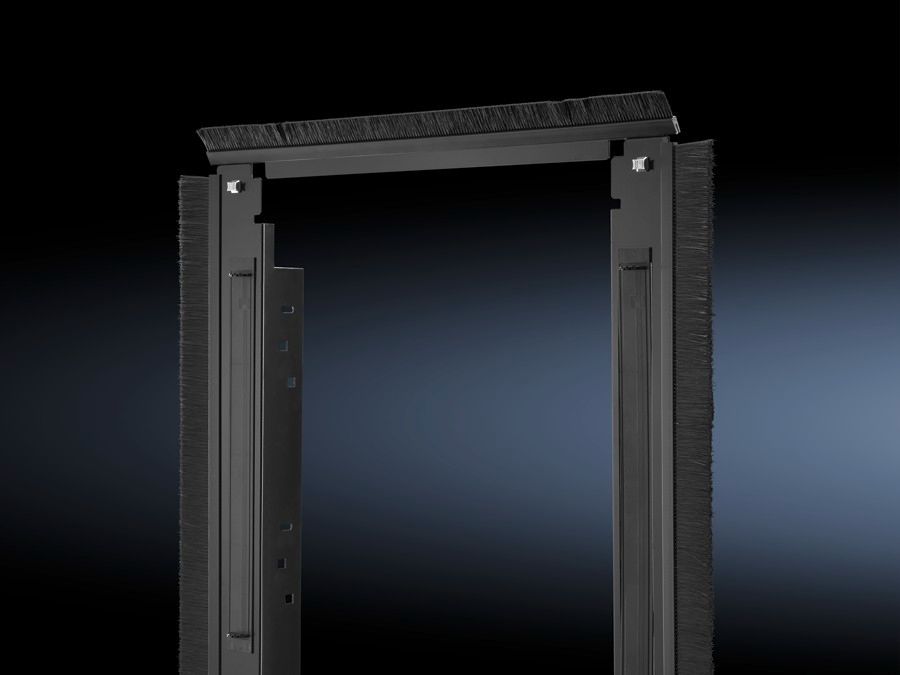

The product consists of two vertical and two horizontal panels made of sheet steel, painted in RAL 9005. The panels are equipped with plastic brush strips (UL 94-HB, halogen-free) that allow for collision-free partitioning, even when rail systems are installed on the outer mounting surface. The brush strips ensure an airtight seal without mechanical interference with mounted components. Additionally, four cell-PU foam pieces are included in the delivery, serving for sealing and stabilizing the partition surfaces.

Technology Explained Simply

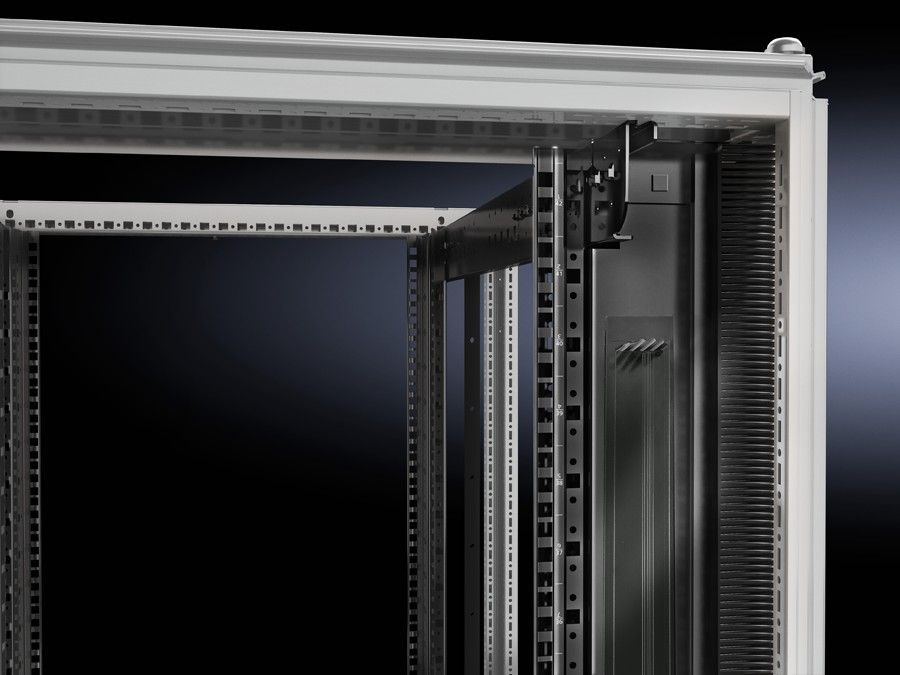

The vertical panels can be mounted on both front and rear 48,3 cm ( 19 inch ) profile rails, while the horizontal panels can only be attached to the front rails. The integrated 48,3 cm ( 19 inch ) mounting cutouts (482.6 mm) in the partition surfaces can be optionally sealed with the included blanking panels to create a closed surface, or left open to allow installation of additional components or cable routing. Mounting is done using the included fastening material.

Compatibility and Accessories

The air baffle plate is specifically designed for the VX IT 48,3 cm ( 19 inch ) profile rail standard. It is compatible with cabinets having a width of 600 mm and a height of 2,000 mm. Suitable accessories include the 48,3 cm ( 19 inch ) fastener 1 HE with contact (24 pieces), which can be used for secure mounting of components on the rails.

Installation and Mounting

Installation is carried out on the designated 48,3 cm ( 19 inch ) profile rails within the cabinet. Vertical panels can be attached to both front and rear rails, while horizontal panels may only be mounted on the front rails. The brush strips ensure an airtight seal, with the cell-PU foam pieces providing additional sealing and stability. Mounting is done using the included fastening material.

Operational Advantages

Targeted separation of air zones optimizes cooling performance within the cabinet, leading to reduced energy consumption of the climate control system. The brush strips allow for flexible and collision-free installation, even with existing rail systems. The integrated mounting cutouts offer flexibility for installing additional components or routing cables. The product is painted in RAL 9005, enabling a uniform visual design of the cabinet system.

General
ApplicationsFor separating cold/warm zones within a cabinet in case of gang enclosure or when using an LCP system.
MaterialSteel sheet, blank panel: plastic, UL 94-HB, halogen-free, brush strip: plastic, UL 94-HB
Surface protectionPainted
ColourRAL 9005
Scope of delivery2 vertical panels, 2 horizontal panels, 4 brush strips, 4 cell-PU-foam pieces, including fastening material
Suitable forWidth: = 600 mm, Height: = 2.000 mm
PCF/VE (Cradle-to-Gate)10.1 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 5302016, EAN: 4028177955318

Questions & answers

What is the delivery time of Rittal 5302016 air baffle plate profile rail standard for 600x2000 mm?

The article Rittal 5302016 air baffle plate profile rail standard for 600x2000 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5302016 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5302016 air baffle plate profile rail standard for 600x2000 mm always at the best possible price. We can give you a discount of 2% on Rittal 5302016 air baffle plate profile rail standard for 600x2000 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
