Rittal 5302009 VX IT air baffle plate, W x H: 800x2450 mm, for 48,3 cm ( 19 inch ) dyna

Your rating:
Average rating
product review for Rittal 5302009 VX IT air baffle plate, W x H: 800x2450 mm, for 48,3 cm ( 19 inch ) dyna
( 5 / 5 ) 1 ratings

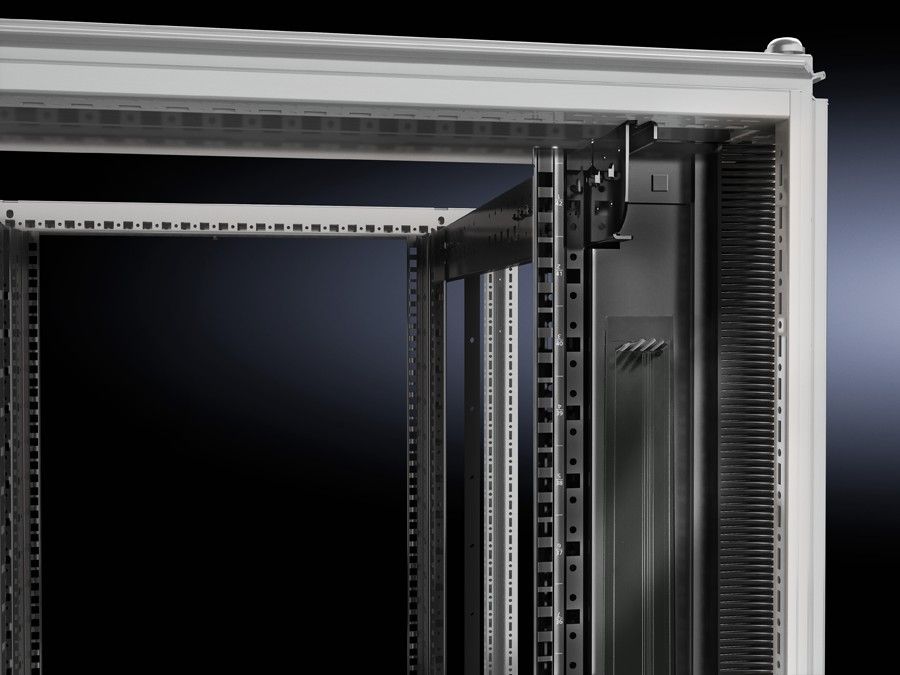

Rittal 5302009
This image may differ from the desired article.
Rittal 5302009Rittal 5302009
-12% 243,92 EUR 277,58 EUR
( 290,26 EUR incl. VAT )
≈ £204.16  |  ≈ $268.07
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 5302009 VX IT air baffle plate, W x H: 800x2450 mm, for 48,3 cm ( 19 inch ) dyna
Datasheet:file_download Download
Lieske Part No.:593670
Mfg Part No: 5302009
UPC/EAN: 4028177955240
Weight:9.36 kg
Type:DK 5302009

Product information for Rittal 5302009:

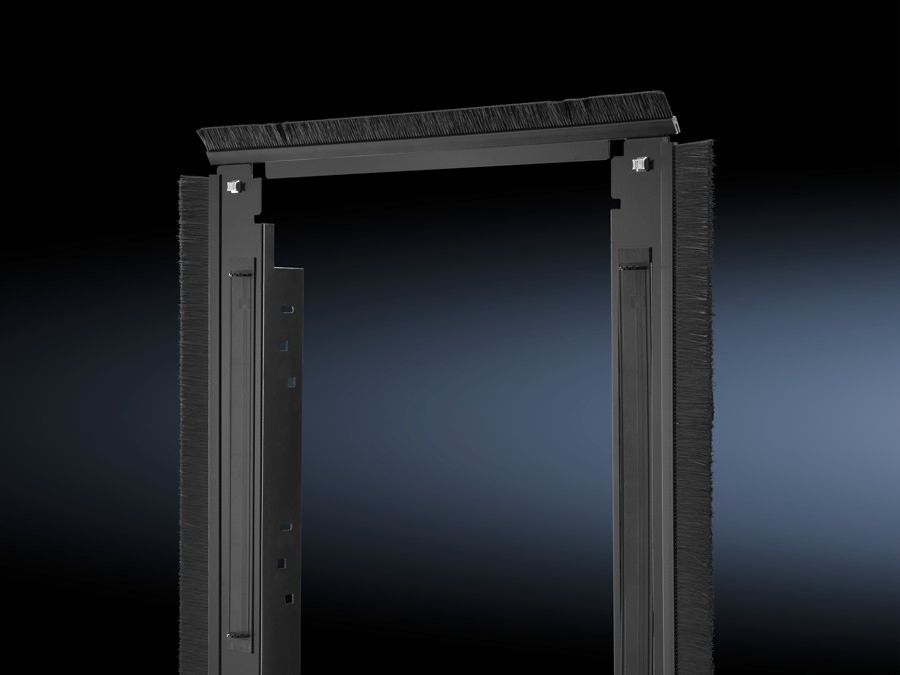

The Rittal air baffle plate DK 5302009 is a modular partition element for enclosures, specifically designed for use with VX IT 48,3 cm ( 19 inch ) profile rails dynamic. It serves to selectively separate cold and hot zones within an enclosure, particularly in row containment or in conjunction with an LCP system. The function aims to improve the energy efficiency of climate control by directing airflow precisely and avoiding unwanted mixing of cold and warm air.

Applications

The air baffle plate is designed for enclosures with a width of at least 800 mm and a height of at least 2,450 mm. It is used in IT and electrical installations where structured airflow is required to optimize cooling performance and enhance the operational safety of installed devices. The application is particularly common in data centers or server-based systems, where controlled air circulation is critical.

Functions and Equipment in Detail

The product consists of several components: two vertical panels, two horizontal panels, four brush strips, and four cell-PU foam pieces. The vertical panels with integrated brush strips can be mounted on both the front and rear 48,3 cm ( 19 inch ) profile rails to ensure collision-free partitioning. The horizontal panels with brush strips are mountable only on the front rails. The brush strips made of plastic (UL 94-HB) provide a tight yet flexible seal, while still allowing movement of devices or cables. The integrated mounting cutouts in the partition surfaces (482.6 mm, 1 HE) can optionally be closed with the included blanking panels to allow installation of additional components or cable routing.

Technology Explained Simply

The panels are made of sheet steel and painted, with the surface finished in RAL 9005. The blanking panels are made of halogen-free plastic (UL 94-HB), providing enhanced fire safety. The cell-PU foam pieces serve as additional sealing elements to minimize air leakage. The entire construction is designed to fit existing 48,3 cm ( 19 inch ) rail profiles and enables a stable yet flexible partition. Mounting is done using the included material, which is intended for installation on the profile rails.

Compatibility and Accessories

The air baffle plate is specifically developed for the VX IT 48,3 cm ( 19 inch ) profile rail dynamic. It is compatible with enclosures with a minimum width of 800 mm and a height of 2,450 mm. Suitable accessories include the DK expansion set grounding for TS IT and 48,3 cm ( 19 inch ) fasteners 1 HE with contact (24 pieces), enabling supplementary installation. These components can be used to extend grounding functionality or for secure mounting of additional elements.

Mounting and Installation

Mounting is done on the front and rear 48,3 cm ( 19 inch ) profile rails. The vertical panels are flexibly positionable, while the horizontal panels can only be mounted on the front side. The integrated cutouts in the panels can be closed with the included blanking panels to create a sealed surface or to allow installation of additional components. Mounting is done using the included material, designed for installation on the rail profiles.

Operational Advantages

Using the air baffle plate enables targeted airflow within the enclosure, increasing climate control efficiency. Separating cold and hot zones reduces energy losses and improves cooling performance. The brush strips ensure a tight seal without hindering movement of devices or cables. The integrated mounting cutouts offer flexibility for installing additional components. The use of halogen-free plastic and UL 94-HB certified materials enhances operational safety.

The product is available in a packaging unit of one piece. The net weight is 9 kg, the gross weight is 9.36 kg. Manufacturing takes environmental impact into account, with the PCF value (Cradle-to-Gate) at 35.7 kg CO2 eq (Category B), approximately calculated and self-declared based on product weight.

General
ApplicationsFor separating cold/warm zones within a cabinet in case of gang enclosure or when using an LCP system.
MaterialSteel sheet, blank panel: plastic, UL 94-HB, halogen-free, brush strip: plastic, UL 94-HB
Surface protectionPainted
ColourRAL 9005
Scope of delivery2 vertical baffles, 2 horizontal baffles, 4 brush strips, 4 cell-PU foam pieces, including mounting material, 6 blank panels, 482.6 mm (19"), 1 HE
Suitable forWidth: = 800 mm, Height: = 2.450 mm
PCF/VE (Cradle-to-Gate)35.7 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5302009, EAN: 4028177955240
