Rittal 5302007 VX IT air baffle plate, W x H: 800x2200 mm, for 48,3 cm ( 19 inch ) dyna

Your rating:
Average rating
product review for Rittal 5302007 VX IT air baffle plate, W x H: 800x2200 mm, for 48,3 cm ( 19 inch ) dyna
( 0 / 5 ) 0 ratings

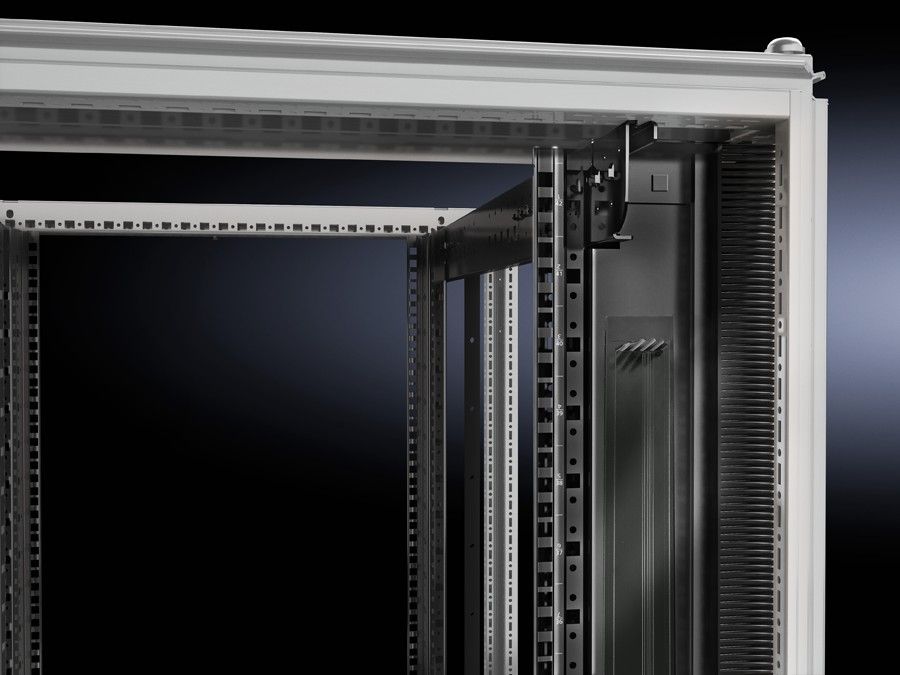

Rittal 5302007
This image may differ from the desired article.
Rittal 5302007Rittal 5302007
233,68 EUR
( 278,08 EUR incl. VAT )
≈ £195.59  |  ≈ $256.81
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: 3 pieces
1x Rittal 5302007 VX IT air baffle plate, W x H: 800x2200 mm, for 48,3 cm ( 19 inch ) dyna
Datasheet:file_download Download
Lieske Part No.:667339
Mfg Part No: 5302007
UPC/EAN: 4028177955226
Weight:8.5 kg
Type:DK 5302007

Product information for Rittal 5302007:

The Rittal air baffle plate DK 5302007 is a modular partition element for enclosures, specifically designed for use with the VX IT 48,3 cm ( 19 inch ) profile rail dynamic. It serves to selectively separate cold and hot air zones within an enclosure, particularly in gang enclosure applications or in conjunction with an LCP system (Local Cooling Panel). This separation enables more efficient climate control and improves cooling energy efficiency by directing airflow precisely and avoiding unwanted mixing.

Applications
This air baffle plate is designed for enclosures with a minimum width of 800 mm and a minimum height of 2,200 mm. It is used in industrial and technical installations where controlled airflow within the enclosure is required to optimize cooling performance and ensure operational safety of installed devices. Typical applications include use in combination with 48,3 cm ( 19 inch ) mounting systems, particularly in IT and electrical installations.

Functions and Equipment in Detail

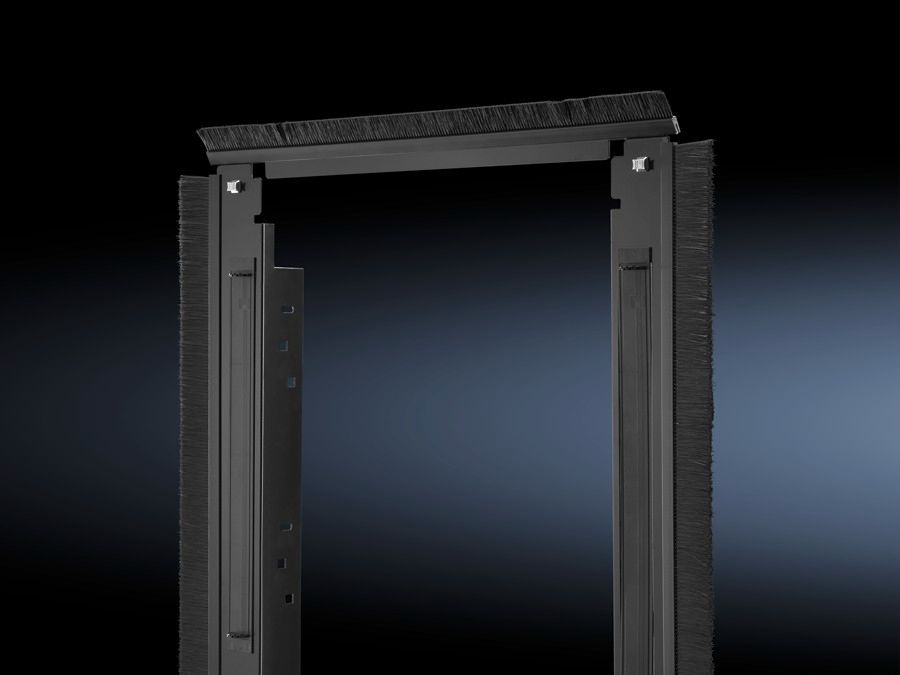

The product consists of two vertical and two horizontal panels made of painted steel sheet, forming a stable partition wall. The panels are finished in RAL 9005, enabling a uniform visual appearance within the enclosure. They are complemented by four brush strips made of plastic, ensuring collision-free sealing, especially when mounting rail systems on the outer mounting plane. The brush strips are made of halogen-free plastic (UL 94-HB), ensuring safe and low-smoke reaction in case of fire. Additionally, four pieces of cellular PU foam are included, serving as sealing elements to minimize air leakage. The delivery also includes six blanking panels made of halogen-free plastic (UL 94-HB) and the required mounting hardware to securely install the panels in the enclosure.

Technology Explained Simply
The vertical and horizontal panels form a closed partition surface that separates airflows within the enclosure. The brush strips ensure the partition remains effective at the edges without hindering device mounting. The cellular PU foam pieces seal the connections to ensure optimal airflow. The blanking panels are used to close unused mounting positions on the 48,3 cm ( 19 inch ) rail and contribute to air-tight sealing. The entire set is designed for installation in 48,3 cm ( 19 inch ) systems, with the panel width measuring 482.6 mm, corresponding to the standard 1 U.

Compatibility and Accessories
The air baffle plate is specifically developed for the VX IT 48,3 cm ( 19 inch ) profile rail dynamic and adapts to the dimensions of this rail system. It is suitable for enclosures with a minimum width of 800 mm and a minimum height of 2,200 mm. As compatible accessories, the DK grounding expansion set for TS IT is available, enabling secure grounding within the enclosure. Additionally, 48,3 cm ( 19 inch ) fasteners 1 U with electrical connection are available, providing an electrical connection between mounted devices and the enclosure grounding.

Mounting and Installation
Installation is carried out using the included mounting hardware on the 48,3 cm ( 19 inch ) profile rail. The vertical and horizontal panels are fixed at designated positions, with the brush strips installed at the edges to ensure an air-tight seal. The cellular PU foam pieces are placed at transitions to minimize air leakage. Blanking panels are installed at unused mounting positions to complete the air-tight sealing.

Operational Advantages
By selectively separating cold and hot air zones, cooling performance within the enclosure is optimized. This leads to improved energy efficiency of the climate control and reduces energy consumption. The air-tight sealing minimizes unwanted airflows, increasing the operational safety of installed devices. The use of halogen-free plastic and cellular PU foam ensures a safe and environmentally compatible material selection. The modular design allows flexible adaptation to various enclosure configurations, with predefined dimensions ensuring secure installation. The RAL 9005 color provides a uniform visual appearance, integrating well into industrial environments.

General
ApplicationsFor separating cold/warm zones within a cabinet in case of gang enclosure or when using an LCP system.
MaterialSteel sheet, blank panel: plastic, UL 94-HB, halogen-free, brush strip: plastic, UL 94-HB
Surface protectionPainted
ColourRAL 9005
Scope of delivery2 vertical baffles, 2 horizontal baffles, 4 brush strips, 4 cell-PU foam pieces, including mounting material, 6 blank panels, 482.6 mm (19"), 1 HE
Suitable forWidth: = 800 mm, Height: = 2.200 mm
PCF/VE (Cradle-to-Gate)32.4 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5302007, EAN: 4028177955226
