Rittal 5302005 VX IT air baffle plate, W x H: 800x2000 mm, for 48,3 cm ( 19 inch ) dyna

Your rating:
Average rating
product review for Rittal 5302005 VX IT air baffle plate, W x H: 800x2000 mm, for 48,3 cm ( 19 inch ) dyna
( 4.5 / 5 ) 4 ratings
Rittal 5302005
This image may differ from the desired article.
Rittal 5302005Rittal 5302005Rittal 5302005
223,79 EUR
( 266,31 EUR incl. VAT )
≈ £187.31  |  ≈ $245.95
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 5302005 VX IT air baffle plate, W x H: 800x2000 mm, for 48,3 cm ( 19 inch ) dyna
Datasheet:file_download Download
Lieske Part No.:1864908
Mfg Part No: 5302005
UPC/EAN: 4028177955202
Weight:8.12 kg
Type:DK 5302005

Product information for Rittal 5302005:

The Rittal air baffle plate DK 5302005 is a modular partition element for enclosures, specifically designed for use with VX IT 48,3 cm ( 19 inch ) profile rails dynamic. It serves to selectively separate cold and hot zones within an enclosure, particularly in gang housing or in connection with an LCP system. The function aims to increase the energy efficiency of climate control by directing airflow precisely and avoiding unwanted mixing of cold and warm air.

Applications

The air baffle plate is designed for enclosures with a width of at least 800 mm and a height of at least 2000 mm. It is used in environments where structured airflow is required to optimize cooling performance and enhance the operational reliability of installed devices. Typical applications include data centers or industrial control systems, where targeted airflow for heat dissipation and to prevent overheating is critical.

Functions and Equipment in Detail

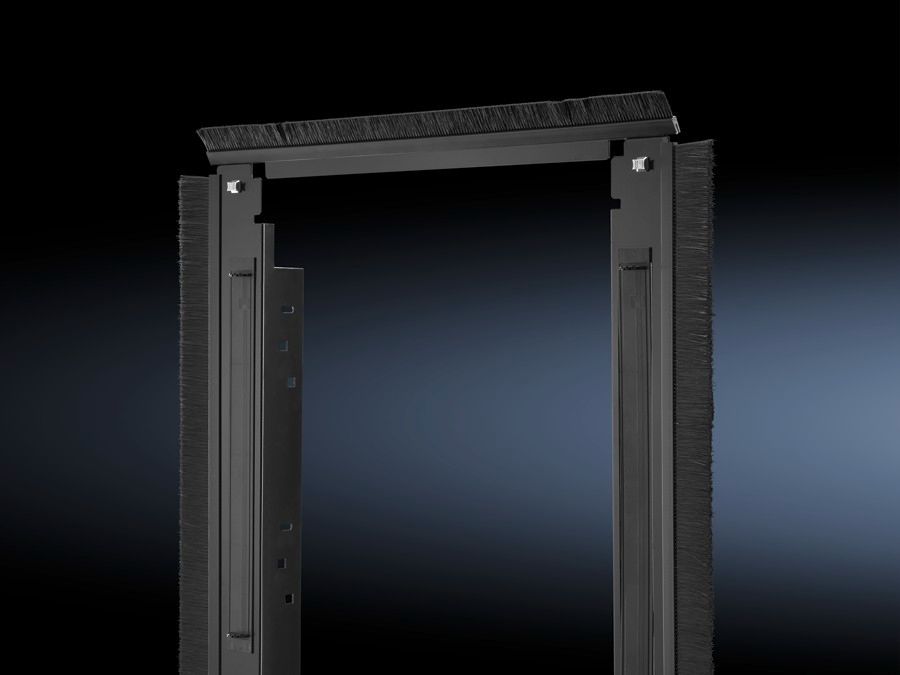

The set includes 2 vertical panels, 2 horizontal panels, 4 brush strips, and 4 cell-PU foam pieces. The vertical panels are equipped with brush strips, enabling collision-free partitioning, even when rail systems are installed on the outer mounting surface. The horizontal panels can only be mounted on the front 48,3 cm ( 19 inch ) profile rails. The integrated mounting cutouts in the partition surfaces (482.6 mm, 1 HE) can optionally be sealed with the included blanking panels to cover the surface, or used for installing additional components or cable routing. The blanking panels are made of halogen-free plastic, certified to UL 94-HB.

Technology Explained Simply

The plastic brush strips (UL 94-HB) provide a tight yet flexible seal that accommodates movements of devices or rails without impairing airflow. The cell-PU foam pieces serve as additional sealing elements to prevent gaps. The panels themselves are made of painted steel sheet, ensuring a robust and durable construction. The color RAL 9005 (black) ensures visual harmonization with standard enclosure components.

Compatibility and Accessories

The air baffle plate is specifically designed for the VX IT 48,3 cm ( 19 inch ) profile rail dynamic. It is compatible with enclosures with a minimum width of 800 mm and a minimum height of 2000 mm. Suitable accessories include the DK expansion set grounding for TS IT and 48,3 cm ( 19 inch ) fasteners 1 HE with contact (24 pieces), which enable extended grounding or additional mounting options.

Installation and Mounting

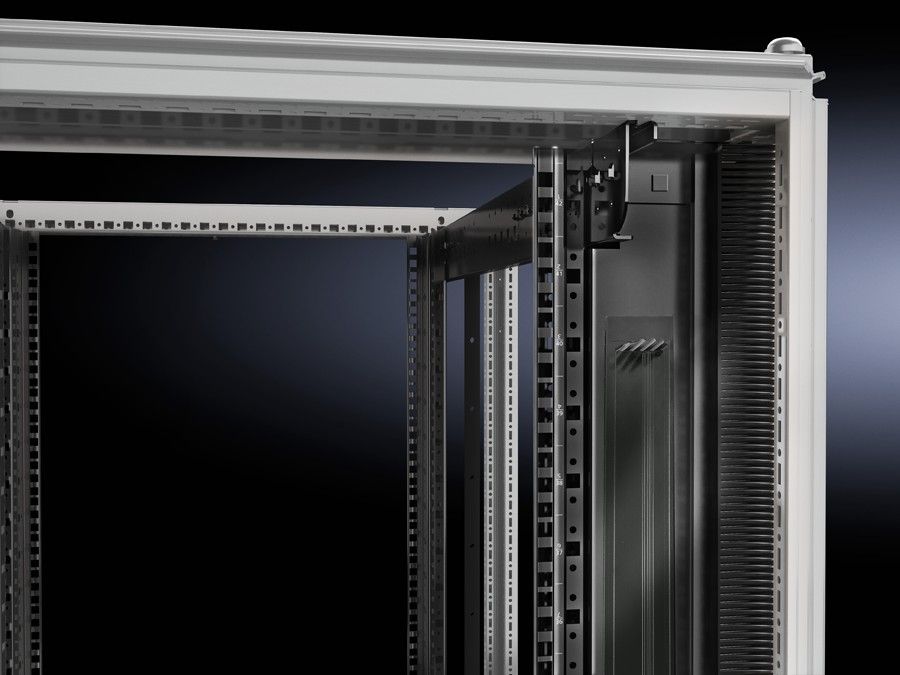

The vertical panels with brush strips can be mounted on both the front and rear 48,3 cm ( 19 inch ) profile rails. The horizontal panels are exclusively mountable on the front rails. Mounting is carried out using the included fastening material. The integrated mounting cutouts offer flexibility for additional installations or cable routing.

Operational Advantages

By selectively separating airflows, cooling performance is optimized, leading to reduced energy consumption of the climate control system. The brush strips ensure a tight partition without hindering device installation. The use of halogen-free plastic and cell-PU foam contributes to safety, particularly in environments with increased fire protection requirements. The modular construction allows flexible adaptation to different enclosure configurations.

General
ApplicationsFor separating cold/warm zones within a cabinet in case of gang enclosure or when using an LCP system.
MaterialSteel sheet, blank panel: plastic, UL 94-HB, halogen-free, brush strip: plastic, UL 94-HB
Surface protectionPainted
ColourRAL 9005
Scope of delivery2 vertical baffles, 2 horizontal baffles, 4 brush strips, 4 cell-PU foam pieces, including mounting material, 6 blank panels, 482.6 mm (19"), 1 HE
Suitable forWidth: = 800 mm, Height: = 2.000 mm
PCF/VE (Cradle-to-Gate)30.9 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5302005, EAN: 4028177955202
