Rittal 5302004 VX IT air baffle plate, W x H: 600x2000 mm, for 48,3 cm ( 19 inch ) dyna

Your rating:
Average rating
product review for Rittal 5302004 VX IT air baffle plate, W x H: 600x2000 mm, for 48,3 cm ( 19 inch ) dyna
( 4 / 5 ) 2 ratings
Rittal 5302004
This image may differ from the desired article.
Rittal 5302004Rittal 5302004Rittal 5302004Rittal 5302004
-12% 179,40 EUR 202,81 EUR
( 213,49 EUR incl. VAT )
≈ £150.16  |  ≈ $197.16
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 5302004 VX IT air baffle plate, W x H: 600x2000 mm, for 48,3 cm ( 19 inch ) dyna
Datasheet:file_download Download
Lieske Part No.:1864907
Mfg Part No: 5302004
UPC/EAN: 4028177955196
Weight:2.52 kg
Type:DK 5302004

Product information for Rittal 5302004:

The Rittal air baffle plate DK 5302004 is a specially developed component for separating cold and hot zones within an enclosure, particularly when using row containment concepts or when employing an LCP system. It serves to specifically increase the energy efficiency of climate control systems in server and IT infrastructures. The product is designed for enclosures with a width of 600 mm and a height of 2,000 mm and is supplied in the colour RAL 9005. The surface is painted, ensuring a uniform and robust coating.

Applications

The air baffle plate is used to control airflow within an enclosure in a targeted manner. It prevents the mixing of cold and warm air, which is particularly advantageous when using LCP systems (fan and cooling plate systems) or row containment concepts. This optimizes cooling performance and increases the efficiency of climate control. Separating air zones contributes to reducing energy losses and supports the thermal stability of installed devices.

Functions and Equipment in Detail

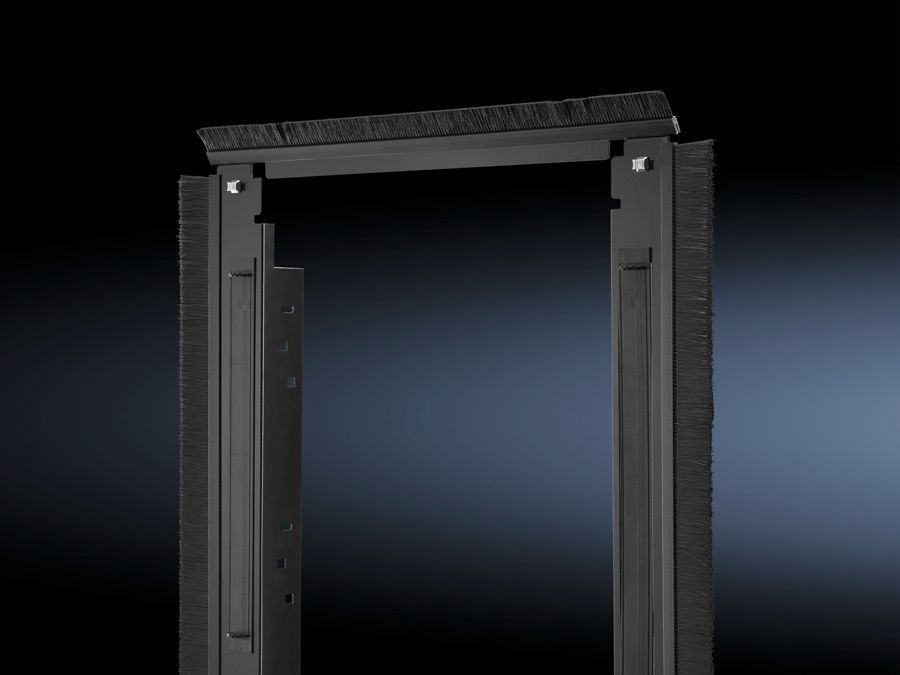

The set includes 2 vertical panels, 2 horizontal panels, 4 brush strips, and 4 pieces of cell-PU foam. The vertical panels are equipped with brush strips, enabling collision-free partitioning, especially when rail systems are installed on the outer mounting plane. The horizontal panels with brush strips can be mounted exclusively on the front 48,3 cm ( 19 inch ) profile rails. The integrated 482.6 mm (48,3 cm ( 19 inch )) mounting cutouts in the partition surfaces can optionally be sealed with the included blanking panels, allowing for additional component installation or cable routing. The delivery also includes the necessary mounting hardware.

Technology Explained Simply

The vertical panels can be mounted on both front and rear 48,3 cm ( 19 inch ) profile rails, allowing flexible adaptation to different enclosure configurations. The brush strips are made of plastic (UL 94-HB, halogen-free) and provide a tight, yet movable seal that controls airflow without causing mechanical collisions with installed components. The cell-PU foam pieces serve as additional sealing elements to prevent gaps in the partition. The panels are made of sheet steel, ensuring high mechanical stability.

Compatibility and Accessories

The air baffle plate is specifically designed for the VX IT 48,3 cm ( 19 inch ) profile rail dynamic. It is compatible with enclosures of width 600 mm and height 2,000 mm. Suitable accessories include the DK expansion set earthing for TS IT and 48,3 cm ( 19 inch ) fasteners 1 HE with contact (24 pieces). These components can be used to extend functionality or improve earthing of the enclosure.

Mounting and Installation

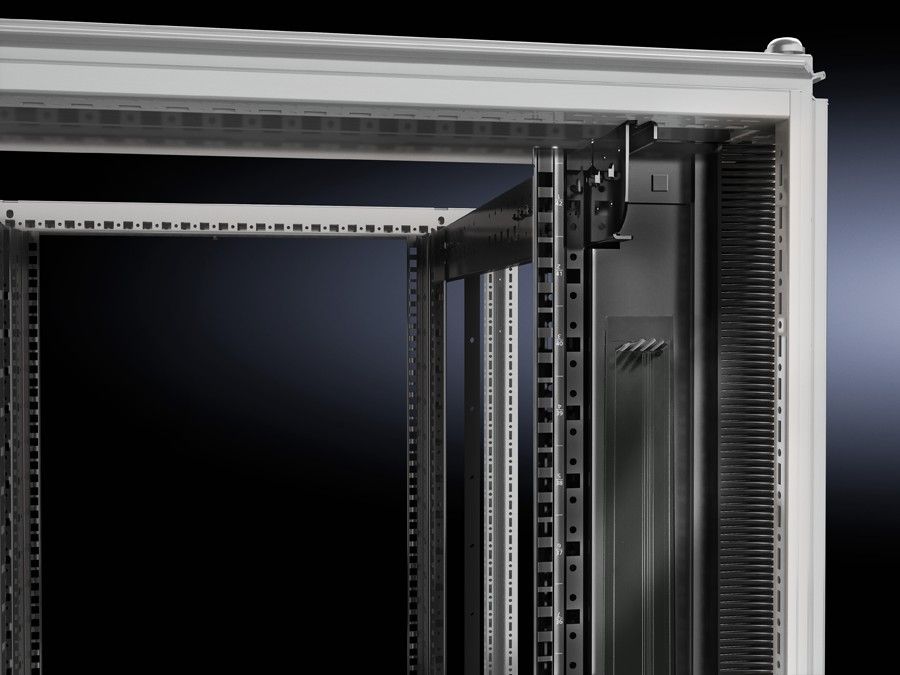

Installation is carried out on the 48,3 cm ( 19 inch ) profile rails. The vertical panels can be fastened to front and rear rails, while the horizontal panels may only be mounted on the front rails. The integrated mounting cutouts allow for installation of additional components or cable routing. The included blanking panels can be used to seal the cutouts. The mounting hardware included in the delivery enables secure and stable installation.

Operational Advantages

Targeted separation of air zones improves the cooling performance of the climate control system, leading to higher energy efficiency. The brush strips ensure a tight partition without impairing device accessibility. The use of halogen-free plastic and UL 94-HB certified materials increases operational safety. The modular construction with integrated mounting cutouts offers flexibility for installing additional components.

General
ApplicationsFor separating cold/warm zones within a cabinet in case of gang enclosure or when using an LCP system.
MaterialSteel sheet, blank panel: plastic, UL 94-HB, halogen-free, brush strip: plastic, UL 94-HB
Surface protectionPainted
ColourRAL 9005
Scope of delivery2 vertical panels, 2 horizontal panels, 4 brush strips, 4 cell-PU-foam pieces, including fastening material
Suitable forWidth: = 600 mm, Height: = 2.000 mm
PCF/VE (Cradle-to-Gate)9.6 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5302004, EAN: 4028177955196

Questions & answers

What is the delivery time of Rittal 5302004 VX IT air baffle plate, W x H: 600x2000 mm, for 48,3 cm ( 19 inch ) dyna?

The article Rittal 5302004 VX IT air baffle plate, W x H: 600x2000 mm, for 48,3 cm ( 19 inch ) dyna is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5302004 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5302004 VX IT air baffle plate, W x H: 600x2000 mm, for 48,3 cm ( 19 inch ) dyna always at the best possible price. We can give you a discount of 2% on Rittal 5302004 VX IT air baffle plate, W x H: 600x2000 mm, for 48,3 cm ( 19 inch ) dyna if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
