Rittal 5301561 steel sheet door, single-piece ventilated for VX IT, 600x200

Your rating:
Average rating
product review for Rittal 5301561 steel sheet door, single-piece ventilated for VX IT, 600x200
( 4.5 / 5 ) 2 ratings
Rittal 5301561
This image may differ from the desired article.
Rittal 5301561Rittal 5301561
303,60 EUR
( 361,28 EUR incl. VAT )
≈ £254.11  |  ≈ $333.66
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: 1 pieces
1x Rittal 5301561 steel sheet door, single-piece ventilated for VX IT, 600x200
Datasheet:file_download Download
Lieske Part No.:705652
Mfg Part No: 5301561
UPC/EAN: 4028177955103
Weight:13.2 kg
Type:DK 5301561

Product information for Rittal 5301561:

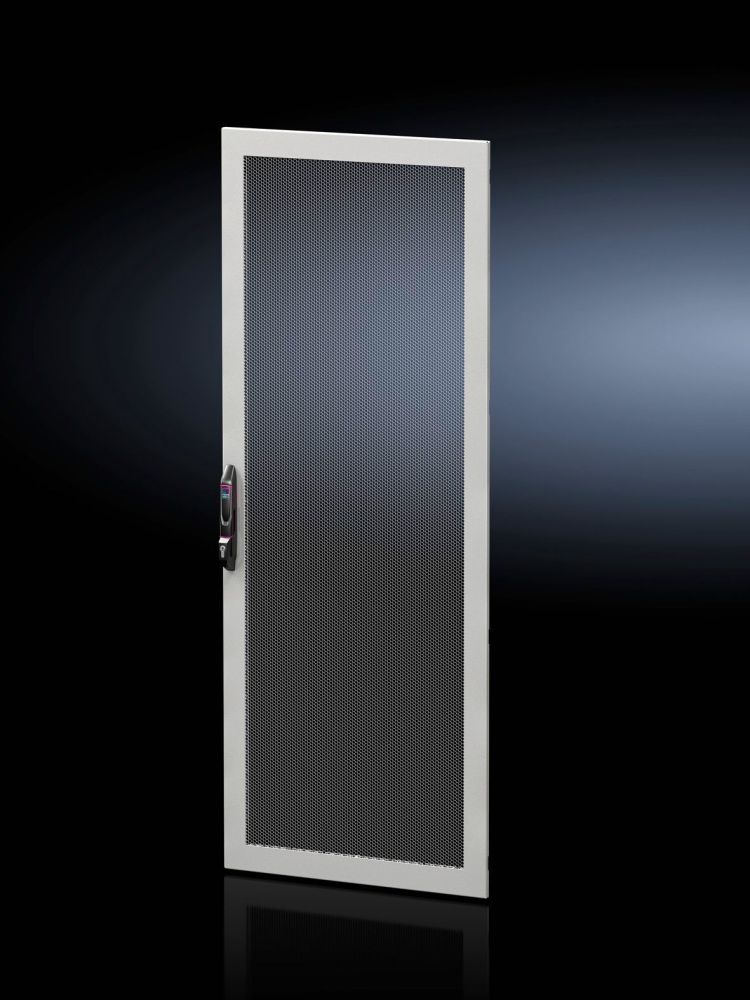

The Rittal steel sheet door DK 5301561 is a single-piece, ventilated door module for enclosures of type VX IT. It is specifically designed for replacing existing doors and fits exactly into enclosures with a width of 600 mm and a height of 2,000 mm. The door is made of steel sheet and is painted, with the door surface in RAL 7035 and the comfort handle in RAL 9005. Ventilation is achieved through a perforated sheet, with a free area of approximately 85%, enabling sufficient air circulation within the enclosure.

Applications

The door is intended for use in industrial enclosures, particularly in systems requiring high air permeability to ensure cooling of installed components. It is suitable for standalone installations as well as for baying, with maximum opening angles varying depending on the mounting configuration. For standalone installation, the maximum opening angle is 165°, while for baying it is 110°. For a 180° opening in baying, a special 180° baying hinge is required.

Functions and Equipment in Detail

The door is equipped with a comfort handle for half cylinder, compatible with the security locking system 3524 E. Three hinges with an opening angle of 130° are mounted internally. The delivery includes the door with comfort handle, the three hinges, and the required mounting hardware. The door is therefore ready for immediate installation and requires no additional components for mounting.

Technology Explained Simply

The use of steel sheet ensures high mechanical stability and corrosion resistance. The paint coating protects the surface from environmental influences. The perforated sheet structure with 85% free area ensures efficient ventilation, allowing temperature control within the enclosure. The integrated security locking system 3524 E provides a high protection standard against unauthorized access.

Compatibility and Accessories

The door is exclusively designed for enclosures of type VX IT with dimensions of 600 mm width and 2,000 mm height. Suitable accessories include enclosure keys 3524E (2 pieces) and an SK condensate hose 12 x 2 mm, length 10 m. These components can be ordered separately to enhance the functionality and maintenance of the enclosure.

Mounting and Installation

The door is mounted using the hinges and mounting hardware included in the delivery. The hinges are mounted internally, enabling a clean aesthetic appearance. Installation takes place at the designated position on the enclosure. When baying, attention must be paid to the maximum opening angles to avoid collisions with adjacent enclosures.

Operational Advantages

The door offers an optimal combination of ventilation, security, and mechanical strength. The high air permeability supports cooling of electronic components, while the security locking system controls access to sensitive parts. The robust steel sheet construction ensures long service life even under industrial conditions. The door is easy to install and replaces existing doors without requiring additional modifications.

General
Materialsteel sheet
Surface protectionPainted
ColourDoor: RAL 7035, Comfort handle VX: RAL 9005
Scope of deliveryDoor with comfort handle for profile half-cylinder with security locking 3524 E, 3 hinges 130°, mounted internally, including mounting material
Mounting noteFor a door opening angle of 180° when installed in a row, a 180° row hinge is required
NoteDoor opening angle for single installation max. 165°, door opening angle for row installation max. 110°
Suitable forCabinet type: VX IT, width: = 600 mm, height: = 2,000 mm
PCF/VE (Cradle-to-Gate)50.3 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5301561, EAN: 4028177955103

Questions & answers

What is the delivery time of Rittal 5301561 steel sheet door, single-piece ventilated for VX IT, 600x200?

The article Rittal 5301561 steel sheet door, single-piece ventilated for VX IT, 600x200 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5301561 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5301561 steel sheet door, single-piece ventilated for VX IT, 600x200 always at the best possible price. We can give you a discount of 2% on Rittal 5301561 steel sheet door, single-piece ventilated for VX IT, 600x200 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
