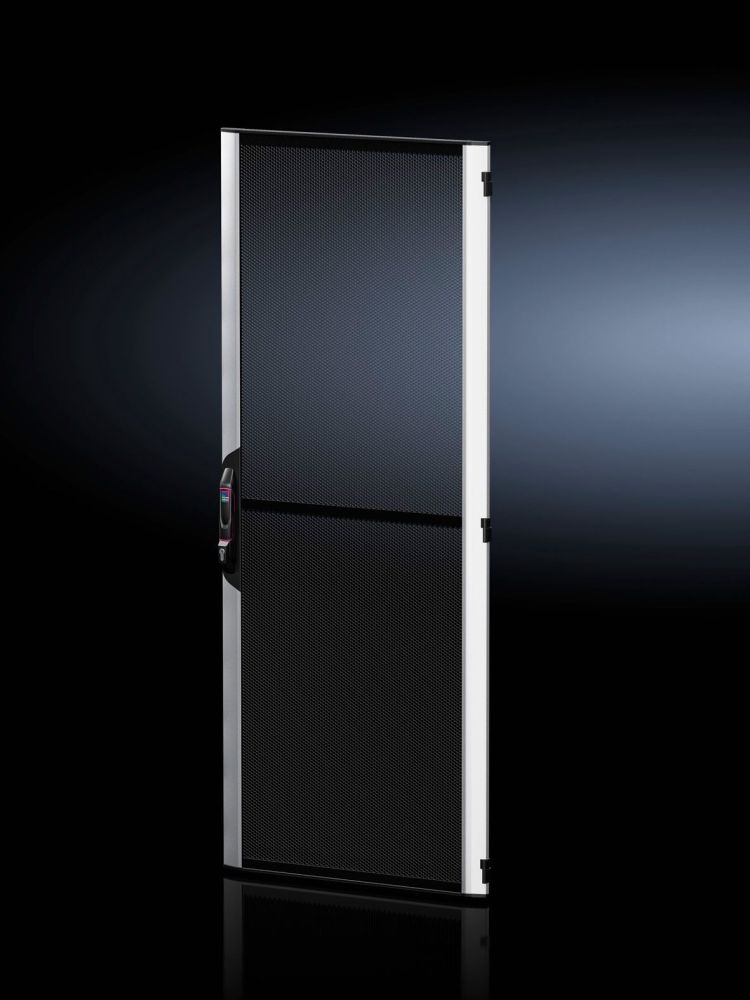

Rittal 5301453 Aluminium-steel sheet door, ventilated for VX IT, 800x220

Your rating:
Average rating
product review for Rittal 5301453 Aluminium-steel sheet door, ventilated for VX IT, 800x220
( 4.3 / 5 ) 3 ratings
Rittal 5301453
This image may differ from the desired article.
Rittal 5301453Rittal 5301453Rittal 5301453Rittal 5301453
378,35 EUR
( 450,24 EUR incl. VAT )
≈ £316.68  |  ≈ $415.81
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 5301453 Aluminium-steel sheet door, ventilated for VX IT, 800x220
Datasheet:file_download Download
Lieske Part No.:1989420
Mfg Part No: 5301453
UPC/EAN: 4028177955073
Weight:10.6 kg
Type:DK 5301453

Product information for Rittal 5301453:

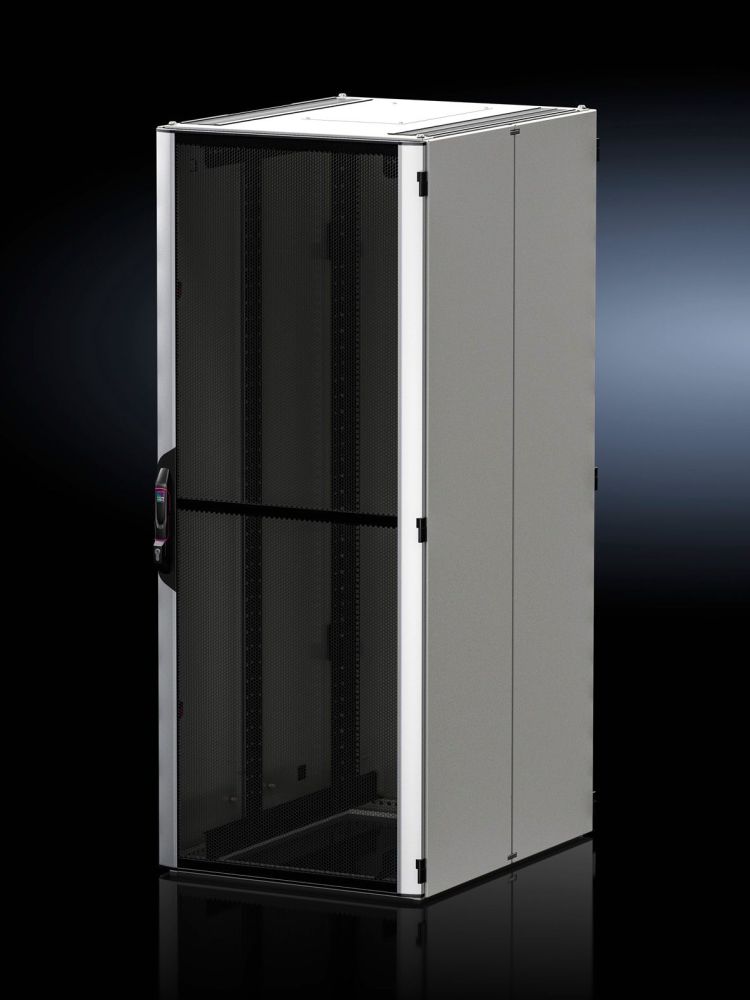

The Rittal DK 5301453 is an aluminium-steel sheet door, ventilated, specifically designed for enclosures of type VX IT. It serves as a replacement for existing doors and is intended for enclosures with a width of 800 mm and a height of 2,200 mm. The door features a ventilated perforated sheet section with a free area of approximately 85 %, enabling efficient air circulation within the enclosure. The construction consists of a frame made of aluminium extrusion profile, with the ventilation grille made of steel sheet. The vertical profiles are made of anodised aluminium, while the horizontal profiles are made of painted aluminium. The colour scheme corresponds to RAL 9005 for the comfort handle, hinges, horizontal profiles, and ventilation grille, while the vertical profiles are silver-coloured.

Applications

The door is intended for use in industrial enclosures, particularly in systems requiring high ventilation and accessibility. The 85 % ventilation opening supports cooling of electronic components and prevents overheating. Designed for replacing existing doors, it enables quick and cost-efficient modernisation or repair of enclosures. The dimensions fit precisely to enclosures of the VX IT system with the specified dimensions.

Functions and Equipment in Detail

The door is supplied with a comfort handle for half cylinder with security lock 3524 E, ensuring secure and convenient operation. Three 180° hinges are pre-installed, allowing the door to be opened up to 240° in single installation. In baying, the maximum opening angle is limited to 105°. The delivery includes the necessary mounting hardware for installation.

Technology Explained Simply

The combination of aluminium extrusion profile and steel sheet offers a good balance between lightweight construction and mechanical stability. The anodised aluminium of the vertical profiles ensures corrosion resistance and a uniform surface finish. The painted horizontal profiles are also resistant to environmental influences. The 85 % ventilation opening is designed for effective heat dissipation, thereby increasing the service life of devices installed in the enclosure. The security lock 3524 E provides a high protection standard against unauthorised access.

Compatibility and Accessories

The door is exclusively suitable for enclosures of type VX IT with dimensions of 800 mm width and 2,200 mm height. As compatible accessory, the enclosure key 3524E (2 pieces) is offered, which is required for using the integrated security lock.

Installation and Mounting

The door is pre-mounted with three 180° hinges and is installed using the included mounting hardware. In single installation, the door can be opened up to 240°; in baying, the opening angle is limited to 105°. Mounting is carried out at the designated mounting points of the enclosure.

Operational Advantages

The door enables efficient ventilation of the enclosure interior through the 85 % open perforated sheet surface, supporting cooling of electronic components. The integrated security lock 3524 E provides a high protection standard. The use of aluminium extrusion profiles ensures a robust yet lightweight construction. Designed for replacing existing doors, it allows maintenance and modernisation work to be carried out quickly and without major modifications. The colour scheme in RAL 9005 and silver ensures a uniform visual appearance in the enclosure system.

General
MaterialFrame: aluminium extruded profile, ventilation grille: steel sheet, vertical profile: aluminium, anodised, horizontal profile: aluminium, painted
ColourComfort grip VX, hinges, horizontal profile, ventilation grille: RAL 9005, vertical profile: silver
Scope of deliveryDoor with comfort handle for profile half-cylinder with security locking 3524 E, 3 hinges 180°, mounted, including fastening material
Mounting noteFor a door opening angle of 180° when installed in a row, a 180° row hinge is required
NoteDoor opening angle for single installation max. 240°, door opening angle for row installation max. 105°
Suitable forEnclosure type: VX IT, Width: = 800 mm, Height: = 2,200 mm
PCF/VE (Cradle-to-Gate)40.4 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5301453, EAN: 4028177955073

Questions & answers

What is the delivery time of Rittal 5301453 Aluminium-steel sheet door, ventilated for VX IT, 800x220?

The article Rittal 5301453 Aluminium-steel sheet door, ventilated for VX IT, 800x220 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5301453 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5301453 Aluminium-steel sheet door, ventilated for VX IT, 800x220 always at the best possible price. We can give you a discount of 2% on Rittal 5301453 Aluminium-steel sheet door, ventilated for VX IT, 800x220 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Rittal 5301453 Aluminium-steel sheet door, ventilated for VX IT, 800x220

Rittal 2532000 Control Cabinet Key 3524E 2 pcs Rittal LogoRittal 2532000 Control Cabinet Key 3524E 2 pcs The article SZ 2532000 from Rittal is a switch cabinet key for the security locking system 3524 E. It serves as a replacement or additional key for locking inserts in industrial switch cabinets and ...
