Rittal 5301450 Aluminium-steel sheet door ventilated for VX IT 600x220

Your rating:
Average rating
product review for Rittal 5301450 Aluminium-steel sheet door ventilated for VX IT 600x220
( 5 / 5 ) 1 ratings
Rittal 5301450
This image may differ from the desired article.
Rittal 5301450Rittal 5301450Rittal 5301450
-8% 339,02 EUR 369,91 EUR
( 403,43 EUR incl. VAT )
≈ £283.76  |  ≈ $372.58
plus delivery charges: 148,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 5301450 Aluminium-steel sheet door ventilated for VX IT 600x220
Datasheet:file_download Download
Lieske Part No.:593666
Mfg Part No: 5301450
UPC/EAN: 4028177955066
Weight:10.8 kg
Type:DK 5301450

Product information for Rittal 5301450:

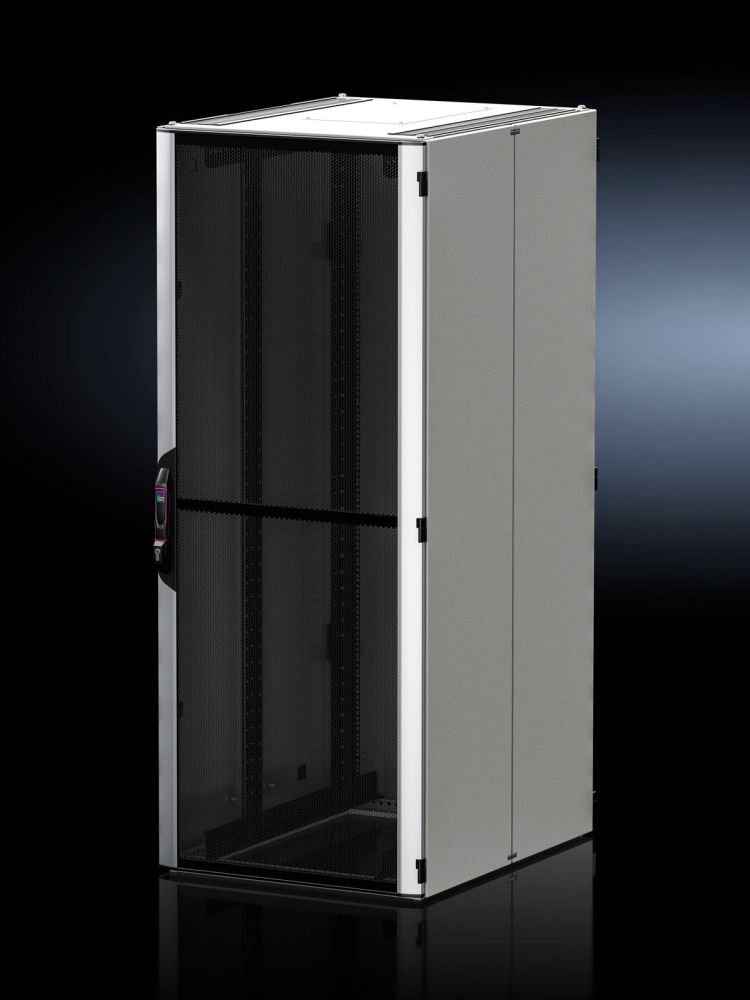

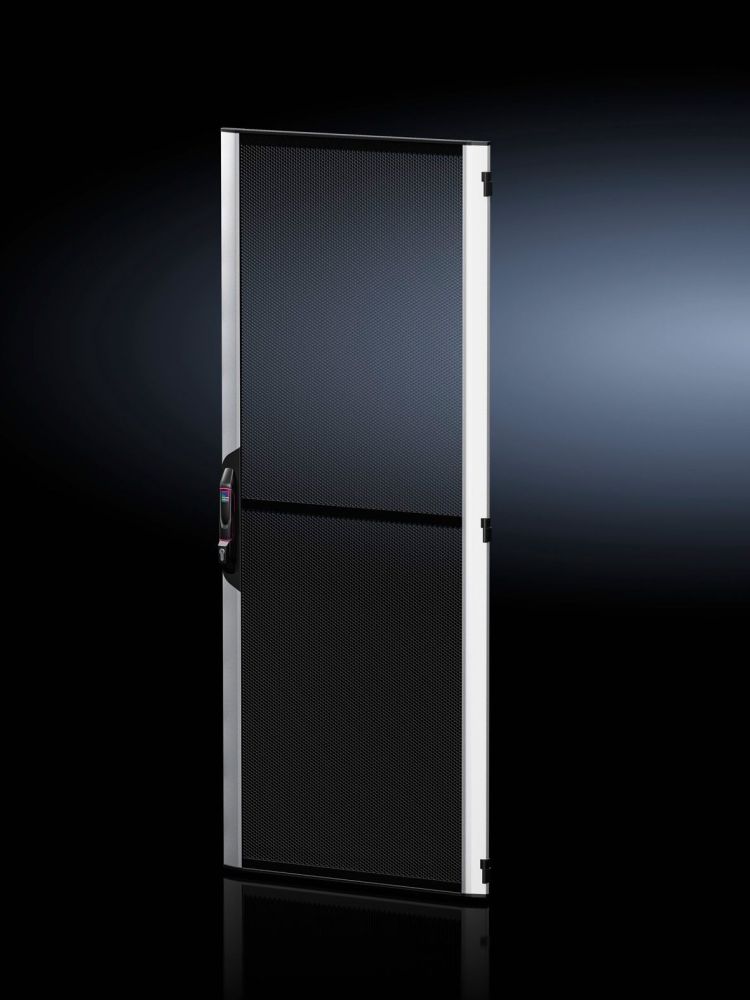

The Rittal DK 5301450 is an aluminium-steel sheet door, ventilated, specifically designed for use in enclosures of type VX IT. It serves as a replacement for existing doors and enables optimal ventilation of the enclosure interior. The door is designed for enclosures with a width of 600 mm and a height of 2,200 mm. The free area in the perforated sheet metal section is approximately 85 %, ensuring efficient air circulation and supporting cooling of installed components.

Applications
The door is intended for use in industrial and technical installations, particularly in environments where continuous ventilation of the enclosure interior is required. It is suitable for enclosures operated in standalone or bayed configurations. The maximum door opening angle is 240° for standalone installation and 105° for bayed installation. For an opening angle of 180° in bayed installation, a special 180° baying hinge is required.

Functions and Equipment in Detail
The door consists of a frame made of aluminium extruded profile, with the ventilation grille made of steel sheet. The vertical profiles are made of anodized aluminium, and the horizontal profiles are made of painted aluminium. The colour scheme corresponds to RAL 9005 for the comfort handle, hinges, horizontal profiles, and ventilation grille; the vertical profiles are silver-coloured. The door is equipped with a VX comfort handle for half cylinder with security lock 3524 E. Three 180° hinges are pre-installed, and the delivery includes the necessary mounting hardware.

Technology Explained Simply
The combination of aluminium extruded profile and steel sheet ensures high mechanical stability while providing good ventilation. The perforated sheet metal with 85 % free area allows effective air circulation, which is particularly important for cooling electronic components. The anodized and painted surface provides corrosion protection and long service life. The security lock 3524 E ensures secure access, while the integrated hinges enable stable mounting and reliable operation.

Compatibility and Accessories
The door is specifically developed for enclosures of type VX IT with dimensions 600 mm width and 2,200 mm height. Suitable accessories include the enclosure key 3524E (2 pieces), which is required for use with the security lock. Installation is carried out using the mounting hardware included in the delivery.

Installation and Mounting
The door is delivered with pre-installed hinges, simplifying installation. Mounting is performed at the designated attachment points of the enclosure. In bayed installation, the maximum opening angle of 105° must be observed; for a larger opening angle of 180°, a special baying hinge is required. The installation instructions are part of the delivery.

Operational Advantages
The door provides high ventilation performance through the 85 % perforated sheet metal, improving cooling of installed devices. The robust construction from aluminium and steel sheet ensures long service life and high mechanical strength. The integrated security lock 3524 E enables secure access, and the pre-installed hinges reduce installation time. The door is designed for replacing existing doors, enabling quick and easy renewal.

General
MaterialFrame: aluminium extruded profile, ventilation grille: steel sheet, vertical profile: aluminium, anodised, horizontal profile: aluminium, painted
ColourComfort grip VX, hinges, horizontal profile, ventilation grille: RAL 9005, vertical profile: silver
Scope of deliveryDoor with comfort handle for profile half-cylinder with security locking 3524 E, 3 hinges 180°, mounted, including fastening material
Mounting noteFor a door opening angle of 180° when installed in a row, a 180° row hinge is required
NoteDoor opening angle for single installation max. 240°, door opening angle for row installation max. 105°
Suitable forEnclosure type: VX IT, width: = 600 mm, height: = 2,200 mm
PCF/VE (Cradle-to-Gate)41.1 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5301450, EAN: 4028177955066

Questions & answers

What is the delivery time of Rittal 5301450 Aluminium-steel sheet door ventilated for VX IT 600x220?

The article Rittal 5301450 Aluminium-steel sheet door ventilated for VX IT 600x220 is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5301450 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5301450 Aluminium-steel sheet door ventilated for VX IT 600x220 always at the best possible price. We can give you a discount of 2% on Rittal 5301450 Aluminium-steel sheet door ventilated for VX IT 600x220 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Rittal 5301450 Aluminium-steel sheet door ventilated for VX IT 600x220

Rittal 2532000 Control Cabinet Key 3524E 2 pcs Rittal LogoRittal 2532000 Control Cabinet Key 3524E 2 pcs The article SZ 2532000 from Rittal is a switch cabinet key for the security locking system 3524 E. It serves as a replacement or additional key for locking inserts in industrial switch cabinets and ...
