Rittal 5301446 Aluminum-steel sheet door, ventilated for VX IT, 800x200

Your rating:
Average rating
product review for Rittal 5301446 Aluminum-steel sheet door, ventilated for VX IT, 800x200
( 4 / 5 ) 1 ratings
Rittal 5301446
This image may differ from the desired article.
Rittal 5301446Rittal 5301446Rittal 5301446Rittal 5301446
379,04 EUR
( 451,06 EUR incl. VAT )
≈ £317.26  |  ≈ $416.56
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 5301446 Aluminum-steel sheet door, ventilated for VX IT, 800x200
Datasheet:file_download Download
Lieske Part No.:1910593
Mfg Part No: 5301446
UPC/EAN: 4028177955059
Weight:11.2 kg
Type:DK 5301446

Product information for Rittal 5301446:

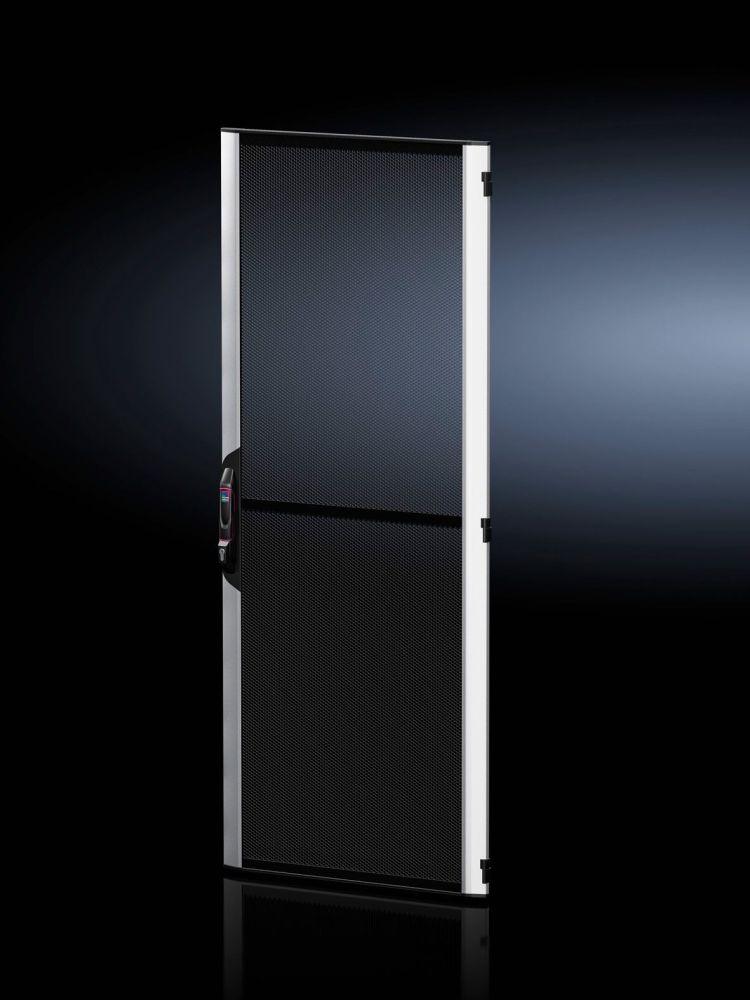

The Rittal DK 5301446 is a ventilated aluminium-steel sheet door, specifically designed for enclosures of type VX IT with a width of 800 mm and a height of 2,000 mm. It serves as a replacement part for existing doors and enables optimised air circulation within the enclosure. The door features a perforated sheet design, with the free area in the ventilated section amounting to approximately 85 %, supporting efficient heat dissipation and cooling of installed components. The construction combines a frame made of aluminium extruded profile with a ventilation grille made of steel sheet, resulting in a stable yet lightweight structure.

Applications

The door is intended for use in industrial enclosures, particularly in systems where continuous ventilation is required to regulate the operating temperature of electronic components. It is suitable for standalone installations as well as bayed arrangements, with maximum door opening angles varying depending on the mounting configuration.

Functions and Equipment in Detail

The door is equipped with a VX comfort handle, designed for half cylinders with security locking 3524 E. The hinges are pre-installed and allow an opening angle of up to 180°, provided the mounting conditions are met. The vertical profiles are made of anodised aluminium, while the horizontal profiles are made of painted aluminium. The visible elements – comfort handle, hinges, horizontal profiles, and ventilation grille – are finished in RAL 9005 (black), while the vertical profiles are silver-coloured. The mounting hardware is included in the delivery, enabling immediate installation.

Technology Explained Simply

The combination of aluminium extruded profile and steel sheet in the ventilation grille ensures high mechanical stability while maintaining low weight. The perforated sheet design with 85 % free area provides sufficient air permeability to dissipate heat generated inside the enclosure. The anodised and painted surface of the aluminium profiles offers corrosion protection and long service life, especially in industrial environments. The integrated security locking 3524 E enables secure access, operated with a matching enclosure key 3524E.

Compatibility and Accessories

The door is exclusively designed for enclosures of type VX IT with dimensions of 800 mm width and 2,000 mm height. As compatible accessory, the enclosure key 3524E is offered, required for operating the security locking. Installation is carried out using the mounting hardware included in the delivery.

Mounting and Installation

The door is delivered pre-mounted with three 180° hinges and can be directly attached to the enclosure. Mounting is performed using the included hardware. In bayed arrangements, maximum opening angles of 105° must be observed, unless a 180° baying hinge is additionally used. Installation does not require special tools, but correct alignment of hinges and door leaf must be ensured to guarantee smooth operation.

Operational Advantages

The ventilated door ensures efficient cooling of electronic components installed in the enclosure, extending component lifespan and preventing failures due to overheating. The integrated security locking provides secure access, while the robust construction from aluminium and steel sheet offers high mechanical load capacity. The colour scheme in RAL 9005 and silver ensures a uniform visual appearance in the enclosure environment. The door is easy to install and replaces existing doors without additional modifications.

General
MaterialFrame: aluminium extruded profile, ventilation grille: steel sheet, vertical profile: aluminium, anodised, horizontal profile: aluminium, painted
ColourComfort grip VX, hinges, horizontal profile, ventilation grille: RAL 9005, vertical profile: silver
Scope of deliveryDoor with comfort handle for profile half-cylinder with security locking 3524 E, 3 hinges 180°, mounted, including fastening material
Mounting noteFor a door opening angle of 180° when installed in a row, a 180° row hinge is required
NoteDoor opening angle for single installation max. 240°, door opening angle for row installation max. 105°
Suitable forHousing type: VX IT, width: = 800 mm, height: = 2000 mm
PCF/VE (Cradle-to-Gate)42.7 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5301446, EAN: 4028177955059

Questions & answers

What is the delivery time of Rittal 5301446 Aluminum-steel sheet door, ventilated for VX IT, 800x200?

The article Rittal 5301446 Aluminum-steel sheet door, ventilated for VX IT, 800x200 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5301446 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5301446 Aluminum-steel sheet door, ventilated for VX IT, 800x200 always at the best possible price. We can give you a discount of 2% on Rittal 5301446 Aluminum-steel sheet door, ventilated for VX IT, 800x200 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Rittal 5301446 Aluminum-steel sheet door, ventilated for VX IT, 800x200

Rittal 2532000 Control Cabinet Key 3524E 2 pcs Rittal LogoRittal 2532000 Control Cabinet Key 3524E 2 pcs The article SZ 2532000 from Rittal is a switch cabinet key for the security locking system 3524 E. It serves as a replacement or additional key for locking inserts in industrial switch cabinets and ...

Lieske Part No.: 371313
Mfg Part No: 2532000
Type: SZ 2532000
3,73 EUR 3,74 EUR
Rittal 2532000 plus VAT
≈ £3.12  |  ≈ $4.10
