Rittal 5301438 steel sheet viewing door, vertically divided for VX IT, 800

Your rating:
Average rating
product review for Rittal 5301438 steel sheet viewing door, vertically divided for VX IT, 800
( 5 / 5 ) 3 ratings
Rittal 5301438
This image may differ from the desired article.
Rittal 5301438Rittal 5301438Rittal 5301438
493,35 EUR
( 587,09 EUR incl. VAT )
≈ £412.93  |  ≈ $542.19
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 5301438 steel sheet viewing door, vertically divided for VX IT, 800
Datasheet:file_download Download
Lieske Part No.:1989419
Mfg Part No: 5301438
UPC/EAN: 4028177955042
Weight:36.2 kg
Type:DK 5301438

Product information for Rittal 5301438:

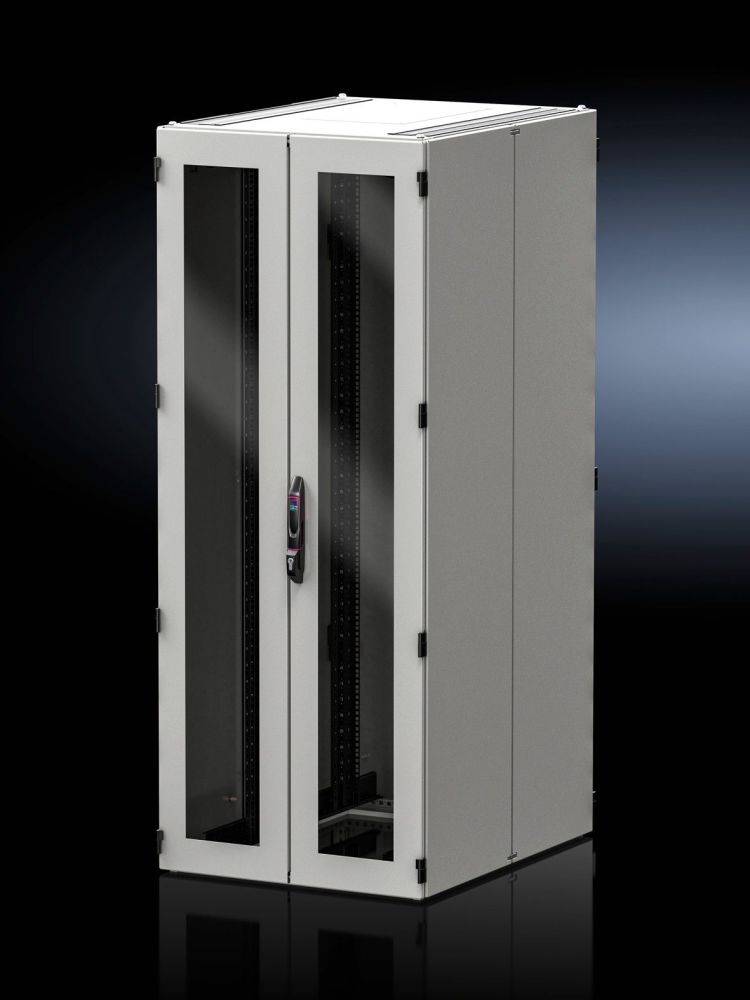

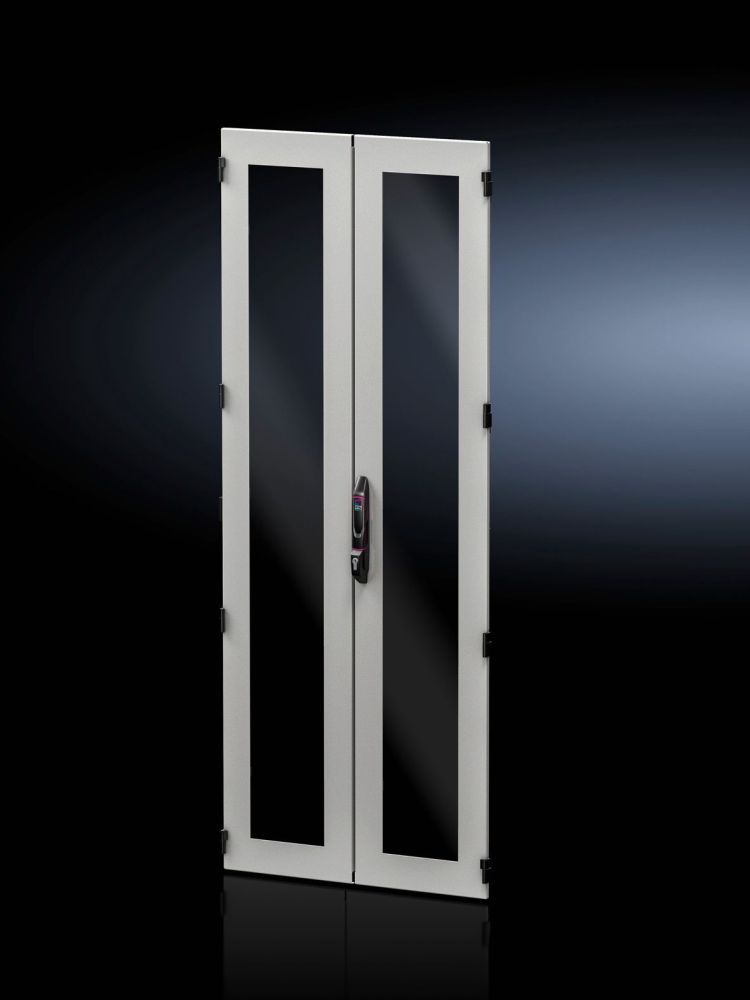

The Rittal steel sheet viewing door DK 5301438 is a vertically divided door for enclosures of type VX IT, specifically designed for enclosure widths of 800 mm and enclosure heights of 2,200 mm. It serves as a replacement for existing doors and enables space-optimized installation of enclosures, as the divided construction allows for a reduced distance between individual enclosure rows. The door consists of a steel sheet frame, powder-coated, and features a backed viewing pane made of single-pane safety glass with a thickness of 3 mm. The frame color corresponds to RAL 7035, while the comfort handle VX and hinges are in RAL 9005.

Applications

The door is intended for use in industrial environments, particularly in enclosures of the VX IT system. It is suitable for installations where high accessibility and optimized space utilization are prioritized. The vertical division of the door allows for flexible mounting in row configurations, thereby reducing space requirements in operation. The maximum door opening angle is 240° for single installation and 160° for baying. For an opening angle of 180° in baying, a special 180° baying hinge is required.

Functions and Equipment in Detail

The door is equipped with a 4-point bar lock, ensuring secure and stable latching. The comfort handle VX is designed for half cylinders with security lock 3524 E and enables secure access. The door is mounted on the right side and features four 180° hinges, with two hinges installed per door half. The delivery scope includes the door itself, the four hinges, and the required mounting hardware.

Technology Explained Simply

The viewing pane made of single-pane safety glass provides clear visibility of the internal components of the enclosure without compromising the mechanical stability of the door. The material is suitable for industrial applications and meets requirements for safety and durability. The powder-coated surface of the steel sheet frame offers high corrosion protection and is suitable for use in environments with increased contamination risk. The protection class IP 55 according to IEC 60 529 protects the door against dust and splashing water, making it suitable for outdoor use, provided environmental conditions allow.

Compatibility and Accessories

The door is specifically designed for enclosures of type VX IT with a width of 800 mm and a height of 2,200 mm. As compatible accessories, the enclosure key 3524E is offered in a quantity of two pieces, which is required for use with the integrated lock of the door.

Mounting and Installation

Mounting is performed on the right side of the enclosure. The door is fastened with the four 180° hinges, with two hinges installed per door half. The included mounting hardware facilitates installation. When baying enclosures, the maximum opening angle of 160° must be observed; for an opening angle of 180°, a special baying hinge is required.

Operational Advantages

The vertical division of the door enables optimized space utilization, especially in row configurations, allowing the distance between enclosure rows to be reduced. The 4-point bar lock ensures secure access and prevents unintentional opening. The IP 55 protection class provides high protection against dust and splashing water, increasing reliability in industrial environments. The powder-coated surface offers high resistance to corrosion and contamination.

General
MaterialFrame: sheet steel, viewing window: single-pane safety glass, 3 mm
Surface protectionPowder-coated
ColourFrame: RAL 7035, comfort handle VX, hinges: RAL 9005
Scope of deliveryDoor, vertically split, with comfort handle VX for profile cylinder with security locking 3524 E, right-hand, 4 hinges 180°, each door half mounted, including mounting material
Mounting noteFor a door opening angle of 180° when installed in a row, a 180° row hinge is required
NoteDoor opening angle for single installation max. 240°, door opening angle for row installation max. 160°
Degree of protection IP according to IEC 60 529IP 55
Suitable forEnclosure type: VX IT, Width: = 800 mm, Height: = 2,200 mm
PCF/VE (Cradle-to-Gate)137.9 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 5301438, EAN: 4028177955042
