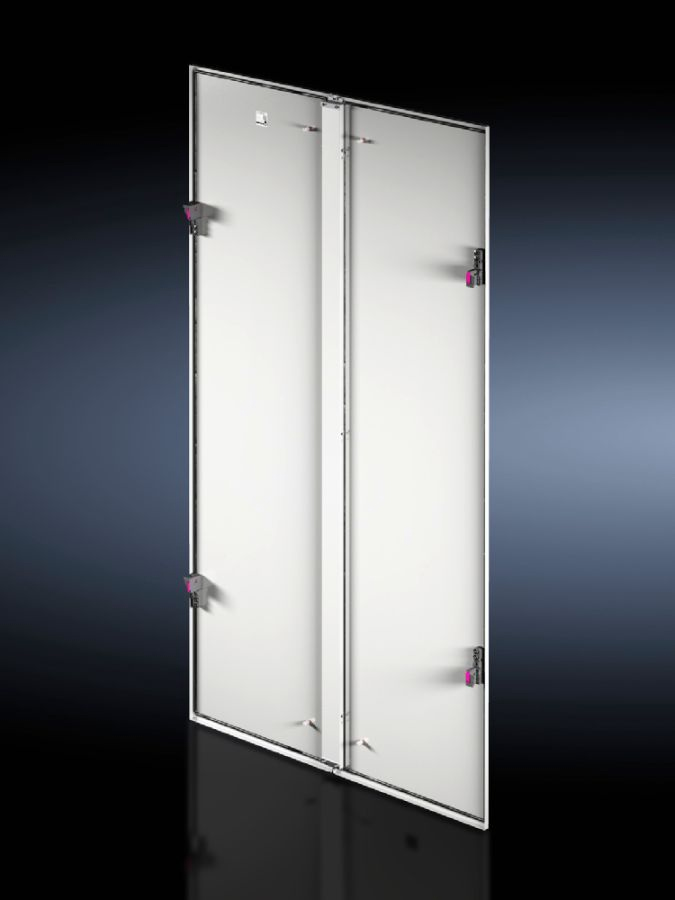

Rittal 5301243 VX IT side panel, vertically divided, 2200x800 mm

Your rating:
Average rating
product review for Rittal 5301243 VX IT side panel, vertically divided, 2200x800 mm
( 4 / 5 ) 1 ratings
Rittal 5301243
This image may differ from the desired article.
Rittal 5301243Rittal 5301243Rittal 5301243
-7% 296,13 EUR 317,60 EUR
( 352,39 EUR incl. VAT )
≈ £247.86  |  ≈ $325.45
plus delivery charges: 235,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 5301243 VX IT side panel, vertically divided, 2200x800 mm
Datasheet:file_download Download
Lieske Part No.:1910575
Mfg Part No: 5301243
UPC/EAN: 4028177955844
Weight:25.6 kg
Type:VX 5301243

Product information for Rittal 5301243:

The Rittal side panel VX 5301243 is a vertically divided component for enclosures of type VX IT, specifically designed for an enclosure height of 2,200 mm and a depth of 800 mm. The product is made of sheet steel and powder-coated in the colour RAL 7035, ensuring a robust and uniform surface. The protection class IP 20 according to IEC 60529 provides protection against contact with fingers and against solid foreign objects, but not against water or dust. The side panel serves to seal the enclosure sides and enables structured and secure installation of components within the enclosure.

Applications

The side panel is intended for use in industrial enclosures of the VX IT system, particularly in installations requiring structured and secure mounting of electrical or electronic components. The vertical division allows for flexible use, as individual side sections can be mounted and demounted independently. This is especially advantageous for maintenance work or when expanding the enclosure equipment, as individual components can be accessed without completely disassembling the enclosure.

Functions and Equipment in Detail

The side panel is equipped with 6 hinges and 4 quick-release latches, enabling easy and tool-free opening and closing. The quick-release latches ensure secure locking, with opening possible only via internal locking elements. This requires free access through the front and rear doors of the enclosure, which however increases access security. The mounting rail is already integrated, allowing the side panel to be directly attached to the enclosure wall.

Technology Explained Simply

The vertical division of the side panel enables modular handling. Each side section can be mounted and removed independently, simplifying maintenance and replacement of components within the enclosure. The powder-coated surface made of sheet steel offers high mechanical stability and corrosion protection. The protection class IP 20 protects against contact with fingers and against ingress of solid foreign objects, but is not suitable for outdoor use or in humid environments. Mounting is tool-free, which accelerates installation and maintenance.

Compatibility and Accessories

The side panel is specifically designed for enclosures of type VX IT with a height of 2,200 mm and a depth of 800 mm. Suitable accessories that can be used to enhance safety and functionality include the internal locking mechanism DK 7824510, which is suitable for lockable side panels. This locking mechanism can be used for additional access security, particularly in installations where unauthorized access to enclosure components must be prevented.

Mounting and Installation

Mounting of the side panel is tool-free. The side sections are attached to the enclosure wall using the integrated mounting rail and the included mounting hardware. The hinges and quick-release latches allow for easy opening and closing. The mounting instruction emphasizes that access through the front and rear doors of the enclosure must be ensured, as opening the side panel is only possible via internal locking elements. Complete demounting of the side sections is always possible without tools, increasing flexibility during maintenance work.

Advantages in Operation

The side panel offers high operational safety through tool-free mounting and demounting, as well as secure locking via quick-release latches. The vertical division enables modular use, making individual components within the enclosure easily accessible. The powder-coated surface ensures long service life and resistance to mechanical stress. The protection class IP 20 provides sufficient protection for indoor use, where no high requirements for water tightness exist. Compatibility with the VX IT system and suitable accessories such as the internal locking mechanism DK 7824510 expand the application possibilities and safety of the enclosure.

General
Materialsteel sheet
Surface protectionPowder-coated
ColourRAL 7035
Scope of delivery2 side panels, mounting rail, 6 hinges, 4 quick-release fasteners, including fastening material
Mounting noteAccess through front and rear doors must be ensured
Suitable forEnclosure type: VX IT, height: = 2.200 mm, depth: = 800 mm
Degree of protection IP according to IEC 60 529IP 20
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)97.5 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 5301243, EAN: 4028177955844
