Rittal 4540500 Baying technology - combination angle, stainless steel

Your rating:
Average rating
product review for Rittal 4540500 Baying technology - combination angle, stainless steel
( 4 / 5 ) 2 ratings
Rittal 4540500
This image may differ from the desired article.
Rittal 4540500Rittal 4540500Rittal 4540500Rittal 4540500
-10% 57,96 EUR 64,66 EUR
( 68,97 EUR incl. VAT )
≈ £48.51  |  ≈ $63.70
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 4540500 Baying technology - combination angle, stainless steel
Datasheet:file_download Download
Lieske Part No.:1101881
Mfg Part No: 4540500
UPC/EAN: 4028177976634
Weight:1.4 kg
Type:SZ 4540500

Product information for Rittal 4540500:

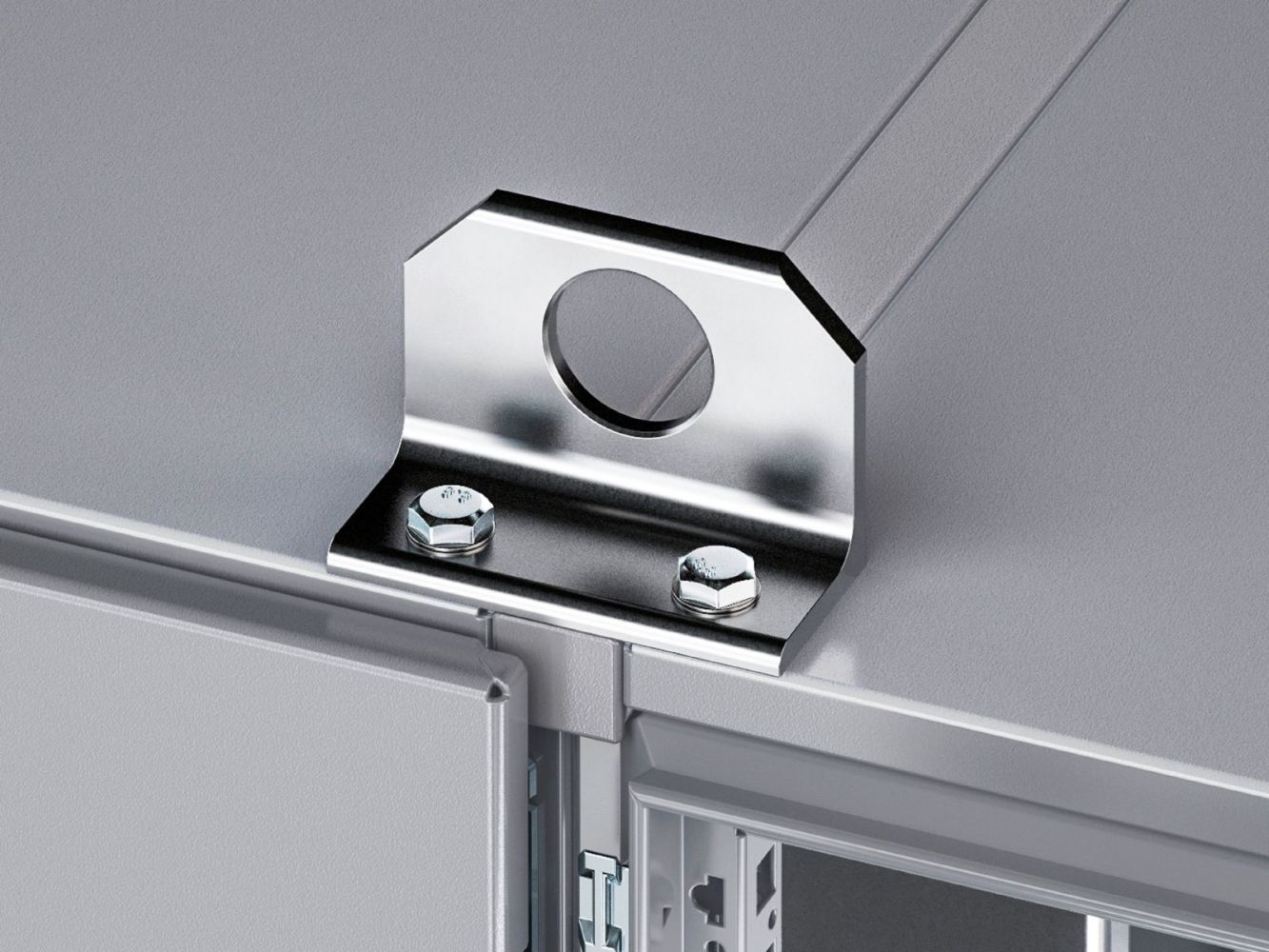

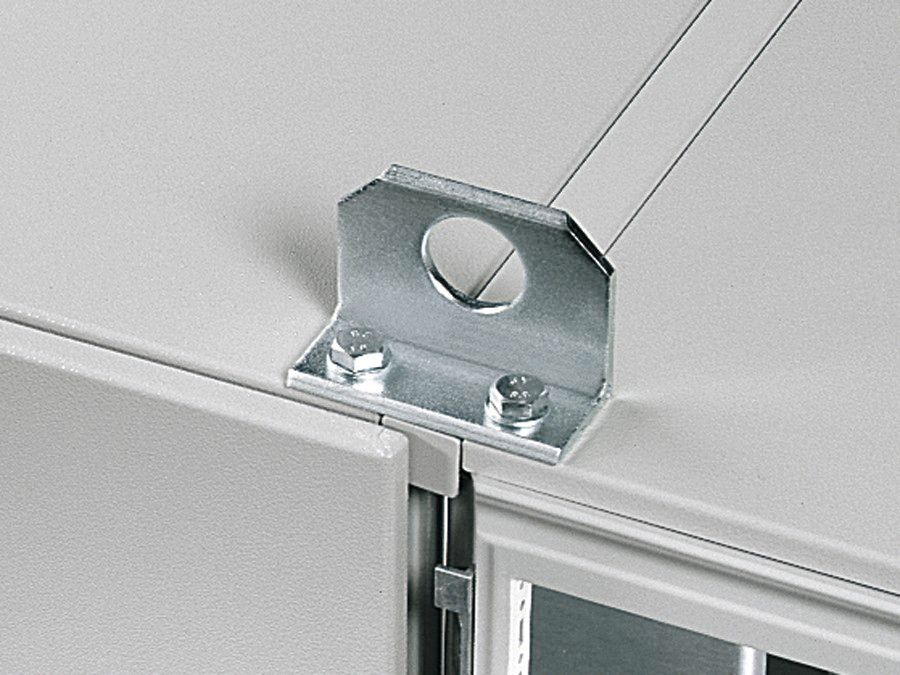

The Rittal SZ 4540500 is a combination angle made of stainless steel 1.4301 (AISI 304), specifically developed for the secure and efficient baying of enclosures of types VX and TS. It ensures optimal distribution of tensile forces during crane transport of multiple bayed enclosures, thereby reducing mechanical stress on individual enclosures and ensuring a stable connection. The use of stainless steel 1.4301 provides high corrosion resistance and durability, especially in industrial environments with increased humidity or chemical exposure. The item is supplied in a packaging unit containing two pieces and includes the required mounting hardware, ready for immediate installation.

Applications

The combination angle is primarily designed for industrial use, where enclosures are arranged in rows and transported by crane. It is particularly suitable for plant engineering, production halls, energy supply, and other industries where secure fastening of enclosures during transport is critical. The design enables even load distribution, minimizing the risk of deformation or damage to the enclosures.

Features and Equipment in Detail

The SZ 4540500 features a robust construction made of stainless steel 1.4301, which resists both mechanical and chemical stresses. The integrated mounting technology allows for easy and secure installation on enclosures of types VX and TS. The delivery includes all necessary mounting accessories, so no additional materials need to be procured. The packaging unit contains two units, sufficient for baying two enclosures.

Technology Explained Simply

The function of the combination angle is based on the mechanical distribution of tensile forces generated when lifting and transporting multiple bayed enclosures. Without such a connecting component, the load would be unevenly distributed across individual enclosures, potentially causing deformation or breakage. The combination angle takes on this load and distributes it evenly, protecting the structure of the enclosures. The use of stainless steel 1.4301 ensures high strength and corrosion resistance, which is particularly advantageous in humid or aggressive environments.

Compatibility and Accessories

The combination angle is specifically developed for enclosure types VX and TS and is designed to fit their construction. It is part of Rittal’s baying technology and can be combined with other components such as the VX cover for baying, vertical, to create a complete and secure baying solution. Compatibility with the mentioned enclosure types is confirmed by the manufacturer.

Mounting and Installation

Installation is carried out using the mounting hardware included in the delivery. The units are attached at the designated mounting points on the enclosures, with the exact installation instructions corresponding to the respective enclosure type.

Operational Advantages

Even load distribution during transport significantly reduces mechanical stress on the enclosures. This leads to a longer service life of the enclosures and minimizes the risk of damage. The use of stainless steel 1.4301 ensures high corrosion resistance, increasing maintenance-free operation. The integrated mounting technology enables quick and secure installation, reducing mounting time. The protection rating IP 55 according to IEC 60 529, as well as NEMA protection ratings 1 and 12, provide sufficient protection against dust and splashing water, enabling use in various industrial environments. Certification according to UL 50E Type 1 and Type 12 ensures compliance with international safety standards.

Protection Rating and Environmental Labeling

The combination angle meets protection rating IP 55, meaning it is dust-tight and protected against splashing water. This makes it suitable for use in indoor and outdoor environments, especially in areas with increased humidity. NEMA protection ratings 1 and 12 correspond to the respective American standards for protection against dust and splashing water. The product carbon footprint (PCF) is 5.3 kg CO2 eq (Cat B), with the value being approximately calculated and self-declared based on product weight. The declaration follows the Cradle-to-Gate model, which considers environmental impact from raw material extraction to manufacturing.

General
MaterialStainless steel 1.4301 (AISI 304)
Scope of deliveryIncluding mounting hardware
Suitable forEnclosure type: VX, TS
Type rating according to UL 50EType 1, Type 12
NEMA degree of protectionNEMA 1, 12
Degree of protection IP according to IEC 60 529IP 55
PCF/VE (Cradle-to-Gate)5.3 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 4540500, EAN: 4028177976634
