Rittal 4182000 SZ Mounting bracket, for fastening of PS mounting rail 23x23 mm, via adaptor rail for PS compatibility
|
-8% 34,16 EUR 36,99 EUR |
|
|
( 40,65 EUR incl. VAT ) ≈ £29.38 | ≈ $38.94 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Lieske Part No.: | 941083 |
|---|---|
| Mfg Part No: | 4182000 |
| UPC/EAN: | 4028177093362 |
| Weight: | 1.509 kg |
Further System Accessories from RittalFurther products in category System Accessories
All products of Rittal
Product information for Rittal 4182000:
For variable attachment of punched rail 23 x 23 mm.
Material: Die-cast zinc

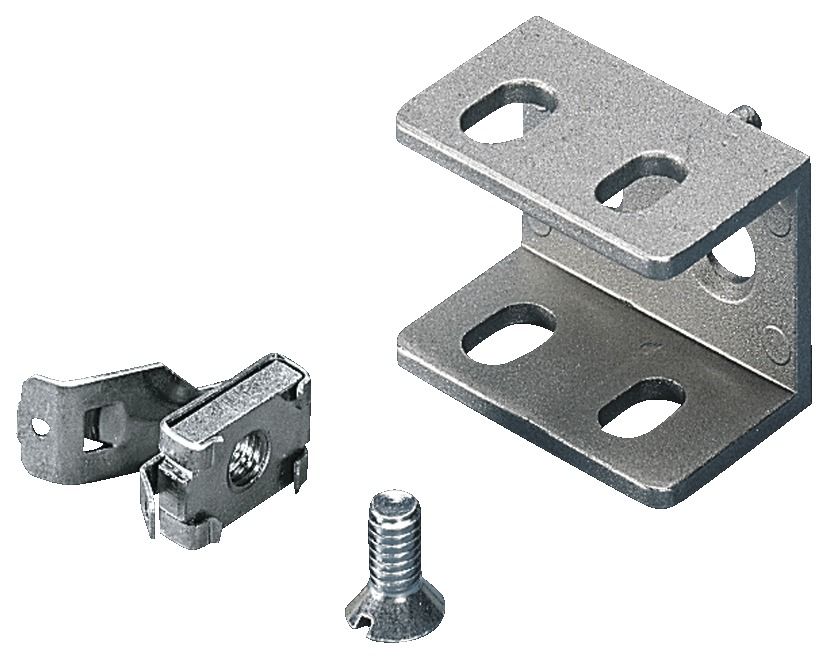

Supply includes: 1 set = 1 mounting bracket, 1 screw M6 x 12 mm, 1 cage nut M6
Note: U nuts (recommended: M6)
Packs of: 24 pc(s).
EAN: 4028177093362
Customs tariff number: 83024900
eCl@ss 5.1: 27189234
eCl@ss 7.0: 27189234
ETIM 6.0: EC002625
To fit: Enclosure type: TS
Enclosure type: SE
Installation options: Optionally flush with: Outer enclosure edge or enclosure clearance width
On the vertical TS, SE enclosure section via snap-on nuts TS 8800.808 or adaptor rails for PS compatibility, height-offset, via TS punched rail 25 x 38 mm
On the horizontal TS enclosure section
On the horizontal SE enclosure section, bottom
On the horizontal SE enclosure section, top in the depth
On enclosures and rails with rectangular system punching 12.5 x 10.5 mm.
Weight/pack: 1.49 kg
Type: SZ 4182000
Material: Die-cast zinc
Supply includes: 1 set = 1 mounting bracket, 1 screw M6 x 12 mm, 1 cage nut M6
Note: U nuts (recommended: M6)
Packs of: 24 pc(s).
EAN: 4028177093362
Customs tariff number: 83024900
eCl@ss 5.1: 27189234
eCl@ss 7.0: 27189234
ETIM 6.0: EC002625
To fit: Enclosure type: TS
Enclosure type: SE
Installation options: Optionally flush with: Outer enclosure edge or enclosure clearance width
On the vertical TS, SE enclosure section via snap-on nuts TS 8800.808 or adaptor rails for PS compatibility, height-offset, via TS punched rail 25 x 38 mm
On the horizontal TS enclosure section
On the horizontal SE enclosure section, bottom
On the horizontal SE enclosure section, top in the depth
On enclosures and rails with rectangular system punching 12.5 x 10.5 mm.
Weight/pack: 1.49 kg
Type: SZ 4182000
