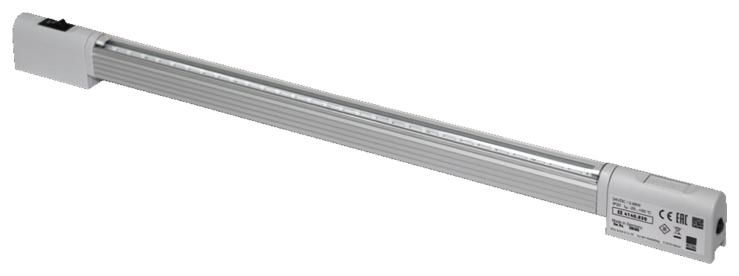

Rittal 4140830 SZ LED system light, WHD: 430x33x21 mm, 24 V DC, Integral on/off/door-operated switch mode

Benefits: Max. EMC capacity.
Safe, thanks to operation in the extra-low safety voltage range.
Economical energy use.
Low-maintenance thanks to the use of LEDs.
May be connected to a door-operated switch.
Function principle: Integral through-wiring.
Universal attachment options.
Vertically hinged light cone
Material: Light body: Extruded aluminium
Light cover: Polycarbonate (halogen-free)
Light ends: PC-ABS
Colour: Similar to RAL 7035
Protection category IP to IEC 60 529: IP 20
Supply includes: LED system light with clip and screw mounting kits
Light
Light cover
Assembly parts
Product modification: From December 2015, the existing LED technology will be replaced with a new generation. The benefit to you: Double the luminous flux compared with the current version.
Note: Only intended for use in enclosures and sealed cases
When using on customer-supplied power packs, it is important to obtain the requisite approvals depending on the application
When configuring rows of lights, the maximum rated current is 2 amperes
Packs of: 1 pc(s).
EAN: 4028177630147
Customs tariff number: 94054099
eCl@ss 5.1: 27189241
eCl@ss 7.0: 27189241
ETIM 6.0: EC000321

Dimensions: Width: 430 mm
Height: 32.8 mm
Depth: 20.64 mm
Rated operating voltage: 24 V (DC)
Voltage tolerance: ± 10 %
Installation options: TS horizontal section of the roof frame: direct
TS, SE vertical section: direct
SE extrusions at the front and rear of the roof frame: direct
SE extrusions at the side of the roof frame: direct
AE, CM, TP: with magnetic attachment
AE: with rail for interior installation
Mounting dimensions: Mounting distance – clip/magnet: 375 mm
Mounting distance – screw attachment: 450 mm
Rated current: With DC (max.): 0.12 A
Note: When configuring rows of lights, the maximum rated current is 2 amperes
Equipment (electrical): Light: LEDs, cold white
Protection category: III (SELV)
Connection options: Power supply via connectors
Connection options: Door-operated switch
Connection options: Through-wiring (creating rows of lights)
Switch (type): Integral, on/off/door-operated switch mode
Rated insulation voltage: Depending on the power pack
Rated impulse withstand voltage, phase to earth: Depending on the power pack
Rated impulse withstand voltage, phase to phase: Depending on the power pack
Number of LEDs: 30
Light – installation type: Screw-fastening
Clip attachment
Magnetic attachment (accessory)
Light cover: yes
Light cone adjustment: yes
Weight/pack: 0.38 kg
Type: SZ 4140.830
