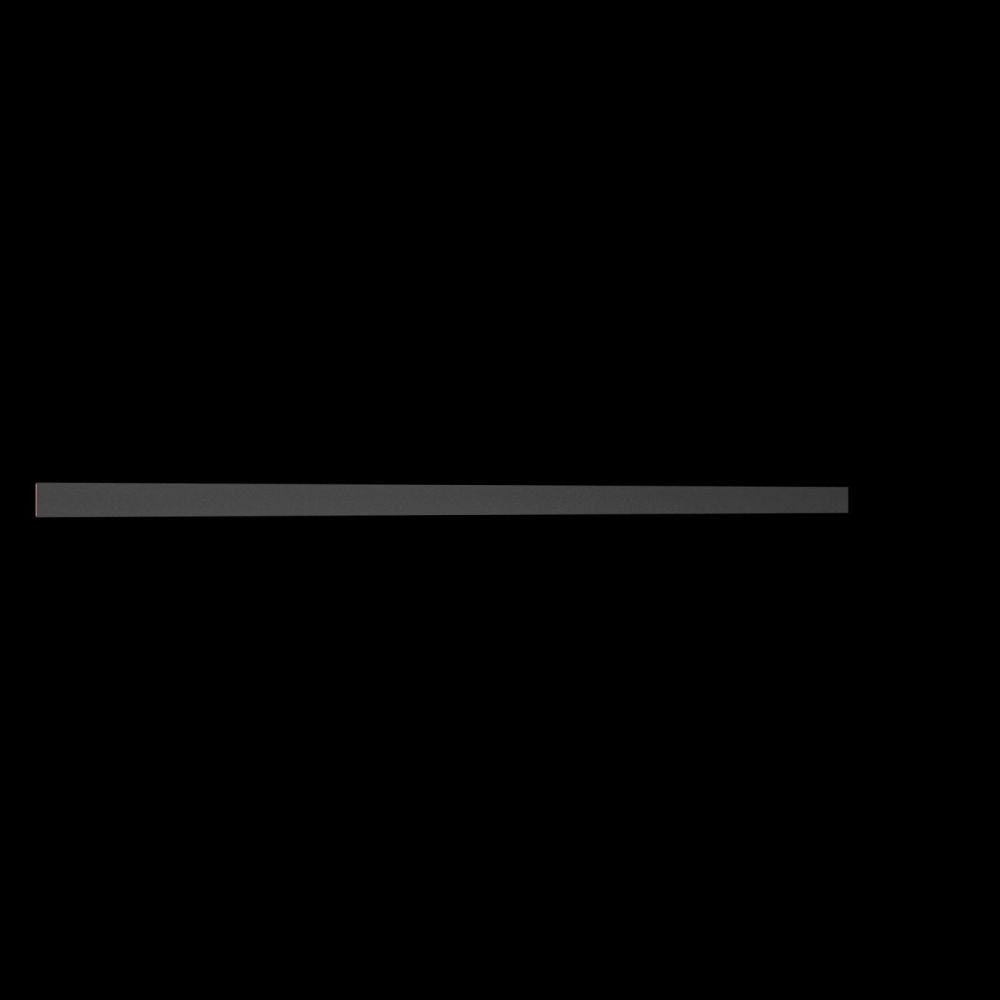

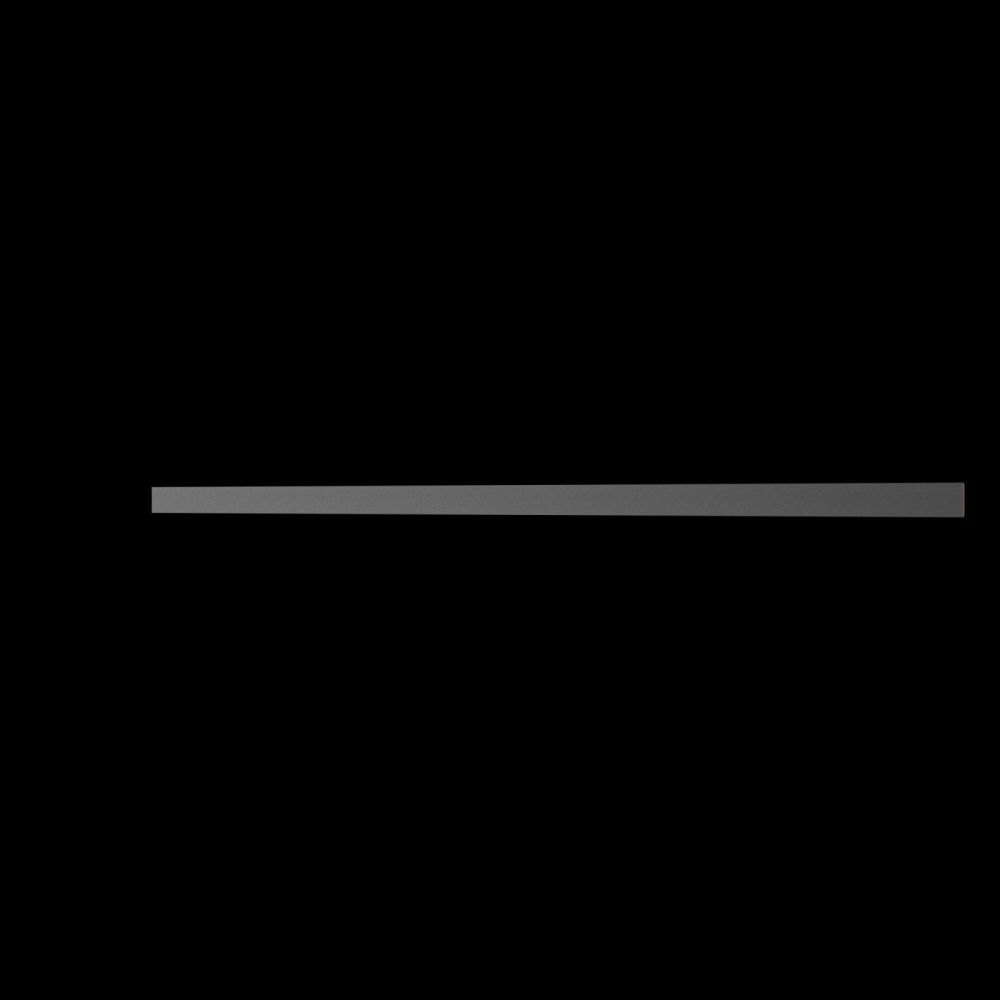

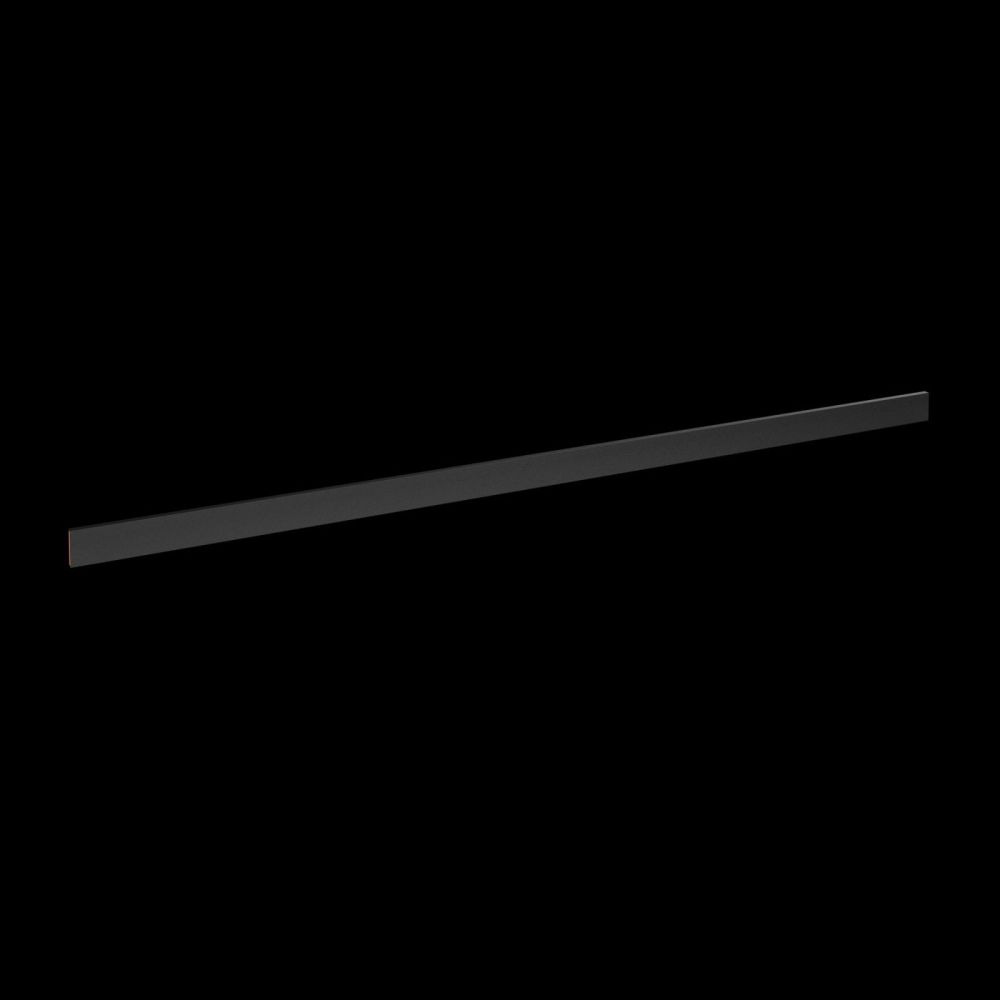

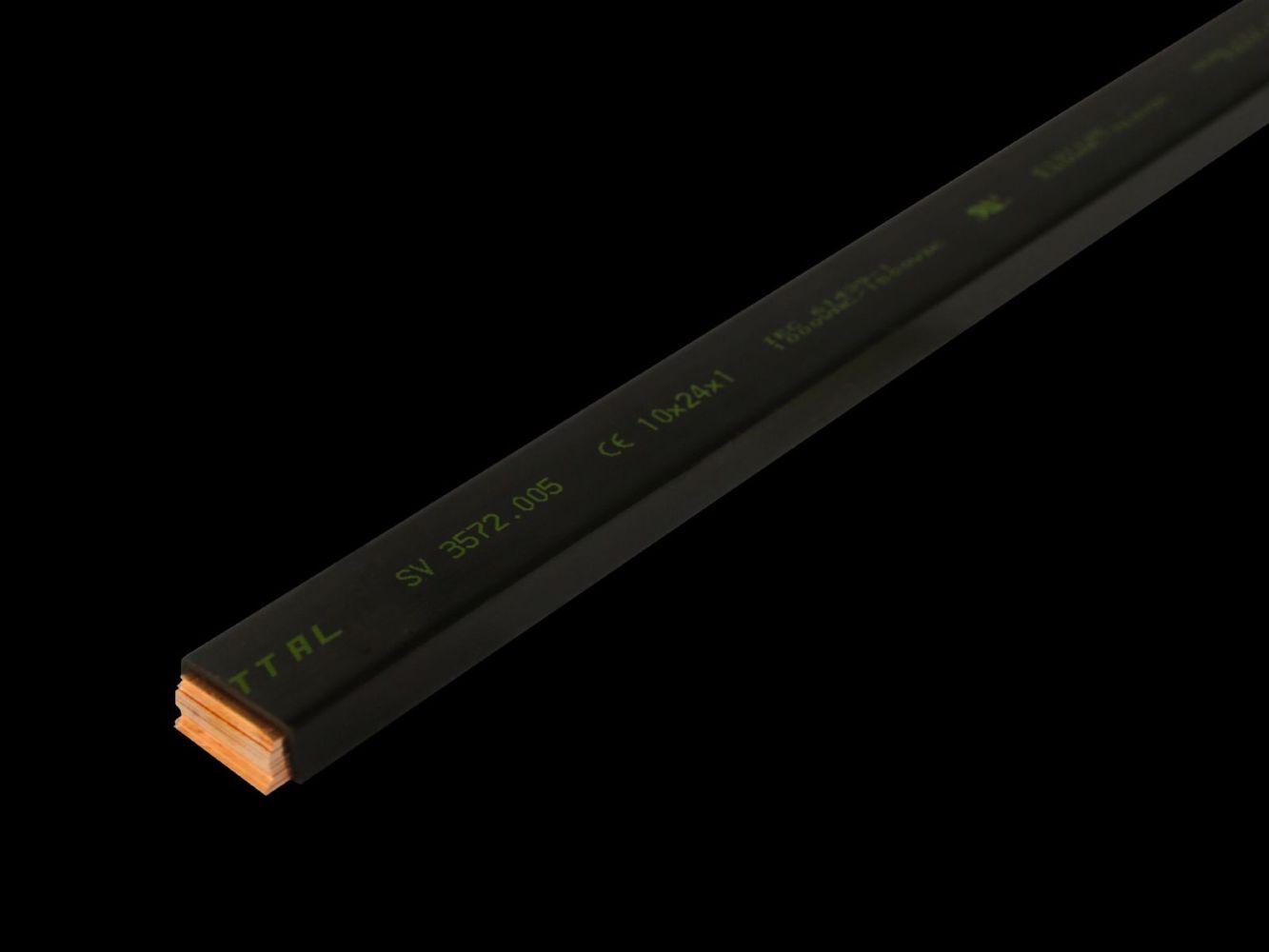

Rittal 3572005 laminated copper busbar 10x24 mm (10x24x1 mm), L=2
|
150,72 EUR |
|
|
incl. 42,73 EUR copper surcharge ( 179,36 EUR incl. VAT ) ≈ £126.91 | ≈ $169.26 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 815545 |
| Mfg Part No: | 3572005 |
| UPC/EAN: | 4028177666788 |
| Weight: | 4.94 kg |
| Type: | SV 3572005 |
Product information for Rittal 3572005:
Insulation: High-strength vinyl compound, expansion 370%, dielectric strength: 20 kV/mm
Fire protection corresponding to UL 94-V0
Note: May be cut individually to required length
Packs of: 1 pc(s).
EAN: 4028177666788
Customs tariff number: 74071000
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27370303
ETIM 6.0: EC001522
Dimensions: Length: 2000 mm

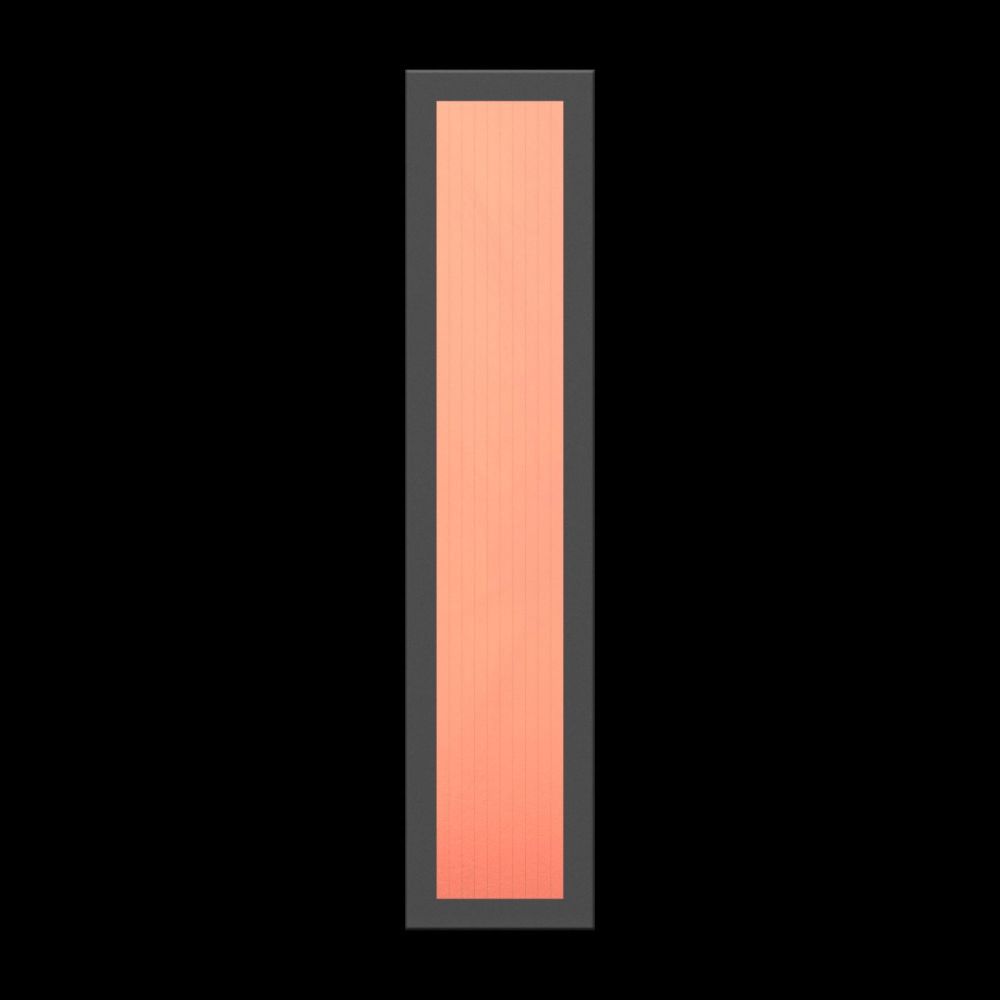

Version – laminated flat copper: Number of lamina: 10
Membrane width: 24 mm
Membrane thickness: 1 mm
Rated current for temperature increase by: 70 K: 920 A
50 K: 770 A
30 K: 585 A
Weight/pack: 4.8 kg
