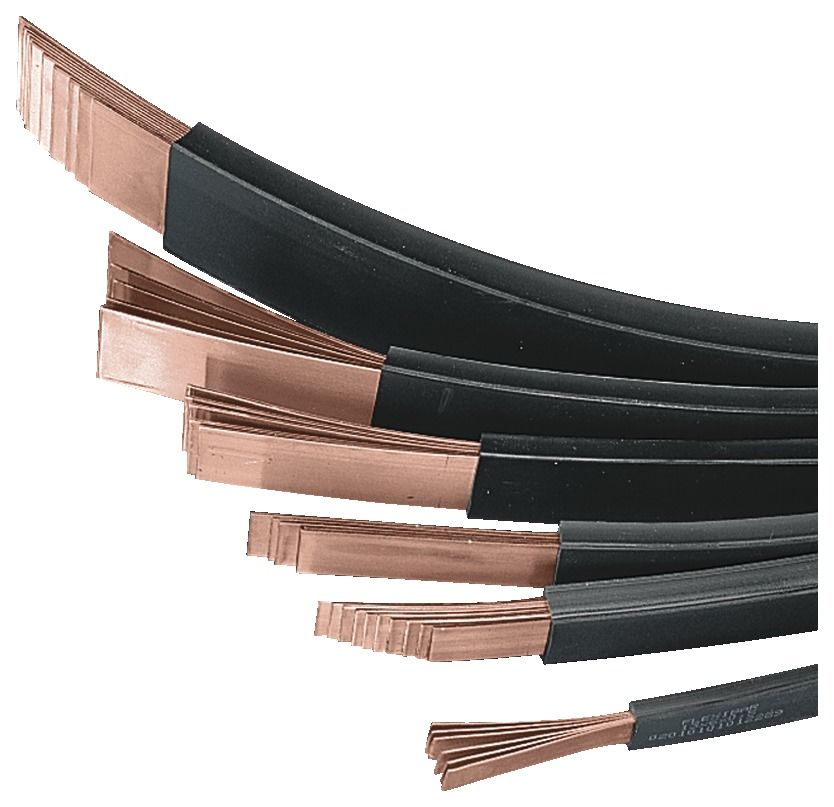

Rittal 3571005 SV Laminated copper bar, WH: 24x5 mm, L: 2000 mm
|
20.186,62 EUR |
|
|
incl. 20.124,86 EUR copper surcharge ( 24.022,08 EUR incl. VAT ) ≈ £17,320.12 | ≈ $23,396.29 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 207704 |
|---|---|
| Mfg Part No: | 3571005 |
| UPC/EAN: | 4028177666771 |
| Weight: | 0.123 kg |
Product information for Rittal 3571005:
Insulation: High-strength vinyl compound, expansion 370%, dielectric strength: 20 kV/mm
Fire protection corresponding to UL 94-V0
Note: May be cut individually to required length
Packs of: 1 pc(s).
EAN: 4028177666771
Customs tariff number: 74071000
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27370303
ETIM 6.0: EC001522
Dimensions: Length: 2000 mm
Version – laminated flat copper: Number of lamina: 5
Membrane width: 24 mm
Membrane thickness: 1 mm
Rated current for temperature increase by: 70 K: 605 A
50 K: 510 A
30 K: 385 A
Weight/pack: 2.65 kg
Type: SV 3571005
Questions & answers
What is the delivery time of Rittal 3571005 SV Laminated copper bar, WH: 24x5 mm, L: 2000 mm?
The article Rittal 3571005 SV Laminated copper bar, WH: 24x5 mm, L: 2000 mm is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3571005 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3571005 SV Laminated copper bar, WH: 24x5 mm, L: 2000 mm always at the best possible price. We can give you a discount of 2% on Rittal 3571005 SV Laminated copper bar, WH: 24x5 mm, L: 2000 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
