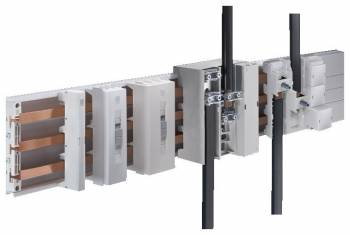

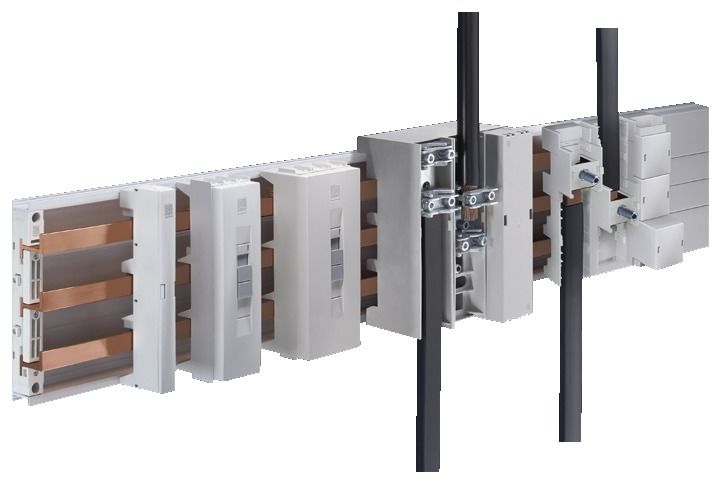

Rittal 3439010 SV Connection adaptor, 600 A, 690 V, 3-pole, cable outet top/bottom, round conductor connection 35-240 mm², clamping area WH: 24x21 mm
|
136,95 EUR 142,65 EUR |
|||||||||||
|
incl. 3,86 EUR copper surcharge ( 162,97 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: 5 pieces | |||||||||||
| Lieske Part No.: | 437753 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3439010 | ||||||||||
| UPC/EAN: | 4028177236295 | ||||||||||
| Weight: | 4.54 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 3439010:
Chassis: Polyamide (PA 6.6).
Chassis 3439.010: Fibreglass-reinforced, thermoplastic polyester (PBT)
Fire protection corresponding to UL 94-V0
Chassis: Fibreglass-reinforced, thermoplastic polyester (PBT)
Colour: RAL 7035
Note: The technical data may vary for UL applications
UL approval only applies in conjunction with AC application
The rated operating voltage for DC applications depends on the busbar arrangement in the busbar support 9340.050/9341.050/9342.050.
Note on Model No.: SV 3439.010: When connecting round conductors 300 mm² with ring terminals, the terminal clamps fitted as standard in the busbar connection adaptors must be replaced with screws and/or bolts M10.
Packs of: 1 pc(s).
EAN: 4028177236295
Customs tariff number: 85369010
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27370304
ETIM 6.0: EC001531
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 180 mm
Height: 247 mm
Rated operating voltage: 690 V, 3~
Clamping area for laminated copper bars: Width: 24 mm
Height: 21 mm
Connection for round conductor cross-sections: fine wire with wire end ferrule: 35 mm² - 240 mm²
multi-wire: 35 mm² - 240 mm²
Rated current (max.): 600 A
Cable outlet: Top/bottom
Weight/pack: 4.56 kg
Type: SV 3439.010
