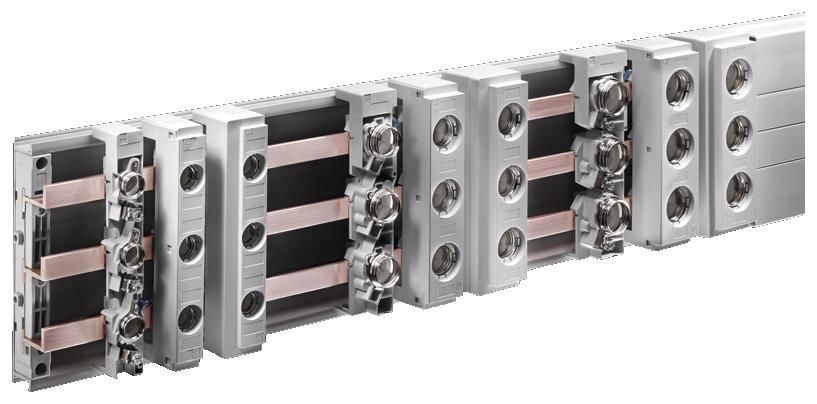

Rittal 3433010 SV Bus-mounting fuse base, DIII-E33, 63 A, 690 V, 3-pole, round conductor connection 1,5-25 mm², adaptor screw
|
6.775,72 EUR |
|
|
incl. 6.645,88 EUR copper surcharge ( 8.063,11 EUR incl. VAT ) ≈ £5,813.57 | ≈ $7,853.06 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 486999 |
|---|---|
| Mfg Part No: | 3433010 |
| UPC/EAN: | 4028177674998 |
| Weight: | 0.123 kg |
Product information for Rittal 3433010:
Contact hazard protection: Polyamide (PA 6.6)
Fire protection corresponding to UL 94-V0
Colour: RAL 7035
Note: For the use of fuse inserts to EN 60 269-3 (DIN VDE 0636-301)
Packs of: 10 pc(s).
EAN: 4028177674998
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27371402
ETIM 6.0: EC001644
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 57 mm
Height: 209 mm
Type of electrical connection: Box terminal
Rated operating voltage: 690 V, 3~
690 V (DC)
Connection for round conductor cross-sections: 1.5 mm² - 25 mm²
Note: Wire end ferrules should be used with fine wire conductors.
Rated current (max.): 63 A
Fuse inserts: D III-E 33 (adaptor screw)
Weight/pack: 2.94 kg
Type: SV 3433010
Questions & answers
What is the delivery time of Rittal 3433010 SV Bus-mounting fuse base, DIII-E33, 63 A, 690 V, 3-pole, round conductor connection 1,5-25 mm², adaptor screw?
The article Rittal 3433010 SV Bus-mounting fuse base, DIII-E33, 63 A, 690 V, 3-pole, round conductor connection 1,5-25 mm², adaptor screw is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3433010 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3433010 SV Bus-mounting fuse base, DIII-E33, 63 A, 690 V, 3-pole, round conductor connection 1,5-25 mm², adaptor screw always at the best possible price. We can give you a discount of 2% on Rittal 3433010 SV Bus-mounting fuse base, DIII-E33, 63 A, 690 V, 3-pole, round conductor connection 1,5-25 mm², adaptor screw if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
Fitting accessory for Rittal 3433010 SV Bus-mounting fuse base, DIII-E33, 63 A, 690 V, 3-pole, round conductor connection 1,5-25 mm², adaptor screw
 |
Rittal 3433020 SV Contact hazard protection cover, for bus-mounting fuse base, SV 3433010
The cover ensures contact hazard protection from the front, top and below. All-round contact hazard protection (up to IP 2X) in conjunction with the side cover 3093.010/.020. Material: Polyamide (PA 6. Lieske Part No.: 189538 Mfg Part No: 3433020 Type: SV 3433020 |
-7% 19,21 EUR 20,69 EUR
 ≈ £16.48 | ≈ $22.26
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Rittal 3093020 SV Cover, side, for bus-mounting fuse base, SV 3427010/3433010
For clip-on mounting onto the cover plate, contact hazard protection. Material: Polyamide (PA 6.6) Fire protection corresponding to UL 94-V0 Colour: RAL 7035 Packs of: 10 pc(s). EAN: 4028177675049 ... Lieske Part No.: 245730 Mfg Part No: 3093020 Type: SV 3093020 |
11,59 EUR 12,11 EUR
≈ £9.94 | ≈ $13.43
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Rittal 3433040 SV Bus-mounting fuse base, DIII-E33, 63 A, 690 V, 3-pole, round conductor connection 1,5-16 mm², adaptor screw, including cover plate
Material: Bus-mounting fuse base: Fibreglass-reinforced, thermoplastic polyester (PBT) Contact hazard protection: Polyamide (PA 6.6) Fire protection corresponding to UL 94-V0 Contact hazard ... Lieske Part No.: 894532 Mfg Part No: 3433040 Type: SV 3433040 |
5.725,04 EUR
≈ £4,912.08 | ≈ $6,635.32
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Rittal 3433030 SV Connection space extender, for bus-mounting fuse base, SV 3433010
Contact hazard protection including cable duct for side extension of the connection space by 14 mm. Material: Polyamide (PA 6.6) Fire protection corresponding to UL 94-V0 Colour: RAL 7035 Packs of: 10 ... Lieske Part No.: 964027 Mfg Part No: 3433030 Type: SV 3433030 |
39,59 EUR 41,37 EUR
≈ £33.97 | ≈ $45.88
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
