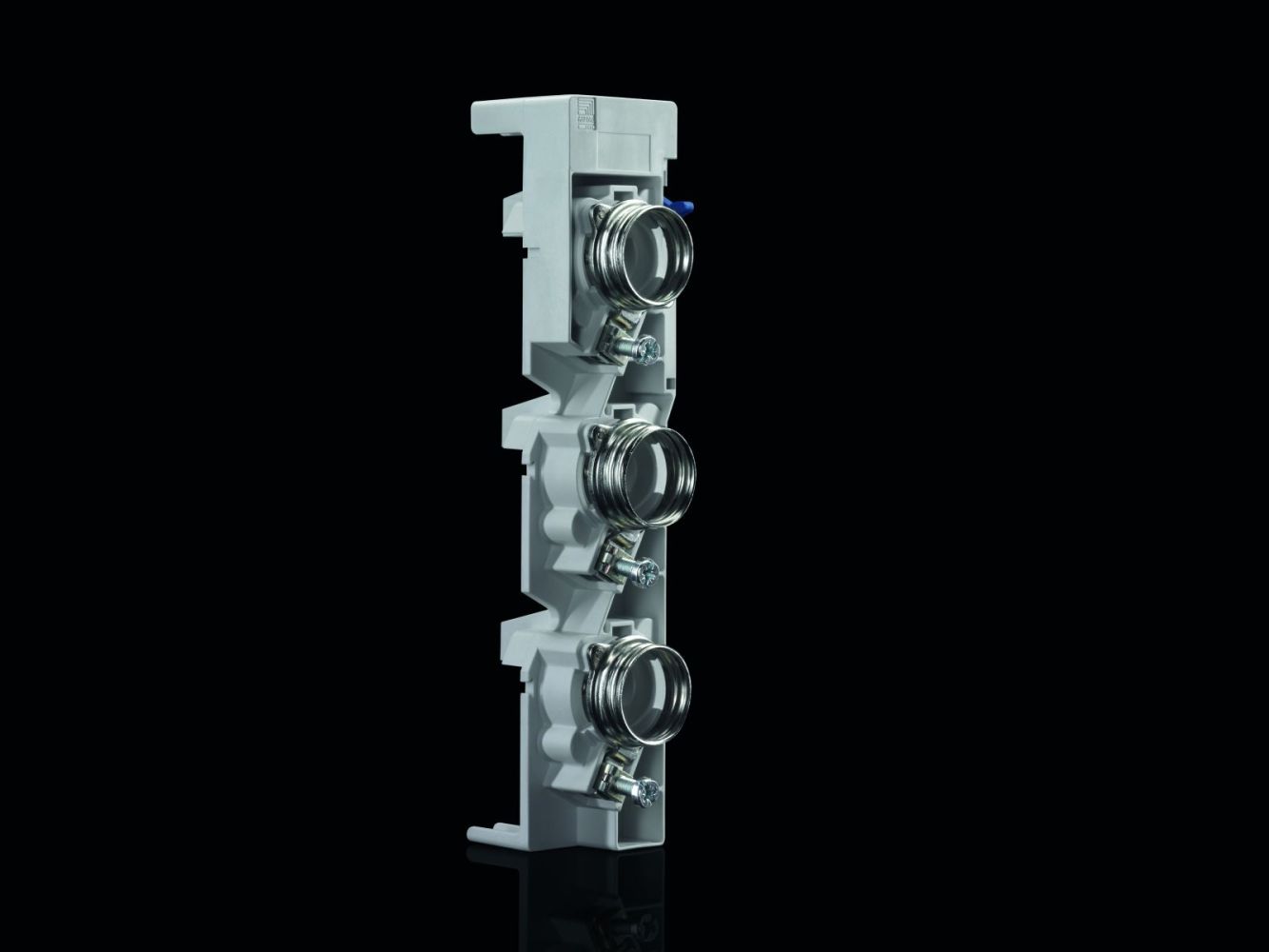

Rittal 3427010 Reiter fuse element DII-E27, 25 A, 3-pole (60 mm)
|
-6% 123,01 EUR 130,93 EUR |
|
|
incl. 4,56 EUR copper surcharge ( 146,38 EUR incl. VAT ) ≈ £102.96 | ≈ $137.65 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 125624 |
| Mfg Part No: | 3427010 |
| UPC/EAN: | 4028177674950 |
| Weight: | 0.2465 kg |
| Type: | SV 3427010 |
Further Power distribution components from RittalFurther products in category Power distribution components
All products of Rittal
Product information for Rittal 3427010:
Material: Bus-mounting fuse base: Fibreglass-reinforced, thermoplastic polyester (PBT)
Contact hazard protection: Polyamide (PA 6.6)
Fire protection corresponding to UL 94-V0
Colour: RAL 7035
Note: For the use of fuse inserts to EN 60 269-3 (DIN VDE 0636-301)
Packs of: 10 pc(s).
EAN: 4028177674950
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27371402
ETIM 6.0: EC001644
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 42 mm
Height: 209 mm
Type of electrical connection: Box terminal
Rated operating voltage: 500 V, 3~
500 V (DC)
Connection for round conductor cross-sections: 1.5 mm² - 16 mm²
Note: Wire end ferrules should be used with fine wire conductors.
Rated current (max.): 25 A
Fuse inserts: D II-E 27 (adaptor screw)
Weight/pack: 2.47 kg
Contact hazard protection: Polyamide (PA 6.6)
Fire protection corresponding to UL 94-V0
Colour: RAL 7035
Note: For the use of fuse inserts to EN 60 269-3 (DIN VDE 0636-301)
Packs of: 10 pc(s).
EAN: 4028177674950
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27371402
ETIM 6.0: EC001644
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 42 mm
Height: 209 mm
Type of electrical connection: Box terminal
Rated operating voltage: 500 V, 3~
500 V (DC)
Connection for round conductor cross-sections: 1.5 mm² - 16 mm²
Note: Wire end ferrules should be used with fine wire conductors.
Rated current (max.): 25 A
Fuse inserts: D II-E 27 (adaptor screw)
Weight/pack: 2.47 kg
