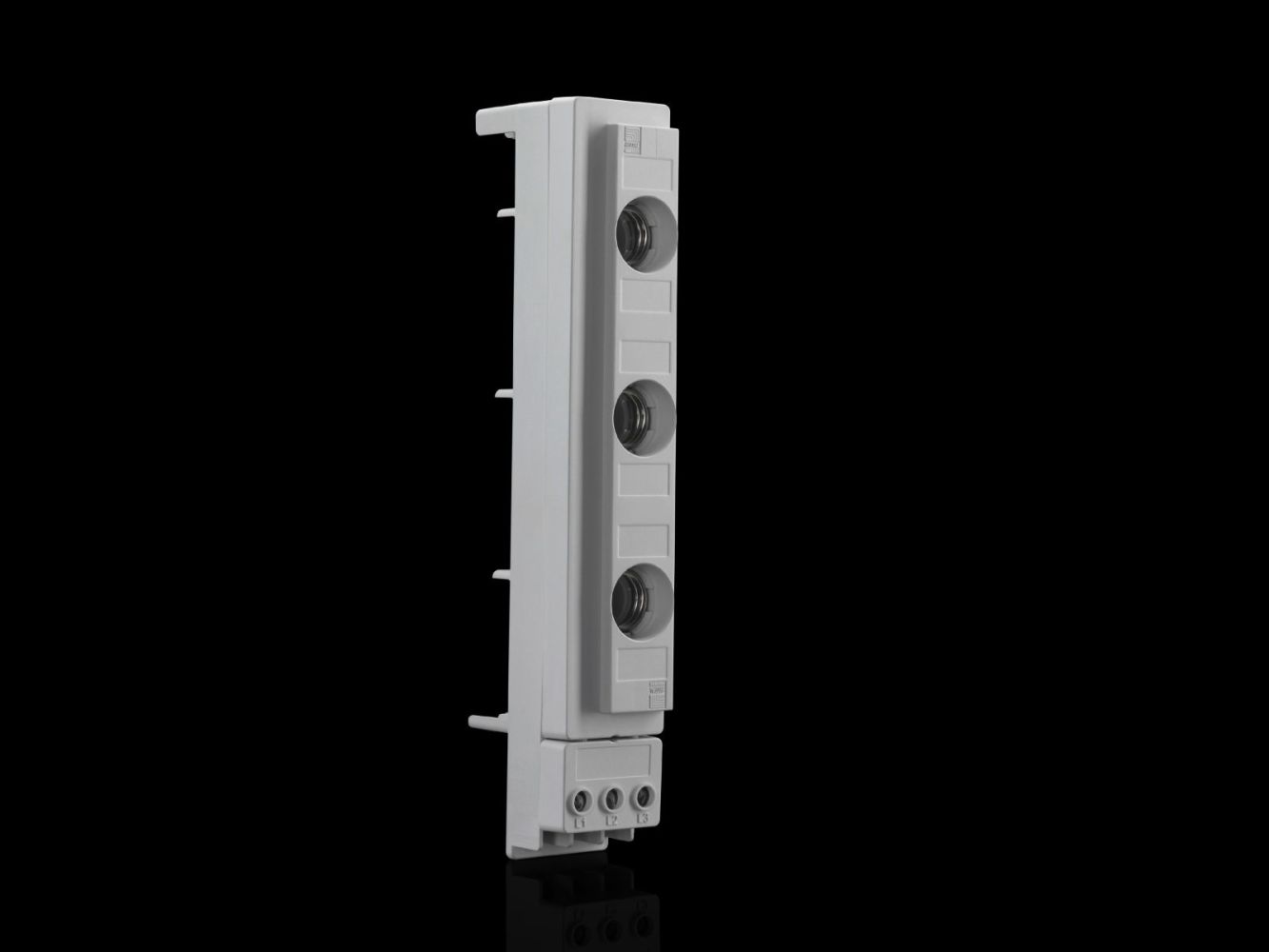

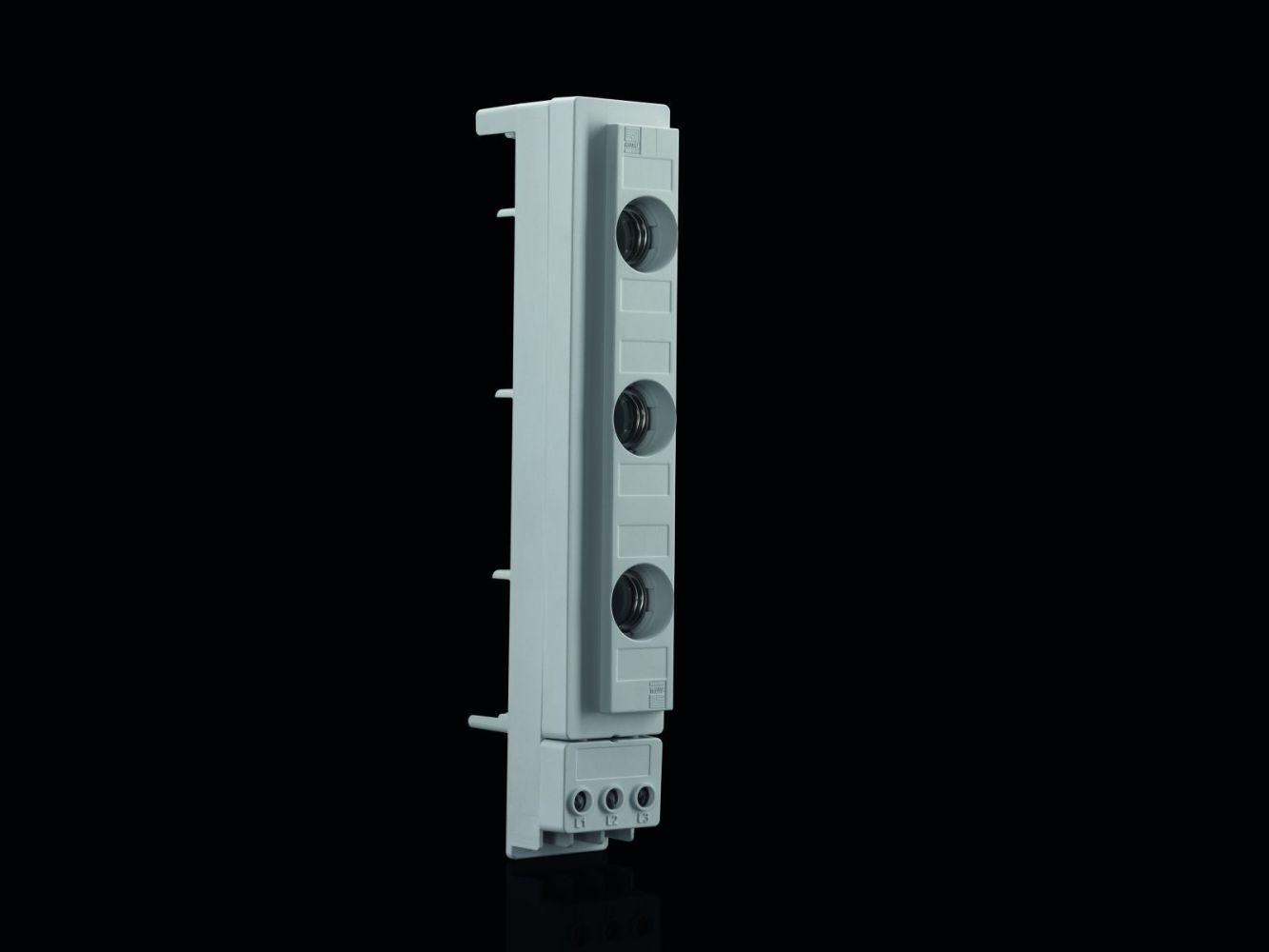

Rittal 3418040 Reiter fuse element D02-E18, 63 A, 3-pole, version
|
123,14 EUR |
|
|
incl. 3,29 EUR copper surcharge ( 146,54 EUR incl. VAT ) ≈ £103.07 | ≈ $137.79 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 163704 |
| Mfg Part No: | 3418040 |
| UPC/EAN: | 4028177674943 |
| Weight: | 1.66 kg |
| Type: | SV 3418040 |
Product information for Rittal 3418040:
Contact hazard protection: Polyamide (PA 6.6)
Fire protection corresponding to UL 94-V0
Contact hazard protection: Polyamide (PA 6.6)
Colour: RAL 7035
Supply includes: Pre-configured element ready for connection including cover plate, contact hazard protection and exterior connection clamps
Note: For the use of fuse inserts to EN 60 269-3 (DIN VDE 0636-301)
Packs of: 5 pc(s).
EAN: 4028177674943
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27371402
ETIM 6.0: EC001644
Design: Easy Connect
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 41 mm
Height: 251 mm
Type of electrical connection: Box terminal
Rated operating voltage: 400 V, 3~
400 V (DC)
Connection for round conductor cross-sections: 1.5 mm² - 16 mm²
Note: Wire end ferrules should be used with fine wire conductors.
Rated current (max.): 63 A
Fuse inserts: D 02-E 18 (adaptor sleeve)
Weight/pack: 1.64 kg
