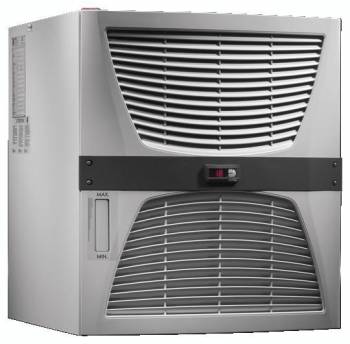

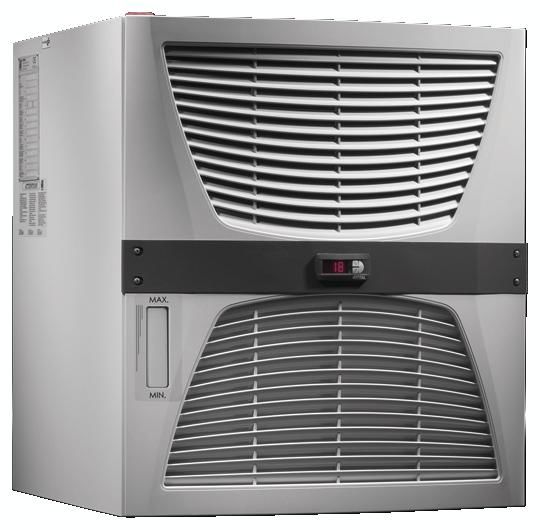

Rittal 3334600 SK TopTherm chiller, Stand alone, 4.5/5.4 kW, 400/460 V, 3~, 50/60 Hz, WHD: 602x676x645 mm, with integral tank
|
4.656,03 EUR 4.848,65 EUR |
|
|
( 5.540,68 EUR incl. VAT ) ≈ £3,999.53 | ≈ $5,335.81 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 356940 |
|---|---|
| Mfg Part No: | 3334600 |
| UPC/EAN: | 4028177351189 |
| Weight: | 0.123 kg |
Further Rack-Climatization from RittalFurther products in category Rack-Climatization
All products of Rittal
Product information for Rittal 3334600:
Design: Compact, modular layout of the refrigeration components
Nano-coated condenser
Pump to convey the medium
Precise temperature control, based on microprocessor technology
Collective fault signal with floating contact
Colour: RAL 7035
Protection category IP to IEC 60 529: IP 44 (electrics)
Supply includes: Complete unit ready for connection
Multilingual documentation including functional diagram and wiring plans
Note: For 3334.660, two metal filters are required
Packs of: 1 pc(s).
EAN: 4028177351189
Customs tariff number: 84186900
eCl@ss 5.1: 27180713
eCl@ss 7.0: 27180713
ETIM 6.0: EC002516
Total cooling output: At TW = 10°C/TU = 32°C and 50 Hz: 3.9 kW
At TW = 10°C/TU = 32°C and 60 Hz: 4.7 kW
At TW = 18°C/TU = 32°C and 50 Hz: 4.5 kW
At TW = 18°C/TU = 32°C and 60 Hz: 5.4 kW
Air throughput (unimpeded air flow): At 50 Hz: 1785 m³/h
At 60 Hz: 1785 m³/h
Rated operating voltage: 400 V, 3~, 50 Hz
460 V, 3~, 60 Hz
Note: Supports multiple voltages without rewiring.
Dimensions: Width: 602 mm
Height: 676 mm
Depth: 645 mm
Temperature control: Microcontroller control (factory setting +20°C)
Temperature range: Operation (environment): +10°C...+43°C
Liquid media: +10°C...+30°C
Refrigerant/cooling medium: Refrigerant: R134a
Power consumption Pel: At 50 Hz: 2.9 kW
At 60 Hz: 4.1 kW
Rated current (max.): At 50 Hz: 5.7 A
At 60 Hz: 6.3 A
Water circuit: Open
Water connections: ½" internal thread
Number of cooling circuits: 1
Tank: Contents: 30 l
Material: PP plastic
Weight/pack: 94 kg
Type: SK 3334600
Nano-coated condenser
Pump to convey the medium
Precise temperature control, based on microprocessor technology
Collective fault signal with floating contact
Colour: RAL 7035
Protection category IP to IEC 60 529: IP 44 (electrics)
Supply includes: Complete unit ready for connection
Multilingual documentation including functional diagram and wiring plans
Note: For 3334.660, two metal filters are required
Packs of: 1 pc(s).
EAN: 4028177351189
Customs tariff number: 84186900
eCl@ss 5.1: 27180713
eCl@ss 7.0: 27180713
ETIM 6.0: EC002516
Total cooling output: At TW = 10°C/TU = 32°C and 50 Hz: 3.9 kW
At TW = 10°C/TU = 32°C and 60 Hz: 4.7 kW
At TW = 18°C/TU = 32°C and 50 Hz: 4.5 kW
At TW = 18°C/TU = 32°C and 60 Hz: 5.4 kW
Air throughput (unimpeded air flow): At 50 Hz: 1785 m³/h
At 60 Hz: 1785 m³/h
Rated operating voltage: 400 V, 3~, 50 Hz
460 V, 3~, 60 Hz
Note: Supports multiple voltages without rewiring.
Dimensions: Width: 602 mm
Height: 676 mm
Depth: 645 mm
Temperature control: Microcontroller control (factory setting +20°C)
Temperature range: Operation (environment): +10°C...+43°C
Liquid media: +10°C...+30°C
Refrigerant/cooling medium: Refrigerant: R134a
Power consumption Pel: At 50 Hz: 2.9 kW
At 60 Hz: 4.1 kW
Rated current (max.): At 50 Hz: 5.7 A
At 60 Hz: 6.3 A
Water circuit: Open
Water connections: ½" internal thread
Number of cooling circuits: 1
Tank: Contents: 30 l
Material: PP plastic
Weight/pack: 94 kg
Type: SK 3334600
