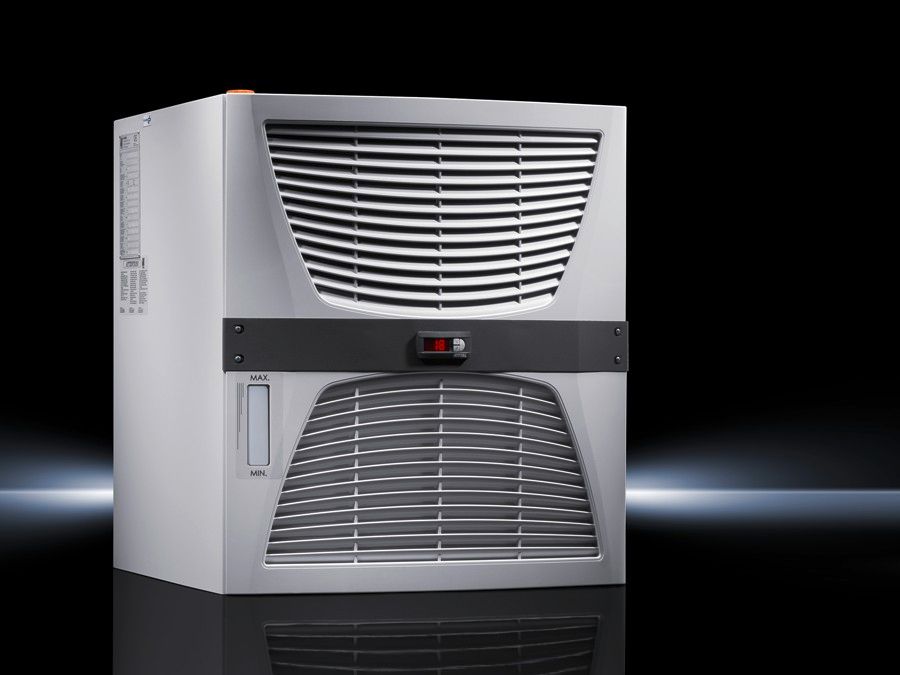

Rittal 3334600 SK chiller 4500 W Mini 602x676x635 mm
|
4.656,03 EUR 4.848,65 EUR |
|
|
( 5.540,68 EUR incl. VAT ) ≈ £3,934.35 | ≈ $5,205.44 plus delivery charges |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 356940 |
| Mfg Part No: | 3334600 |
| UPC/EAN: | 4028177351189 |
| Weight: | 104 kg |
| Type: | SK 3334600 |
Further Rack-Climatization from RittalFurther products in category Rack-Climatization
All products of Rittal
Product information for Rittal 3334600:
Design: Compact, modular layout of the refrigeration components
Nano-coated condenser
Pump to convey the medium
Precise temperature control, based on microprocessor technology
Collective fault signal with floating contact
Colour: RAL 7035
Protection category IP to IEC 60 529: IP 44 (electrics)
Supply includes: Complete unit ready for connection
Multilingual documentation including functional diagram and wiring plans
Note: For 3334.660, two metal filters are required
Packs of: 1 pc(s).
EAN: 4028177351189
Customs tariff number: 84186900
eCl@ss 5.1: 27180713
eCl@ss 7.0: 27180713
ETIM 6.0: EC002516
Total cooling output: At TW = 10°C/TU = 32°C and 50 Hz: 3.9 kW
At TW = 10°C/TU = 32°C and 60 Hz: 4.7 kW
At TW = 18°C/TU = 32°C and 50 Hz: 4.5 kW
At TW = 18°C/TU = 32°C and 60 Hz: 5.4 kW
Air throughput (unimpeded air flow): At 50 Hz: 1785 m³/h
At 60 Hz: 1785 m³/h
Rated operating voltage: 400 V, 3~, 50 Hz
460 V, 3~, 60 Hz
Note: Supports multiple voltages without rewiring.
Dimensions: Width: 602 mm
Height: 676 mm
Depth: 645 mm
Temperature control: Microcontroller control (factory setting +20°C)
Temperature range: Operation (environment): +10°C...+43°C
Liquid media: +10°C...+30°C
Refrigerant/cooling medium: Refrigerant: R134a
Power consumption Pel: At 50 Hz: 2.9 kW
At 60 Hz: 4.1 kW
Rated current (max.): At 50 Hz: 5.7 A
At 60 Hz: 6.3 A
Water circuit: Open
Water connections: ½" internal thread
Number of cooling circuits: 1
Tank: Contents: 30 l
Material: PP plastic
Weight/pack: 94 kg
Nano-coated condenser
Pump to convey the medium
Precise temperature control, based on microprocessor technology
Collective fault signal with floating contact
Colour: RAL 7035
Protection category IP to IEC 60 529: IP 44 (electrics)
Supply includes: Complete unit ready for connection
Multilingual documentation including functional diagram and wiring plans
Note: For 3334.660, two metal filters are required
Packs of: 1 pc(s).
EAN: 4028177351189
Customs tariff number: 84186900
eCl@ss 5.1: 27180713
eCl@ss 7.0: 27180713
ETIM 6.0: EC002516
Total cooling output: At TW = 10°C/TU = 32°C and 50 Hz: 3.9 kW
At TW = 10°C/TU = 32°C and 60 Hz: 4.7 kW
At TW = 18°C/TU = 32°C and 50 Hz: 4.5 kW
At TW = 18°C/TU = 32°C and 60 Hz: 5.4 kW
Air throughput (unimpeded air flow): At 50 Hz: 1785 m³/h
At 60 Hz: 1785 m³/h
Rated operating voltage: 400 V, 3~, 50 Hz
460 V, 3~, 60 Hz
Note: Supports multiple voltages without rewiring.
Dimensions: Width: 602 mm
Height: 676 mm
Depth: 645 mm
Temperature control: Microcontroller control (factory setting +20°C)
Temperature range: Operation (environment): +10°C...+43°C
Liquid media: +10°C...+30°C
Refrigerant/cooling medium: Refrigerant: R134a
Power consumption Pel: At 50 Hz: 2.9 kW
At 60 Hz: 4.1 kW
Rated current (max.): At 50 Hz: 5.7 A
At 60 Hz: 6.3 A
Water circuit: Open
Water connections: ½" internal thread
Number of cooling circuits: 1
Tank: Contents: 30 l
Material: PP plastic
Weight/pack: 94 kg
Questions & answers
What is the delivery time of Rittal 3334600 SK chiller 4500 W Mini 602x676x635 mm?
The article Rittal 3334600 SK chiller 4500 W Mini 602x676x635 mm is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3334600 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3334600 SK chiller 4500 W Mini 602x676x635 mm always at the best possible price. We can give you a discount of 2% on Rittal 3334600 SK chiller 4500 W Mini 602x676x635 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
