Rittal 3334400 Blue e+ chiller 5.5 kW, 380-415 V / 440-480 V, 3~, 50 Hz,

Your rating:
Average rating
product review for Rittal 3334400 Blue e+ chiller 5.5 kW, 380-415 V / 440-480 V, 3~, 50 Hz,
( 4 / 5 ) 1 ratings

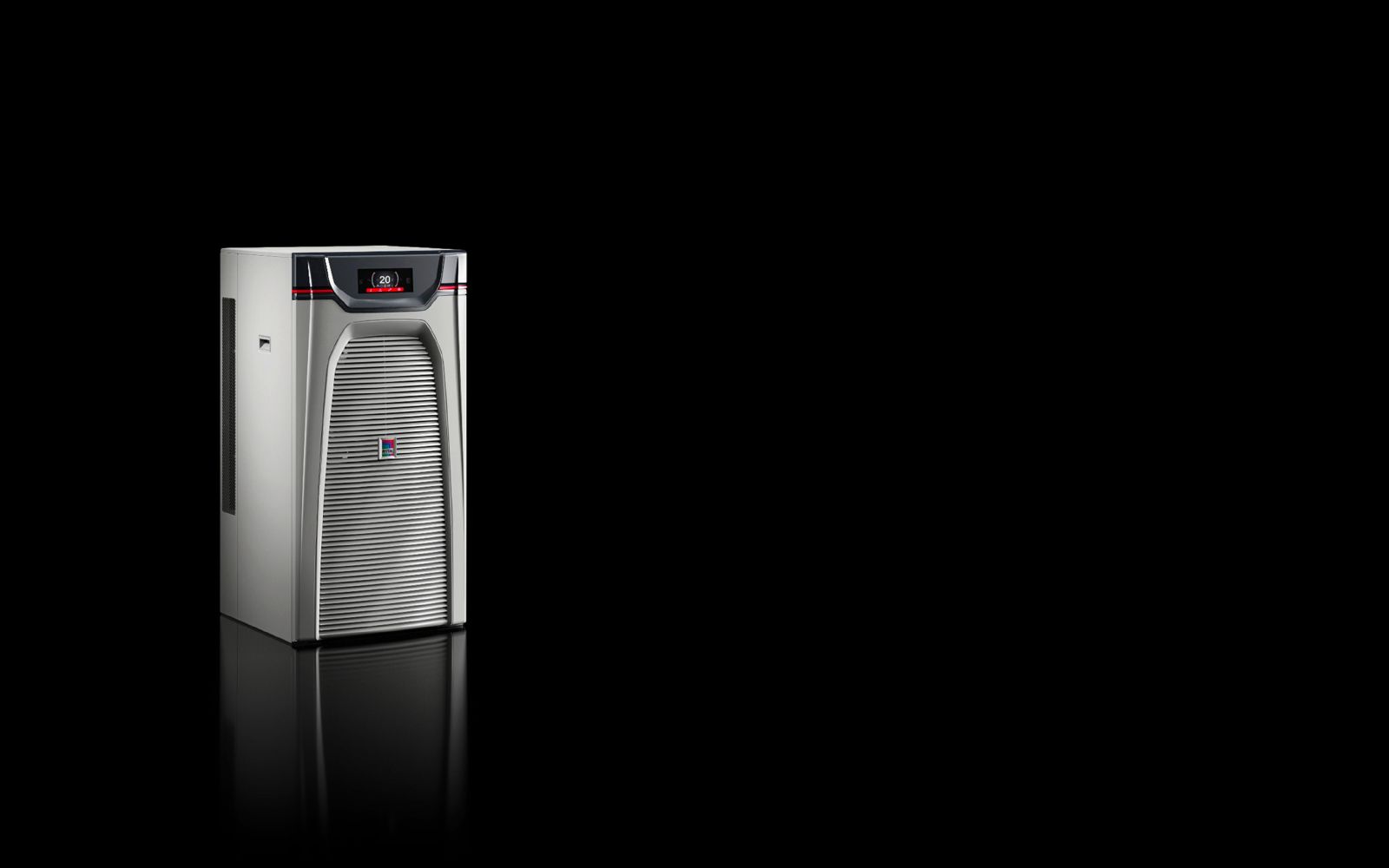

Rittal 3334400
This image may differ from the desired article.
Rittal 3334400Rittal 3334400
5.244,00 EUR 5.398,68 EUR
( 6.240,36 EUR incl. VAT )
≈ £4,389.23  |  ≈ $5,763.16
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 3334400 Blue e+ chiller 5.5 kW, 380-415 V / 440-480 V, 3~, 50 Hz,
Datasheet:file_download Download
Lieske Part No.:1904545
Mfg Part No: 3334400
UPC/EAN: 4028177809857
Weight:115 kg
Type:SK 3334400

Product information for Rittal 3334400:

The Rittal SK 3334400 is an industrial chiller of the Blue e+ series, designed for central cooling of liquid media in technical systems. The unit is particularly suitable for supplying air/water heat exchangers and offers a cooling capacity of up to 5.5 kW with a coolant operating temperature between 5 °C and 35 °C. The cooling capacity is specified under various operating conditions: at an ambient temperature of 32 °C and a coolant temperature of 18 °C, the capacity is 5.72 kW at 50 Hz and 5.62 kW at 60 Hz. The total cooling capacity according to DIN EN 14511 at Tw18/Tu35 is 5.5 kW (50 Hz) or 5.4 kW (60 Hz). The coefficient of performance (EER) is 2.16 at 50 Hz under the specified conditions.

Applications
This chiller is designed for use in industrial environments where precise and reliable temperature control of cooling water is required. It is commonly used in enclosures, control systems, or machines requiring continuous cooling. The multi-voltage capability enables worldwide use without rewiring, as the unit can operate on 380 V – 415 V, 3~, 50 Hz or 440 V – 480 V, 3~, 60 Hz. The operating temperature range of the unit is between -5 °C and 50 °C, with a storage temperature up to 70 °C.

Functions and Equipment in Detail
The unit features an e+ controller, factory-set to a temperature of +20 °C. The temperature hysteresis is ± 0.5 K, ensuring precise control. Cooling is achieved using refrigerant R-513A with a quantity of 1.2 kg. The Global Warming Potential (GWP) is 631, equivalent to 0.76 t of CO₂. The pumps are equipped with high-efficiency IE3 motors, delivering a flow rate of 15 l/min at 50 Hz. The pump pressure is 2.9 bar at 50 Hz. The water circuit is open, with water connections having a diameter of ¾" IG.

Technology Explained Simply
The chiller uses DC inverter technology, enabling variable speed operation and achieving up to 70 % energy savings compared to conventional systems. The air performance is 1,850 m³/h at both frequencies (50 Hz and 60 Hz). The rated power (Pel) is 2.63 kW (50 Hz) or 2.9 kW (60 Hz). The maximum rated current is 4 A (50 Hz) or 3.8 A (60 Hz). The fuse is rated for 15 A. The protection class is IP 24 (general) and IP 24 (electrical) according to EN 60 529, protecting the unit against finger contact and splashing water.

Compatibility and Accessories
For remote monitoring and networking of Blue e+ devices, the IoT interface with article number 3124.300 can be used. This enables monitoring of device data, statuses, and system messages to enhance machine availability and process safety. Compatible accessories include levelling feet, balancing valves, Rifrost coolant (e.g. Rifrost-Outdoor 10 L or 25 L), pleated filters, power switches, metal filters, and filter mats for compatible models.

Mounting and Installation
The unit is delivered as a complete, ready-to-connect system, including a plug-in connection terminal strip. Dimensions are 450 mm (width) × 1,020 mm (height) × 710 mm (depth). The integrated control and intelligent interface simplify installation and commissioning. Integrated monitoring sensors and an overpressure valve enhance operational safety.

Operational Advantages
The compact and modular design minimizes required floor space. Intuitive operation via a touch display and intelligent communication interface simplify use and analysis. Integrated safety technology, including the overpressure valve and monitoring sensors, ensures reliable operation. Multi-voltage capability and international certification (IEC CB, UL + C-UL) allow use in various countries without additional modifications.

Scope of Delivery
The unit is delivered as a complete, ready-to-connect system, including a plug-in connection terminal strip and multilingual documentation.

General
ColourRAL 7035 Structure
Scope of deliveryComplete plug-and-play unit (pluggable terminal block), multilingual documentation
OptionsFor remote monitoring and networking of cooling units and chillers from the Blue e+ generation, use the IoT interface with article number 3124.300. Increase machine availability and process safety by remotely monitoring device data, statuses and system messages.
Degree of protection IP according to EN 60 529IP 24, IP 54 (electrical)
Total cooling capacity Tw10 / Tu32Cooling capacity Tw10 Tu32/50 Hz: 4.33 kW, cooling capacity Tw10 Tu32/60 Hz: 4.23 kW
Total cooling capacity Tw18 / Tu32Cooling capacity Tw18 Tu32/50 Hz: 5.72 kW, cooling capacity Tw18 Tu32/60 Hz: 5.62 kW
Total cooling capacity according to DIN EN 14511 Tw18 / Tu35Cooling capacity Tw18 Tu35/50 Hz: 5.5 kW, cooling capacity Tw18 Tu35/60 Hz: 5.4 kW
Air performance (free blowing)At 50 Hz: 1.850 m³/h, at 60 Hz: 1.850 m³/h
Rated operating voltage380 V - 415 V, 3~, 50 Hz, 440 V - 480 V, 3~, 60 Hz
Width450 mm
Height1.020 mm
Depth710 mm
NoteBy downloading the software, a contract is established between the contracting party and Rittal for the free use of the software in accordance with these license terms.
Temperature controle+ controller (factory setting +20 °C)
Operating temperature range-5 °C...50 °C
Storage temperature range-40 °C...70 °C
Operating temperature range of cooling medium5 °C...35 °C
Temperature hysteresis± 0,5 K
Refrigerant/cooling mediumRefrigerant: R-513A, Quantity: 1.2 kg, Global Warming Potential (GWP): 631, CO₂ equivalent (CO₂e): 0.76 t
Pump pressureAt 50 Hz: 2.9 bar
Flow rate (coolant medium)At 50 Hz: 15 l/min
Rated power PelAt 50 Hz: 2.63 kW, At 60 Hz: 2.9 kW
Rated current max.At 50 Hz: 4 A, At 60 Hz: 3.8 A
FuseCircuit breaker/fuse: 15 A
Cooling performance factor (EER) 50 Hz Tw18 / Tu35 DIN EN 145112,16
Water circuitOpen
Water connections¾" IG
Number of refrigeration circuits1
TankMaterial: plastic PE, volume: 12 l


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 3334400, EAN: 4028177809857
