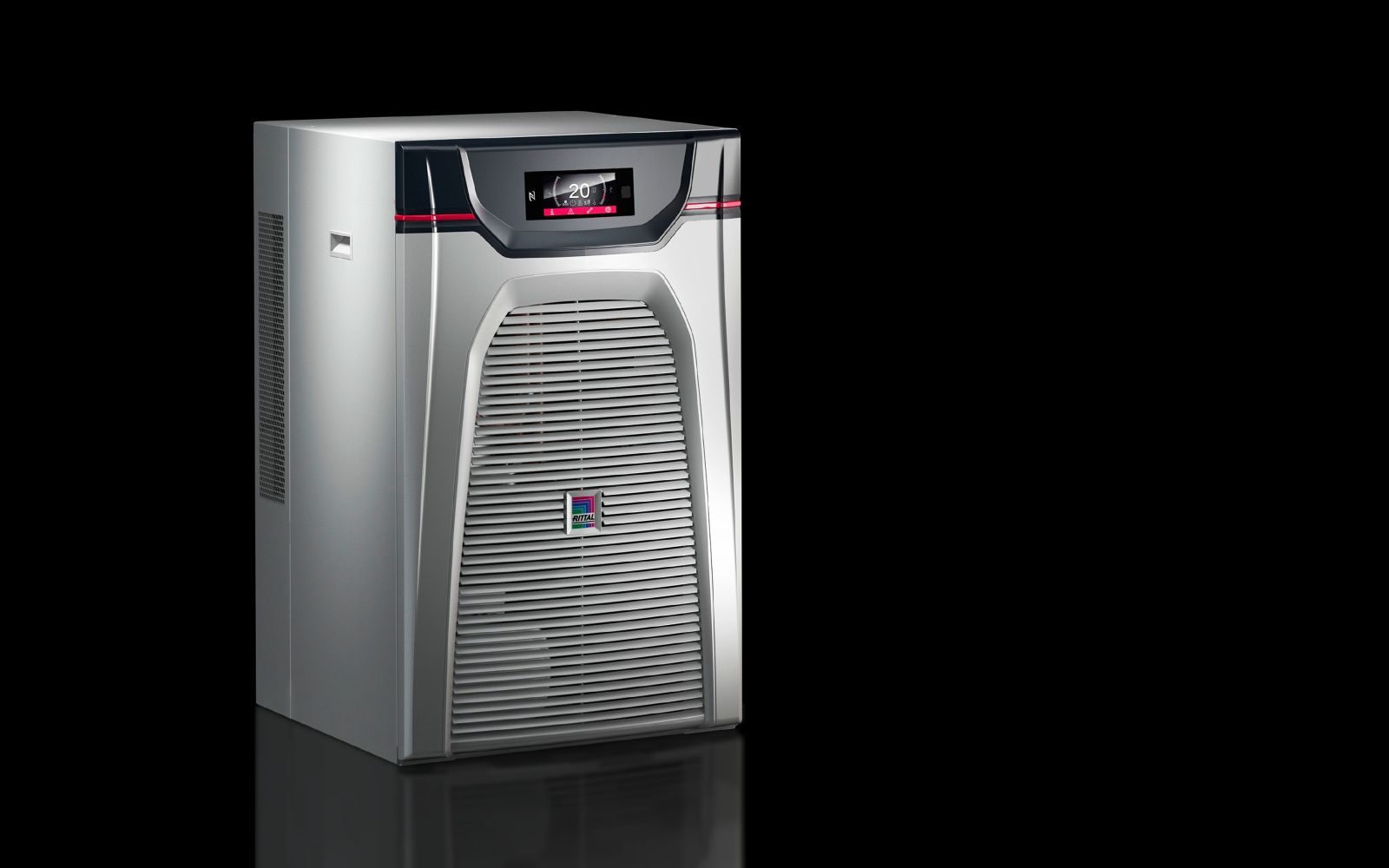

Rittal 3334300 Chiller Blue e+ 4 kW
W x H x D 450x820x710 mm (freight shipping)

Your rating:
Average rating
product review for Rittal 3334300 Chiller Blue e+ 4 kW W x H x D 450x820x710 mm (freight shipping)
( 4.5 / 5 ) 6 ratings
Rittal 3334300
This image may differ from the desired article.
Rittal 3334300Rittal 3334300Rittal 3334300
4.393,00 EUR 4.531,23 EUR
( 5.227,67 EUR incl. VAT )
≈ £3,676.94  |  ≈ $4,827.91
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 3334300 Chiller Blue e+ 4 kW W x H x D 450x820x710 mm (freight shipping)
Datasheet:file_download Download
Lieske Part No.:1598686
Mfg Part No: 3334300
UPC/EAN: 4028177809840
Weight:103 kg
Type:SK 3334300

Product information for Rittal 3334300:

The Rittal SK 3334300 is an industrial chiller of the Blue e+ series, designed for central and efficient cooling of liquid media in technical installations. The device is primarily used to supply air/water heat exchangers and offers high temperature accuracy through integrated control technology. It is designed for use in industrial environments where reliable and energy-efficient cooling of liquids is required.

Applications

The chiller is suitable for applications requiring continuous cooling of liquids in the temperature range of 5 °C to 35 °C. Typical applications include cooling of machine oil, hydraulic fluids, or other industrial media cooled via heat exchangers. The multi-voltage capability enables worldwide use without rewiring, allowing the devices to be operated in various regions with different mains voltages.

Functions and Equipment in Detail

The device features an e+ controller, factory-set to a control temperature of +20 °C. The temperature hysteresis is ± 0.5 K, ensuring precise temperature control. The cooling capacity is 4.18 kW at 50 Hz and an ambient temperature of 32 °C (Tw18/Tu32), and 4.08 kW at 60 Hz. The cooling capacity according to DIN EN 14511 at Tw18/Tu35 is 4 kW (50 Hz) or 3.9 kW (60 Hz). The air performance is 1,850 m³/h at both frequencies. The operating temperature of the device ranges from -5 °C to 50 °C, and the storage temperature ranges from -40 °C to 70 °C.

Technology Explained Simply

The chiller operates with DC inverter technology, enabling variable-speed operation and achieving up to 70 % energy savings compared to conventional systems. The pumps are equipped with IE3 motors, which offer high efficiency. The refrigerant is R-513A with a Global Warming Potential (GWP) of 631 and a quantity of 0.7 kg. The CO₂ equivalent is 0.44 t. The water circuit is open, and the water connections have a diameter of ¾" IG. The integrated tank is made of PE plastic and has a volume of 12 l.

Compatibility and Accessories

For remote monitoring and networking of Blue e+ devices, the IoT interface with article number 3124.300 can be used. This enables monitoring of device data, statuses, and system messages. Compatible accessories include levelling feet, balancing valves, Rifrost fluids for water circuits, filter mats, pleated filters, power switches, double swivel castors, adjustable cross-braces, and temperature sensors for Blue e+ cooling units.

Installation and Mounting

The device is delivered as a complete, ready-to-connect unit, including a plug-in connection terminal strip. Installation typically takes place on a flat surface, with dimensions of 450 mm (width) × 820 mm (height) × 710 mm (depth) to be considered. The rated operating voltage is 380 V – 415 V, 3~, 50 Hz, as well as 440 V – 480 V, 3~, 60 Hz. The fuse is rated at 15 A. The maximum rated current is 4 A (50 Hz) or 3.8 A (60 Hz). The rated power is 2.63 kW (50 Hz) or 2.9 kW (60 Hz). The coefficient of performance (EER) at 50 Hz and Tw18/Tu35 is 2.53.

Operational Advantages

The combination of DC inverter technology, IE3 motors, and variable-speed components results in high energy efficiency. The integrated monitoring sensors and overpressure valve increase operational safety. The intuitive operation via the touch display and intelligent communication interfaces simplify commissioning and maintenance. The compact design minimizes space requirements. The protection rating IP 24 (general) and IP 24 (electrical) according to EN 60 529 ensures safe operation in industrial environments.

Scope of Delivery

Complete ready-to-connect unit (plug-in connection terminal strip), multilingual documentation.

General
ColourRAL 7035 Structure
Scope of deliveryComplete plug-and-play unit (pluggable terminal block), multilingual documentation
OptionsFor remote monitoring and networking of cooling units and chillers from the Blue e+ generation, use the IoT interface with article number 3124.300. Increase machine availability and process safety by remotely monitoring device data, statuses and system messages.
Degree of protection IP according to EN 60 529IP 24, IP 54 (electrical)
Total cooling capacity Tw10 / Tu32Cooling capacity Tw10 Tu32/50 Hz: 2.87 kW, cooling capacity Tw10 Tu32/60 Hz: 2.77 kW
Total cooling capacity Tw18 / Tu32Cooling capacity Tw18 Tu32/50 Hz: 4.18 kW, cooling capacity Tw18 Tu32/60 Hz: 4.08 kW
Total cooling capacity according to DIN EN 14511 Tw18 / Tu35Cooling capacity Tw18 Tu35/50 Hz: 4 kW, cooling capacity Tw18 Tu35/60 Hz: 3.9 kW
Air performance (free blowing)At 50 Hz: 1.850 m³/h, at 60 Hz: 1.850 m³/h
Rated operating voltage380 V - 415 V, 3~, 50 Hz, 440 V - 480 V, 3~, 60 Hz
Width450 mm
Height820 mm
Depth710 mm
NoteBy downloading the software, a contract is established between the contracting party and Rittal for the free use of the software in accordance with these license terms.
Temperature controle+ controller (factory setting +20 °C)
Operating temperature range-5 °C...50 °C
Storage temperature range-40 °C...70 °C
Operating temperature range of cooling medium5 °C...35 °C
Temperature hysteresis± 0,5 K
Refrigerant/cooling mediumRefrigerant: R-513A, quantity: 0.7 kg, Global Warming Potential (GWP): 631, CO₂ equivalent (CO₂e): 0.44 t
Pump pressureAt 50 Hz: 2.9 bar
Flow rate (coolant medium)At 50 Hz: 15 l/min
Rated power PelAt 50 Hz: 2.63 kW, At 60 Hz: 2.9 kW
Rated current max.At 50 Hz: 4 A, At 60 Hz: 3.8 A
FuseCircuit breaker/fuse: 15 A
Cooling performance factor (EER) 50 Hz Tw18 / Tu35 DIN EN 145112,53
Water circuitOpen
Water connections¾" IG
Number of refrigeration circuits1
TankMaterial: plastic PE, volume: 12 l
