Rittal 3302310 RTT cooling unit in horizontal format, wall-mounted, 320 W basic

Your rating:
Average rating
product review for Rittal 3302310 RTT cooling unit in horizontal format, wall-mounted, 320 W basic
( 4.5 / 5 ) 4 ratings
Rittal 3302310

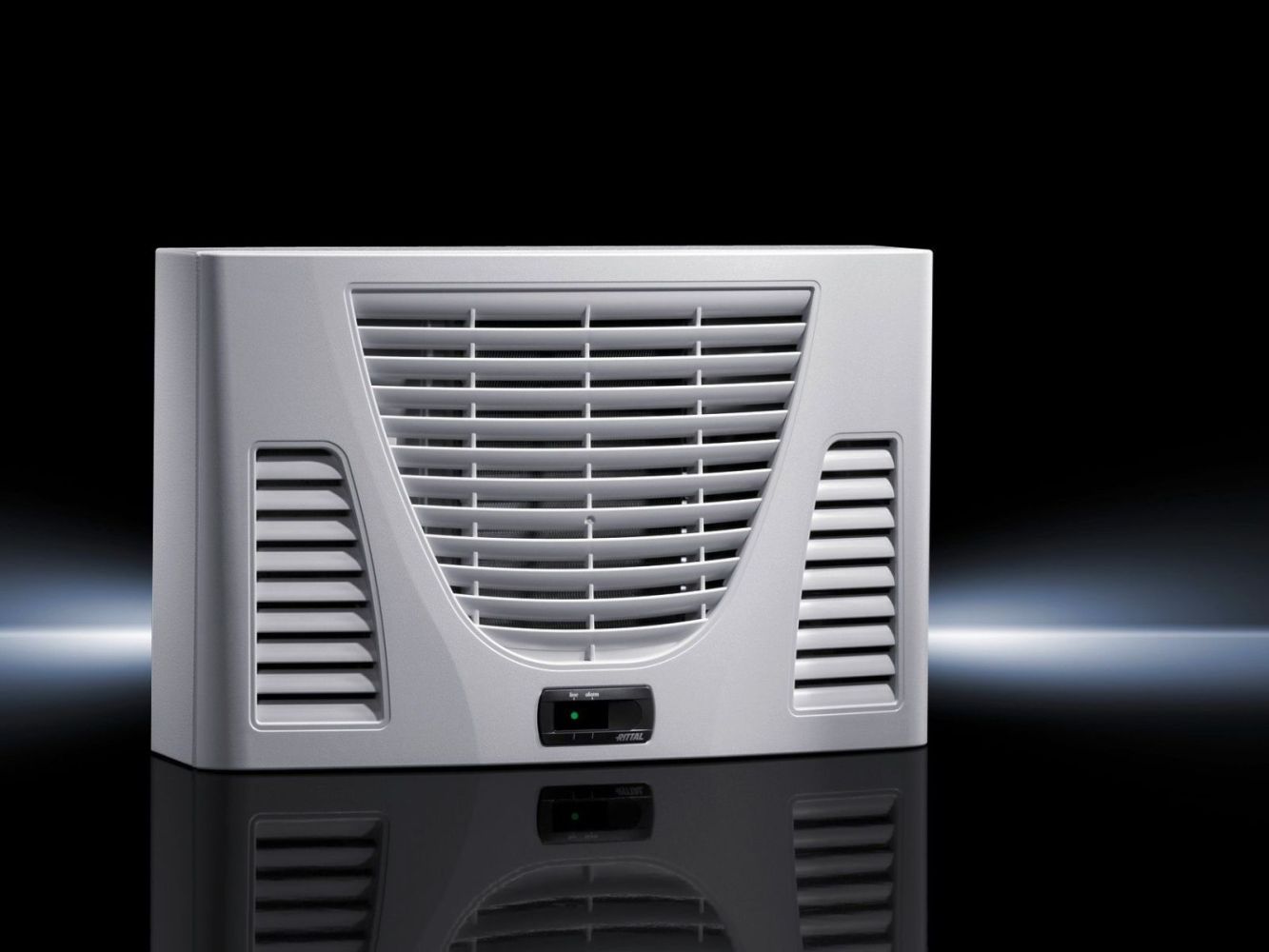

This image may differ from the desired article.
Rittal 3302310Rittal 3302310Rittal 3302310
962,55 EUR 979,80 EUR
( 1.145,43 EUR incl. VAT )
≈ £805.65  |  ≈ $1,057.84
plus delivery charges: 148,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 3302310 RTT cooling unit in horizontal format, wall-mounted, 320 W basic
Datasheet:file_download Download
Lieske Part No.:1581911
Mfg Part No: 3302310
UPC/EAN: 4028177429802
Weight:16 kg
Type:SK 3302310

Product information for Rittal 3302310:

Rittal SK 3302310 is a wall-mounted cooling unit from the TopTherm Blue e series, designed for climate control of enclosures and electronic housings. It features a cooling capacity of 0.32 kW at an operating voltage of 115 V, 1~, 60 Hz, and is designed in a horizontal format. The unit is made of sheet steel and finished in RAL 7035, ensuring good integration into industrial environments. Dimensions are 525 mm width, 340 mm height, and 153 mm depth, making it suitable for installation in standard enclosures.

Applications
This cooling unit is designed for use in industrial plants, automation systems, and IT infrastructures where a constant internal temperature in the enclosure is required. It is particularly used in environments where ambient temperature ranges between 10 °C and 55 °C. The operating temperature range ensures reliable function in typical industrial and production environments. The storage temperature range of -40 °C to 70 °C indicates that the unit can be stored undamaged even under extreme conditions.

Functions and Equipment in Detail
The unit is equipped with a basic controller, factory-set to a temperature of +35 °C. The adjustable range is between 30 °C and 55 °C, allowing cooling performance to be adapted to specific requirements. Air flow rate is 300 m³/h in both the external and internal circuits, ensuring efficient air circulation within the enclosure. Cooling capacity is measured according to DIN EN 14511, achieving 0.32 kW at L35 L35/60 Hz and 0.16 kW at L35 L50/60 Hz. Rated power is 0.32 kW at L35 L35/60 Hz and 0.37 kW at L35 L50/60 Hz. Energy efficiency (EER) is 1 at 60 Hz and L35 L35, indicating balanced power consumption.

Technology Explained Simply
The cooling unit uses refrigerant R-513A, with a quantity of 0.18 kg. The Global Warming Potential (GWP) is 631, equivalent to 0.11 t of CO₂. The condensers are coated with hydrophobic RiNano coating, reducing condensation formation and simplifying maintenance. Maximum operating pressure is 25 bar, ensuring safety under operating conditions. The pre-fuse is equipped with a fuse switch/fuse rated at 10 A to prevent overloads. The unit is inrush current resistant, with a maximum inrush current of 12 A at 60 Hz.

Compatibility and Accessories
The cooling unit is compatible with IoT interface via the Blue e IoT adapter when equipped with an e-Comfort controller. This enables networking and remote monitoring, especially for cooling units with cooling capacity of 500 W and above. Compatible accessories include, among others, a TS support roller, a filter mat, a door position switch, a condensate hose (8 x 1.5 x 10 m length), an electric condensate evaporator, a VX support roller (8618420), and a metal filter. These components support functionality and maintenance of the cooling unit.

Mounting and Installation
The unit is designed for wall mounting and is supplied with a drilling template and mounting materials, simplifying installation. The connection terminal strip is plug-in, enabling quick and secure wiring. Protection rating IP 34 for the external circuit and IP 34 for the internal circuit ensures sufficient protection against dust and splashing water, making the unit suitable for use in slightly damp environments. Protection rating NEMA UL Type 12 meets requirements for enclosed, dust- and splash-proof environments.

Operational Advantages
The combination of compact design, high air flow, and efficient cooling performance makes this unit a reliable solution for enclosure climate control. Factory setting to +35 °C ensures immediate operational readiness. The hydrophobic RiNano coating reduces condensation and minimizes maintenance effort. Networking capability via IoT interface enables central monitoring and control, especially in larger installations. The use of R-513A as refrigerant complies with current environmental standards and is regulated under the F-gas regulation.

The unit is designed for use in industrial plants, automation systems, and IT infrastructures where a constant internal temperature in the enclosure is required. It is particularly used in environments where ambient temperature ranges between 10 °C and 55 °C. The operating temperature range ensures reliable function in typical industrial and production environments. The storage temperature range of -40 °C to 70 °C indicates that the unit can be stored undamaged even under extreme conditions.

General
ModelWall mounting, horizontal
Materialsteel sheet
ColourRAL 7035
Scope of deliveryCondenser with hydrophobic RiNano coating, pre-wired (pluggable terminal block), drilling template, mounting material
Total cooling capacity according to DIN EN 14511Cooling capacity L35 L35/60 Hz: 0.32 kW, Cooling capacity L35 L50/60 Hz: 0.16 kW
Rated operating voltage115 V, 1~, 60 Hz
Rated current max.At 60 Hz: 4 A
Inrush current (max.)At 60 Hz: 12 A
Air performance (free blowing)External circuit: 300 m³/h, internal circuit: 300 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35Cooling capacity factor L35 L35 (EER) 60 Hz: 1
Special versionHorizontal
Width525 mm
Height340 mm
Depth153 mm
Degree of protection IP according to EN 60 529External circuit: IP 34, internal circuit: IP 54
NEMA degree of protectionUL Type 12
Refrigerant/cooling mediumRefrigerant: R-513A, Quantity: 0.18 kg, Global Warming Potential (GWP): 631, CO₂ equivalent (CO₂e): 0.11 t
Temperature controlBase controller (factory setting +35 °C)
Operating temperature range10 °C...55 °C
Storage temperature range-40 °C...70 °C
Adjustment range30 °C...55 °C
Rated power PelRated power L35 L35/60 Hz: 0.32 kW, Rated power L35 L50/60 Hz: 0.37 kW
Permissible operating pressure (p max.)25 bar
FuseCircuit breaker/fuse: 10 A


Product data sheet
Datasheet for Rittal 3302310, EAN: 4028177429802

Questions & answers

What is the delivery time of Rittal 3302310 RTT cooling unit in horizontal format, wall-mounted, 320 W basic?

The article Rittal 3302310 RTT cooling unit in horizontal format, wall-mounted, 320 W basic is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3302310 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3302310 RTT cooling unit in horizontal format, wall-mounted, 320 W basic always at the best possible price. We can give you a discount of 2% on Rittal 3302310 RTT cooling unit in horizontal format, wall-mounted, 320 W basic if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Rittal 3302310 RTT cooling unit in horizontal format, wall-mounted, 320 W basic

Rittal 3286110 SK Filter mat, for wall-mounted cooling units, SK 3302.300/310, WHD: 190x95x10 mm Rittal LogoRittal 3286110 SK Filter mat, for wall-mounted cooling units, SK 3302.300/310, WHD: 190x95x10 mm Rittal cooling units are low-maintenance and are supplied without filter mats. Filter mats may be used for extreme conditions.
Benefits: Temperature-resistant from -40°C...+80°C
Material: ...

Lieske Part No.: 337504
Mfg Part No: 3286110
Type: SK 3286110
16,48 EUR
Rittal 3286110 plus VAT
≈ £13.79  |  ≈ $18.11
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 3286120 SK Metal filter, for wall-mounted cooling units SK 3302.300/310, WHD: 190x95x10 mm Rittal LogoRittal 3286120 SK Metal filter, for wall-mounted cooling units SK 3302.300/310, WHD: 190x95x10 mm Particularly when cooling units are used in dusty and oily environments, it is advisable to use washable metal filters. If air or steam condenses on the metal surfaces, any particles present will ...

Lieske Part No.: 357726
Mfg Part No: 3286120
Type: SK 3286120
-10% 63,94 EUR 71,33 EUR
Rittal 3286120 plus VAT
≈ £53.52  |  ≈ $70.27
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 4538000 TS roller for TS, SE, PC Rittal LogoRittal 4538000 TS roller for TS, SE, PC Lifts the door with heavy installed equipment (e.g. cooling unit) as a closing aid.
Packs of: 10 pc(s).
EAN: 4028177102507
Customs tariff number: 83024900
eCl@ss 5.1: 27189234
eCl@ss 7.0: 27189234 ...

Lieske Part No.: 482199
Mfg Part No: 4538000
Type: TS 4538000
-8% 54,05 EUR 58,54 EUR
Rittal 4538000 plus VAT
≈ £45.24  |  ≈ $59.40
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 3301500 Electrical condensate evaporator Rittal LogoRittal 3301500 Electrical condensate evaporator The Rittal SK 3301500 is an electrical condensate evaporator specifically designed for mounting outside the enclosure. It is used for the efficient removal of condensate generated during the cooling ...

Lieske Part No.: 563291
Mfg Part No: 3301500
Type: SK 3301500
265,19 EUR
Rittal 3301500 plus VAT
≈ £221.96  |  ≈ $291.44
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 4127010 door position switch Rittal LogoRittal 4127010 door position switch Packs of: 1 pc(s).
EAN: 4028177497740
Customs tariff number: 85369085
eCl@ss 5.1: 27189241
eCl@ss 7.0: 27119116
ETIM 6.0: EC002626

Design: Without connection cable
Rated operating voltage: 400 V ...

Lieske Part No.: 822030
Mfg Part No: 4127010
Type: SZ 4127010
28,40 EUR
Rittal 4127010 plus VAT
≈ £23.77  |  ≈ $31.21
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
Rittal 3301608 Condensate hose 8 x 1.5 x 10 m length Rittal LogoRittal 3301608 Condensate hose 8 x 1.5 x 10 m length For discharging and transporting condensate. For connection to enclosure cooling units and air/water heat exchangers.
Material: PVC, transparent
Packs of: 1 pc(s).
EAN: 4028177438286
Customs tariff ...

Lieske Part No.: 905128
Mfg Part No: 3301608
Type: SK 3301608
-5% 22,89 EUR 24,22 EUR
Rittal 3301608 plus VAT
≈ £19.16  |  ≈ $25.16
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
Rittal 8618420 VX support roller Rittal LogoRittal 8618420 VX support roller The Rittal VX 8618.420 is a door roller, serving as an aid for closing enclosure doors, particularly when heavy equipment such as cooling units is installed inside the enclosure. The roller is mounted ...

Lieske Part No.: 1441064
Mfg Part No: 8618420
Type: VX 8618.420
51,64 EUR 53,69 EUR
Rittal 8618420 plus VAT
≈ £43.22  |  ≈ $56.75
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
