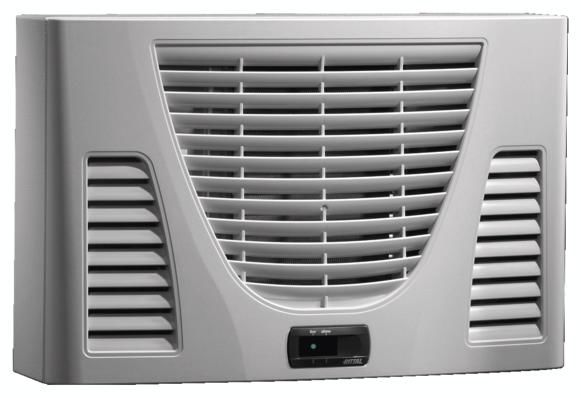

Rittal 3302300 SK TopTherm cooling unit, Wall-mounted, horizontal format, 0.36 kW, 230 V, 1~, 50/60 Hz, Stainless steel, WHD: 525x340x153 mm
|
966,37 EUR 1.006,35 EUR |
|
|
( 1.149,98 EUR incl. VAT ) ≈ £830.11 | ≈ $1,107.46 plus delivery charges: 53,00 € |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 999350 |
|---|---|
| Mfg Part No: | 3302300 |
| UPC/EAN: | 4028177429796 |
| Weight: | 0.123 kg |
Further Rack-Climatization from RittalFurther products in category Rack-Climatization
All products of Rittal
Product information for Rittal 3302300:
Material: Sheet steel
Colour: RAL 7035
Protection category IP to IEC 60 529: External circuit IP 34
Internal circuit IP 34
Supply includes: Nano-coated condenser
Fully wired ready for connection (plug-in terminal strip)
Drilling template
Assembly parts
Packs of: 1 pc(s).
EAN: 4028177429796
Customs tariff number: 84158200
eCl@ss 5.1: 27180704
eCl@ss 7.0: 27180704
ETIM 6.0: EC000855
Total cooling output to DIN EN 14511: L 35 L 35 at 50 Hz: 0.36 kW
L 35 L 35 at 60 Hz: 0.38 kW
L 35 L 50 at 50 Hz: 0.21 kW
L 35 L 50 at 60 Hz: 0.22 kW
Air throughput (unimpeded air flow): External circuit: 310 m³/h
Internal circuit: 310 m³/h
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 525 mm
Height: 340 mm
Depth: 153 mm
Temperature control: Basic controller (factory setting +35°C)
Temperature range: Operation (environment): +10°C...+55°C
Setting range: +30°C...+55°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 100 g
Power consumption Pel: L 35 L 35 at 50 Hz: 0.27 kW
L 35 L 35 at 60 Hz: 0.29 kW
L 35 L 50 at 50 Hz: 0.31 kW
L 35 L 50 at 60 Hz: 0.33 kW
Rated current (max.): At 50 Hz: 1.6 A
At 60 Hz: 1.7 A
Start-up current max.: At 50 Hz: 4.3 A
At 60 Hz: 5.3 A
Pre-fuse: Miniature circuit-breaker/fuse: 10 A
Permissible operating pressure (p. max.): 25 bar
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 1.3
Weight/pack: 13 kg
Type: SK 3302300
Colour: RAL 7035
Protection category IP to IEC 60 529: External circuit IP 34
Internal circuit IP 34
Supply includes: Nano-coated condenser
Fully wired ready for connection (plug-in terminal strip)
Drilling template
Assembly parts
Packs of: 1 pc(s).
EAN: 4028177429796
Customs tariff number: 84158200
eCl@ss 5.1: 27180704
eCl@ss 7.0: 27180704
ETIM 6.0: EC000855
Total cooling output to DIN EN 14511: L 35 L 35 at 50 Hz: 0.36 kW
L 35 L 35 at 60 Hz: 0.38 kW
L 35 L 50 at 50 Hz: 0.21 kW
L 35 L 50 at 60 Hz: 0.22 kW
Air throughput (unimpeded air flow): External circuit: 310 m³/h
Internal circuit: 310 m³/h
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 525 mm
Height: 340 mm
Depth: 153 mm
Temperature control: Basic controller (factory setting +35°C)
Temperature range: Operation (environment): +10°C...+55°C
Setting range: +30°C...+55°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 100 g
Power consumption Pel: L 35 L 35 at 50 Hz: 0.27 kW
L 35 L 35 at 60 Hz: 0.29 kW
L 35 L 50 at 50 Hz: 0.31 kW
L 35 L 50 at 60 Hz: 0.33 kW
Rated current (max.): At 50 Hz: 1.6 A
At 60 Hz: 1.7 A
Start-up current max.: At 50 Hz: 4.3 A
At 60 Hz: 5.3 A
Pre-fuse: Miniature circuit-breaker/fuse: 10 A
Permissible operating pressure (p. max.): 25 bar
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 1.3
Weight/pack: 13 kg
Type: SK 3302300
