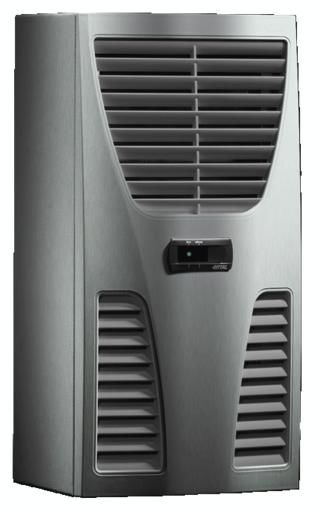

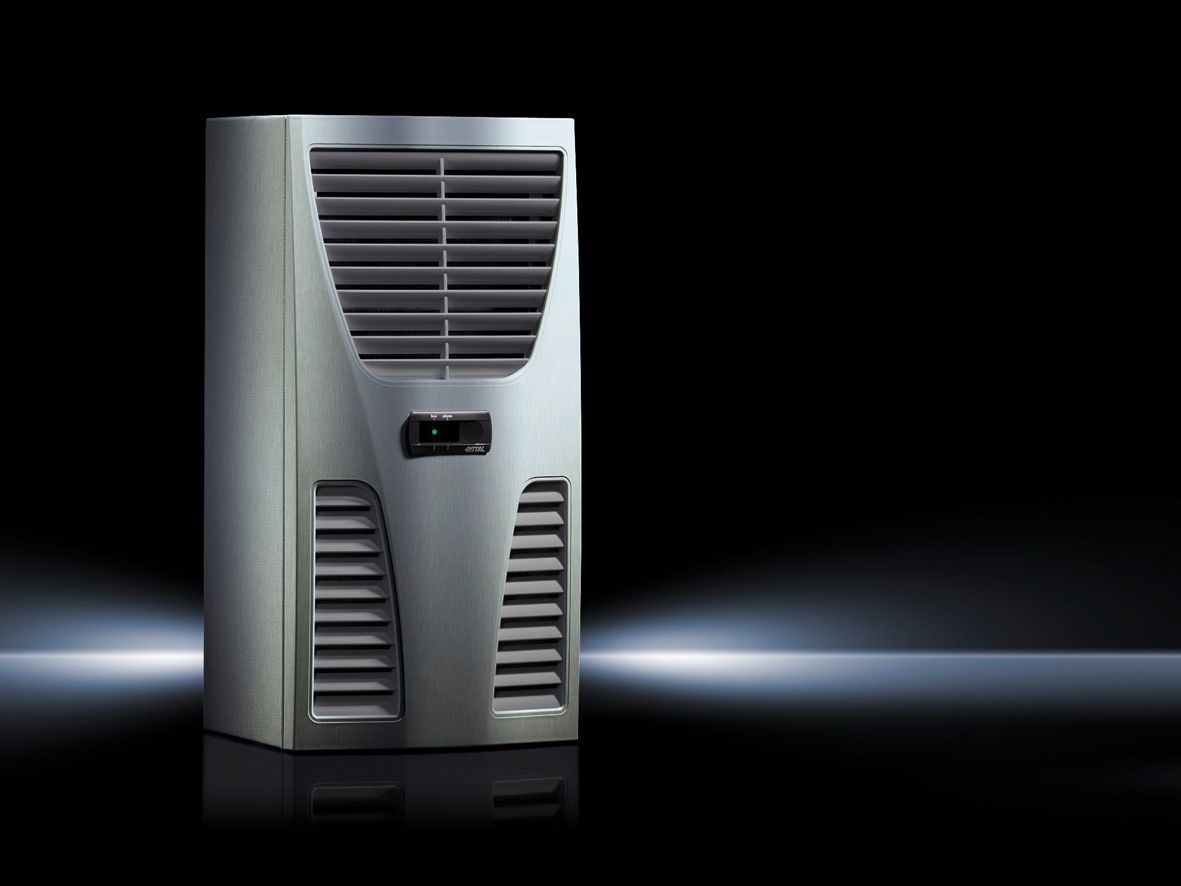

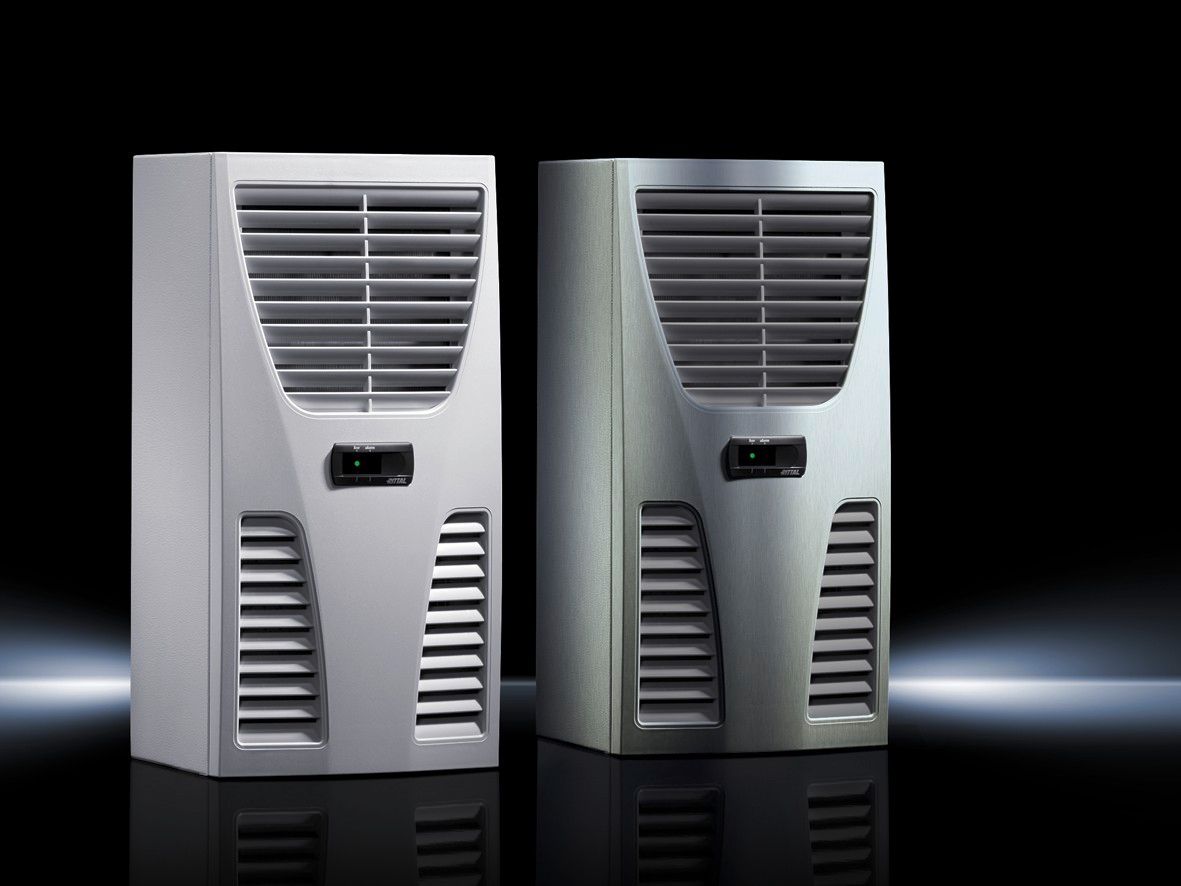

Rittal 3302200 SK TopTherm cooling unit, Wall-mounted, 0.36 kW, 230 V, 1~, 50/60 Hz, Stainless steel, WHD: 280x550x140 mm
|
-8% 1.158,05 EUR 1.254,20 EUR |
|
|
( 1.378,08 EUR incl. VAT ) ≈ £994.76 | ≈ $1,345.65 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 366030 |
|---|---|
| Mfg Part No: | 3302200 |
| UPC/EAN: | 4028177379602 |
| Weight: | 13 kg |
Further Rack-Climatization from RittalFurther products in category Rack-Climatization
All products of Rittal
Product information for Rittal 3302200:
Compact wall-mounted unit in the 0.3 kW performance class with
Total cooling capacity: L 35 L 35 at 50 Hz: 0.36 kW
L 35 L 35 at 60 Hz: 0.38 kW
L 35 L 50 at 50 Hz: 0.21 kW
L 35 L 50 at 60 Hz: 0.23 kW
Rated power: L 35 L 35 at 50 Hz: 0.28 kW
L 35 L 35 at 60 Hz: 0.29 kW
L 35 L 50 at 50 Hz: 0.29 kW
L 35 L 50 at 60 Hz: 0.31 kW
Airflow of fans free blowing outside: 310 m³/h
Airflow of fans free blowing inside: 345 m³/h
Coefficient of performance EER: 1.3
Rated operating voltage: 230 V, 50/60 Hz
Dimensions [W x H x D]: 280 x 550 x 140 mm
Refrigerant: R134a
Temperature control and monitoring via basic controller with
potential-free alarm output and door switch connection
(factory setting +35°C)
Ambient temperature range: 10°C to 55°C
Temperature adjustment range: 30°C to 55°C
Connection via plug-in terminal block
Protection rating according to IEC 60 529: External circuit IP 34
Protection rating according to IEC 60 529: Internal circuit IP 34
Weight: 13 kg
Material: Stainless steel
Material: Stainless steel
Protection rating IP according to IEC 60 529: External circuit IP 34
Internal circuit IP 34
Scope of delivery: Nanocoated condenser
Wired and ready for connection (plug-in terminal block)
Drilling template
Mounting materials
Note on order number: Lead time on request
Packaging unit: 1 pc.
EAN: 4028177379602
Customs tariff number: 84158200
eCl@ss 5.1: 27180704
eCl@ss 7.0: 27180704
ETIM 6.0: EC000855
Total cooling capacity according to DIN EN 14511: L 35 L 35 at 50 Hz: 0.36 kW
L 35 L 35 at 60 Hz: 0.38 kW
L 35 L 50 at 50 Hz: 0.21 kW
L 35 L 50 at 60 Hz: 0.23 kW
Airflow (free blowing): External circuit: 310 m³/h
Internal circuit: 345 m³/h
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 280 mm
Height: 550 mm
Depth: 140 mm
Temperature control: Basic controller (factory setting +35°C)
Temperature range: Operation (ambient): +10°C...+55°C
Adjustment range: +30°C...+55°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 100 g
Rated power Pel: L 35 L 35 at 50 Hz: 0.28 kW
L 35 L 35 at 60 Hz: 0.29 kW
L 35 L 50 at 50 Hz: 0.29 kW
L 35 L 50 at 60 Hz: 0.31 kW
Rated current (max.): At 50 Hz: 1.6 A
At 60 Hz: 1.7 A
Starting current (max.): At 50 Hz: 3 A
At 60 Hz: 3.4 A
Fuse: Circuit breaker/fuse: 10 A
Permissible operating pressure (p max.): 25 bar
Energy efficiency ratio (EER) 50 Hz L35 L35 according to DIN EN 14511: 1.3
Weight/unit: 13 kg
Type: SK 3302200
Total cooling capacity: L 35 L 35 at 50 Hz: 0.36 kW
L 35 L 35 at 60 Hz: 0.38 kW
L 35 L 50 at 50 Hz: 0.21 kW
L 35 L 50 at 60 Hz: 0.23 kW
Rated power: L 35 L 35 at 50 Hz: 0.28 kW
L 35 L 35 at 60 Hz: 0.29 kW
L 35 L 50 at 50 Hz: 0.29 kW
L 35 L 50 at 60 Hz: 0.31 kW
Airflow of fans free blowing outside: 310 m³/h
Airflow of fans free blowing inside: 345 m³/h
Coefficient of performance EER: 1.3
Rated operating voltage: 230 V, 50/60 Hz
Dimensions [W x H x D]: 280 x 550 x 140 mm
Refrigerant: R134a
Temperature control and monitoring via basic controller with
potential-free alarm output and door switch connection
(factory setting +35°C)
Ambient temperature range: 10°C to 55°C
Temperature adjustment range: 30°C to 55°C
Connection via plug-in terminal block
Protection rating according to IEC 60 529: External circuit IP 34
Protection rating according to IEC 60 529: Internal circuit IP 34
Weight: 13 kg
Material: Stainless steel
Material: Stainless steel
Protection rating IP according to IEC 60 529: External circuit IP 34
Internal circuit IP 34
Scope of delivery: Nanocoated condenser
Wired and ready for connection (plug-in terminal block)
Drilling template
Mounting materials
Note on order number: Lead time on request
Packaging unit: 1 pc.
EAN: 4028177379602
Customs tariff number: 84158200
eCl@ss 5.1: 27180704
eCl@ss 7.0: 27180704
ETIM 6.0: EC000855
Total cooling capacity according to DIN EN 14511: L 35 L 35 at 50 Hz: 0.36 kW
L 35 L 35 at 60 Hz: 0.38 kW
L 35 L 50 at 50 Hz: 0.21 kW
L 35 L 50 at 60 Hz: 0.23 kW
Airflow (free blowing): External circuit: 310 m³/h
Internal circuit: 345 m³/h
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 280 mm
Height: 550 mm
Depth: 140 mm
Temperature control: Basic controller (factory setting +35°C)
Temperature range: Operation (ambient): +10°C...+55°C
Adjustment range: +30°C...+55°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 100 g
Rated power Pel: L 35 L 35 at 50 Hz: 0.28 kW
L 35 L 35 at 60 Hz: 0.29 kW
L 35 L 50 at 50 Hz: 0.29 kW
L 35 L 50 at 60 Hz: 0.31 kW
Rated current (max.): At 50 Hz: 1.6 A
At 60 Hz: 1.7 A
Starting current (max.): At 50 Hz: 3 A
At 60 Hz: 3.4 A
Fuse: Circuit breaker/fuse: 10 A
Permissible operating pressure (p max.): 25 bar
Energy efficiency ratio (EER) 50 Hz L35 L35 according to DIN EN 14511: 1.3
Weight/unit: 13 kg
Type: SK 3302200
Questions & answers
What is the delivery time of Rittal 3302200 SK TopTherm cooling unit, Wall-mounted, 0.36 kW, 230 V, 1~, 50/60 Hz, Stainless steel, WHD: 280x550x140 mm?
The article Rittal 3302200 SK TopTherm cooling unit, Wall-mounted, 0.36 kW, 230 V, 1~, 50/60 Hz, Stainless steel, WHD: 280x550x140 mm is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3302200 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3302200 SK TopTherm cooling unit, Wall-mounted, 0.36 kW, 230 V, 1~, 50/60 Hz, Stainless steel, WHD: 280x550x140 mm always at the best possible price. We can give you a discount of 2% on Rittal 3302200 SK TopTherm cooling unit, Wall-mounted, 0.36 kW, 230 V, 1~, 50/60 Hz, Stainless steel, WHD: 280x550x140 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
Fitting accessory for Rittal 3302200 SK TopTherm cooling unit, Wall-mounted, 0.36 kW, 230 V, 1~, 50/60 Hz, Stainless steel, WHD: 280x550x140 mm
 |
Rittal 4538000 TS Ride-up roller, for TS, SE, PC
Lifts the door with heavy installed equipment (e.g. cooling unit) as a closing aid. Packs of: 10 pc(s). EAN: 4028177102507 Customs tariff number: 83024900 eCl@ss 5.1: 27189234 eCl@ss 7.0: 27189234 ... Lieske Part No.: 482199 Mfg Part No: 4538000 Type: TS 4538.000 |
-7% 58,54 EUR 62,76 EUR
 ≈ £50.29 | ≈ $68.02
Delivery time on requestinfo_outline
|
 |
Rittal 3301500 SK Condensate evaporator, electric, 115 - 230 V, 50/60 Hz, W: 280 mm
For external mounting on the enclosure. For use with all enclosure cooling units and air/water heat exchangers. Colour: RAL 7035 Supply includes: Electric condensate evaporator, ready to connect. Note ... Lieske Part No.: 563291 Mfg Part No: 3301500 Type: SK 3301.500 |
-7% 291,97 EUR 312,42 EUR
≈ £250.80 | ≈ $339.27
Delivery time on requestinfo_outline
|
 |
Rittal 3286300 SK Filter mat, for wall-mounted cooling units, SK 3302/3303/3361, WHD: 265x200x10 mm
Rittal cooling units are low-maintenance and are supplied without filter mats. Filter mats may be used for extreme conditions. Benefits: Temperature-resistant from -40°C...+80°C Material: ... Lieske Part No.: 621760 Mfg Part No: 3286300 Type: SK 3286.300 |
15,40 EUR
≈ £13.23 | ≈ $17.89
Delivery time on requestinfo_outline
|
 |
Rittal 3286310 SK Metal filter, for cooling units, air/air heat exchangers, WHD: 265x200x10 mm
Particularly when cooling units are used in dusty and oily environments, it is advisable to use washable metal filters. If air or steam condenses on the metal surfaces, any particles present will ... Lieske Part No.: 795510 Mfg Part No: 3286310 Type: SK 3286.310 |
-7% 69,25 EUR 74,24 EUR
≈ £59.49 | ≈ $80.47
Delivery time on requestinfo_outline
|
 |
Rittal 4127010 SZ Door-operated switch, with accessory for interior installation, without connection cable
Packs of: 1 pc(s). EAN: 4028177497740 Customs tariff number: 85369085 eCl@ss 5.1: 27189241 eCl@ss 7.0: 27119116 ETIM 6.0: EC002626 Design: Without connection cable Rated operating voltage: 400 V ... Lieske Part No.: 822030 Mfg Part No: 4127010 Type: SZ 4127.010 |
-7% 29,76 EUR 31,91 EUR
≈ £25.56 | ≈ $34.58
Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline
|
 |
Rittal 3301610 SK Condensate hose,Ø 10 x 1.5 mm, L: 10 m
For discharging and transporting condensate. For connection to enclosure cooling units and air/water heat exchangers. Material: PVC, transparent Packs of: 1 pc(s). EAN: 4028177438293 Customs tariff ... Lieske Part No.: 875030 Mfg Part No: 3301610 Type: SK 3301.610 |
-7% 24,78 EUR 26,57 EUR
≈ £21.29 | ≈ $28.79
Delivery time on requestinfo_outline
|
 |
Rittal VX 8618.420 casserole roller pack of 10
VX roller for door Lieske Part No.: 1441064 Mfg Part No: 8618420 Type: VX 8618.420 |
-7% 55,92 EUR 59,95 EUR
≈ £48.04 | ≈ $64.98
Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline
|
