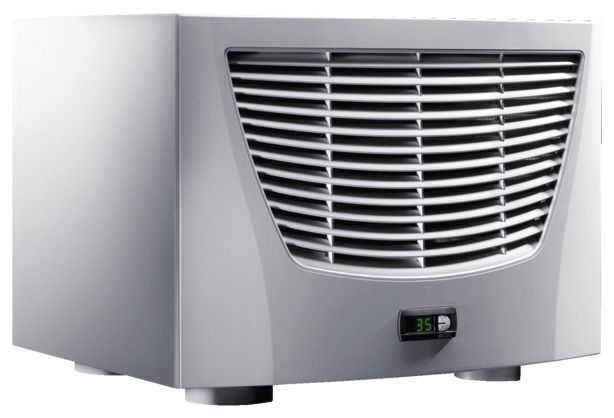

Rittal 3301800 SK Roof-mounted cooling unit for IT equipment, WHD: 597x417x895 mm, 230 V, 1~, 50 Hz, 3000 W/3200 W, Control of the server air infeed temperature
|
4.877,29 EUR 5.079,07 EUR |
|
|
( 5.803,98 EUR incl. VAT ) ≈ £4,184.71 | ≈ $5,652.78 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 711414 |
|---|---|
| Mfg Part No: | 3301800 |
| UPC/EAN: | 4028177558298 |
| Weight: | 0.123 kg |
Further Rack-Climatization from RittalFurther products in category Rack-Climatization
All products of Rittal
Product information for Rittal 3301800:
Benefits: Even air distribution in front of the 482.6 mm (48,3 cm ( 19 inch )) level
Applications: Cooling of IT equipment in IT enclosures sited as stand-alone units in secondary rooms
Function principle: The device supports front-to-back air routing typical of IT applications, and regulates the server inlet temperature to the set value
The hot waste air from the IT equipment is drawn into the device at the rear of the IT enclosure, cooled, and the cooled air blown back in front of the 482.6 mm (48,3 cm ( 19 inch )) level
It is mounted on the roof of the IT enclosure, and cools the air volume inside the enclosure
IT monitoring: Monitoring of incoming air temperature
Material: Sheet steel
Colour: RAL 7035
Assembly instruction: Monitoring of incoming air temperature
Protection category IP to IEC 60 529: External circuit IP 34
Internal circuit IP 34
Supply includes: Nano-coated condenser
Integral electric condensate evaporation
Fully wired ready for connection
Drilling template
Assembly parts
Air baffle plate
Note: A roof plate with cut-out to match the enclosure dimensions is required
Packs of: 1 pc(s).
EAN: 4028177558298
Customs tariff number: 84158200
eCl@ss 5.1: 27180704
eCl@ss 7.0: 27180704
ETIM 6.0: EC000855
Total cooling output to DIN EN 14511: L 25 L 35: 3000 W
L 35 L 45: 3200 W
Air throughput (unimpeded air flow): External circuit: 1850 m³/h
Internal circuit: 1450 m³/h
Rated operating voltage: 230 V, 1~, 50 Hz
Dimensions: Width: 597 mm
Height: 417 mm
Depth: 895 mm
Temperature control: Control of the server inlet temperature
Temperature range: Operation (environment): +10°C...+45°C
Setting range: +20°C...+22°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 700 g
Type of electrical connection: Plug-in terminal strip
Duty cycle: 100 %
Rated current (max.): At 50 Hz: 9.2 A
Start-up current max.: At 50 Hz: 36 A
Pre-fuse: Miniature circuit-breaker/fuse: 16 A
Permissible operating pressure (p. max.): 25 bar
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 1.6
Weight/pack: 97 kg
Type: SK 3301800
Applications: Cooling of IT equipment in IT enclosures sited as stand-alone units in secondary rooms
Function principle: The device supports front-to-back air routing typical of IT applications, and regulates the server inlet temperature to the set value
The hot waste air from the IT equipment is drawn into the device at the rear of the IT enclosure, cooled, and the cooled air blown back in front of the 482.6 mm (48,3 cm ( 19 inch )) level
It is mounted on the roof of the IT enclosure, and cools the air volume inside the enclosure
IT monitoring: Monitoring of incoming air temperature
Material: Sheet steel
Colour: RAL 7035
Assembly instruction: Monitoring of incoming air temperature
Protection category IP to IEC 60 529: External circuit IP 34
Internal circuit IP 34
Supply includes: Nano-coated condenser
Integral electric condensate evaporation
Fully wired ready for connection
Drilling template
Assembly parts
Air baffle plate
Note: A roof plate with cut-out to match the enclosure dimensions is required
Packs of: 1 pc(s).
EAN: 4028177558298
Customs tariff number: 84158200
eCl@ss 5.1: 27180704
eCl@ss 7.0: 27180704
ETIM 6.0: EC000855
Total cooling output to DIN EN 14511: L 25 L 35: 3000 W
L 35 L 45: 3200 W
Air throughput (unimpeded air flow): External circuit: 1850 m³/h
Internal circuit: 1450 m³/h
Rated operating voltage: 230 V, 1~, 50 Hz
Dimensions: Width: 597 mm
Height: 417 mm
Depth: 895 mm
Temperature control: Control of the server inlet temperature
Temperature range: Operation (environment): +10°C...+45°C
Setting range: +20°C...+22°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 700 g
Type of electrical connection: Plug-in terminal strip
Duty cycle: 100 %
Rated current (max.): At 50 Hz: 9.2 A
Start-up current max.: At 50 Hz: 36 A
Pre-fuse: Miniature circuit-breaker/fuse: 16 A
Permissible operating pressure (p. max.): 25 bar
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 1.6
Weight/pack: 97 kg
Type: SK 3301800
