Rittal 3213330 SK air deflector for SK 3332

Your rating:
Average rating
product review for Rittal 3213330 SK air deflector for SK 3332
( 4.5 / 5 ) 2 ratings

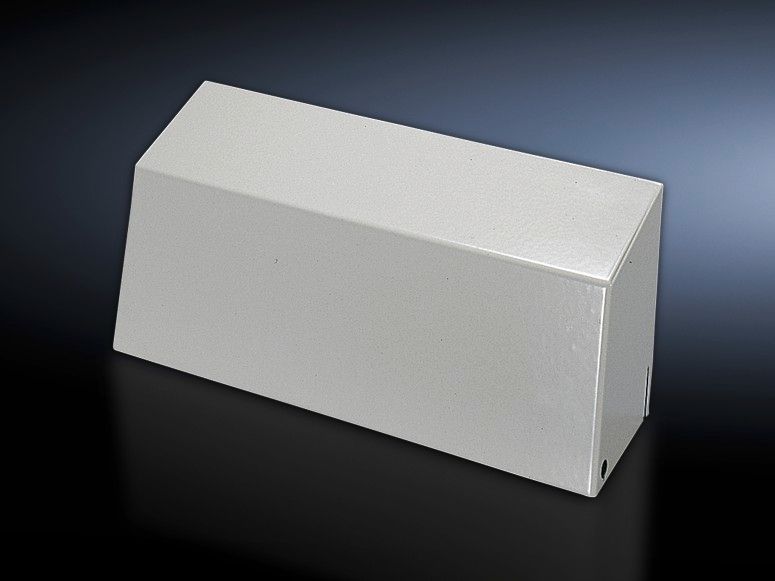

Rittal 3213330
This image may differ from the desired article.
Rittal 3213330Rittal 3213330
-9% 53,59 EUR 59,14 EUR
( 63,77 EUR incl. VAT )
≈ £44.85  |  ≈ $58.90
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 3213330 SK air deflector for SK 3332
Datasheet:file_download Download
Lieske Part No.:460369
Mfg Part No: 3213330
UPC/EAN: 4028177380745
Weight:2.334 kg
Type:SK 3213330

Product information for Rittal 3213330:

The SK air deflector, type SK 3213330, from Rittal is a specially developed component for targeted guidance of cold air within enclosures. It is used in conjunction with the wall-mounted cooling unit TopTherm Blue e (item no. 3332.xxx) to direct airflow within the enclosure. The air deflector ensures that cooled air is directed downward, preventing heat pockets in the lower area of the enclosure. This is particularly important when electrical components are densely packed, as uniform cooling is crucial for the reliability and service life of devices.

Applications

The air deflector is designed for use in industrial enclosures where the TopTherm Blue e cooling unit is installed. It serves to optimize thermal conditions inside the enclosure, especially when electronic modules, power semiconductors, or other heat-sensitive components are located near the cooling unit. The targeted cold air guidance supports heat dissipation and contributes to stabilizing the operating temperature, thereby enhancing the functional reliability of installed devices.

Functions and Equipment in Detail

The SK air deflector is made of sheet steel and is finished in RAL 7035, enabling visual harmonization with other Rittal products. The installation depth is 115 mm, allowing mounting in enclosures with sufficient space. The air deflector is designed to direct cold air directly downward, achieving uniform cooling distribution within the enclosure. This prevents warm air from stagnating in the lower area, which could lead to overheating risks under high component density.

Technology Explained Simply

The air deflector operates passively, without any drives or electrical components. It utilizes the cold air stream generated by the TopTherm Blue e cooling unit and directs it specifically into the lower area of the enclosure. The construction from sheet steel ensures high mechanical stability and resistance to mechanical stress in industrial applications. The RAL 7035 color is a standardized gray tone commonly used in industrial electrotechnics to enable uniform visual design.

Compatibility and Accessories

The air deflector is specifically designed for the wall-mounted cooling unit TopTherm Blue e (item no. 3332.xxx). It is not intended for other cooling units or enclosure configurations. Use with other devices is not recommended, as airflow would not be optimized.

Installation and Mounting

Installation takes place inside the enclosure, directly below the TopTherm Blue e cooling unit. The installation depth of 115 mm must be considered in the enclosure to ensure correct positioning. The air deflector is typically secured using existing mounting elements in the enclosure. No additional tools or mounting aids are required, as the design is intended for easy installation.

Operational Advantages

The targeted cold air guidance reduces thermal stress within the enclosure. This leads to more uniform temperature distribution and reduces the risk of overheating damage to electronic components. The air deflector thus contributes to increased operational safety and extended service life of devices installed in the enclosure. The passive design requires no maintenance and is maintenance-free during operation.

General
Materialsteel sheet
ColourRAL 7035
Suitable forWall-mounted cooling unit TopTherm Blue e
Suitable for part no.3332.xxx


Product data sheet
Datasheet for Rittal 3213330, EAN: 4028177380745
