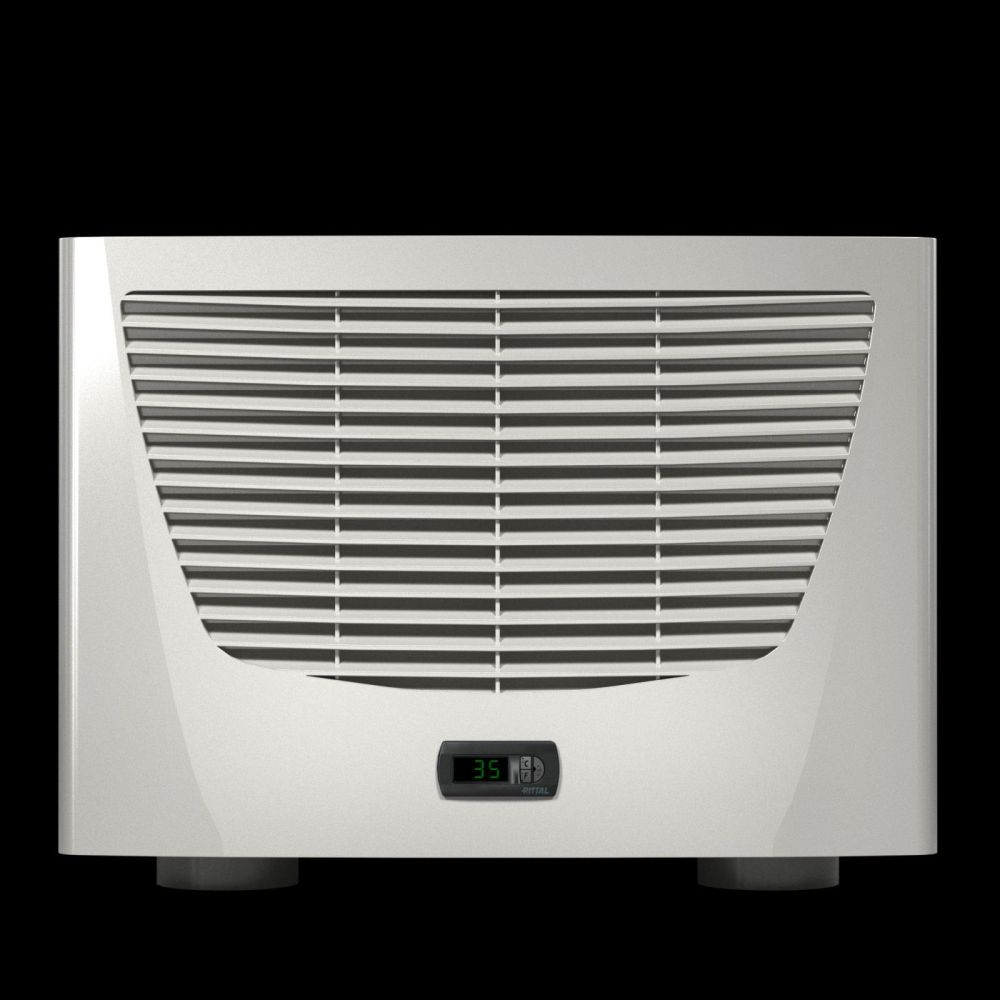

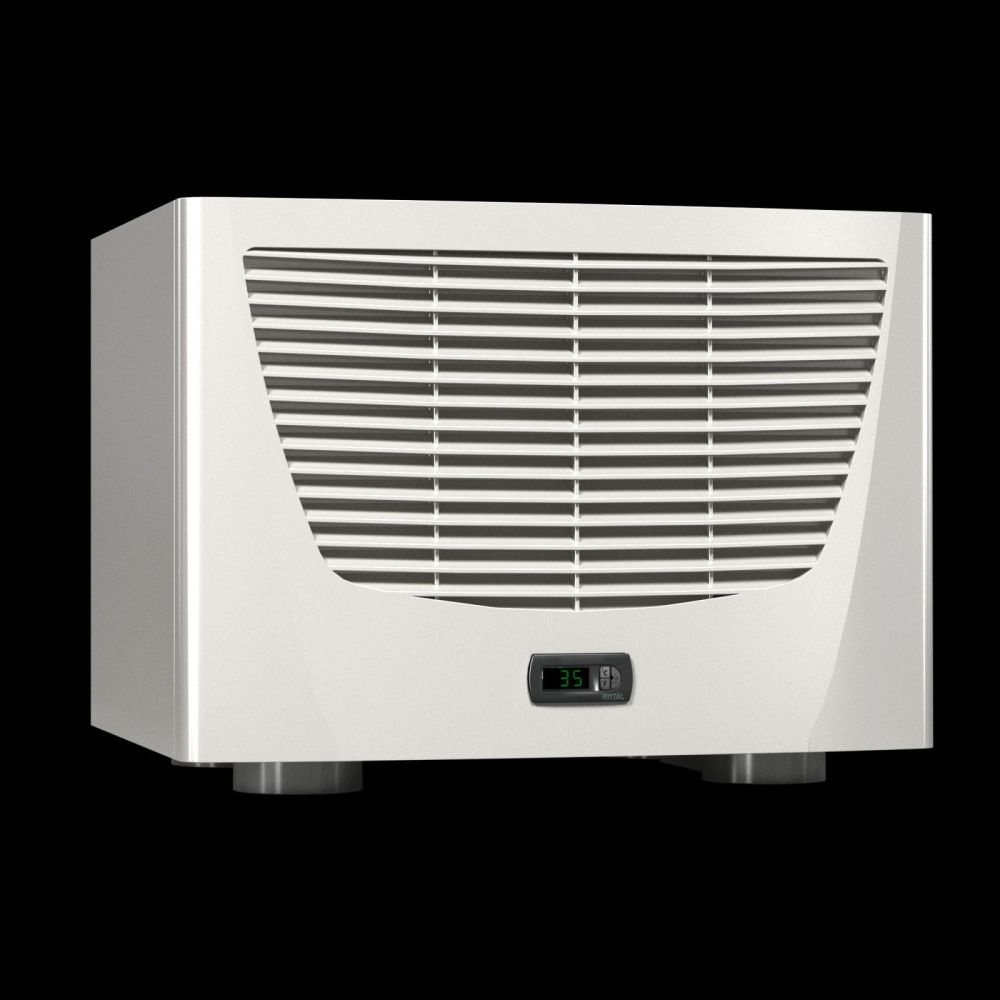

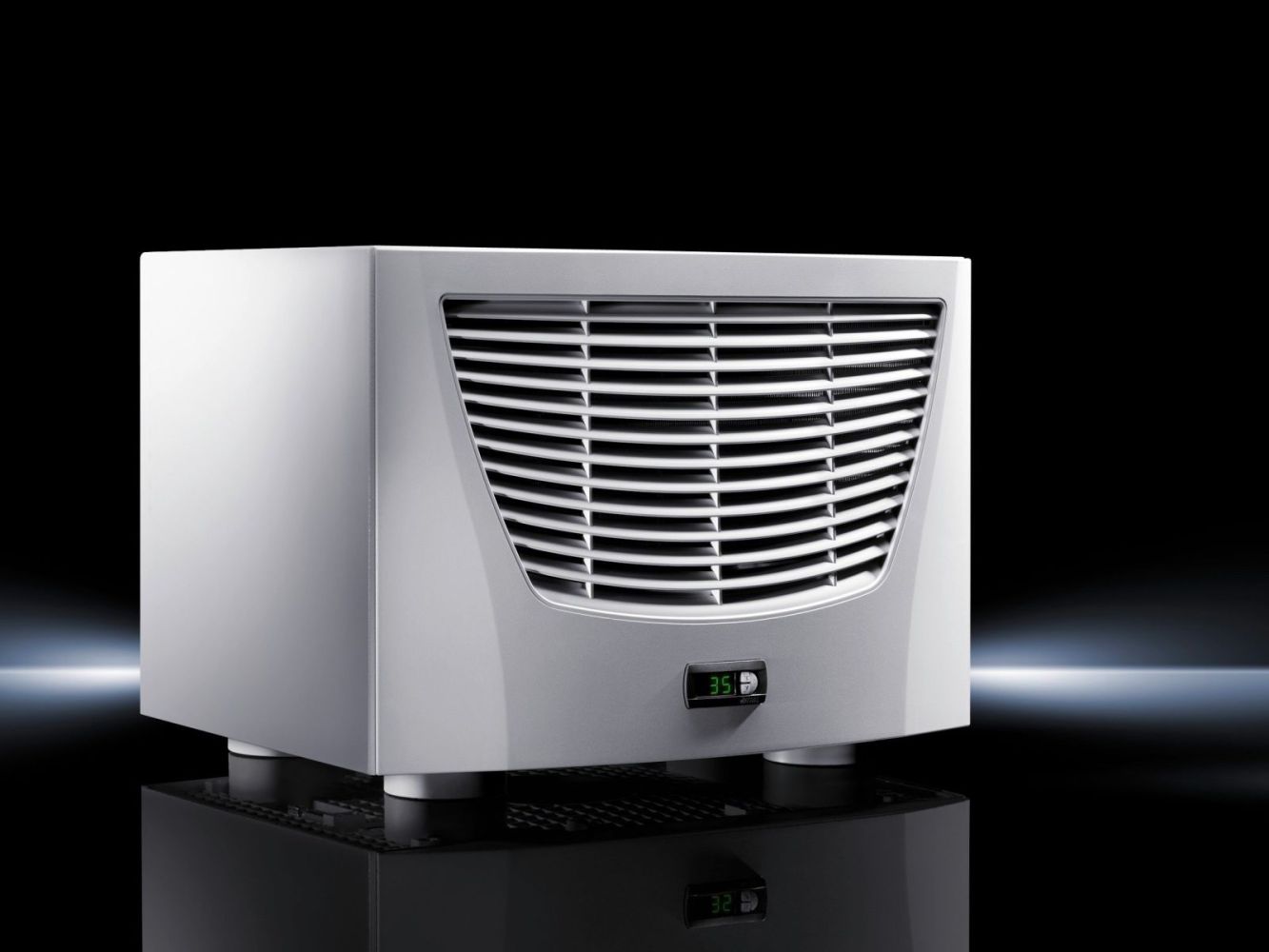

Rittal 3209504 SK roof assembly 230 V 2500 W TopTherm air/water heat exchanger V4A Comf.

Your rating:
Average rating
product review for Rittal 3209504 SK roof assembly 230 V 2500 W TopTherm air/water heat exchanger V4A Comf.
( 5 / 5 ) 1 ratings
Rittal 3209504
This image may differ from the desired article.
Rittal 3209504Rittal 3209504Rittal 3209504
2.820,95 EUR 2.933,79 EUR
( 3.356,93 EUR incl. VAT )
≈ £2,361.14  |  ≈ $3,100.22
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 3209504 SK roof assembly 230 V 2500 W TopTherm air/water heat exchanger V4A Comf.
Datasheet:file_download Download
Lieske Part No.:1276560
Mfg Part No: 3209504
UPC/EAN: 4028177429901
Weight:34.5 kg
Type:SK 3209504

Product information for Rittal 3209504:

The Rittal SK 3209504 is an air/water heat exchanger in roof-mounted configuration, specifically designed for mounting on the top of enclosures. The device is used for climate control of enclosures in harsh environments and enables efficient cooling at operating temperatures up to +70 °C. The cooling capacity is 1.87 kW at a water flow rate of 400 l/h, with water as the coolant. The water-carrying parts are made of stainless steel (1.4571, also known as V4A), ensuring high corrosion resistance and long service life in humid or aggressive environments. The device colour is RAL 7035, a grey-beige standard design that integrates well into industrial installations.

Applications

The heat exchanger is suitable for use in industrial plants, particularly in environments with high temperatures, dust or humidity. It is typically mounted on enclosures to regulate internal temperature and protect sensitive electronic components from overheating. The flexible mounting on the enclosure roof allows easy integration into existing systems without requiring additional space inside the enclosure. The operating temperature range extends from 1 °C to 70 °C, making it suitable for a wide range of industrial applications.

Functions and Equipment in Detail

The device features temperature control via an e-Comfort controller, factory-set to +35 °C. The adjustment range is between 20 °C and 55 °C, allowing individual adjustment of the desired internal temperature. Electrical connection is made via a pluggable terminal strip, enabling quick and secure wiring. The rated operating voltage is 230 V, 1~, designed for frequencies of 50 Hz and 60 Hz. The rated power is 95 W (50 Hz) or 110 W (60 Hz), with a maximum rated current of 0.4 A (50 Hz) or 0.48 A (60 Hz). The duty cycle is specified as 100 %, enabling continuous operation under full load.

Technology Explained Simply

The heat exchanger operates on the principle of heat transfer between air and water. Warm air inside the enclosure is passed through the heat exchanger, where the heat is transferred to the flowing coolant water. The water is supplied and drained via external water circuits (e.g. Rifrost systems), maintaining the cooling performance. The inlet water temperature must be between 1 °C and 30 °C to ensure optimal function. The water connections consist of ½" hose barb and G ⅜" AG, enabling flexible connection to various piping systems. The piping volume is 0.93 l. The protection rating according to EN 60 529 is IP 55, providing dust and splash water protection. On request, a protection rating of IP 55 is available, offering protection against heavy splashing and temporary immersion.

Compatibility and Accessories

The device is compatible with various accessories that support integration into existing systems. These include, for example, the SK Master/Slave cable for SK-Bus system, enabling central control of multiple devices. For water supply, Rifrost-Standard 10 l and Rifrost-Standard 25 l, as well as Rifrost-Outdoor 10 L and Rifrost-Outdoor 25 L, are suitable. Additionally, closure plugs for roof-mounted cooling device (2 pieces), SK condensate hose 12 x 2 mm (length 10 m), door position switch, air duct systems for Rittal TopTherm roof units, and quick-change frames for TopTherm SK3383/SK3384/SK3385 are available. These components support installation, operation and maintenance of the system.

Mounting and Installation

Mounting is performed on the roof of the enclosure. The delivery includes a drilling template, a sealing mat, and fastening material, simplifying installation. The device is pre-wired for connection, so electrical connection is made via the pluggable terminal strip. The maximum operating pressure is 10 bar, enabling safe connection to industrial water lines. Dimensions are 597 mm (width) × 417 mm (height) × 475 mm (depth), representing a compact design.

Operational Advantages

The Rittal SK 3209504 offers reliable cooling performance in harsh environments, supported by its robust stainless steel construction and IP 55 protection rating. The e-Comfort controller enables precise temperature control, increasing the operational safety of electronic components inside the enclosure. Flexible mounting and compatible accessories simplify integration into existing installations. The 100 % duty cycle ensures continuous cooling performance, even during continuous operation. The 4 A fuse protects the device against overloads.

General
ModelRoof construction, water-carrying parts stainless steel (1.4571)
ColourRAL 7035
Scope of deliveryPre-wired for connection (pluggable terminal block), drilling template, sealing mat, mounting material
Total cooling capacityL 35 W 10 at 400 l/h: 1.87 kW
Rated operating voltage230 V, 1~, 50 Hz/60 Hz
Rated power PelAt 50 Hz: 95 W, At 60 Hz: 110 W
Rated current max.At 50 Hz: 0.4 A, at 60 Hz: 0.48 A
Permissible operating pressure (p max.)1: 10 bar
Electrical connection typePlug-in terminal block
Working time100 %
Cooling mediumWater (specification see internet)
Water supply temperature1 °C...30 °C
Water connections½" hose nozzle, G ⅜" AG
Conduit volume0,93 l
Temperature controle-Comfortcontroller (factory setting +35 °C)
Operating temperature range1 °C...70 °C
Width597 mm
Height417 mm
Depth475 mm
Note on part numberlead time on request
Degree of protectionIP 65 available on request
FuseCircuit breaker/fuse: 4 A
Adjustment range20 °C...55 °C
Degree of protection IP according to EN 60 529IP 55


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 3209504, EAN: 4028177429901

Questions & answers

What is the delivery time of Rittal 3209504 SK roof assembly 230 V 2500 W TopTherm air/water heat exchanger V4A Comf.?

The article Rittal 3209504 SK roof assembly 230 V 2500 W TopTherm air/water heat exchanger V4A Comf. is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3209504 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3209504 SK roof assembly 230 V 2500 W TopTherm air/water heat exchanger V4A Comf. always at the best possible price. We can give you a discount of 2% on Rittal 3209504 SK roof assembly 230 V 2500 W TopTherm air/water heat exchanger V4A Comf. if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Rittal 3209504 SK roof assembly 230 V 2500 W TopTherm air/water heat exchanger V4A Comf.

Rittal 3286880 Closure plugs for roof-mounted cooling unit, 2 pcs Rittal LogoRittal 3286880 Closure plugs for roof-mounted cooling unit, 2 pcs To cover any cold air outlets that are not required.
Material: Polyurethane foam
Packs of: 2 pc(s).
EAN: 4028177325470
Customs tariff number: 39269097
eCl@ss 5.1: 27180792
eCl@ss 7.0: 27189269
ETIM 6.

Lieske Part No.: 215138
Mfg Part No: 3286880
Type: SK 3286880
-48% 11,35 EUR 21,79 EUR
Rittal 3286880 plus VAT
≈ £9.50  |  ≈ $12.47
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
Rittal 3286800 SK quick-change frame for TopTherm SK3383/SK3384/SK3385 Rittal LogoRittal 3286800 SK quick-change frame for TopTherm SK3383/SK3384/SK3385 The quick-change frame is more than just an alternate frame. Together with the seal, the lower part of the frame is screw-fastened to the enclosure. In this way, it is possible install and remove the ...

Lieske Part No.: 262968
Mfg Part No: 3286800
Type: SK 3286800
-10% 196,65 EUR 219,37 EUR
Rittal 3286800 plus VAT
≈ £164.60  |  ≈ $216.12
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 3301950 Rifrost-Outdoor 10 L for water circuits Rittal LogoRittal 3301950 Rifrost-Outdoor 10 L for water circuits Apart from the recooling systems for oil and emulsion, all other recooling systems are only suitable for the cooling of water or a water/glycol mixture. As well as protecting against frost, this ...

Lieske Part No.: 357730
Mfg Part No: 3301950
Type: SK 3301950
55,55 EUR
Rittal 3301950 plus VAT
≈ £46.50  |  ≈ $61.05
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 3301955 Rifrost-Outdoor 25 L for water circuits Rittal LogoRittal 3301955 Rifrost-Outdoor 25 L for water circuits Apart from the recooling systems for oil and emulsion, all other recooling systems are only suitable for the cooling of water or a water/glycol mixture. As well as protecting against frost, this ...

Lieske Part No.: 358814
Mfg Part No: 3301955
Type: SK 3301955
-10% 127,54 EUR 142,27 EUR
Rittal 3301955 plus VAT
≈ £106.75  |  ≈ $140.17
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 3286850 Air duct system Flat for roof-mounted cooling unit Rittal LogoRittal 3286850 Air duct system Flat for roof-mounted cooling unit Cold air may be routed directly to specific areas of the enclosure using the air duct system. The risk of air short circuits due to self-ventilated installed devices is therefore eliminated. The ...

Lieske Part No.: 402244
Mfg Part No: 3286850
Type: SK 3286850
-10% 91,20 EUR 101,73 EUR
Rittal 3286850 plus VAT
≈ £76.33  |  ≈ $100.23
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 3301612 SK condensate hose 12 x 2 mm, length 10 m Rittal LogoRittal 3301612 SK condensate hose 12 x 2 mm, length 10 m For discharging and transporting condensate. For connection to enclosure cooling units and air/water heat exchangers.
Material: PVC, transparent
Packs of: 1 pc(s).
EAN: 4028177438309
Customs tariff ...

Lieske Part No.: 458220
Mfg Part No: 3301612
Type: SK 3301612
248,48 EUR
Rittal 3301612 plus VAT
≈ £207.98  |  ≈ $273.08
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 3124100 SK Master/Slave cable for SK-Bus system Rittal LogoRittal 3124100 SK Master/Slave cable for SK-Bus system The SK BUS system allows several cooling units and air/water heat exchangers with e-Comfort controller to communicate with one another Master-slave configuration for complex bayed enclosure systems, ...

Lieske Part No.: 525657
Mfg Part No: 3124100
Type: SK 3124100
105,92 EUR
Rittal 3124100 plus VAT
≈ £88.66  |  ≈ $116.41
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Rittal 3301965 Rifrost-Standard 25 l for water circuits Rittal LogoRittal 3301965 Rifrost-Standard 25 l for water circuits Apart from the recooling systems for oil and emulsion, all other recooling systems are only suitable for the cooling of water or a water/glycol mixture. As well as protecting against frost, this ...

Lieske Part No.: 607212
Mfg Part No: 3301965
Type: SK 3301965
139,47 EUR
Rittal 3301965 plus VAT
≈ £116.74  |  ≈ $153.28
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
Air duct system for Rittal TopTherm roof units 3209/3 Rittal LogoAir duct system for Rittal TopTherm roof units 3209/3 Cold air may be routed directly to specific areas of the enclosure using the air duct system. The risk of air short circuits due to self-ventilated installed devices is therefore eliminated. The ...

Lieske Part No.: 764618
Mfg Part No: 3286870
Type: SK 3286870
89,59 EUR 93,16 EUR
Rittal 3286870 plus VAT
≈ £74.99  |  ≈ $98.46
Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline
Rittal 4127010 door position switch Rittal LogoRittal 4127010 door position switch Packs of: 1 pc(s).
EAN: 4028177497740
Customs tariff number: 85369085
eCl@ss 5.1: 27189241
eCl@ss 7.0: 27119116
ETIM 6.0: EC002626

Design: Without connection cable
Rated operating voltage: 400 V ...

Lieske Part No.: 822030
Mfg Part No: 4127010
Type: SZ 4127010
28,40 EUR
Rittal 4127010 plus VAT
≈ £23.77  |  ≈ $31.21
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
Rittal 3301960 Rifrost-Standard 10 l for water circuits Rittal LogoRittal 3301960 Rifrost-Standard 10 l for water circuits Apart from the recooling systems for oil and emulsion, all other recooling systems are only suitable for the cooling of water or a water/glycol mixture. As well as protecting against frost, this ...

Lieske Part No.: 823335
Mfg Part No: 3301960
Type: SK 3301960
44,28 EUR
Rittal 3301960 plus VAT
≈ £37.06  |  ≈ $48.66
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
