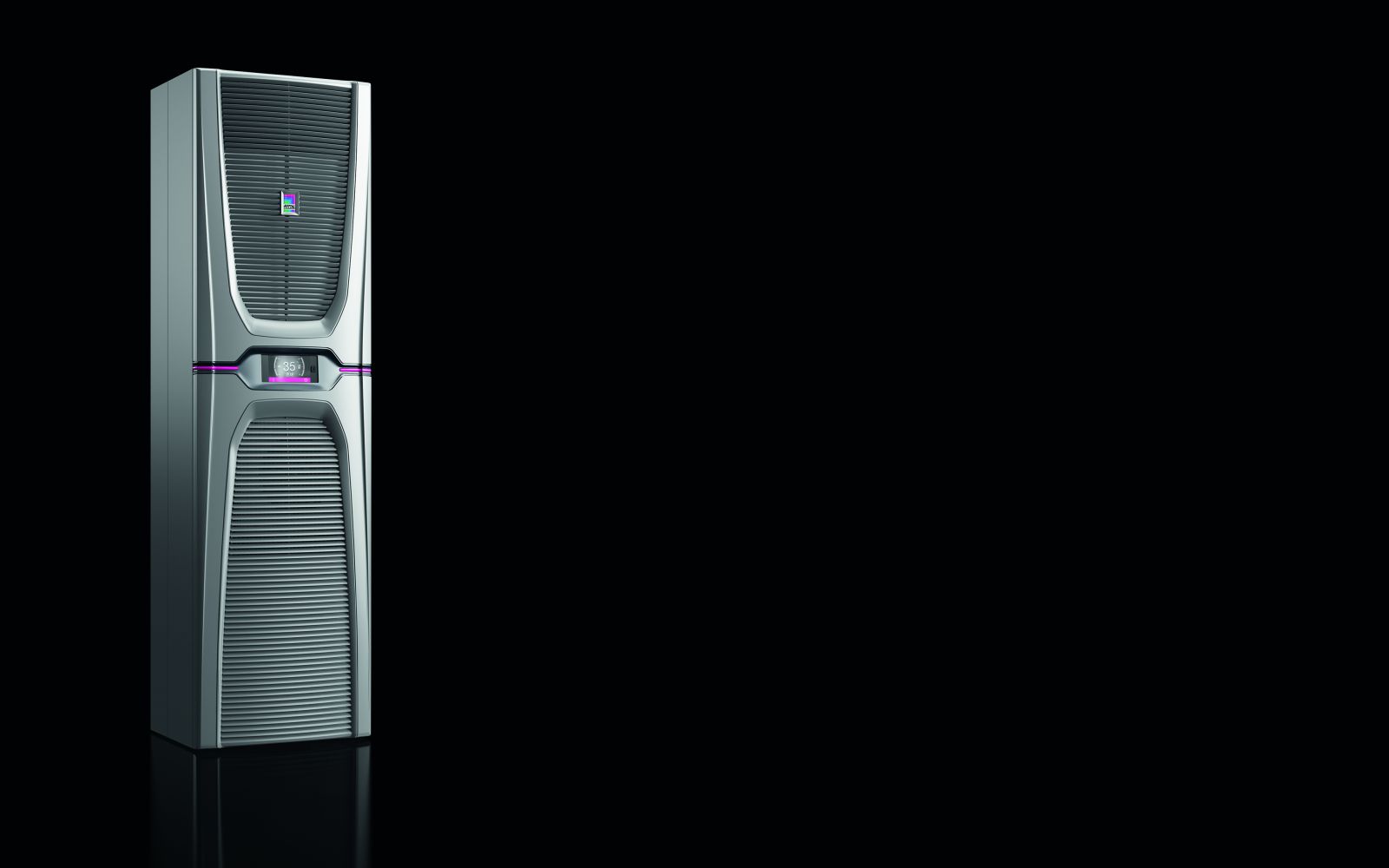

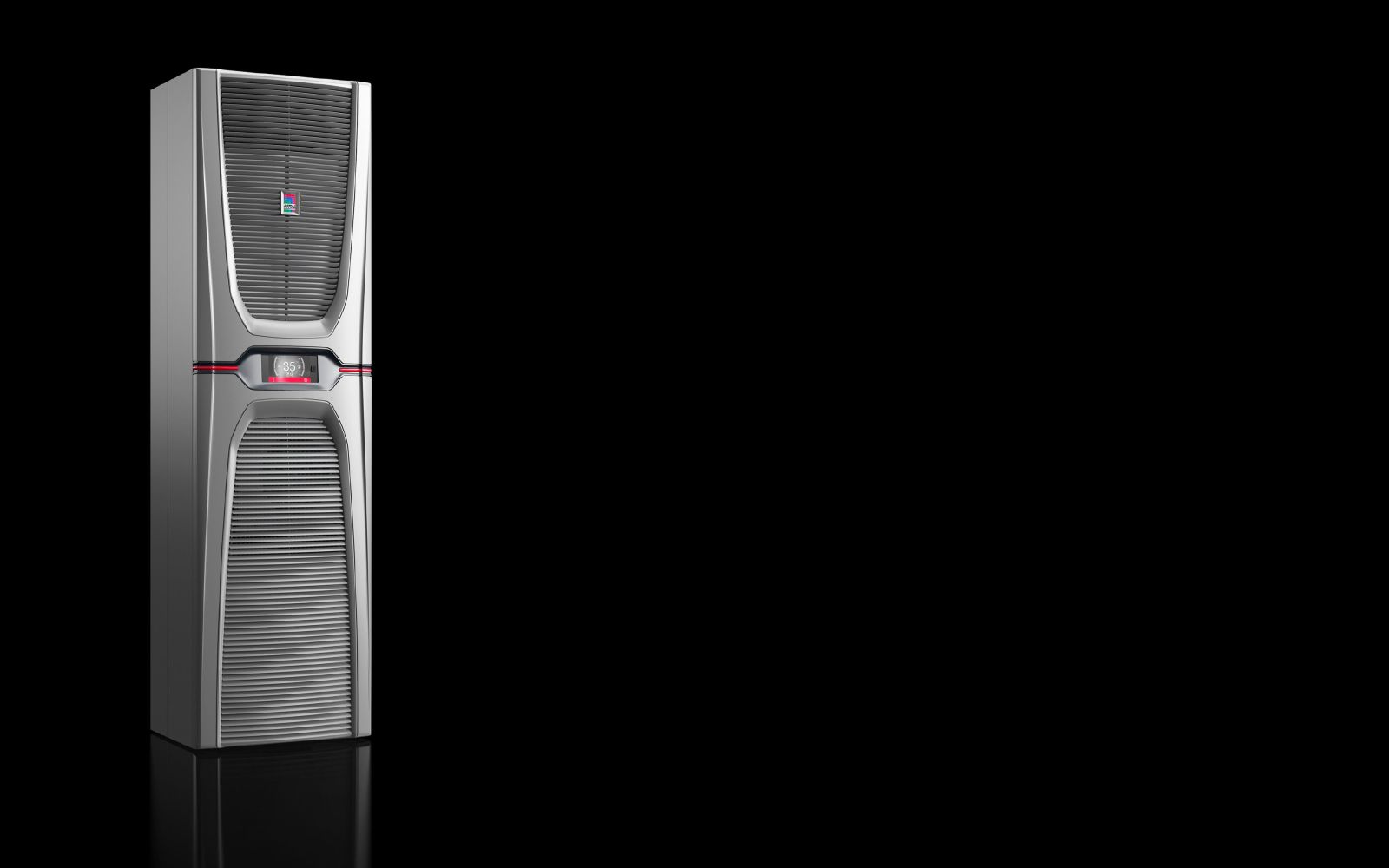

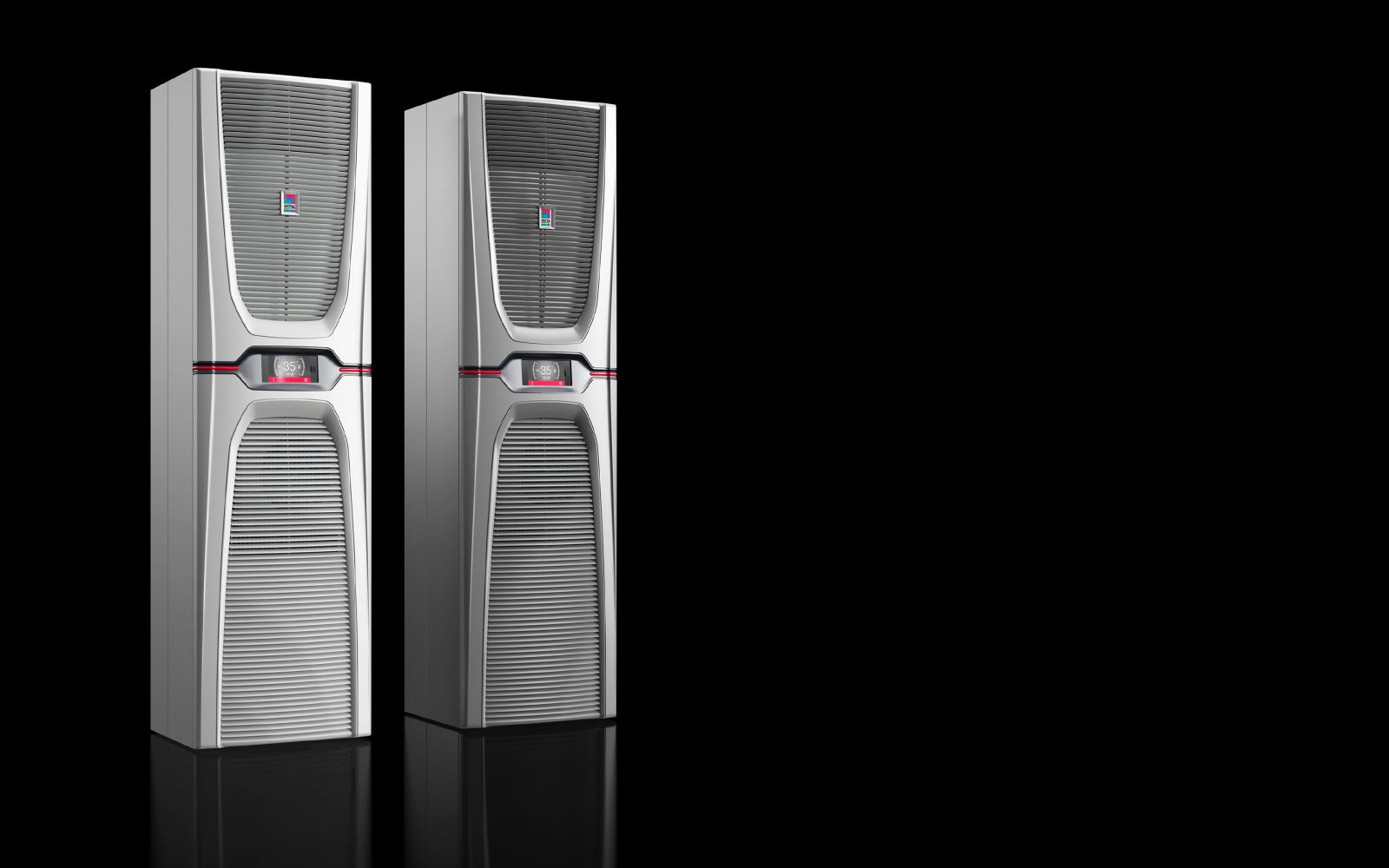

Rittal 3189640 Blue e+ wall-mounted cooling unit, 5800 W, stainless steel
|
-8% 6.116,85 EUR 6.624,71 EUR |
|
|
( 7.279,05 EUR incl. VAT ) ≈ £5,119.80 | ≈ $6,722.42 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: 4 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1287909 |
| Mfg Part No: | 3189640 |
| UPC/EAN: | 4028177934641 |
| Weight: | 91 kg |
| Type: | SK 3189640 |
Product information for Rittal 3189640:
Applications
This cooling unit is designed for industrial environments where controlled temperature within the enclosure is required. It is particularly suitable for installations operated outdoors or in rooms with elevated ambient temperatures. Operating temperature ranges are between -20 °C and 60 °C, with the refrigerant circuit operating actively between 3 °C and 60 °C. The Heat Pipe technology enables gentle component cooling, extending the service life of components within the enclosure and the cooling unit itself.
Functions and Equipment in Detail
The unit includes an integrated e+ controller, factory-set for temperature control at +35 °C. The adjustable range is 20 °C to 50 °C. Air performance is 2,300 m³/h for both the external and internal circuits. The condenser is coated with a hydrophobic RiNano coating, reducing condensate formation. An integrated electric condensate evaporation system ensures that any condensate formed evaporates directly within the unit, eliminating the need for an external drain. The unit is pre-wired for connection and features a plug-in terminal strip, simplifying installation. Mounting materials are included in the delivery scope.
Technology Explained Simply
The cooling capacity is achieved through a variable-speed component and Heat Pipe technology, enabling an average energy saving of 75 %. Energy efficiency is described by the Energy Efficiency Ratio (EER) of 2.5 at 50 Hz and 60 Hz, and the Seasonal Energy Efficiency Ratio (SEER) of 5.6. The unit uses refrigerant R-513A with a quantity of 1.8 kg, a Global Warming Potential (GWP) of 631, and a CO₂ equivalent of 1.14 t. The maximum permissible operating pressure is 24 bar. The protection rating of the internal circuit corresponds to IP 55 per EN 60 529, meaning dust-tight and splash-proof. The NEMA protection rating includes UL Type 12 and UL Type 3R, providing protection against dust, splashing water, and light spray.
Compatibility and Accessories
For remote monitoring and networking of Blue e+ units, the IoT Interface with article number 3124.300 can be used. This enables monitoring of device data, statuses, and system messages to increase machine availability and process safety. Available accessories include covers for the connection box (article numbers 3355.200 and 3355.210), a condensate hose (12 x 2 mm, length 10 m), an air deflector for SK 3188./3189.xxx, a temperature sensor for Blue e+ cooling units, as well as metal and filter mats for the specified SK models.
Mounting and Installation
The unit is designed for wall mounting and requires a mounting cutout of 433 mm (width) × 1,579 mm (height). Mounting is done using the included materials. The pre-wired electrical connection with a plug-in terminal strip simplifies installation. Appropriate surge protection must be provided: for operating voltages below 460 V (3~), a surge protector with Uc 275 V, Imax 40 kA, In 20 kA, Up 1.5 kV is required; for voltages above 460 V (3~), Uc 385 V, Imax 40 kA, In 20 kA, Up 1.5 kV applies. The operating voltage may vary within tolerances of 380 V -10 % (342 V) to 480 V +6 % (509 V).
Operational Advantages
The variable-speed technology and Heat Pipe technology ensure efficient and quiet cooling. The integrated condensate evaporation reduces maintenance effort, as no external drain is required. High energy efficiency (EER 2.5, SEER 5.6) reduces energy consumption. The robust stainless steel construction and protection rating IP 55/NEMA UL Type 12 and 3R ensure reliable operation in demanding environments. Remote monitoring via the IoT Interface enables proactive maintenance and increases operational safety.
| General | |
| Model | Wall surface mounted |
| Market-relevant product changes | The cover for the connection box to protect the electrical connection on the cooling unit is no longer included in the scope of delivery from the beginning of 2024. The covers 3355.200 and 3355.210 can be ordered optionally as accessories. |
| Material | Stainless steel 1.4301 (AISI 304) |
| Colour | RAL 9007 |
| Scope of delivery | Condensate trap with hydrophobic RiNano coating, Integrated electric condensate evaporation, Including mounting material, Pre-wired for connection (pluggable terminal block) |
| Options | For remote monitoring and networking of cooling units and chillers from the Blue e+ generation, use the IoT interface with article number 3124.300. Increase machine availability and process safety by remotely monitoring device data, statuses and system messages. |
| Total cooling capacity according to DIN EN 14511 | Cooling capacity L35 L35/50 Hz: 5.5 kW, Cooling capacity L35 L35/60 Hz: 5.5 kW, Cooling capacity L35 L50/50 Hz: 3.95 kW, Cooling capacity L35 L50/60 Hz: 3.95 kW |
| Rated operating voltage | 380 V - 480 V, 3~, 50 Hz/60 Hz |
| Note | By downloading the software, a contract is established between the contracting party and Rittal for the free use of the software according to these license terms. Only suitable for semi-outdoor use (see instruction manual). For protection of Blue e+ cooling units, appropriate surge protection must be provided: - Operating voltage < 460 V (3~): Uc 275 V, Imax 40 kA, In 20 kA, Up 1.5 kV. - Operating voltage > 460 V (3~): Uc 385 V, Imax 40 kA, In 20 kA, Up 1.5 kV. |
| Note on part number | Tolerance: 380 V -10 % (342 V) and 480 V +6 % (509 V), full installation not possible |
| Rated power | 2,35 kW |
| Air performance (free blowing) | External circuit: 2,300 m³/h, Internal circuit: 2,300 m³/h |
| Energy efficiency ratio (EER) 50/60 Hz L35 L35 | Cooling capacity ratio L35 L35 (EER) 50 Hz: 2.5, cooling capacity ratio L35 L35 (EER) 60 Hz: 2.5 |
| Seasonal energy efficiency ratio (SEER) 50/60 Hz | 5,6 |
| Width | 450 mm |
| Height | 1.600 mm |
| Depth | 393 mm |
| Required mounting cutout | Cutout width: 433 mm, cutout height: 1,579 mm |
| Degree of protection IP according to EN 60 529 | Internal circuit IP 55 |
| NEMA degree of protection | UL Type 12, UL Type 3R |
| Refrigerant/cooling medium | Refrigerant: R-513A, quantity: 1.8 kg, Global Warming Potential (GWP): 631, CO₂ equivalent (CO₂e): 1.14 t |
| Temperature control | e+ Controller (factory setting +35 °C) |
| Operating temperature range | -20 °C...60 °C |
| Storage temperature range | -40 °C...70 °C |
| Operating temperature range refrigerant circuit (active) | 3 °C...60 °C |
| Operating temperature range heat pipe | -20 °C...45 °C |
| Adjustment range | 20 °C...50 °C |
| Rated power Pel | Rated power L35 L35/50 Hz: 2.2 kW, Rated power L35 L35/60 Hz: 2.2 kW, Rated power L35 L50/50 Hz: 2.2 kW, Rated power L35 L50/60 Hz: 2.2 kW |
| Permissible operating pressure (p max.) | 24 bar |
| PCF/VE (Cradle-to-Gate) | 1.241,56 |
