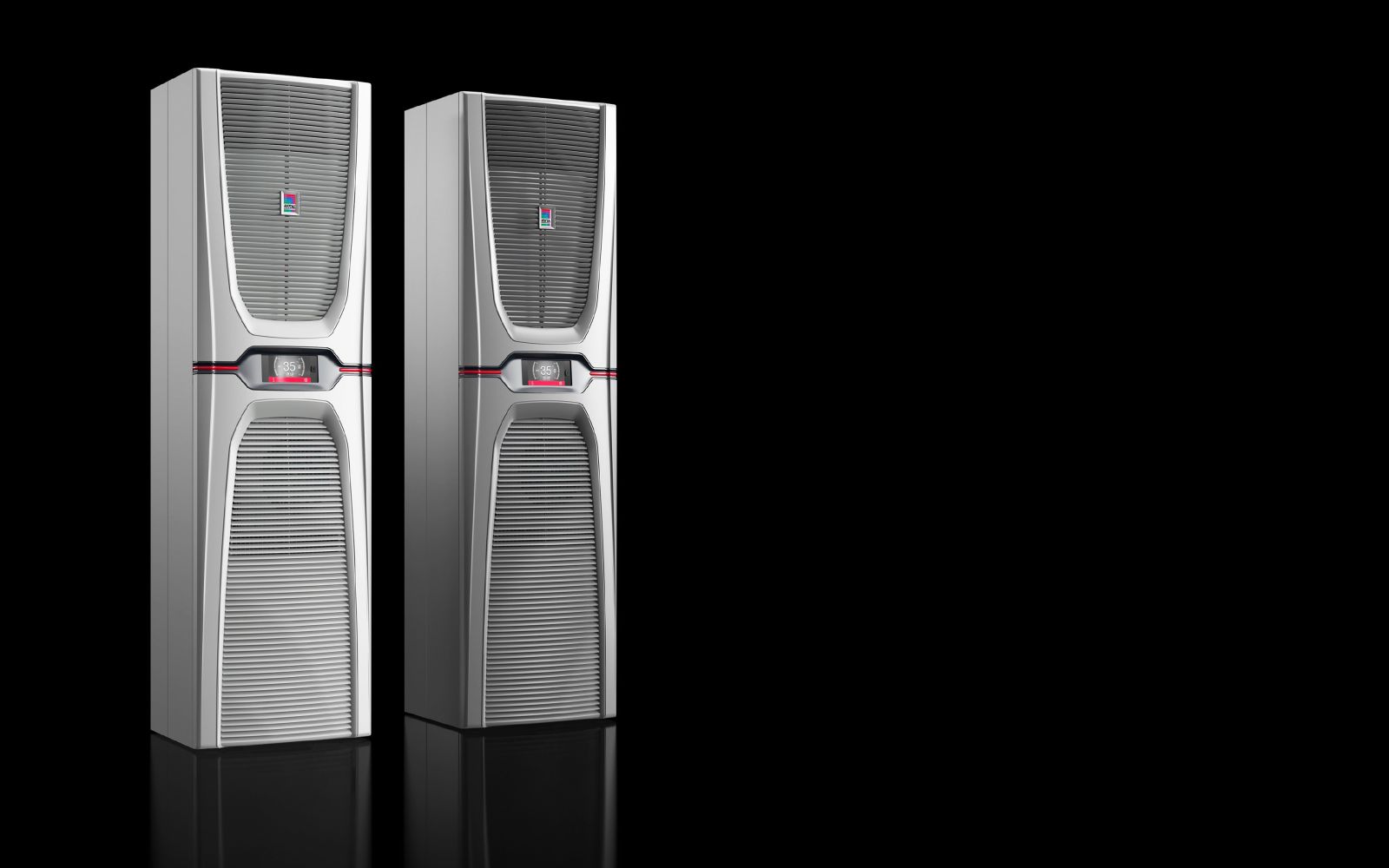

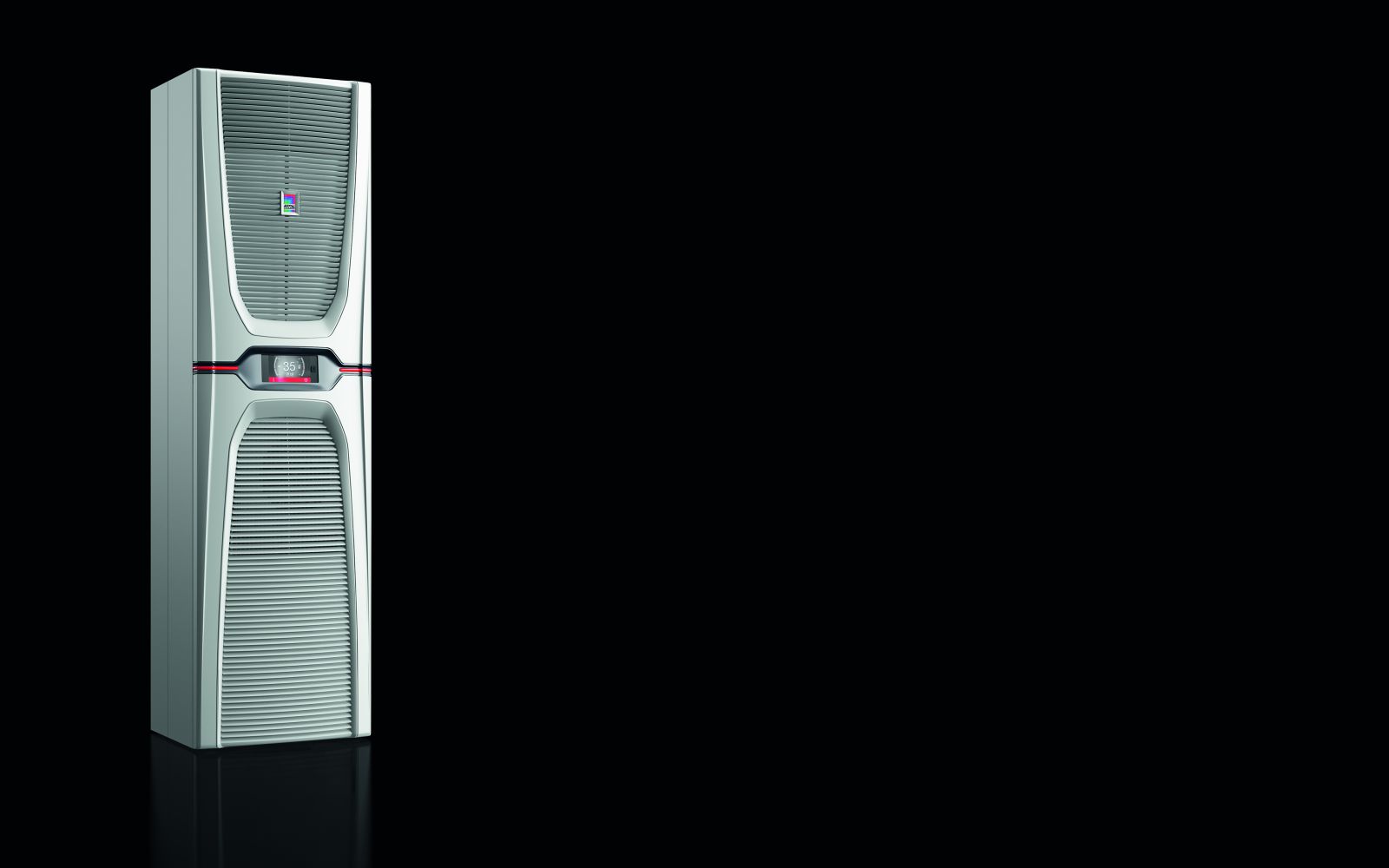

Rittal 3188940 Wall-mounted cooling unit Blue e+ 4.2 kW W x H x D 450x1600x393 mm

Your rating:
Average rating
product review for Rittal 3188940 Wall-mounted cooling unit Blue e+ 4.2 kW W x H x D 450x1600x393 mm
( 4.5 / 5 ) 86 ratings
Rittal 3188940
This image may differ from the desired article.
Rittal 3188940Rittal 3188940Rittal 3188940Rittal 3188940
3.708,75 EUR
( 4.413,41 EUR incl. VAT )
≈ £3,104.22  |  ≈ $4,075.92
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 3188940 Wall-mounted cooling unit Blue e+ 4.2 kW W x H x D 450x1600x393 mm
Datasheet:file_download Download
Lieske Part No.:1131483
Mfg Part No: 3188940
UPC/EAN: 4028177709591
Weight:0.123 kg
Type:SK 3188940

Product information for Rittal 3188940:

The Rittal SK 3188940 is a wall-mounted cooling unit of the Blue e+ series, specifically designed for climate control of enclosures in semi-outdoor environments. The unit features a total cooling capacity of 4.0 kW at an operating voltage of 380 V to 480 V, 3~, 50 Hz/60 Hz, and is made of sheet steel, painted in RAL 7035. It is designed for use in industrial environments where reliable and energy-efficient cooling is required. Dimensions are 450 mm (width) × 1,600 mm (height) × 393 mm (depth), requiring a mounting cutout of 433 mm (width) × 1,579 mm (height). The cooling unit is not suitable for full enclosure installation.

Applications
This unit is intended for use in enclosures in semi-outdoor environments, meaning installation under protected outdoor structures or in lightly exposed indoor areas. It is suitable for applications requiring continuous cooling of electronic components to extend their service life. Operating temperature ranges are between -20 °C and 60 °C, with the refrigerant circuit operating between 3 °C and 60 °C and the heat pipe between -20 °C and 45 °C. Storage temperature ranges extend from -40 °C to 70 °C.

Functions and Equipment in Detail
The cooling unit features a condenser with hydrophobic RiNano coating, supporting efficient condensate formation and drainage. The integrated electric condensate evaporation ensures that condensate evaporates directly within the unit and does not need to be drained. The unit is pre-wired with a plug-in terminal strip and is delivered including mounting materials. Temperature control is managed by an e+ controller, factory-set to +35 °C, with an adjustable range from 20 °C to 50 °C.

Technology Explained Simply
The cooling capacity is achieved through speed-controlled components and heat pipe technology, resulting in an average energy saving of 75 %. Air performance is 2,300 m³/h in both the external and internal circuits. Energy efficiency is described by the coefficient of performance (EER) of 3.08 (at 50 Hz and 60 Hz) and the seasonal energy efficiency ratio (SEER) of 6.5. The unit uses refrigerant R-513A with a quantity of 1.8 kg, a Global Warming Potential (GWP) of 631, and a CO₂ equivalent of 1.14 t. The permissible operating pressure is 24 bar.

Compatibility and Accessories
For remote monitoring and networking of Blue e+ units, the IoT Interface with article number 3124.300 can be used. This enables monitoring of device data, statuses, and system messages. Available accessories include, among others, covers for the connection box (article numbers 3355.200 and 3355.210), a condensate hose (12 x 2 mm, 10 m), metal filters, filter mats, an air deflector, and a temperature sensor for cooling units.

Mounting and Installation

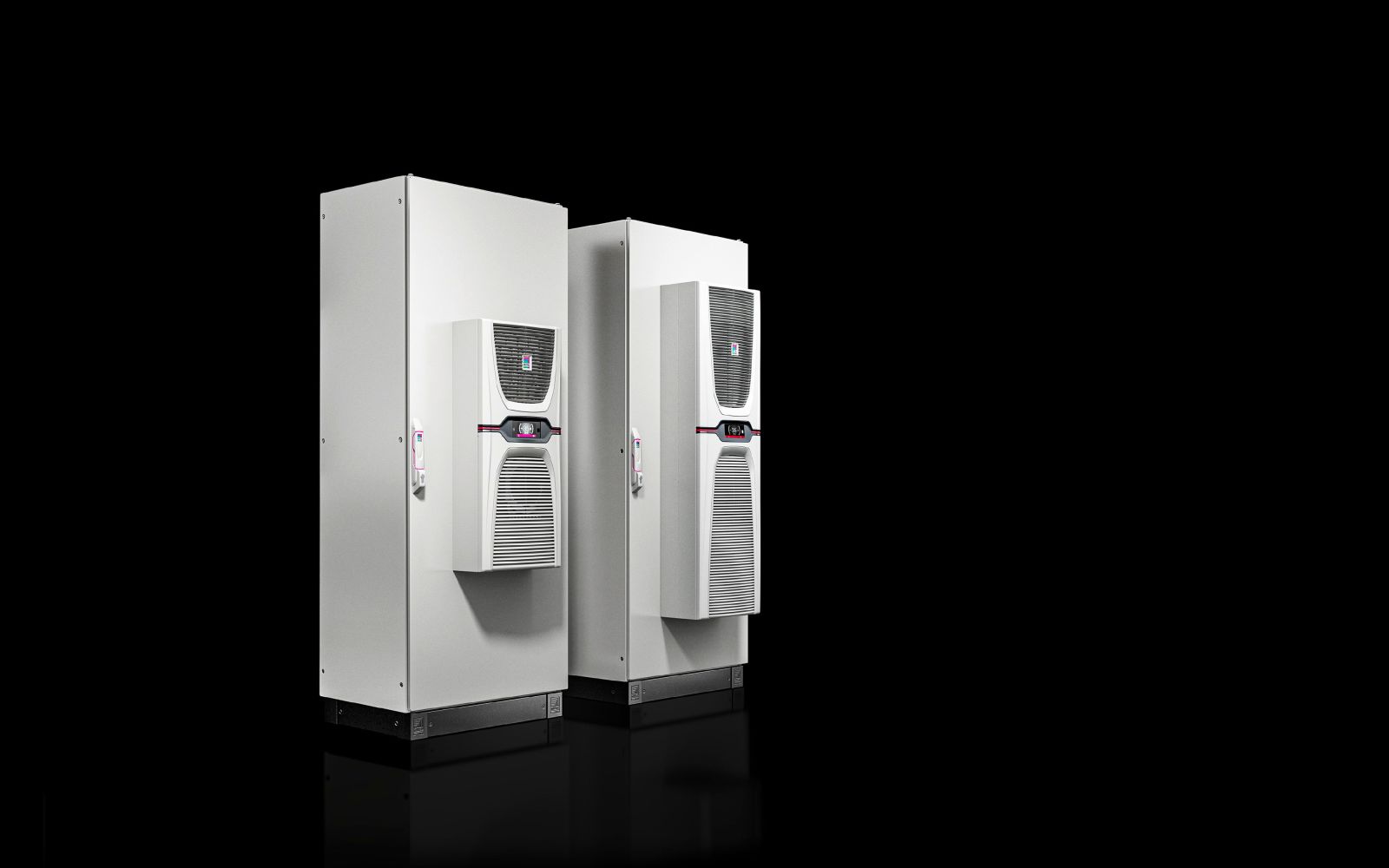

Mounting is done on a wall, requiring a mounting cutout of 433 mm (width) × 1,579 mm (height). The unit is not suitable for full enclosure installation. Mounting materials are included in the delivery. The electrical plug-in terminal strip simplifies installation. For device protection, appropriate surge protection should be provided; for operating voltages below 460 V (3~), Uc 275 V, Imax 40 kA, In 20 kA, and Up 1.5 kV are recommended. For operating voltages above 460 V (3~), Uc 385 V, Imax 40 kA, In 20 kA, and Up 1.5 kV apply.

Operational Advantages
The speed-controlled components and heat pipe technology ensure gentle component cooling, extending the service life of components installed in the enclosure. The integrated condensate evaporation reduces maintenance effort, as no condensate needs to be drained. Remote monitoring via the IoT Interface increases machine availability and process safety. Multi-voltage capability enables worldwide use of the unit. Protection rating IP 55 (internal circuit) and UL Type 12 as well as UL Type 3R (NEMA) ensure a high level of protection against dust and splashing water, which is essential for use in semi-outdoor environments.

General
ModelWall surface mounted
Market-relevant product changesThe cover for the connection box to protect the electrical connection on the cooling unit is no longer included in the scope of delivery from the beginning of 2024. The covers 3355.200 and 3355.210 can be ordered optionally as accessories.
Materialsteel sheet
ColourRAL 7035
Scope of deliveryCondensate trap with hydrophobic RiNano coating, Integrated electric condensate evaporation, Including mounting material, Pre-wired for connection (pluggable terminal block)
OptionsFor remote monitoring and networking of cooling units and chillers from the Blue e+ generation, use the IoT interface with article number 3124.300. Increase machine availability and process safety by remotely monitoring device data, statuses and system messages.
Total cooling capacity according to DIN EN 14511Cooling capacity L35 L35/50 Hz: 4 kW, Cooling capacity L35 L35/60 Hz: 4 kW, Cooling capacity L35 L50/50 Hz: 3.02 kW, Cooling capacity L35 L50/60 Hz: 3.02 kW
Rated operating voltage380 V - 480 V, 3~, 50 Hz/60 Hz
NoteBy downloading the software, a contract is established between the contracting party and Rittal for the free use of the software according to these license terms. Only suitable for semi-outdoor use (see instruction manual). For protection of Blue e+ cooling units, appropriate surge protection must be provided: - Operating voltage < 460 V (3~): Uc 275 V, Imax 40 kA, In 20 kA, Up 1.5 kV. - Operating voltage > 460 V (3~): Uc 385 V, Imax 40 kA, In 20 kA, Up 1.5 kV.
Note on part numberTolerance: 380 V -10 % (342 V) and 480 V +6 % (509 V), full installation not possible
Rated power1,45 kW
Air performance (free blowing)External circuit: 2,300 m³/h, Internal circuit: 2,300 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35Cooling capacity factor L35 L35 (EER) 50 Hz: 3.08, Cooling capacity factor L35 L35 (EER) 60 Hz: 3.08
Seasonal energy efficiency ratio (SEER) 50/60 Hz6,5
Width450 mm
Height1.600 mm
Depth393 mm
Required mounting cutoutCutout width: 433 mm, cutout height: 1,579 mm
Degree of protection IP according to EN 60 529Internal circuit IP 55
NEMA degree of protectionUL Type 12, UL Type 3R
Refrigerant/cooling mediumRefrigerant: R-513A, quantity: 1.8 kg, Global Warming Potential (GWP): 631, CO₂ equivalent (CO₂e): 1.14 t
Temperature controle+ Controller (factory setting +35 °C)
Operating temperature range-20 °C...60 °C
Storage temperature range-40 °C...70 °C
Operating temperature range refrigerant circuit (active)3 °C...60 °C
Operating temperature range heat pipe-20 °C...45 °C
Adjustment range20 °C...50 °C
Rated power PelRated power L35 L35/50 Hz: 1.3 kW, Rated power L35 L35/60 Hz: 1.3 kW, Rated power L35 L50/50 Hz: 1.28 kW, Rated power L35 L50/60 Hz: 1.28 kW
Permissible operating pressure (p max.)24 bar
PCF/VE (Cradle-to-Gate)1.168,6


Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 3188940, EAN: 4028177709591
