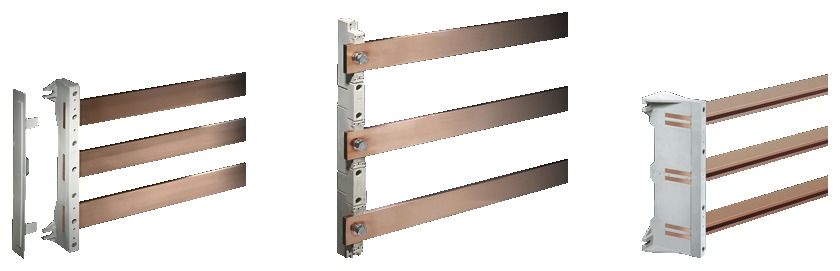

Rittal 3073000 SV Busbar support, 3-pole, 100 mm bar centre distance, for busbar WH: 30-60x10 mm
|
-12% 106,26 EUR 120,83 EUR |
|
|
( 126,45 EUR incl. VAT ) ≈ £91.06 | ≈ $120.71 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: 3 pieces | |
| Lieske Part No.: | 700927 |
|---|---|
| Mfg Part No: | 3073000 |
| UPC/EAN: | 4028177036079 |
| Weight: | 1.83 kg |
| Type: | SV 3073000 |
Further Power distribution components from RittalFurther products in category Power distribution components
All products of Rittal
Product information for Rittal 3073000:
Material: Fibreglass-reinforced, thermoplastic polyester (PBT)
Fire protection corresponding to UL 94-V0
Colour: RAL 7035
Packs of: 4 pc(s).
EAN: 4028177036079
Customs tariff number: 85469010
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27400613
ETIM 6.0: EC001166
To fit busbars: Type: Busbar E-Cu
with cross-section width: 30 mm
with cross-section width: 40 mm
with cross-section width: 50 mm
with cross-section width: 60 mm
with cross-section height: 10 mm
with cross-section height: 10 mm
with cross-section height: 10 mm
with cross-section height: 10 mm
Number of poles: 3-pole
Centre-to-centre spacing of busbars: 100 mm
Dimensions: Width: 22 mm
Height: 320 mm
Depth: 70 mm
Rated current (max.): 1250 A
Weight/pack: 1.82 kg
Fire protection corresponding to UL 94-V0
Colour: RAL 7035
Packs of: 4 pc(s).
EAN: 4028177036079
Customs tariff number: 85469010
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27400613
ETIM 6.0: EC001166
To fit busbars: Type: Busbar E-Cu
with cross-section width: 30 mm
with cross-section width: 40 mm
with cross-section width: 50 mm
with cross-section width: 60 mm
with cross-section height: 10 mm
with cross-section height: 10 mm
with cross-section height: 10 mm
with cross-section height: 10 mm
Number of poles: 3-pole
Centre-to-centre spacing of busbars: 100 mm
Dimensions: Width: 22 mm
Height: 320 mm
Depth: 70 mm
Rated current (max.): 1250 A
Weight/pack: 1.82 kg
