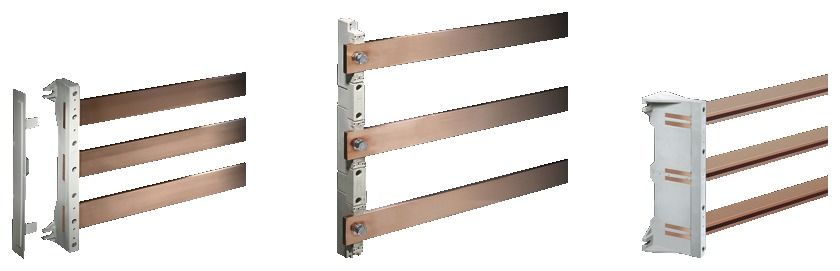

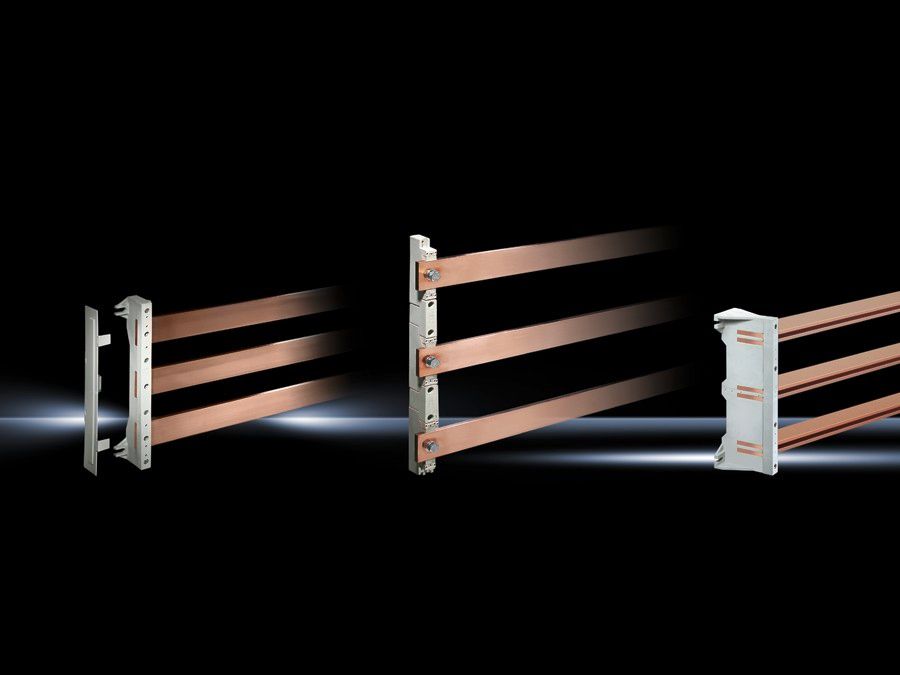

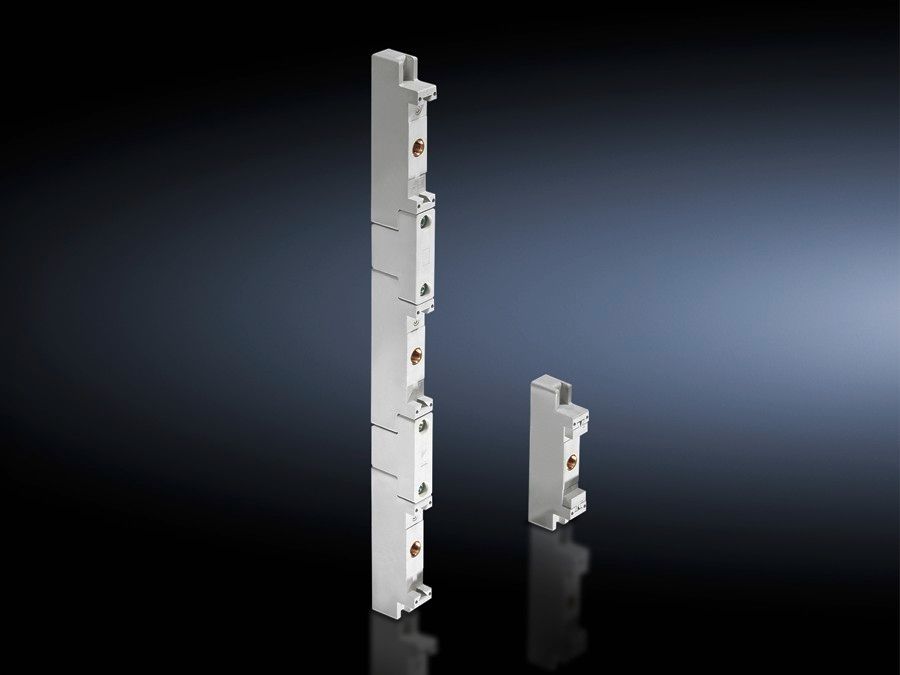

Rittal 3052000 SV Busbar support, 3-pole, 185 mm bar centre distance, for busbar WH: 50-80x10 mm
|
42,17 EUR 43,98 EUR |
|
|
( 50,18 EUR incl. VAT ) ≈ £36.14 | ≈ $47.91 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |
| In Stock: 2 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 460134 |
| Mfg Part No: | 3052000 |
| UPC/EAN: | 4028177035751 |
| Weight: | 1.338 kg |
| Type: | SV 3052000 |
Product information for Rittal 3052000:
Fire protection corresponding to UL 94-V0
Colour: RAL 7035
Packs of: 2 pc(s).
EAN: 4028177035751
Customs tariff number: 85469010
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27400613
ETIM 6.0: EC001166
To fit busbars: Type: Busbar E-Cu
with cross-section width: 50 mm
with cross-section width: 60 mm
with cross-section width: 80 mm
with cross-section height: 10 mm
with cross-section height: 10 mm
with cross-section height: 10 mm
Number of poles: 3-pole
Centre-to-centre spacing of busbars: 185 mm
Dimensions: Width: 24 mm
Height: 515 mm
Depth: 51 mm
Rated current (max.): 1600 A
Weight/pack: 1.34 kg
