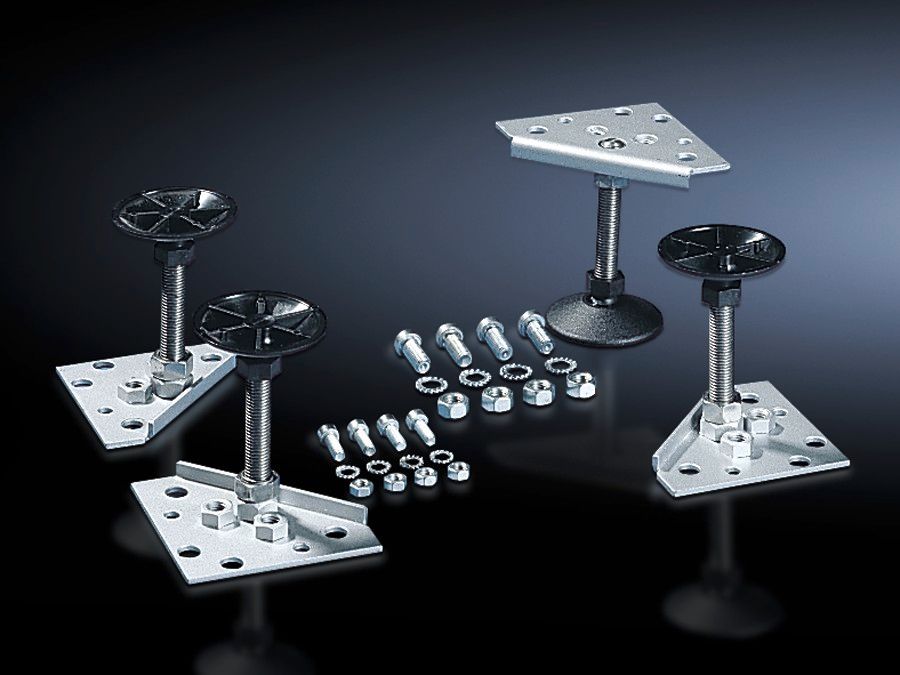

Rittal 2890000 SO levelling feet M16 with thread, pack of 4

Your rating:
Average rating
product review for Rittal 2890000 SO levelling feet M16 with thread, pack of 4
( 4 / 5 ) 3 ratings
Rittal 2890000
This image may differ from the desired article.
177,91 EUR 185,63 EUR
( 211,71 EUR incl. VAT )
≈ £148.91  |  ≈ $195.52
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 2890000 SO levelling feet M16 with thread, pack of 4
Datasheet:file_download Download
Lieske Part No.:1275409
Mfg Part No: 2890000
UPC/EAN: 4028177034044
Weight:2.74 kg
Type:SO 2890000

Product information for Rittal 2890000:

The Rittal SO 2890000 is a levelling foot made of stainless steel 1.4301 (AISI 304), specifically designed for mounting under TS type plinths and complete plinths. It compensates for floor irregularities and enables unobstructed accessibility, for example, for floor cleaning operations. The components are intended for direct mounting under the specified plinth types and provide a stable fastening solution in industrial and technical installations.

Applications

The levelling foot is used in installations where precise horizontal alignment of enclosures or housings is required. It is particularly suitable for environments with uneven or slightly offset floor surfaces, where mechanical height adjustment is necessary. Typical use cases include production halls, assembly areas, or installations in buildings with varying floor levels. The stainless steel 1.4301 construction also makes it suitable for environments with increased corrosion exposure.

Functions and Equipment in Detail

The foot features a M16 thread, intended for fastening to the plinths. The levelling range is 45 to 120 mm, allowing adjustment to different floor heights. The maximum static load capacity per component is 400 kg, ensuring high load-bearing capacity for industrial applications. The packaging unit includes 4 pieces, sufficient for standard mounting on a plinth.

Technology Explained Simply

The use of stainless steel 1.4301 (AISI 304) ensures high corrosion resistance and long service life, even in damp or slightly aggressive environments. The M16 thread enables secure and standardized mounting. The levelling range of 45 to 120 mm provides sufficient adjustment space to compensate for floor irregularities in industrial environments. The static load capacity of 400 kg per foot is sufficient for stabilizing heavy enclosures or housings.

Compatibility and Accessories

The levelling foot is specifically designed for mounting under TS type plinths and complete plinths. It is not intended for other plinth types or mounting variants. Use with other Rittal products that are based on these plinth types is possible, provided the mounting requirements are met.

Mounting and Installation

Mounting is performed directly under the TS plinth or the complete plinth. Fastening is done via the M16 thread. Height adjustment is achieved by rotating the foot within the levelling range.

Operational Advantages

Using the levelling foot enables precise horizontal alignment of enclosures, which is important for the functionality and stability of the installation. Unobstructed accessibility simplifies maintenance and cleaning tasks. The high static load capacity and corrosion resistance of the stainless steel ensure long service life and low maintenance requirements. The packaging unit of 4 pieces covers the standard requirement for one plinth.

General
MaterialStainless steel 1.4301 (AISI 304)
Mounting optionsFor direct mounting under TS base and complete base
Maximum load capacity (static) per component400 kg
ThreadM16
Levelling range45 ‐ 120 mm


Product data sheet
Datasheet for Rittal 2890000, EAN: 4028177034044
